Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,703,449
ssj_ops@100% per JVM = 1,425,862
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,720,722
Calibration 2     5,719,573
Calibration 3     5,729,146
ssj_ops@calibrated=5,724,359
100% 99.6% 5,724,359 5,703,449
90% 90.1% 5,151,923 5,156,239
80% 80.0% 4,579,488 4,576,692
70% 70.0% 4,007,052 4,006,043
60% 60.0% 3,434,616 3,435,783
50% 50.0% 2,862,180 2,862,743
40% 40.0% 2,289,744 2,291,495
30% 30.1% 1,717,308 1,721,871
20% 20.0% 1,144,872 1,143,723
10% 10.0% 572,436 571,237
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 7
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE04.001 1,428,670
NODE04.002 1,424,045
NODE04.003 1,424,561
NODE04.004 1,426,173
ssj_ops@100% 5,703,449
ssj_ops@100% per JVM 1,425,862
Graph of per-instance results
JVM 'NODE04.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,431,366
Calibration 2     1,432,764
Calibration 3     1,437,623
ssj_ops@calibrated=1,435,194
100% 99.5% 1,435,194 1,428,670
90% 90.2% 1,291,674 1,295,014
80% 80.1% 1,148,155 1,149,985
70% 70.0% 1,004,635 1,005,335
60% 60.0% 861,116 860,646
50% 50.2% 717,597 719,768
40% 40.1% 574,077 575,669
30% 30.1% 430,558 431,618
20% 20.0% 287,039 287,209
10% 10.0% 143,519 143,433
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,429,807
Calibration 2     1,428,109
Calibration 3     1,428,755
ssj_ops@calibrated=1,428,432
100% 99.7% 1,428,432 1,424,045
90% 90.0% 1,285,589 1,285,038
80% 79.9% 1,142,746 1,141,317
70% 70.0% 999,902 999,703
60% 60.1% 857,059 857,978
50% 50.1% 714,216 715,823
40% 40.0% 571,373 571,172
30% 30.1% 428,530 429,978
20% 20.1% 285,686 286,758
10% 9.9% 142,843 141,082
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,431,055
Calibration 2     1,429,300
Calibration 3     1,434,020
ssj_ops@calibrated=1,431,660
100% 99.5% 1,431,660 1,424,561
90% 89.9% 1,288,494 1,287,615
80% 80.1% 1,145,328 1,146,391
70% 69.8% 1,002,162 999,995
60% 60.0% 858,996 858,951
50% 50.1% 715,830 716,639
40% 40.1% 572,664 574,215
30% 30.1% 429,498 431,318
20% 20.0% 286,332 286,663
10% 10.0% 143,166 143,431
Active Idle   0 0

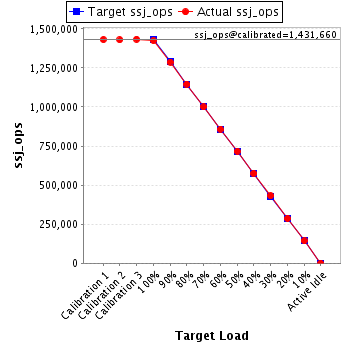

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE04.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,494
Calibration 2     1,429,400
Calibration 3     1,428,748
ssj_ops@calibrated=1,429,074
100% 99.8% 1,429,074 1,426,173
90% 90.2% 1,286,166 1,288,571
80% 79.7% 1,143,259 1,138,999
70% 70.0% 1,000,352 1,001,010
60% 60.1% 857,444 858,208
50% 49.7% 714,537 710,514
40% 39.9% 571,630 570,439
30% 30.0% 428,722 428,956
20% 19.8% 285,815 283,092
10% 10.0% 142,907 143,293
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
