Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,753,703
ssj_ops@100% per JVM = 1,438,426
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,753,921
Calibration 2     5,768,013
Calibration 3     5,767,702
ssj_ops@calibrated=5,767,858
100% 99.8% 5,767,858 5,753,703
90% 90.0% 5,191,072 5,189,616
80% 80.0% 4,614,286 4,616,686
70% 70.0% 4,037,500 4,038,400
60% 60.1% 3,460,715 3,465,771
50% 50.0% 2,883,929 2,882,657
40% 40.0% 2,307,143 2,305,237
30% 30.0% 1,730,357 1,730,044
20% 20.0% 1,153,572 1,156,349
10% 10.0% 576,786 576,919
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 7
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x HPE Synergy 480 Gen10 M.2 FIO Adapter Board Kit (873165-B21); 1 x HPE 480GB SATA 6G Read Intensive M.2 2280 SSD (875498-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v1.32 (02/01/2018)
Management Firmware Version: 1.15 Aug 17 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE06.001 1,429,361
NODE06.002 1,439,015
NODE06.003 1,438,565
NODE06.004 1,446,761
ssj_ops@100% 5,753,703
ssj_ops@100% per JVM 1,438,426

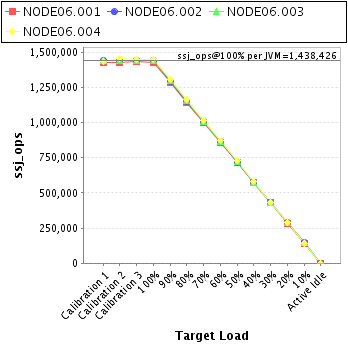

Graph of per-instance results
JVM 'NODE06.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,430,538
Calibration 2     1,427,530
Calibration 3     1,434,646
ssj_ops@calibrated=1,431,088
100% 99.9% 1,431,088 1,429,361
90% 89.8% 1,287,979 1,285,164
80% 80.0% 1,144,870 1,144,390
70% 70.1% 1,001,762 1,002,558
60% 60.1% 858,653 860,235
50% 49.9% 715,544 713,919
40% 40.0% 572,435 572,329
30% 30.1% 429,326 430,303
20% 20.0% 286,218 285,743
10% 10.0% 143,109 143,688
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE06.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,441,595
Calibration 2     1,438,411
Calibration 3     1,443,987
ssj_ops@calibrated=1,441,199
100% 99.8% 1,441,199 1,439,015
90% 89.9% 1,297,079 1,295,702
80% 80.1% 1,152,959 1,153,888
70% 70.0% 1,008,839 1,009,520
60% 60.1% 864,719 866,478
50% 49.9% 720,599 719,073
40% 40.0% 576,480 576,554
30% 30.0% 432,360 431,850
20% 20.1% 288,240 289,448
10% 10.0% 144,120 144,206
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE06.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,445,005
Calibration 2     1,443,646
Calibration 3     1,442,315
ssj_ops@calibrated=1,442,981
100% 99.7% 1,442,981 1,438,565
90% 90.0% 1,298,682 1,299,374
80% 80.1% 1,154,384 1,155,941
70% 70.1% 1,010,086 1,011,207
60% 60.0% 865,788 866,381
50% 50.1% 721,490 722,436
40% 39.9% 577,192 576,172
30% 30.0% 432,894 433,304
20% 20.1% 288,596 289,495
10% 10.1% 144,298 145,306
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE06.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,436,783
Calibration 2     1,458,426
Calibration 3     1,446,754
ssj_ops@calibrated=1,452,590
100% 99.6% 1,452,590 1,446,761
90% 90.1% 1,307,331 1,309,375
80% 80.0% 1,162,072 1,162,467
70% 69.9% 1,016,813 1,015,115
60% 60.1% 871,554 872,678
50% 50.1% 726,295 727,229
40% 39.9% 581,036 580,182
30% 29.9% 435,777 434,587
20% 20.1% 290,518 291,663
10% 9.9% 145,259 143,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
