Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module SPECpower_ssj2008 = 10,648 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 27, 2018
Hardware Availability: Jun-2018 Software Availability: Mar-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 4,001 22.8
Calibration 2 4,039 22.9
Calibration 3 4,040 22.6
100% 4,030 22.6
90% 3,643 22.5
80% 3,064 22.6
70% 2,618 22.9
60% 2,259 22.9
50% 1,958 22.8
40% 1,725 22.8
30% 1,523 22.8
20% 1,330 22.8
10% 1,138 22.8
Active Idle 572 22.8

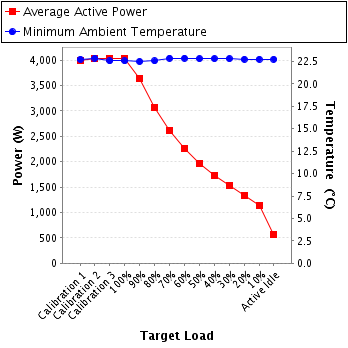

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 2, and 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EN5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1, and 4
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: Transcat Metrology
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 3, and 6
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 6.40 10.0 0.992 1,347 0.4%
Calibration 2 212 300.0 6.46 10.0 0.992 1,358 0.4%
Calibration 3 212 300.0 6.44 10.0 0.992 1,356 0.4%
100% 212 300.0 6.43 10.0 0.992 1,354 0.4%
90% 212 300.0 5.78 10.0 0.989 1,215 0.4%
80% 212 300.0 4.86 10.0 0.985 1,015 0.5%
70% 212 300.0 4.23 10.0 0.980 880 0.5%
60% 212 300.0 3.73 5.0 0.974 771 0.4%
50% 213 300.0 3.29 5.0 0.967 676 0.4%
40% 213 300.0 2.93 5.0 0.959 599 0.5%
30% 213 300.0 2.68 5.0 0.949 542 0.5%
20% 213 300.0 2.41 5.0 0.927 477 0.5%
10% 213 300.0 1.92 5.0 0.872 357 0.7%
Active Idle 214 300.0 1.18 2.0 0.704 178 0.7%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 6.29 10.0 0.992 1,325 0.4%
Calibration 2 212 300.0 6.35 10.0 0.992 1,339 0.4%
Calibration 3 213 300.0 6.35 10.0 0.992 1,339 0.4%
100% 213 300.0 6.32 10.0 0.992 1,332 0.4%
90% 213 300.0 5.75 10.0 0.990 1,209 0.4%
80% 212 300.0 4.90 10.0 0.986 1,025 0.5%
70% 212 300.0 4.16 10.0 0.981 866 0.5%
60% 213 300.0 3.52 5.0 0.973 729 0.4%
50% 213 300.0 3.00 5.0 0.964 617 0.4%
40% 213 300.0 2.66 5.0 0.954 540 0.5%
30% 214 300.0 2.35 5.0 0.937 470 0.5%
20% 213 300.0 2.12 5.0 0.903 407 0.6%
10% 214 300.0 1.98 5.0 0.883 374 0.7%
Active Idle 214 300.0 1.16 2.0 0.731 182 0.7%

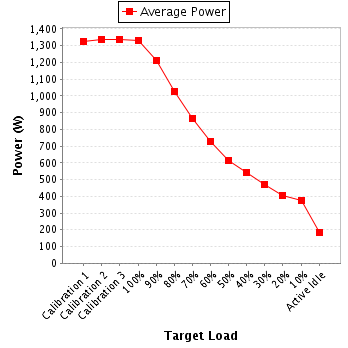

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 6.37 10.0 0.968 1,329 0.4%
Calibration 2 216 300.0 6.43 10.0 0.969 1,342 0.4%
Calibration 3 216 300.0 6.43 10.0 0.970 1,345 0.4%
100% 216 300.0 6.42 10.0 0.969 1,343 0.4%
90% 216 300.0 5.87 10.0 0.962 1,219 0.5%
80% 215 300.0 5.02 10.0 0.948 1,024 0.5%
70% 216 300.0 4.35 10.0 0.930 873 0.6%
60% 216 300.0 3.86 5.0 0.910 758 0.4%
50% 216 300.0 3.46 5.0 0.888 665 0.5%
40% 216 300.0 3.14 5.0 0.862 586 0.5%
30% 217 300.0 2.85 5.0 0.828 511 0.6%
20% 217 300.0 2.64 5.0 0.779 446 0.6%
10% 217 300.0 2.48 5.0 0.757 408 0.7%
Active Idle 217 300.0 1.86 2.0 0.526 213 0.8%
Power details for pwr3
