Hewlett Packard Enterprise ProLiant DL360 Gen10 | SPECpower_ssj2008 = 11,709 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Aug 26, 2018 |
Hardware Availability: | Jun-2018 | Software Availability: | Jul-2018 | Publication: | Sep 12, 2018 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

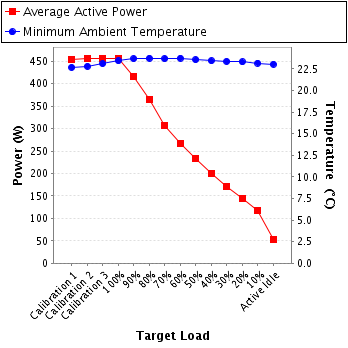

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 453 | 22.7 |
Calibration 2 | 457 | 22.8 |
Calibration 3 | 457 | 23.1 |
100% | 457 | 23.4 |
90% | 417 | 23.7 |
80% | 365 | 23.8 |
70% | 307 | 23.7 |
60% | 268 | 23.8 |
50% | 233 | 23.6 |
40% | 201 | 23.4 |
30% | 171 | 23.4 |
20% | 144 | 23.3 |
10% | 117 | 23.2 |
Active Idle | 52.4 | 23.1 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT310 |
Serial Number: | C2QM22004V |
Connectivity: | Yokogawa USB |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EL6R4-140-1 |
Date of Calibration: | 05-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | Connected to SUT Power Supply 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 214 | 300.0 | 2.14 | 5.0 | 0.990 | 453 | 0.5% |
Calibration 2 | 214 | 300.0 | 2.16 | 5.0 | 0.990 | 457 | 0.5% |
Calibration 3 | 214 | 300.0 | 2.16 | 5.0 | 0.990 | 457 | 0.5% |
100% | 214 | 300.0 | 2.16 | 5.0 | 0.990 | 457 | 0.5% |
90% | 214 | 300.0 | 1.97 | 5.0 | 0.989 | 417 | 0.5% |
80% | 213 | 300.0 | 1.74 | 2.0 | 0.986 | 365 | 0.3% |
70% | 213 | 300.0 | 1.47 | 2.0 | 0.983 | 307 | 0.3% |
60% | 213 | 300.0 | 1.28 | 2.0 | 0.981 | 268 | 0.4% |
50% | 213 | 300.0 | 1.12 | 2.0 | 0.979 | 233 | 0.4% |
40% | 213 | 300.0 | 0.967 | 1.0 | 0.975 | 201 | 0.3% |
30% | 213 | 300.0 | 0.828 | 1.0 | 0.969 | 171 | 0.3% |
20% | 213 | 300.0 | 0.702 | 1.0 | 0.959 | 144 | 0.4% |
10% | 213 | 300.0 | 0.584 | 1.0 | 0.942 | 117 | 0.4% |
Active Idle | 213 | 300.0 | 0.310 | 0.5 | 0.794 | 52.4 | 0.5% |
