Hewlett Packard Enterprise ProLiant DL360 Gen10 ssj_ops@100% = 5,797,852
ssj_ops@100% per JVM = 1,449,463
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Aug 26, 2018
Hardware Availability: Jun-2018 Software Availability: Jul-2018 Publication: Sep 12, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,823,018
Calibration 2     5,823,485
Calibration 3     5,817,005
ssj_ops@calibrated=5,820,245
100% 99.6% 5,820,245 5,797,852
90% 90.0% 5,238,220 5,239,349
80% 80.0% 4,656,196 4,653,803
70% 70.0% 4,074,171 4,073,457
60% 60.0% 3,492,147 3,489,848
50% 50.0% 2,910,122 2,910,406
40% 40.0% 2,328,098 2,328,266
30% 30.0% 1,746,073 1,743,645
20% 20.0% 1,164,049 1,163,335
10% 10.0% 582,024 581,147
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 1
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: ProLiant DL360 Gen10
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 96
# and size of DIMM: 12 x 8182 MB
Memory Details: 12 x 8GB 2Rx8 PC4-2666V-RE1-12 Samsung; slots 1, 3, 5, 8, 10, and 12 populated in each socket
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply 96% (865438-B21)
Disk Drive: 1 x HPE 240GB SATA 6G SSD (875503-B21)
Disk Controller: 1 x HPE Smart Array S100i SR Gen10 (784308-B21)
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Ethernet 1Gb 4-port 331i Adapter
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP3
OS Version: Kernel 4.4.120-94.17-default
Filesystem: xfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -Djava.awt.headless=true -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: numactl --cpunodebind=[0-3] --localalloc
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: U32 v1.40 (06/15/2018)
Management Firmware Version: 1.30 pass 01 Dec 14 2017
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version:2018.06.0 (26 Jun 2018), HPE Microprocessor Vulnerability ROM Updates (spp_supplement-2018.06.0.2) Version:2018.06.0(9 Jul 2018); ucode-intel-20180312-13.17.1
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-kz5l.001 1,443,106
linux-kz5l.002 1,448,612
linux-kz5l.003 1,467,636
linux-kz5l.004 1,438,498
ssj_ops@100% 5,797,852
ssj_ops@100% per JVM 1,449,463

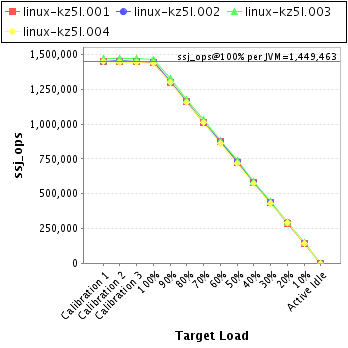

Graph of per-instance results

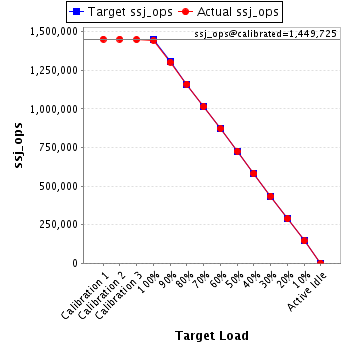

JVM 'linux-kz5l.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,451,154
Calibration 2     1,451,082
Calibration 3     1,448,369
ssj_ops@calibrated=1,449,725
100% 99.5% 1,449,725 1,443,106
90% 89.8% 1,304,753 1,302,276
80% 80.0% 1,159,780 1,160,119
70% 70.0% 1,014,808 1,014,295
60% 60.2% 869,835 872,036
50% 50.1% 724,863 725,626
40% 40.0% 579,890 580,044
30% 30.0% 434,918 435,374
20% 19.9% 289,945 287,968
10% 10.0% 144,973 144,777
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

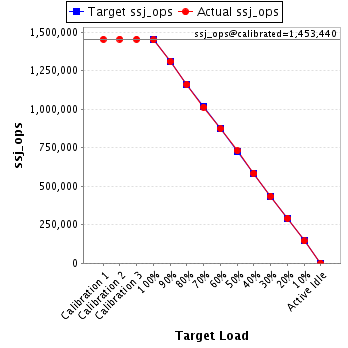

JVM 'linux-kz5l.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,452,433
Calibration 2     1,453,881
Calibration 3     1,452,999
ssj_ops@calibrated=1,453,440
100% 99.7% 1,453,440 1,448,612
90% 90.1% 1,308,096 1,309,330
80% 79.8% 1,162,752 1,159,405
70% 69.7% 1,017,408 1,013,760
60% 60.0% 872,064 872,417
50% 50.2% 726,720 729,213
40% 40.0% 581,376 581,994
30% 30.0% 436,032 435,756
20% 20.1% 290,688 292,243
10% 9.9% 145,344 144,607
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

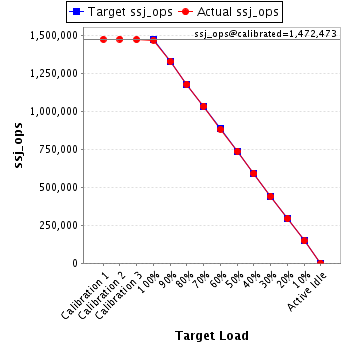

JVM 'linux-kz5l.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,472,585
Calibration 2     1,473,982
Calibration 3     1,470,964
ssj_ops@calibrated=1,472,473
100% 99.7% 1,472,473 1,467,636
90% 90.1% 1,325,226 1,326,683
80% 79.9% 1,177,978 1,176,461
70% 70.2% 1,030,731 1,033,384
60% 59.9% 883,484 881,482
50% 50.0% 736,237 736,272
40% 40.0% 588,989 589,482
30% 29.9% 441,742 440,433
20% 19.9% 294,495 293,622
10% 10.0% 147,247 147,511
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

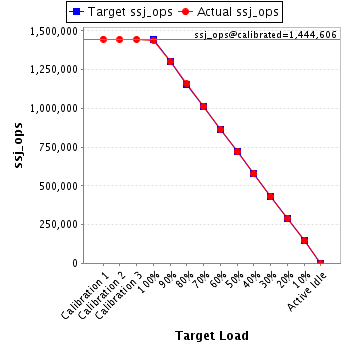

JVM 'linux-kz5l.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,446,846
Calibration 2     1,444,540
Calibration 3     1,444,673
ssj_ops@calibrated=1,444,606
100% 99.6% 1,444,606 1,438,498
90% 90.1% 1,300,146 1,301,060
80% 80.1% 1,155,685 1,157,818
70% 70.1% 1,011,224 1,012,018
60% 59.8% 866,764 863,913
50% 49.8% 722,303 719,295
40% 39.9% 577,843 576,746
30% 29.9% 433,382 432,082
20% 20.0% 288,921 289,501
10% 10.0% 144,461 144,252
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
