SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2018 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL380 Gen10 | SPECpower_ssj2008 = 11,540 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Aug 28, 2018 |
| Hardware Availability: | Jun-2018 | Software Availability: | Jul-2018 | Publication: | Sep 12, 2018 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

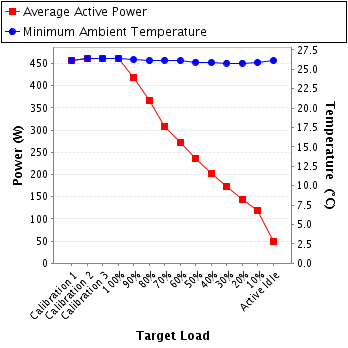

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 458 | 26.2 |
| Calibration 2 | 462 | 26.4 |
| Calibration 3 | 462 | 26.4 |
| 100% | 461 | 26.4 |
| 90% | 419 | 26.2 |
| 80% | 366 | 26.1 |
| 70% | 308 | 26.2 |
| 60% | 271 | 26.1 |
| 50% | 237 | 25.9 |
| 40% | 203 | 25.9 |
| 30% | 173 | 25.8 |
| 20% | 145 | 25.8 |
| 10% | 118 | 25.9 |
| Active Idle | 49.3 | 26.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91K308556 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-EM5Y4-40-1 |
| Date of Calibration: | 21-Jun-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | SUT Power Supplies 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 213 | 300.0 | 2.19 | 5.0 | 0.982 | 458 | 0.5% |
| Calibration 2 | 213 | 300.0 | 2.20 | 5.0 | 0.983 | 462 | 0.5% |
| Calibration 3 | 213 | 300.0 | 2.21 | 5.0 | 0.983 | 462 | 0.5% |
| 100% | 213 | 300.0 | 2.20 | 5.0 | 0.982 | 461 | 0.5% |
| 90% | 213 | 300.0 | 2.01 | 5.0 | 0.980 | 419 | 0.5% |
| 80% | 214 | 300.0 | 1.76 | 2.0 | 0.973 | 366 | 0.4% |
| 70% | 214 | 300.0 | 1.50 | 2.0 | 0.965 | 308 | 0.4% |
| 60% | 214 | 300.0 | 1.32 | 2.0 | 0.959 | 271 | 0.4% |
| 50% | 214 | 300.0 | 1.17 | 2.0 | 0.949 | 237 | 0.5% |
| 40% | 214 | 300.0 | 1.01 | 1.0 | 0.936 | 203 | 0.4% |
| 30% | 214 | 300.0 | 0.880 | 1.0 | 0.917 | 173 | 0.4% |
| 20% | 214 | 300.0 | 0.760 | 1.0 | 0.889 | 145 | 0.5% |
| 10% | 214 | 300.0 | 0.652 | 1.0 | 0.848 | 118 | 0.5% |
| Active Idle | 214 | 300.0 | 0.414 | 0.5 | 0.555 | 49.3 | 0.8% |
