Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module | SPECpower_ssj2008 = 10,237 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Aug 29, 2018 |
Hardware Availability: | Jun-2018 | Software Availability: | Mar-2018 | Publication: | Sep 12, 2018 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 2,474 | 22.7 |
Calibration 2 | 2,496 | 22.6 |
Calibration 3 | 2,499 | 22.4 |
100% | 2,495 | 22.5 |
90% | 2,266 | 22.6 |
80% | 1,920 | 22.8 |
70% | 1,658 | 22.8 |
60% | 1,456 | 22.8 |
50% | 1,281 | 22.6 |
40% | 1,144 | 22.6 |
30% | 1,024 | 22.6 |
20% | 905 | 22.7 |
10% | 782 | 22.8 |
Active Idle | 466 | 22.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB53024 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Transcat Metrology |
Calibration Label: | 5-EM5Y4-80-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 2, and 5 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | Transcat Metrology |
Calibration Label: | 5-EN5Y4-60-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 1, and 4 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |

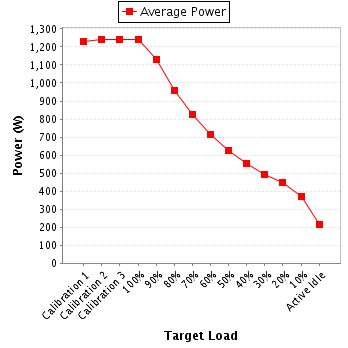

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 212 | 300.0 | 5.86 | 10.0 | 0.989 | 1,231 | 0.4% |
Calibration 2 | 213 | 300.0 | 5.90 | 10.0 | 0.990 | 1,242 | 0.4% |
Calibration 3 | 213 | 300.0 | 5.91 | 10.0 | 0.990 | 1,243 | 0.4% |
100% | 213 | 300.0 | 5.90 | 10.0 | 0.990 | 1,242 | 0.4% |
90% | 213 | 300.0 | 5.37 | 10.0 | 0.988 | 1,130 | 0.4% |
80% | 213 | 300.0 | 4.57 | 10.0 | 0.983 | 957 | 0.5% |
70% | 213 | 300.0 | 3.97 | 10.0 | 0.977 | 827 | 0.6% |
60% | 213 | 300.0 | 3.45 | 5.0 | 0.970 | 714 | 0.4% |
50% | 214 | 300.0 | 3.04 | 5.0 | 0.962 | 625 | 0.4% |
40% | 214 | 300.0 | 2.73 | 5.0 | 0.951 | 555 | 0.5% |
30% | 214 | 300.0 | 2.47 | 5.0 | 0.934 | 494 | 0.5% |
20% | 215 | 300.0 | 2.29 | 5.0 | 0.918 | 451 | 0.6% |
10% | 215 | 300.0 | 1.99 | 5.0 | 0.865 | 369 | 0.7% |
Active Idle | 215 | 300.0 | 1.30 | 2.0 | 0.768 | 214 | 0.6% |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 212 | 300.0 | 5.91 | 10.0 | 0.992 | 1,243 | 0.4% |
Calibration 2 | 212 | 300.0 | 5.96 | 10.0 | 0.992 | 1,254 | 0.4% |
Calibration 3 | 212 | 300.0 | 5.96 | 10.0 | 0.992 | 1,256 | 0.4% |
100% | 212 | 300.0 | 5.94 | 10.0 | 0.992 | 1,253 | 0.4% |
90% | 213 | 300.0 | 5.40 | 10.0 | 0.990 | 1,136 | 0.4% |
80% | 213 | 300.0 | 4.59 | 10.0 | 0.987 | 963 | 0.5% |
70% | 213 | 300.0 | 3.97 | 10.0 | 0.982 | 831 | 0.5% |
60% | 213 | 300.0 | 3.56 | 5.0 | 0.978 | 741 | 0.4% |
50% | 213 | 300.0 | 3.17 | 5.0 | 0.973 | 657 | 0.4% |
40% | 214 | 300.0 | 2.85 | 5.0 | 0.966 | 589 | 0.5% |
30% | 214 | 300.0 | 2.60 | 5.0 | 0.953 | 530 | 0.5% |
20% | 214 | 300.0 | 2.28 | 5.0 | 0.933 | 455 | 0.6% |
10% | 214 | 300.0 | 2.13 | 5.0 | 0.903 | 413 | 0.6% |
Active Idle | 215 | 300.0 | 1.39 | 2.0 | 0.846 | 252 | 0.5% |
