SPECpower_ssj2008 Host 'node-3' Performance Report

SPECpower_ssj2008

Host 'node-3' Performance Report

Lenovo Global Technology ThinkSystem SD530			ssj_ops@100% = 4,957,959 ssj_ops@100% per JVM = 88,535
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Multi Node
Tested By:	Lenovo Global Technology	Test Location:	Taipei, Taiwan	Test Date:	Aug 24, 2018
Hardware Availability:	Jul-2018	Software Availability:	Jan-2018	Publication:	Sep 12, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,225,704
Calibration 2			5,080,752
Calibration 3			4,969,927
ssj_ops@calibrated=5,025,339
100%	98.7%	5,025,339	4,957,959
90%	90.4%	4,522,805	4,545,256
80%	80.0%	4,020,272	4,022,610
70%	70.1%	3,517,738	3,521,079
60%	60.0%	3,015,204	3,013,484
50%	50.1%	2,512,670	2,515,710
40%	40.0%	2,010,136	2,009,637
30%	29.9%	1,507,602	1,503,693
20%	20.0%	1,005,068	1,005,614
10%	10.0%	502,534	501,240
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	4
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	ThinkSystem SD530
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8176
CPU Characteristics:	28-Core, 2.10 GHz, 39424 KB L3 Cache
CPU Frequency (MHz):	2100
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16 GB
Memory Details:	16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,2,3,6,7,8,9,10,11,14,15 and 16 for each processor
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Ethernet Connection X722 for 10Gb SFP+
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Lenovo Power Plan V1.0 for Windows Server 2012 R2 in OS
Operating System (OS):	Microsoft Windows Server 2012 R2 DataCenter
OS Version:	6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances:	56
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	TEE123N (Jul 12 2018)
Management Firmware Version:	TEI325Q (Jul 19 2018)
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Applied the OS patches: KB4056898

Boot Firmware Settings

Operating Mode: Custom Mode
Memory Power Management: Balanced
Page Policy:Adaptive
Intel VT for Directed I/O(VT-d): Disable
Memory Data Scrambling: Disable
Execute Disable Bit: Disable
Turbo Mode: Disable
Hardware Prefetcher: Disable
Adjacent Cache Prefetch: Disable
DCU Streamer Prefetcher: Disable
Patrol Scrub:Disable

Management Firmware Settings

None

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Benchmark was started via Windows Remote Desktop Connection
Minimum Processor State: 0%
Maximum Processor State: 100%
Set "Turn off hard disk after = 1 Minute" in OS.
Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Aug 15, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.

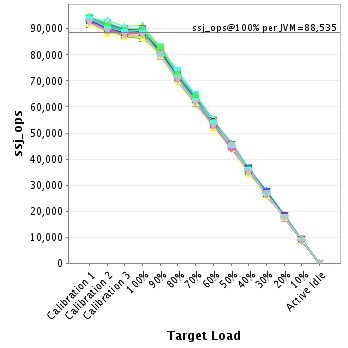

JVM Instance Summary

JVM Instance	ssj_ops@100%
node-3.001	88,501
node-3.002	88,908
node-3.003	91,136
node-3.004	87,074
node-3.005	88,472
node-3.006	89,562
node-3.007	88,175
node-3.008	87,230
node-3.009	89,688
node-3.010	88,741
node-3.011	88,631
node-3.012	88,026
node-3.013	89,718
node-3.014	89,024
node-3.015	88,368
node-3.016	90,136
node-3.017	87,776
node-3.018	88,966
node-3.019	87,951
node-3.020	87,423
node-3.021	89,913
node-3.022	87,728
node-3.023	89,550
node-3.024	88,072
node-3.025	88,982
node-3.026	89,019
node-3.027	87,417
node-3.028	86,363
node-3.029	87,319
node-3.030	90,145
node-3.031	88,763
node-3.032	87,960
node-3.033	88,189
node-3.034	89,642
node-3.035	87,242
node-3.036	88,703
node-3.037	89,826
node-3.038	87,832
node-3.039	88,245
node-3.040	88,644
node-3.041	88,856
node-3.042	88,463
node-3.043	88,649
node-3.044	89,110
node-3.045	88,311
node-3.046	86,622
node-3.047	89,536
node-3.048	89,396
node-3.049	88,452
node-3.050	88,658
node-3.051	88,586
node-3.052	89,441
node-3.053	86,624
node-3.054	88,173
node-3.055	88,753
node-3.056	87,267
ssj_ops@100%	4,957,959
ssj_ops@100% per JVM	88,535

JVM 'node-3.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,920
Calibration 2			90,766
Calibration 3			88,812
ssj_ops@calibrated=89,789
100%	98.6%	89,789	88,501
90%	90.0%	80,810	80,842
80%	80.1%	71,831	71,926
70%	69.8%	62,852	62,691
60%	59.9%	53,873	53,798
50%	49.4%	44,894	44,387
40%	39.1%	35,915	35,149
30%	29.9%	26,937	26,872
20%	20.0%	17,958	17,933
10%	9.8%	8,979	8,808
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,290
Calibration 2			90,929
Calibration 3			89,023
ssj_ops@calibrated=89,976
100%	98.8%	89,976	88,908
90%	90.1%	80,978	81,053
80%	81.1%	71,981	73,012
70%	70.7%	62,983	63,629
60%	60.5%	53,986	54,458
50%	50.2%	44,988	45,201
40%	40.3%	35,990	36,238
30%	29.5%	26,993	26,515
20%	20.1%	17,995	18,088
10%	9.9%	8,998	8,908
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,949
Calibration 2			93,077
Calibration 3			90,909
ssj_ops@calibrated=91,993
100%	99.1%	91,993	91,136
90%	90.0%	82,794	82,838
80%	79.1%	73,594	72,723
70%	70.1%	64,395	64,448
60%	59.1%	55,196	54,343
50%	50.0%	45,996	46,026
40%	39.2%	36,797	36,106
30%	29.5%	27,598	27,136
20%	19.8%	18,399	18,215
10%	9.8%	9,199	8,975
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,158
Calibration 2			90,399
Calibration 3			87,761
ssj_ops@calibrated=89,080
100%	97.7%	89,080	87,074
90%	90.4%	80,172	80,533
80%	80.2%	71,264	71,432
70%	71.1%	62,356	63,294
60%	59.6%	53,448	53,136
50%	50.0%	44,540	44,567
40%	39.7%	35,632	35,370
30%	29.3%	26,724	26,123
20%	20.1%	17,816	17,865
10%	9.9%	8,908	8,782
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

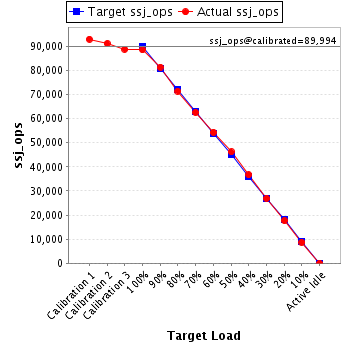

JVM 'node-3.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,959
Calibration 2			91,162
Calibration 3			88,826
ssj_ops@calibrated=89,994
100%	98.3%	89,994	88,472
90%	90.4%	80,995	81,376
80%	79.3%	71,995	71,404
70%	69.5%	62,996	62,579
60%	60.4%	53,997	54,344
50%	51.3%	44,997	46,195
40%	40.7%	35,998	36,651
30%	30.0%	26,998	26,986
20%	19.6%	17,999	17,646
10%	9.7%	8,999	8,708
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,216
Calibration 2			91,875
Calibration 3			89,976
ssj_ops@calibrated=90,926
100%	98.5%	90,926	89,562
90%	91.5%	81,833	83,171
80%	80.6%	72,741	73,255
70%	69.7%	63,648	63,348
60%	60.0%	54,555	54,572
50%	50.0%	45,463	45,488
40%	40.3%	36,370	36,608
30%	29.7%	27,278	27,004
20%	19.5%	18,185	17,721
10%	9.8%	9,093	8,922
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,508
Calibration 2			90,765
Calibration 3			88,261
ssj_ops@calibrated=89,513
100%	98.5%	89,513	88,175
90%	89.5%	80,562	80,112
80%	80.3%	71,611	71,876
70%	70.3%	62,659	62,894
60%	60.1%	53,708	53,814
50%	49.8%	44,757	44,552
40%	40.6%	35,805	36,302
30%	30.2%	26,854	27,066
20%	20.1%	17,903	18,006
10%	9.6%	8,951	8,629
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,337
Calibration 2			91,327
Calibration 3			87,689
ssj_ops@calibrated=89,508
100%	97.5%	89,508	87,230
90%	91.4%	80,557	81,792
80%	79.4%	71,607	71,109
70%	69.8%	62,656	62,446
60%	60.1%	53,705	53,763
50%	50.3%	44,754	45,007
40%	40.0%	35,803	35,823
30%	30.5%	26,852	27,326
20%	20.2%	17,902	18,096
10%	9.7%	8,951	8,716
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.009' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,310
Calibration 2			91,681
Calibration 3			89,773
ssj_ops@calibrated=90,727
100%	98.9%	90,727	89,688
90%	91.1%	81,655	82,618
80%	80.7%	72,582	73,213
70%	69.9%	63,509	63,406
60%	60.1%	54,436	54,557
50%	50.2%	45,364	45,572
40%	39.9%	36,291	36,242
30%	30.1%	27,218	27,345
20%	20.0%	18,145	18,168
10%	9.8%	9,073	8,908
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.010' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,787
Calibration 2			90,965
Calibration 3			88,660
ssj_ops@calibrated=89,813
100%	98.8%	89,813	88,741
90%	89.8%	80,831	80,616
80%	80.6%	71,850	72,371
70%	70.4%	62,869	63,244
60%	59.8%	53,888	53,688
50%	49.4%	44,906	44,389
40%	40.5%	35,925	36,348
30%	30.1%	26,944	27,078
20%	19.5%	17,963	17,512
10%	9.9%	8,981	8,928
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.011' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,104
Calibration 2			91,180
Calibration 3			88,792
ssj_ops@calibrated=89,986
100%	98.5%	89,986	88,631
90%	90.3%	80,988	81,254
80%	80.8%	71,989	72,703
70%	70.0%	62,990	62,989
60%	59.8%	53,992	53,805
50%	49.9%	44,993	44,917
40%	40.0%	35,995	35,960
30%	30.1%	26,996	27,099
20%	20.3%	17,997	18,230
10%	10.1%	8,999	9,104
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.012' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,782
Calibration 2			90,554
Calibration 3			88,156
ssj_ops@calibrated=89,355
100%	98.5%	89,355	88,026
90%	91.6%	80,419	81,852
80%	79.8%	71,484	71,308
70%	69.1%	62,548	61,738
60%	60.2%	53,613	53,786
50%	50.8%	44,677	45,414
40%	40.1%	35,742	35,861
30%	29.6%	26,806	26,463
20%	19.8%	17,871	17,648
10%	9.6%	8,935	8,616
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.013' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,011
Calibration 2			91,722
Calibration 3			89,411
ssj_ops@calibrated=90,566
100%	99.1%	90,566	89,718
90%	90.3%	81,510	81,775
80%	79.6%	72,453	72,080
70%	70.7%	63,397	64,007
60%	59.3%	54,340	53,666
50%	50.2%	45,283	45,420
40%	39.7%	36,227	35,912
30%	30.4%	27,170	27,576
20%	20.2%	18,113	18,321
10%	10.2%	9,057	9,271
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.014' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,626
Calibration 2			92,105
Calibration 3			89,169
ssj_ops@calibrated=90,637
100%	98.2%	90,637	89,024
90%	91.2%	81,573	82,634
80%	80.2%	72,509	72,696
70%	70.0%	63,446	63,473
60%	59.8%	54,382	54,221
50%	50.1%	45,318	45,445
40%	39.9%	36,255	36,130
30%	30.7%	27,191	27,795
20%	20.1%	18,127	18,200
10%	10.3%	9,064	9,291
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.015' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,460
Calibration 2			91,499
Calibration 3			89,284
ssj_ops@calibrated=90,392
100%	97.8%	90,392	88,368
90%	91.4%	81,353	82,621
80%	79.2%	72,313	71,589
70%	70.2%	63,274	63,493
60%	60.0%	54,235	54,193
50%	50.5%	45,196	45,617
40%	39.6%	36,157	35,833
30%	29.4%	27,118	26,579
20%	19.6%	18,078	17,735
10%	10.1%	9,039	9,090
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.016' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,999
Calibration 2			91,849
Calibration 3			90,040
ssj_ops@calibrated=90,945
100%	99.1%	90,945	90,136
90%	90.4%	81,850	82,221
80%	79.4%	72,756	72,214
70%	69.9%	63,661	63,595
60%	59.3%	54,567	53,954
50%	48.9%	45,472	44,451
40%	39.5%	36,378	35,934
30%	30.1%	27,283	27,391
20%	20.1%	18,189	18,241
10%	9.8%	9,094	8,925
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.017' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,166
Calibration 2			90,666
Calibration 3			88,494
ssj_ops@calibrated=89,580
100%	98.0%	89,580	87,776
90%	89.8%	80,622	80,461
80%	79.6%	71,664	71,301
70%	69.7%	62,706	62,435
60%	61.0%	53,748	54,679
50%	49.5%	44,790	44,337
40%	40.0%	35,832	35,871
30%	30.1%	26,874	26,969
20%	20.1%	17,916	18,003
10%	10.2%	8,958	9,096
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.018' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,114
Calibration 2			91,450
Calibration 3			88,487
ssj_ops@calibrated=89,968
100%	98.9%	89,968	88,966
90%	90.9%	80,972	81,812
80%	79.7%	71,975	71,746
70%	70.5%	62,978	63,395
60%	59.8%	53,981	53,777
50%	49.8%	44,984	44,838
40%	39.7%	35,987	35,726
30%	29.9%	26,991	26,879
20%	19.9%	17,994	17,875
10%	9.9%	8,997	8,920
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.019' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,175
Calibration 2			90,348
Calibration 3			88,002
ssj_ops@calibrated=89,175
100%	98.6%	89,175	87,951
90%	90.0%	80,258	80,250
80%	79.8%	71,340	71,141
70%	69.9%	62,423	62,293
60%	60.6%	53,505	54,000
50%	50.0%	44,588	44,594
40%	39.3%	35,670	35,015
30%	29.6%	26,753	26,355
20%	19.9%	17,835	17,788
10%	10.2%	8,918	9,140
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.020' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,260
Calibration 2			91,564
Calibration 3			88,210
ssj_ops@calibrated=89,887
100%	97.3%	89,887	87,423
90%	90.7%	80,898	81,539
80%	80.3%	71,910	72,194
70%	71.2%	62,921	63,974
60%	59.5%	53,932	53,491
50%	49.8%	44,944	44,767
40%	39.6%	35,955	35,621
30%	29.9%	26,966	26,916
20%	20.0%	17,977	18,003
10%	10.0%	8,989	8,987
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.021' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,488
Calibration 2			92,333
Calibration 3			90,075
ssj_ops@calibrated=91,204
100%	98.6%	91,204	89,913
90%	91.0%	82,084	82,967
80%	81.1%	72,963	73,927
70%	71.2%	63,843	64,934
60%	60.3%	54,722	55,014
50%	50.1%	45,602	45,666
40%	40.2%	36,482	36,682
30%	29.6%	27,361	26,966
20%	20.1%	18,241	18,342
10%	10.1%	9,120	9,254
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.022' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,732
Calibration 2			90,374
Calibration 3			87,923
ssj_ops@calibrated=89,149
100%	98.4%	89,149	87,728
90%	90.2%	80,234	80,413
80%	81.0%	71,319	72,224
70%	69.9%	62,404	62,332
60%	60.4%	53,489	53,829
50%	49.9%	44,574	44,485
40%	40.5%	35,659	36,069
30%	30.0%	26,745	26,707
20%	19.2%	17,830	17,096
10%	10.0%	8,915	8,921
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.023' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,203
Calibration 2			91,762
Calibration 3			89,967
ssj_ops@calibrated=90,864
100%	98.6%	90,864	89,550
90%	89.7%	81,778	81,482
80%	80.4%	72,691	73,014
70%	70.2%	63,605	63,827
60%	60.4%	54,519	54,883
50%	49.9%	45,432	45,340
40%	39.6%	36,346	35,945
30%	29.6%	27,259	26,854
20%	19.7%	18,173	17,895
10%	10.2%	9,086	9,229
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

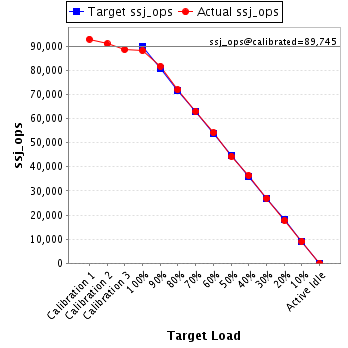

JVM 'node-3.024' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,886
Calibration 2			90,963
Calibration 3			88,527
ssj_ops@calibrated=89,745
100%	98.1%	89,745	88,072
90%	91.0%	80,770	81,666
80%	80.2%	71,796	71,964
70%	70.2%	62,821	63,001
60%	60.3%	53,847	54,088
50%	49.3%	44,872	44,243
40%	40.5%	35,898	36,365
30%	30.1%	26,923	27,025
20%	19.7%	17,949	17,717
10%	10.0%	8,974	9,012
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.025' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,266
Calibration 2			91,204
Calibration 3			88,993
ssj_ops@calibrated=90,099
100%	98.8%	90,099	88,982
90%	89.2%	81,089	80,346
80%	80.8%	72,079	72,826
70%	70.0%	63,069	63,032
60%	59.7%	54,059	53,791
50%	49.6%	45,049	44,694
40%	40.1%	36,039	36,154
30%	29.7%	27,030	26,792
20%	20.1%	18,020	18,099
10%	10.1%	9,010	9,145
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.026' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,017
Calibration 2			91,594
Calibration 3			89,269
ssj_ops@calibrated=90,431
100%	98.4%	90,431	89,019
90%	91.2%	81,388	82,442
80%	80.0%	72,345	72,308
70%	70.5%	63,302	63,726
60%	60.5%	54,259	54,696
50%	50.6%	45,216	45,772
40%	40.7%	36,173	36,837
30%	30.3%	27,129	27,386
20%	20.3%	18,086	18,332
10%	10.2%	9,043	9,224
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.027' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,628
Calibration 2			90,272
Calibration 3			87,419
ssj_ops@calibrated=88,845
100%	98.4%	88,845	87,417
90%	91.0%	79,961	80,881
80%	80.8%	71,076	71,798
70%	70.4%	62,192	62,588
60%	58.8%	53,307	52,207
50%	50.1%	44,423	44,526
40%	40.1%	35,538	35,669
30%	29.0%	26,654	25,788
20%	20.0%	17,769	17,797
10%	10.0%	8,885	8,900
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.028' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			91,645
Calibration 2			89,688
Calibration 3			87,172
ssj_ops@calibrated=88,430
100%	97.7%	88,430	86,363
90%	91.0%	79,587	80,458
80%	80.5%	70,744	71,220
70%	69.7%	61,901	61,647
60%	59.7%	53,058	52,786
50%	49.6%	44,215	43,868
40%	39.8%	35,372	35,219
30%	30.1%	26,529	26,640
20%	20.8%	17,686	18,350
10%	9.9%	8,843	8,729
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.029' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,240
Calibration 2			89,273
Calibration 3			87,782
ssj_ops@calibrated=88,527
100%	98.6%	88,527	87,319
90%	90.5%	79,675	80,113
80%	79.7%	70,822	70,599
70%	69.7%	61,969	61,732
60%	59.8%	53,116	52,931
50%	50.7%	44,264	44,908
40%	40.4%	35,411	35,800
30%	30.4%	26,558	26,904
20%	19.6%	17,705	17,352
10%	10.0%	8,853	8,817
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.030' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,801
Calibration 2			91,890
Calibration 3			89,963
ssj_ops@calibrated=90,926
100%	99.1%	90,926	90,145
90%	89.3%	81,834	81,155
80%	80.3%	72,741	73,035
70%	69.6%	63,648	63,289
60%	60.0%	54,556	54,574
50%	50.3%	45,463	45,704
40%	39.3%	36,371	35,725
30%	29.5%	27,278	26,859
20%	20.2%	18,185	18,333
10%	9.7%	9,093	8,842
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.031' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,206
Calibration 2			90,274
Calibration 3			89,155
ssj_ops@calibrated=89,715
100%	98.9%	89,715	88,763
90%	89.4%	80,743	80,218
80%	78.9%	71,772	70,743
70%	70.9%	62,800	63,577
60%	59.4%	53,829	53,263
50%	49.3%	44,857	44,265
40%	40.4%	35,886	36,280
30%	30.2%	26,914	27,123
20%	20.2%	17,943	18,079
10%	9.9%	8,971	8,887
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

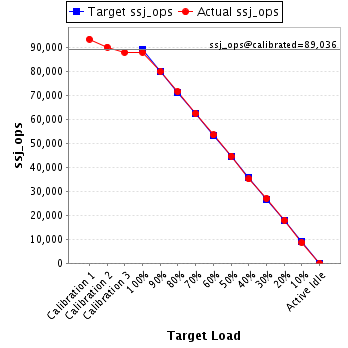

JVM 'node-3.032' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,423
Calibration 2			90,149
Calibration 3			87,922
ssj_ops@calibrated=89,036
100%	98.8%	89,036	87,960
90%	89.8%	80,132	79,955
80%	80.4%	71,229	71,553
70%	70.1%	62,325	62,439
60%	60.1%	53,421	53,488
50%	50.2%	44,518	44,688
40%	39.5%	35,614	35,140
30%	30.4%	26,711	27,063
20%	20.1%	17,807	17,918
10%	9.7%	8,904	8,666
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.033' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,760
Calibration 2			89,456
Calibration 3			88,326
ssj_ops@calibrated=88,891
100%	99.2%	88,891	88,189
90%	89.4%	80,002	79,511
80%	79.4%	71,113	70,609
70%	68.8%	62,223	61,158
60%	59.4%	53,334	52,800
50%	50.8%	44,445	45,112
40%	40.2%	35,556	35,769
30%	29.2%	26,667	25,933
20%	19.4%	17,778	17,266
10%	10.0%	8,889	8,896
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.034' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,785
Calibration 2			92,392
Calibration 3			90,382
ssj_ops@calibrated=91,387
100%	98.1%	91,387	89,642
90%	90.7%	82,248	82,890
80%	80.2%	73,109	73,259
70%	69.6%	63,971	63,602
60%	60.4%	54,832	55,221
50%	49.5%	45,693	45,208
40%	40.5%	36,555	37,044
30%	29.7%	27,416	27,113
20%	20.5%	18,277	18,729
10%	10.0%	9,139	9,125
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.035' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,700
Calibration 2			89,326
Calibration 3			87,932
ssj_ops@calibrated=88,629
100%	98.4%	88,629	87,242
90%	90.5%	79,766	80,184
80%	79.8%	70,903	70,732
70%	70.4%	62,041	62,389
60%	59.5%	53,178	52,762
50%	49.7%	44,315	44,020
40%	39.8%	35,452	35,315
30%	30.0%	26,589	26,629
20%	20.6%	17,726	18,243
10%	9.9%	8,863	8,767
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.036' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,039
Calibration 2			91,040
Calibration 3			89,076
ssj_ops@calibrated=90,058
100%	98.5%	90,058	88,703
90%	91.3%	81,052	82,229
80%	80.6%	72,046	72,577
70%	70.3%	63,041	63,276
60%	60.3%	54,035	54,308
50%	49.3%	45,029	44,375
40%	40.6%	36,023	36,533
30%	30.6%	27,017	27,567
20%	20.1%	18,012	18,143
10%	10.2%	9,006	9,179
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.037' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,032
Calibration 2			91,412
Calibration 3			90,066
ssj_ops@calibrated=90,739
100%	99.0%	90,739	89,826
90%	91.8%	81,665	83,309
80%	80.6%	72,591	73,117
70%	69.8%	63,517	63,361
60%	60.4%	54,444	54,801
50%	49.5%	45,370	44,890
40%	39.9%	36,296	36,215
30%	29.9%	27,222	27,090
20%	19.9%	18,148	18,051
10%	10.3%	9,074	9,317
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.038' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,708
Calibration 2			89,705
Calibration 3			88,059
ssj_ops@calibrated=88,882
100%	98.8%	88,882	87,832
90%	90.4%	79,994	80,329
80%	80.6%	71,106	71,656
70%	70.1%	62,217	62,281
60%	60.6%	53,329	53,859
50%	51.5%	44,441	45,749
40%	40.0%	35,553	35,537
30%	30.0%	26,665	26,653
20%	20.6%	17,776	18,294
10%	10.2%	8,888	9,033
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.039' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,423
Calibration 2			90,188
Calibration 3			88,572
ssj_ops@calibrated=89,380
100%	98.7%	89,380	88,245
90%	90.7%	80,442	81,082
80%	79.5%	71,504	71,065
70%	69.8%	62,566	62,423
60%	59.9%	53,628	53,559
50%	49.6%	44,690	44,321
40%	40.7%	35,752	36,345
30%	29.3%	26,814	26,214
20%	20.1%	17,876	17,933
10%	10.1%	8,938	9,014
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.040' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,130
Calibration 2			90,063
Calibration 3			88,309
ssj_ops@calibrated=89,186
100%	99.4%	89,186	88,644
90%	90.3%	80,267	80,553
80%	80.0%	71,349	71,359
70%	69.3%	62,430	61,839
60%	60.4%	53,512	53,891
50%	50.5%	44,593	45,082
40%	39.8%	35,674	35,495
30%	29.3%	26,756	26,136
20%	20.3%	17,837	18,097
10%	9.8%	8,919	8,712
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.041' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,672
Calibration 2			91,113
Calibration 3			89,236
ssj_ops@calibrated=90,174
100%	98.5%	90,174	88,856
90%	90.0%	81,157	81,198
80%	79.8%	72,139	72,003
70%	69.6%	63,122	62,722
60%	60.4%	54,105	54,448
50%	49.7%	45,087	44,805
40%	40.3%	36,070	36,303
30%	30.1%	27,052	27,157
20%	19.8%	18,035	17,841
10%	10.3%	9,017	9,318
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.042' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,077
Calibration 2			90,530
Calibration 3			88,559
ssj_ops@calibrated=89,545
100%	98.8%	89,545	88,463
90%	91.1%	80,590	81,563
80%	79.7%	71,636	71,399
70%	70.1%	62,681	62,726
60%	60.0%	53,727	53,727
50%	50.4%	44,772	45,139
40%	40.3%	35,818	36,072
30%	30.0%	26,863	26,898
20%	20.6%	17,909	18,406
10%	10.0%	8,954	8,963
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.043' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,782
Calibration 2			90,656
Calibration 3			88,742
ssj_ops@calibrated=89,699
100%	98.8%	89,699	88,649
90%	89.2%	80,729	80,047
80%	80.9%	71,759	72,596
70%	70.1%	62,789	62,874
60%	60.4%	53,819	54,203
50%	49.6%	44,849	44,509
40%	40.6%	35,880	36,410
30%	29.9%	26,910	26,816
20%	20.2%	17,940	18,089
10%	10.3%	8,970	9,279
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

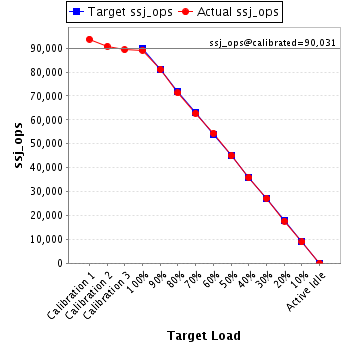

JVM 'node-3.044' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,733
Calibration 2			90,737
Calibration 3			89,325
ssj_ops@calibrated=90,031
100%	99.0%	90,031	89,110
90%	90.0%	81,028	81,067
80%	79.2%	72,025	71,293
70%	69.6%	63,022	62,676
60%	60.4%	54,019	54,394
50%	50.0%	45,015	44,984
40%	39.8%	36,012	35,821
30%	30.2%	27,009	27,205
20%	19.6%	18,006	17,658
10%	9.9%	9,003	8,895
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.045' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,629
Calibration 2			89,154
Calibration 3			88,370
ssj_ops@calibrated=88,762
100%	99.5%	88,762	88,311
90%	90.1%	79,886	79,960
80%	79.9%	71,010	70,882
70%	70.5%	62,133	62,603
60%	60.0%	53,257	53,280
50%	50.4%	44,381	44,742
40%	39.5%	35,505	35,069
30%	30.2%	26,629	26,849
20%	20.1%	17,752	17,879
10%	9.8%	8,876	8,671
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.046' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,191
Calibration 2			88,787
Calibration 3			87,349
ssj_ops@calibrated=88,068
100%	98.4%	88,068	86,622
90%	90.8%	79,261	79,927
80%	79.1%	70,455	69,641
70%	69.1%	61,648	60,895
60%	59.6%	52,841	52,447
50%	49.9%	44,034	43,937
40%	39.3%	35,227	34,641
30%	30.2%	26,420	26,620
20%	19.9%	17,614	17,546
10%	9.8%	8,807	8,608
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.047' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,304
Calibration 2			91,365
Calibration 3			89,687
ssj_ops@calibrated=90,526
100%	98.9%	90,526	89,536
90%	89.9%	81,474	81,395
80%	79.5%	72,421	71,935
70%	70.4%	63,368	63,728
60%	59.4%	54,316	53,739
50%	49.8%	45,263	45,038
40%	40.4%	36,211	36,533
30%	29.7%	27,158	26,908
20%	19.9%	18,105	18,007
10%	9.7%	9,053	8,750
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.048' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,956
Calibration 2			90,730
Calibration 3			89,529
ssj_ops@calibrated=90,129
100%	99.2%	90,129	89,396
90%	89.9%	81,116	81,043
80%	79.8%	72,103	71,944
70%	70.8%	63,090	63,846
60%	59.8%	54,078	53,890
50%	50.3%	45,065	45,346
40%	39.7%	36,052	35,752
30%	30.5%	27,039	27,493
20%	20.2%	18,026	18,207
10%	9.9%	9,013	8,937
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.049' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,334
Calibration 2			90,567
Calibration 3			88,383
ssj_ops@calibrated=89,475
100%	98.9%	89,475	88,452
90%	91.0%	80,528	81,425
80%	80.3%	71,580	71,879
70%	69.8%	62,633	62,424
60%	60.7%	53,685	54,300
50%	50.3%	44,738	45,032
40%	39.6%	35,790	35,448
30%	29.8%	26,843	26,705
20%	20.4%	17,895	18,216
10%	9.8%	8,948	8,762
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.050' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,639
Calibration 2			89,821
Calibration 3			88,325
ssj_ops@calibrated=89,073
100%	99.5%	89,073	88,658
90%	90.4%	80,165	80,558
80%	79.6%	71,258	70,938
70%	69.4%	62,351	61,843
60%	59.8%	53,444	53,292
50%	49.9%	44,536	44,469
40%	39.7%	35,629	35,332
30%	29.7%	26,722	26,411
20%	20.0%	17,815	17,846
10%	10.2%	8,907	9,109
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.051' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,295
Calibration 2			90,079
Calibration 3			88,897
ssj_ops@calibrated=89,488
100%	99.0%	89,488	88,586
90%	90.5%	80,539	80,963
80%	80.6%	71,590	72,127
70%	70.4%	62,641	62,970
60%	60.0%	53,693	53,703
50%	51.0%	44,744	45,618
40%	40.7%	35,795	36,409
30%	30.2%	26,846	27,043
20%	19.9%	17,898	17,777
10%	10.0%	8,949	8,962
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.052' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,378
Calibration 2			91,240
Calibration 3			89,458
ssj_ops@calibrated=90,349
100%	99.0%	90,349	89,441
90%	90.7%	81,314	81,955
80%	80.2%	72,279	72,447
70%	70.7%	63,244	63,898
60%	59.9%	54,209	54,102
50%	50.4%	45,174	45,493
40%	39.9%	36,140	36,092
30%	29.8%	27,105	26,966
20%	19.5%	18,070	17,615
10%	10.2%	9,035	9,206
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.053' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,165
Calibration 2			88,061
Calibration 3			86,944
ssj_ops@calibrated=87,503
100%	99.0%	87,503	86,624
90%	91.2%	78,752	79,809
80%	80.2%	70,002	70,150
70%	70.6%	61,252	61,787
60%	59.1%	52,502	51,749
50%	50.4%	43,751	44,123
40%	39.2%	35,001	34,272
30%	29.6%	26,251	25,928
20%	19.9%	17,501	17,450
10%	10.1%	8,750	8,796
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.054' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,984
Calibration 2			89,378
Calibration 3			88,128
ssj_ops@calibrated=88,753
100%	99.3%	88,753	88,173
90%	90.8%	79,878	80,573
80%	79.5%	71,002	70,565
70%	70.4%	62,127	62,513
60%	59.4%	53,252	52,712
50%	49.8%	44,377	44,238
40%	39.9%	35,501	35,437
30%	29.6%	26,626	26,291
20%	20.2%	17,751	17,891
10%	9.6%	8,875	8,552
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.055' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,972
Calibration 2			90,314
Calibration 3			89,028
ssj_ops@calibrated=89,671
100%	99.0%	89,671	88,753
90%	89.3%	80,704	80,073
80%	79.6%	71,737	71,344
70%	69.7%	62,770	62,499
60%	60.4%	53,803	54,155
50%	50.3%	44,835	45,064
40%	40.5%	35,868	36,295
30%	29.8%	26,901	26,724
20%	20.2%	17,934	18,109
10%	10.3%	8,967	9,267
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-3.056' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,354
Calibration 2			88,975
Calibration 3			87,345
ssj_ops@calibrated=88,160
100%	99.0%	88,160	87,267
90%	90.9%	79,344	80,146
80%	80.1%	70,528	70,589
70%	69.5%	61,712	61,252
60%	59.6%	52,896	52,548
50%	51.1%	44,080	45,074
40%	39.6%	35,264	34,913
30%	30.4%	26,448	26,766
20%	20.1%	17,632	17,714
10%	9.9%	8,816	8,771
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
