SPECpower_ssj2008 Host 'node-4' Performance Report

SPECpower_ssj2008

Host 'node-4' Performance Report

Lenovo Global Technology ThinkSystem SD530			ssj_ops@100% = 4,966,897 ssj_ops@100% per JVM = 88,695
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Multi Node
Tested By:	Lenovo Global Technology	Test Location:	Taipei, Taiwan	Test Date:	Aug 24, 2018
Hardware Availability:	Jul-2018	Software Availability:	Jan-2018	Publication:	Sep 12, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			5,206,069
Calibration 2			5,037,102
Calibration 3			4,996,563
ssj_ops@calibrated=5,016,833
100%	99.0%	5,016,833	4,966,897
90%	90.3%	4,515,149	4,531,288
80%	80.0%	4,013,466	4,014,230
70%	69.9%	3,511,783	3,509,120
60%	60.0%	3,010,100	3,010,118
50%	50.0%	2,508,416	2,506,547
40%	40.0%	2,006,733	2,004,380
30%	30.0%	1,505,050	1,506,091
20%	20.1%	1,003,367	1,006,168
10%	10.0%	501,683	504,054
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	4
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	ThinkSystem SD530
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8176
CPU Characteristics:	28-Core, 2.10 GHz, 39424 KB L3 Cache
CPU Frequency (MHz):	2100
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16 GB
Memory Details:	16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,2,3,6,7,8,9,10,11,14,15 and 16 for each processor
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Ethernet Connection X722 for 10Gb SFP+
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Lenovo Power Plan V1.0 for Windows Server 2012 R2 in OS
Operating System (OS):	Microsoft Windows Server 2012 R2 DataCenter
OS Version:	6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances:	56
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	TEE123N (Jul 12 2018)
Management Firmware Version:	TEI325Q (Jul 19 2018)
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Applied the OS patches: KB4056898

Boot Firmware Settings

Operating Mode: Custom Mode
Memory Power Management: Balanced
Page Policy:Adaptive
Intel VT for Directed I/O(VT-d): Disable
Memory Data Scrambling: Disable
Execute Disable Bit: Disable
Turbo Mode: Disable
Hardware Prefetcher: Disable
Adjacent Cache Prefetch: Disable
DCU Streamer Prefetcher: Disable
Patrol Scrub:Disable

Management Firmware Settings

None

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark
Benchmark was started via Windows Remote Desktop Connection
Minimum Processor State: 0%
Maximum Processor State: 100%
Set "Turn off hard disk after = 1 Minute" in OS.
Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Aug 15, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.

JVM Instance Summary

JVM Instance	ssj_ops@100%
node-4.001	88,636
node-4.002	89,752
node-4.003	90,126
node-4.004	89,055
node-4.005	88,158
node-4.006	88,431
node-4.007	88,755
node-4.008	89,552
node-4.009	89,861
node-4.010	88,868
node-4.011	89,196
node-4.012	88,033
node-4.013	90,267
node-4.014	89,082
node-4.015	89,043
node-4.016	89,213
node-4.017	89,341
node-4.018	87,578
node-4.019	88,556
node-4.020	90,292
node-4.021	89,772
node-4.022	88,897
node-4.023	89,710
node-4.024	89,383
node-4.025	89,370
node-4.026	89,897
node-4.027	87,291
node-4.028	89,659
node-4.029	88,319
node-4.030	88,261
node-4.031	87,281
node-4.032	87,167
node-4.033	89,694
node-4.034	87,364
node-4.035	88,643
node-4.036	89,051
node-4.037	89,439
node-4.038	87,478
node-4.039	86,841
node-4.040	88,482
node-4.041	89,158
node-4.042	88,229
node-4.043	87,177
node-4.044	89,006
node-4.045	88,064
node-4.046	86,824
node-4.047	87,722
node-4.048	90,331
node-4.049	89,613
node-4.050	87,538
node-4.051	88,234
node-4.052	88,636
node-4.053	88,451
node-4.054	88,465
node-4.055	88,383
node-4.056	87,273
ssj_ops@100%	4,966,897
ssj_ops@100% per JVM	88,695

JVM 'node-4.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,246
Calibration 2			89,749
Calibration 3			88,846
ssj_ops@calibrated=89,298
100%	99.3%	89,298	88,636
90%	89.8%	80,368	80,228
80%	78.5%	71,438	70,093
70%	70.4%	62,508	62,843
60%	60.5%	53,579	54,055
50%	49.4%	44,649	44,155
40%	39.9%	35,719	35,658
30%	29.9%	26,789	26,743
20%	19.8%	17,860	17,667
10%	10.0%	8,930	8,966
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,154
Calibration 2			90,996
Calibration 3			90,317
ssj_ops@calibrated=90,656
100%	99.0%	90,656	89,752
90%	90.5%	81,591	82,028
80%	80.4%	72,525	72,864
70%	69.3%	63,459	62,818
60%	60.5%	54,394	54,816
50%	48.8%	45,328	44,197
40%	38.9%	36,262	35,286
30%	30.7%	27,197	27,847
20%	19.6%	18,131	17,797
10%	10.0%	9,066	9,050
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,352
Calibration 2			90,840
Calibration 3			90,093
ssj_ops@calibrated=90,466
100%	99.6%	90,466	90,126
90%	88.8%	81,420	80,318
80%	78.8%	72,373	71,261
70%	70.2%	63,326	63,490
60%	60.5%	54,280	54,758
50%	50.1%	45,233	45,357
40%	39.8%	36,186	36,032
30%	29.9%	27,140	27,048
20%	19.7%	18,093	17,779
10%	10.5%	9,047	9,478
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

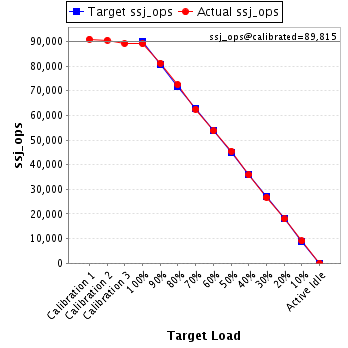

JVM 'node-4.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,912
Calibration 2			90,468
Calibration 3			89,161
ssj_ops@calibrated=89,815
100%	99.2%	89,815	89,055
90%	90.4%	80,833	81,149
80%	80.7%	71,852	72,450
70%	69.6%	62,870	62,497
60%	59.8%	53,889	53,690
50%	50.6%	44,907	45,436
40%	39.9%	35,926	35,857
30%	29.7%	26,944	26,717
20%	20.0%	17,963	17,964
10%	10.1%	8,981	9,054
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			91,770
Calibration 2			89,643
Calibration 3			88,946
ssj_ops@calibrated=89,295
100%	98.7%	89,295	88,158
90%	89.5%	80,365	79,953
80%	80.6%	71,436	71,933
70%	70.0%	62,506	62,475
60%	59.4%	53,577	53,049
50%	50.1%	44,647	44,779
40%	40.2%	35,718	35,890
30%	29.3%	26,788	26,145
20%	20.0%	17,859	17,878
10%	10.1%	8,929	8,987
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,153
Calibration 2			89,680
Calibration 3			88,775
ssj_ops@calibrated=89,227
100%	99.1%	89,227	88,431
90%	89.8%	80,305	80,114
80%	80.6%	71,382	71,945
70%	70.3%	62,459	62,713
60%	59.8%	53,536	53,344
50%	50.2%	44,614	44,826
40%	39.1%	35,691	34,923
30%	29.2%	26,768	26,095
20%	19.8%	17,845	17,641
10%	10.2%	8,923	9,100
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,249
Calibration 2			89,558
Calibration 3			89,287
ssj_ops@calibrated=89,423
100%	99.3%	89,423	88,755
90%	90.6%	80,480	80,997
80%	80.9%	71,538	72,346
70%	69.4%	62,596	62,060
60%	60.1%	53,654	53,726
50%	50.1%	44,711	44,802
40%	40.8%	35,769	36,468
30%	30.2%	26,827	27,007
20%	19.9%	17,885	17,838
10%	10.1%	8,942	8,995
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,261
Calibration 2			90,775
Calibration 3			90,175
ssj_ops@calibrated=90,475
100%	99.0%	90,475	89,552
90%	91.6%	81,427	82,877
80%	80.3%	72,380	72,626
70%	70.3%	63,332	63,591
60%	60.0%	54,285	54,290
50%	49.2%	45,237	44,475
40%	40.0%	36,190	36,178
30%	29.7%	27,142	26,845
20%	20.0%	18,095	18,095
10%	10.1%	9,047	9,174
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.009' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,103
Calibration 2			91,231
Calibration 3			90,444
ssj_ops@calibrated=90,838
100%	98.9%	90,838	89,861
90%	88.6%	81,754	80,468
80%	79.2%	72,670	71,936
70%	69.9%	63,586	63,524
60%	60.3%	54,503	54,796
50%	50.2%	45,419	45,629
40%	39.5%	36,335	35,924
30%	30.1%	27,251	27,386
20%	20.5%	18,168	18,622
10%	10.3%	9,084	9,400
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.010' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,965
Calibration 2			90,559
Calibration 3			89,576
ssj_ops@calibrated=90,068
100%	98.7%	90,068	88,868
90%	91.1%	81,061	82,022
80%	80.3%	72,054	72,335
70%	70.4%	63,047	63,396
60%	60.2%	54,041	54,197
50%	49.9%	45,034	44,936
40%	39.9%	36,027	35,946
30%	30.6%	27,020	27,539
20%	20.6%	18,014	18,525
10%	9.4%	9,007	8,479
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.011' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,479
Calibration 2			90,510
Calibration 3			89,706
ssj_ops@calibrated=90,108
100%	99.0%	90,108	89,196
90%	90.2%	81,097	81,233
80%	79.2%	72,086	71,391
70%	68.9%	63,076	62,122
60%	60.0%	54,065	54,107
50%	50.2%	45,054	45,257
40%	40.2%	36,043	36,207
30%	29.8%	27,032	26,825
20%	20.5%	18,022	18,431
10%	10.4%	9,011	9,374
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

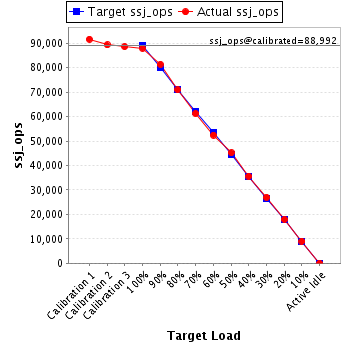

JVM 'node-4.012' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			91,716
Calibration 2			89,336
Calibration 3			88,647
ssj_ops@calibrated=88,992
100%	98.9%	88,992	88,033
90%	91.5%	80,092	81,426
80%	79.7%	71,193	70,938
70%	68.9%	62,294	61,280
60%	59.0%	53,395	52,476
50%	50.8%	44,496	45,232
40%	40.1%	35,597	35,679
30%	30.4%	26,697	27,026
20%	20.2%	17,798	17,978
10%	10.1%	8,899	9,004
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.013' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,779
Calibration 2			91,735
Calibration 3			91,086
ssj_ops@calibrated=91,411
100%	98.7%	91,411	90,267
90%	90.7%	82,270	82,891
80%	80.7%	73,129	73,783
70%	69.9%	63,987	63,919
60%	59.4%	54,846	54,293
50%	50.2%	45,705	45,920
40%	40.1%	36,564	36,685
30%	29.8%	27,423	27,261
20%	19.8%	18,282	18,124
10%	10.1%	9,141	9,266
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.014' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,685
Calibration 2			91,215
Calibration 3			90,101
ssj_ops@calibrated=90,658
100%	98.3%	90,658	89,082
90%	90.9%	81,592	82,394
80%	79.1%	72,527	71,703
70%	69.8%	63,461	63,247
60%	60.1%	54,395	54,492
50%	50.2%	45,329	45,493
40%	39.9%	36,263	36,191
30%	30.1%	27,197	27,262
20%	20.2%	18,132	18,273
10%	9.8%	9,066	8,862
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.015' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,512
Calibration 2			90,216
Calibration 3			89,437
ssj_ops@calibrated=89,827
100%	99.1%	89,827	89,043
90%	90.2%	80,844	80,984
80%	80.6%	71,862	72,369
70%	70.1%	62,879	63,014
60%	60.4%	53,896	54,299
50%	50.1%	44,913	44,962
40%	40.5%	35,931	36,356
30%	29.4%	26,948	26,441
20%	20.5%	17,965	18,420
10%	10.1%	8,983	9,079
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.016' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,149
Calibration 2			89,634
Calibration 3			89,726
ssj_ops@calibrated=89,680
100%	99.5%	89,680	89,213
90%	91.6%	80,712	82,127
80%	79.8%	71,744	71,562
70%	69.8%	62,776	62,629
60%	61.2%	53,808	54,924
50%	49.8%	44,840	44,662
40%	39.9%	35,872	35,770
30%	30.2%	26,904	27,072
20%	20.0%	17,936	17,918
10%	10.2%	8,968	9,162
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.017' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,217
Calibration 2			90,746
Calibration 3			90,010
ssj_ops@calibrated=90,378
100%	98.9%	90,378	89,341
90%	90.8%	81,340	82,043
80%	79.7%	72,302	72,039
70%	69.5%	63,264	62,797
60%	60.0%	54,227	54,270
50%	50.3%	45,189	45,467
40%	39.8%	36,151	35,944
30%	30.8%	27,113	27,804
20%	20.1%	18,076	18,181
10%	9.8%	9,038	8,854
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.018' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,987
Calibration 2			88,633
Calibration 3			88,300
ssj_ops@calibrated=88,466
100%	99.0%	88,466	87,578
90%	90.3%	79,620	79,874
80%	79.9%	70,773	70,726
70%	69.9%	61,926	61,865
60%	59.1%	53,080	52,272
50%	49.9%	44,233	44,174
40%	40.0%	35,386	35,374
30%	30.6%	26,540	27,061
20%	20.1%	17,693	17,810
10%	9.8%	8,847	8,700
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.019' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,144
Calibration 2			89,292
Calibration 3			88,845
ssj_ops@calibrated=89,068
100%	99.4%	89,068	88,556
90%	90.5%	80,161	80,587
80%	80.1%	71,255	71,373
70%	69.7%	62,348	62,050
60%	60.5%	53,441	53,886
50%	50.1%	44,534	44,596
40%	40.9%	35,627	36,402
30%	30.0%	26,720	26,679
20%	19.8%	17,814	17,598
10%	10.3%	8,907	9,154
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.020' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,081
Calibration 2			91,166
Calibration 3			90,669
ssj_ops@calibrated=90,918
100%	99.3%	90,918	90,292
90%	89.8%	81,826	81,660
80%	80.1%	72,734	72,782
70%	69.7%	63,642	63,392
60%	59.7%	54,551	54,244
50%	49.9%	45,459	45,373
40%	39.9%	36,367	36,256
30%	30.5%	27,275	27,719
20%	19.8%	18,184	18,031
10%	10.1%	9,092	9,211
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.021' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,057
Calibration 2			90,891
Calibration 3			90,041
ssj_ops@calibrated=90,466
100%	99.2%	90,466	89,772
90%	90.7%	81,419	82,032
80%	80.0%	72,373	72,371
70%	70.1%	63,326	63,409
60%	59.4%	54,279	53,695
50%	50.6%	45,233	45,805
40%	40.7%	36,186	36,863
30%	30.2%	27,140	27,311
20%	19.6%	18,093	17,710
10%	9.9%	9,047	8,987
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.022' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,425
Calibration 2			89,663
Calibration 3			89,635
ssj_ops@calibrated=89,649
100%	99.2%	89,649	88,897
90%	90.0%	80,684	80,714
80%	80.3%	71,719	71,991
70%	69.3%	62,754	62,097
60%	59.8%	53,789	53,606
50%	49.4%	44,824	44,305
40%	39.9%	35,859	35,805
30%	29.5%	26,895	26,443
20%	20.3%	17,930	18,212
10%	10.4%	8,965	9,291
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.023' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,677
Calibration 2			91,379
Calibration 3			90,173
ssj_ops@calibrated=90,776
100%	98.8%	90,776	89,710
90%	89.3%	81,698	81,045
80%	79.7%	72,621	72,337
70%	69.8%	63,543	63,344
60%	58.8%	54,466	53,374
50%	49.5%	45,388	44,945
40%	39.7%	36,310	36,062
30%	30.3%	27,233	27,539
20%	20.4%	18,155	18,533
10%	10.2%	9,078	9,266
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

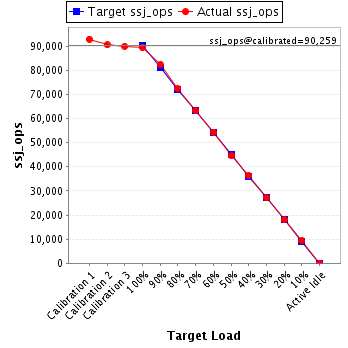

JVM 'node-4.024' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,924
Calibration 2			90,533
Calibration 3			89,986
ssj_ops@calibrated=90,259
100%	99.0%	90,259	89,383
90%	91.3%	81,234	82,389
80%	80.2%	72,208	72,351
70%	70.0%	63,182	63,224
60%	60.2%	54,156	54,337
50%	49.4%	45,130	44,608
40%	40.3%	36,104	36,360
30%	30.1%	27,078	27,145
20%	19.9%	18,052	17,983
10%	10.5%	9,026	9,444
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.025' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,467
Calibration 2			90,789
Calibration 3			90,093
ssj_ops@calibrated=90,441
100%	98.8%	90,441	89,370
90%	90.9%	81,397	82,212
80%	79.7%	72,353	72,119
70%	69.3%	63,309	62,708
60%	59.7%	54,265	53,975
50%	50.0%	45,221	45,228
40%	39.8%	36,176	36,003
30%	29.6%	27,132	26,759
20%	20.5%	18,088	18,508
10%	9.8%	9,044	8,842
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.026' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,475
Calibration 2			90,917
Calibration 3			90,418
ssj_ops@calibrated=90,667
100%	99.2%	90,667	89,897
90%	90.2%	81,600	81,821
80%	80.2%	72,534	72,707
70%	70.0%	63,467	63,430
60%	60.0%	54,400	54,436
50%	50.1%	45,334	45,426
40%	39.6%	36,267	35,864
30%	29.5%	27,200	26,738
20%	19.8%	18,133	17,922
10%	10.4%	9,067	9,423
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.027' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,050
Calibration 2			89,278
Calibration 3			87,803
ssj_ops@calibrated=88,540
100%	98.6%	88,540	87,291
90%	90.5%	79,686	80,112
80%	80.2%	70,832	71,017
70%	70.2%	61,978	62,167
60%	59.8%	53,124	52,937
50%	50.3%	44,270	44,510
40%	40.1%	35,416	35,503
30%	30.7%	26,562	27,145
20%	20.4%	17,708	18,050
10%	10.4%	8,854	9,179
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

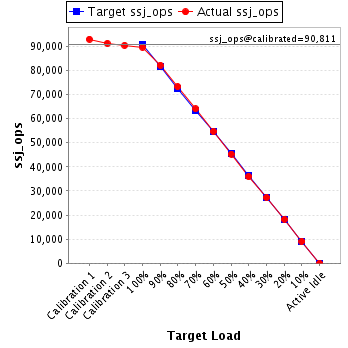

JVM 'node-4.028' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,948
Calibration 2			91,177
Calibration 3			90,446
ssj_ops@calibrated=90,811
100%	98.7%	90,811	89,659
90%	90.5%	81,730	82,188
80%	80.7%	72,649	73,244
70%	70.5%	63,568	64,037
60%	60.3%	54,487	54,756
50%	49.9%	45,406	45,316
40%	39.6%	36,325	35,940
30%	30.0%	27,243	27,204
20%	20.1%	18,162	18,262
10%	10.0%	9,081	9,054
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.029' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,828
Calibration 2			89,765
Calibration 3			89,233
ssj_ops@calibrated=89,499
100%	98.7%	89,499	88,319
90%	90.5%	80,549	80,978
80%	80.3%	71,599	71,877
70%	69.9%	62,649	62,573
60%	60.6%	53,699	54,261
50%	49.2%	44,749	44,056
40%	40.1%	35,800	35,894
30%	30.2%	26,850	27,027
20%	20.3%	17,900	18,212
10%	9.8%	8,950	8,783
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.030' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,586
Calibration 2			89,497
Calibration 3			88,966
ssj_ops@calibrated=89,231
100%	98.9%	89,231	88,261
90%	90.1%	80,308	80,389
80%	80.4%	71,385	71,763
70%	70.3%	62,462	62,771
60%	59.7%	53,539	53,316
50%	49.1%	44,616	43,809
40%	39.3%	35,693	35,095
30%	29.6%	26,769	26,449
20%	20.5%	17,846	18,278
10%	10.0%	8,923	8,958
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.031' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,085
Calibration 2			88,170
Calibration 3			87,978
ssj_ops@calibrated=88,074
100%	99.1%	88,074	87,281
90%	89.4%	79,267	78,777
80%	80.4%	70,459	70,841
70%	71.4%	61,652	62,849
60%	60.3%	52,845	53,148
50%	49.5%	44,037	43,591
40%	40.5%	35,230	35,658
30%	29.7%	26,422	26,169
20%	19.8%	17,615	17,466
10%	10.0%	8,807	8,804
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

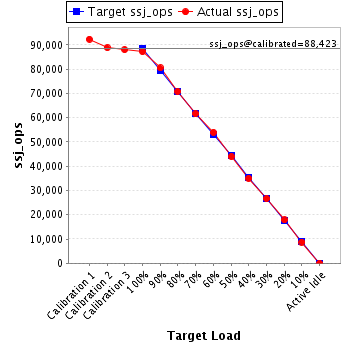

JVM 'node-4.032' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,364
Calibration 2			88,834
Calibration 3			88,012
ssj_ops@calibrated=88,423
100%	98.6%	88,423	87,167
90%	91.0%	79,581	80,499
80%	80.1%	70,738	70,788
70%	69.6%	61,896	61,565
60%	61.0%	53,054	53,947
50%	49.7%	44,211	43,946
40%	39.6%	35,369	35,037
30%	30.1%	26,527	26,628
20%	20.2%	17,685	17,834
10%	9.9%	8,842	8,758
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.033' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,492
Calibration 2			91,452
Calibration 3			90,454
ssj_ops@calibrated=90,953
100%	98.6%	90,953	89,694
90%	90.6%	81,858	82,432
80%	80.5%	72,762	73,238
70%	68.3%	63,667	62,112
60%	60.2%	54,572	54,768
50%	49.6%	45,476	45,140
40%	39.9%	36,381	36,271
30%	29.8%	27,286	27,067
20%	19.8%	18,191	18,017
10%	9.9%	9,095	8,962
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.034' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,632
Calibration 2			88,724
Calibration 3			87,654
ssj_ops@calibrated=88,189
100%	99.1%	88,189	87,364
90%	90.3%	79,370	79,664
80%	80.2%	70,551	70,729
70%	70.5%	61,732	62,138
60%	60.1%	52,913	52,997
50%	50.0%	44,094	44,062
40%	39.8%	35,276	35,140
30%	30.7%	26,457	27,097
20%	20.2%	17,638	17,794
10%	9.9%	8,819	8,712
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.035' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,840
Calibration 2			89,264
Calibration 3			88,972
ssj_ops@calibrated=89,118
100%	99.5%	89,118	88,643
90%	89.3%	80,206	79,582
80%	81.3%	71,294	72,415
70%	70.5%	62,383	62,792
60%	59.9%	53,471	53,385
50%	50.2%	44,559	44,739
40%	39.5%	35,647	35,221
30%	29.8%	26,735	26,582
20%	20.2%	17,824	18,036
10%	10.6%	8,912	9,483
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.036' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,848
Calibration 2			90,154
Calibration 3			89,671
ssj_ops@calibrated=89,913
100%	99.0%	89,913	89,051
90%	91.0%	80,922	81,800
80%	80.6%	71,930	72,499
70%	69.9%	62,939	62,843
60%	60.4%	53,948	54,314
50%	51.1%	44,956	45,913
40%	40.4%	35,965	36,292
30%	29.2%	26,974	26,296
20%	20.4%	17,983	18,387
10%	9.8%	8,991	8,808
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

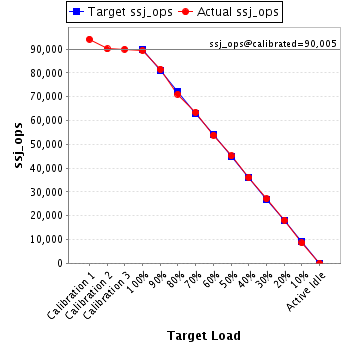

JVM 'node-4.037' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,195
Calibration 2			90,064
Calibration 3			89,947
ssj_ops@calibrated=90,005
100%	99.4%	90,005	89,439
90%	90.6%	81,005	81,585
80%	79.0%	72,004	71,088
70%	70.5%	63,004	63,463
60%	59.8%	54,003	53,862
50%	50.1%	45,003	45,105
40%	40.1%	36,002	36,048
30%	30.0%	27,002	27,046
20%	20.1%	18,001	18,112
10%	9.5%	9,001	8,565
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

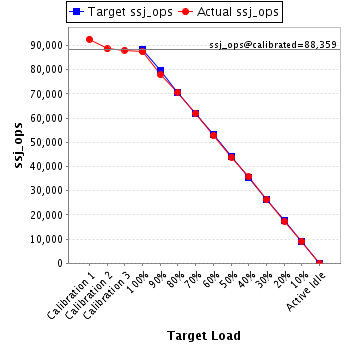

JVM 'node-4.038' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,620
Calibration 2			88,603
Calibration 3			88,115
ssj_ops@calibrated=88,359
100%	99.0%	88,359	87,478
90%	88.3%	79,523	78,009
80%	80.0%	70,687	70,729
70%	70.1%	61,851	61,910
60%	59.7%	53,015	52,780
50%	49.6%	44,179	43,861
40%	40.4%	35,343	35,661
30%	29.8%	26,508	26,361
20%	19.6%	17,672	17,358
10%	10.2%	8,836	8,971
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.039' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			91,936
Calibration 2			87,764
Calibration 3			87,241
ssj_ops@calibrated=87,503
100%	99.2%	87,503	86,841
90%	90.4%	78,752	79,090
80%	79.5%	70,002	69,566
70%	70.2%	61,252	61,424
60%	59.2%	52,502	51,815
50%	50.4%	43,751	44,088
40%	39.6%	35,001	34,641
30%	30.7%	26,251	26,866
20%	20.2%	17,501	17,645
10%	10.2%	8,750	8,908
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.040' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,398
Calibration 2			89,521
Calibration 3			89,072
ssj_ops@calibrated=89,296
100%	99.1%	89,296	88,482
90%	91.3%	80,366	81,489
80%	81.0%	71,437	72,352
70%	69.5%	62,507	62,023
60%	59.5%	53,578	53,162
50%	49.9%	44,648	44,591
40%	39.7%	35,718	35,440
30%	30.3%	26,789	27,021
20%	20.0%	17,859	17,879
10%	10.1%	8,930	9,029
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.041' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,189
Calibration 2			89,993
Calibration 3			89,665
ssj_ops@calibrated=89,829
100%	99.3%	89,829	89,158
90%	88.7%	80,846	79,683
80%	79.7%	71,863	71,585
70%	70.1%	62,880	63,011
60%	60.0%	53,897	53,933
50%	50.8%	44,915	45,650
40%	40.5%	35,932	36,336
30%	30.3%	26,949	27,199
20%	19.8%	17,966	17,803
10%	9.4%	8,983	8,428
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.042' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,239
Calibration 2			88,714
Calibration 3			88,607
ssj_ops@calibrated=88,660
100%	99.5%	88,660	88,229
90%	90.7%	79,794	80,415
80%	79.5%	70,928	70,510
70%	71.6%	62,062	63,462
60%	59.5%	53,196	52,787
50%	50.2%	44,330	44,521
40%	40.0%	35,464	35,423
30%	30.0%	26,598	26,608
20%	20.2%	17,732	17,941
10%	9.9%	8,866	8,796
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.043' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			91,822
Calibration 2			88,636
Calibration 3			87,623
ssj_ops@calibrated=88,130
100%	98.9%	88,130	87,177
90%	88.9%	79,317	78,380
80%	79.4%	70,504	69,962
70%	70.0%	61,691	61,667
60%	60.1%	52,878	52,992
50%	50.0%	44,065	44,094
40%	39.8%	35,252	35,086
30%	29.5%	26,439	25,987
20%	19.8%	17,626	17,444
10%	9.9%	8,813	8,757
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

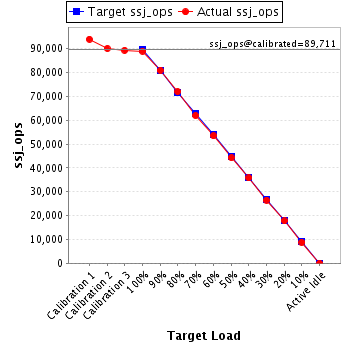

JVM 'node-4.044' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,009
Calibration 2			90,085
Calibration 3			89,337
ssj_ops@calibrated=89,711
100%	99.2%	89,711	89,006
90%	90.3%	80,740	80,968
80%	80.2%	71,769	71,993
70%	69.1%	62,798	61,974
60%	59.6%	53,827	53,428
50%	49.3%	44,856	44,251
40%	39.9%	35,884	35,773
30%	29.6%	26,913	26,524
20%	19.8%	17,942	17,750
10%	9.8%	8,971	8,829
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.045' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,096
Calibration 2			89,404
Calibration 3			88,283
ssj_ops@calibrated=88,843
100%	99.1%	88,843	88,064
90%	91.0%	79,959	80,849
80%	79.9%	71,075	70,962
70%	70.2%	62,190	62,341
60%	60.6%	53,306	53,856
50%	49.6%	44,422	44,084
40%	39.6%	35,537	35,144
30%	29.6%	26,653	26,310
20%	19.7%	17,769	17,520
10%	10.2%	8,884	9,072
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.046' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,036
Calibration 2			88,397
Calibration 3			87,594
ssj_ops@calibrated=87,995
100%	98.7%	87,995	86,824
90%	90.1%	79,196	79,265
80%	79.7%	70,396	70,150
70%	70.5%	61,597	62,068
60%	60.1%	52,797	52,891
50%	49.8%	43,998	43,779
40%	39.8%	35,198	35,010
30%	29.3%	26,399	25,801
20%	20.0%	17,599	17,590
10%	9.7%	8,800	8,566
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.047' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,833
Calibration 2			89,214
Calibration 3			88,057
ssj_ops@calibrated=88,636
100%	99.0%	88,636	87,722
90%	89.8%	79,772	79,563
80%	79.9%	70,909	70,834
70%	70.7%	62,045	62,642
60%	59.5%	53,181	52,712
50%	51.0%	44,318	45,193
40%	40.3%	35,454	35,683
30%	29.5%	26,591	26,190
20%	20.0%	17,727	17,710
10%	10.0%	8,864	8,837
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.048' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			95,443
Calibration 2			91,981
Calibration 3			90,937
ssj_ops@calibrated=91,459
100%	98.8%	91,459	90,331
90%	92.0%	82,313	84,107
80%	80.3%	73,167	73,454
70%	70.5%	64,021	64,524
60%	60.4%	54,875	55,211
50%	50.0%	45,729	45,752
40%	40.2%	36,584	36,729
30%	30.8%	27,438	28,214
20%	19.9%	18,292	18,208
10%	9.9%	9,146	9,072
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.049' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			94,108
Calibration 2			90,755
Calibration 3			89,703
ssj_ops@calibrated=90,229
100%	99.3%	90,229	89,613
90%	90.3%	81,206	81,456
80%	79.0%	72,183	71,321
70%	69.9%	63,160	63,052
60%	60.7%	54,138	54,766
50%	49.6%	45,115	44,759
40%	39.4%	36,092	35,544
30%	29.9%	27,069	26,969
20%	20.2%	18,046	18,262
10%	10.5%	9,023	9,450
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.050' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,792
Calibration 2			88,386
Calibration 3			87,823
ssj_ops@calibrated=88,105
100%	99.4%	88,105	87,538
90%	91.3%	79,294	80,479
80%	79.8%	70,484	70,271
70%	68.9%	61,673	60,720
60%	59.2%	52,863	52,168
50%	49.5%	44,052	43,600
40%	39.9%	35,242	35,195
30%	30.5%	26,431	26,895
20%	19.9%	17,621	17,550
10%	10.2%	8,810	8,950
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.051' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,570
Calibration 2			89,722
Calibration 3			88,688
ssj_ops@calibrated=89,205
100%	98.9%	89,205	88,234
90%	91.3%	80,285	81,486
80%	80.3%	71,364	71,647
70%	70.0%	62,444	62,452
60%	60.0%	53,523	53,518
50%	49.8%	44,603	44,439
40%	39.9%	35,682	35,635
30%	30.7%	26,762	27,354
20%	20.2%	17,841	18,008
10%	9.8%	8,921	8,725
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.052' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,783
Calibration 2			90,419
Calibration 3			89,350
ssj_ops@calibrated=89,884
100%	98.6%	89,884	88,636
90%	90.5%	80,896	81,382
80%	80.1%	71,907	71,966
70%	69.8%	62,919	62,708
60%	59.2%	53,931	53,247
50%	50.3%	44,942	45,190
40%	39.7%	35,954	35,663
30%	30.1%	26,965	27,043
20%	20.2%	17,977	18,183
10%	10.3%	8,988	9,216
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.053' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,541
Calibration 2			90,115
Calibration 3			89,112
ssj_ops@calibrated=89,614
100%	98.7%	89,614	88,451
90%	90.3%	80,652	80,903
80%	80.0%	71,691	71,677
70%	69.9%	62,729	62,634
60%	60.8%	53,768	54,516
50%	49.8%	44,807	44,611
40%	39.8%	35,845	35,672
30%	30.4%	26,884	27,272
20%	19.9%	17,923	17,865
10%	10.1%	8,961	9,044
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.054' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			93,609
Calibration 2			89,959
Calibration 3			88,891
ssj_ops@calibrated=89,425
100%	98.9%	89,425	88,465
90%	90.0%	80,483	80,496
80%	80.0%	71,540	71,521
70%	70.5%	62,598	63,076
60%	60.8%	53,655	54,382
50%	50.5%	44,713	45,138
40%	40.1%	35,770	35,820
30%	29.7%	26,828	26,515
20%	19.9%	17,885	17,801
10%	10.0%	8,943	8,966
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.055' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,818
Calibration 2			90,068
Calibration 3			88,978
ssj_ops@calibrated=89,523
100%	98.7%	89,523	88,383
90%	90.0%	80,571	80,591
80%	79.7%	71,619	71,374
70%	69.8%	62,666	62,509
60%	60.7%	53,714	54,338
50%	49.7%	44,762	44,460
40%	40.9%	35,809	36,651
30%	29.8%	26,857	26,715
20%	19.7%	17,905	17,671
10%	10.0%	8,952	8,994
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'node-4.056' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			92,417
Calibration 2			88,832
Calibration 3			87,860
ssj_ops@calibrated=88,346
100%	98.8%	88,346	87,273
90%	89.5%	79,511	79,088
80%	79.8%	70,677	70,526
70%	69.8%	61,842	61,679
60%	59.4%	53,008	52,514
50%	50.1%	44,173	44,252
40%	39.8%	35,338	35,194
30%	30.7%	26,504	27,084
20%	20.5%	17,669	18,096
10%	9.9%	8,835	8,775
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
