SPECpower_ssj2008 Host 'WIN-3NGCH3TEJ3Q' Performance Report

SPECpower_ssj2008

Host 'WIN-3NGCH3TEJ3Q' Performance Report

Supermicro Inc. Server 1123US-TR4			ssj_ops@100% = 4,406,978 ssj_ops@100% per JVM = 275,436
Test Sponsor:	Supermicro Inc.	SPEC License #:	1176	Test Method:	Single Node
Tested By:	Supermicro Inc.	Test Location:	Zhonghe Dist, New Taipei City, Taiwan (R.O.C.)	Test Date:	Aug 24, 2018
Hardware Availability:	Aug-2017	Software Availability:	Mar-2018	Publication:	Sep 27, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			4,386,034
Calibration 2			4,411,529
Calibration 3			4,410,578
ssj_ops@calibrated=4,411,054
100%	99.9%	4,411,054	4,406,978
90%	90.0%	3,969,948	3,969,295
80%	80.1%	3,528,843	3,531,373
70%	69.8%	3,087,738	3,081,006
60%	60.0%	2,646,632	2,646,801
50%	49.9%	2,205,527	2,201,441
40%	40.0%	1,764,421	1,765,399
30%	30.0%	1,323,316	1,324,083
20%	20.0%	882,211	881,725
10%	9.9%	441,105	438,483
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	None

Hardware
Hardware Vendor:	Supermicro Inc.
Model:	Server 1123US-TR4
Form Factor:	1U
CPU Name:	AMD EPYC 7501 2.0 GHz
CPU Characteristics:	32-Core, 2.00 GHz, 64MB L3 Cache
CPU Frequency (MHz):	2000
CPU(s) Enabled:	64 cores, 2 chips, 32 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1,2 chip
Primary Cache:	64 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	64 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	512
# and size of DIMM:	16 x 32 GB
Memory Details:	32GB 2Rx4 PC4-2666,HMA84GR7AFR4N-VK; CPU1/2 A2,B2,C2,D2,E2,F2,G2,H2 populated.
Power Supply Quantity and Rating (W):	1 x 1000
Power Supply Details:	PWS-1K02A-1R (P/N:P1K0ACI15LN1014)
Disk Drive:	1 x Seagate SATA III 240GB SSD, XF1230-1A0240
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Qual Intel I350 Gigabit Ethernet controller,AOC-UR-i4G
NICs Enabled in Firmware / OS / Connected:	4/1/1
Network Speed (Mbit):	1000
Keyboard:	KVM
Mouse:	KVM
Monitor:	KVM
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Power Saver (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3.9600 Build 9600
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
JVM Command-line Options:	-server -Xmx26215m -Xms26215m -Xmn13500m -XX:SurvivorRatio=15 -XX:InlineSmallCode=8000 -XX:FreqInlineSize=8000 -XX:+UseLargePages -XX:+UseBiasedLocking -XX:ParallelGCThreads=8 -XX:+UseParallelOldGC -XX:+AggressiveOpts -XX:+OptimizeStringConcat -XX:AllocatePrefetchLines=7 -XX:MaxInlineSize=80 -XX:LoopUnrollLimit=30 -XX:AllocatePrefetchDistance=192 -XX:InitialTenuringThreshold=10
JVM Affinity:	start /node [0-7] /affinity [0xFF,FFx00]
JVM Instances:	16
JVM Initial Heap (MB):	26215
JVM Maximum Heap (MB):	26215
JVM Address Bits:	64
Boot Firmware Version:	H11DSU8_820
Management Firmware Version:	SMT_H11AST2500_130
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Core Performance Boost:Disabled
L1 Cache Stream Prefetchers: Disable
L2 Cache Stream Prefetchers: Disable
SVM Mode: Disable
Determinism Slider: Performance
IOMMU: Disable
ACS Enable: Disable

Management Firmware Settings

none

System Under Test Notes

Manual disable unused Ethernet ports in the OS.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
SPECpower_ssj.props input.load_level.number_warehouses set to 128 due to a known inconsistency in processor reporting with this Java version.
The test was started via Remote Desktop.
Using Windows PowerShell, set the following powercfg properties:

powercfg -setacvalueindex scheme_current SUB_PROCESSOR CPMINCORES 100
powercfg -setacvalueindex scheme_current SUB_PROCESSOR CPPERF 0
powercfg -setacvalueindex scheme_current SUB_PROCESSOR DISTRIBUTEUTIL 0
powercfg -setacvalueindex scheme_current SUB_PROCESSOR IDLECHECK 50000
powercfg -setacvalueindex scheme_current SUB_PROCESSOR PERFINCTHRESHOLD 25
powercfg -setacvalueindex scheme_current SUB_PROCESSOR PERFDECTHRESHOLD 10

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
NO: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
NO: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

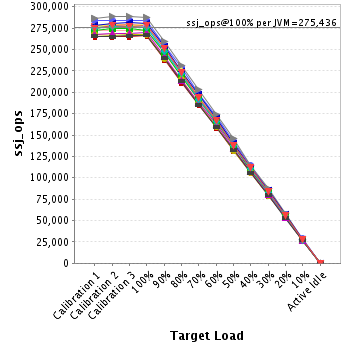

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-3NGCH3TEJ3Q.001	277,612
WIN-3NGCH3TEJ3Q.002	283,909
WIN-3NGCH3TEJ3Q.003	277,023
WIN-3NGCH3TEJ3Q.004	278,888
WIN-3NGCH3TEJ3Q.005	275,927
WIN-3NGCH3TEJ3Q.006	276,548
WIN-3NGCH3TEJ3Q.007	272,186
WIN-3NGCH3TEJ3Q.008	287,822
WIN-3NGCH3TEJ3Q.009	265,951
WIN-3NGCH3TEJ3Q.010	280,406
WIN-3NGCH3TEJ3Q.011	272,442
WIN-3NGCH3TEJ3Q.012	267,846
WIN-3NGCH3TEJ3Q.013	269,364
WIN-3NGCH3TEJ3Q.014	276,238
WIN-3NGCH3TEJ3Q.015	266,494
WIN-3NGCH3TEJ3Q.016	278,322
ssj_ops@100%	4,406,978
ssj_ops@100% per JVM	275,436

JVM 'WIN-3NGCH3TEJ3Q.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			277,042
Calibration 2			279,080
Calibration 3			278,780
ssj_ops@calibrated=278,930
100%	99.5%	278,930	277,612
90%	90.1%	251,037	251,371
80%	79.6%	223,144	222,122
70%	69.9%	195,251	194,945
60%	59.9%	167,358	167,204
50%	50.0%	139,465	139,510
40%	40.3%	111,572	112,316
30%	30.1%	83,679	83,990
20%	19.9%	55,786	55,627
10%	9.9%	27,893	27,524
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			283,996
Calibration 2			283,834
Calibration 3			283,814
ssj_ops@calibrated=283,824
100%	100.0%	283,824	283,909
90%	89.6%	255,442	254,354
80%	80.6%	227,059	228,782
70%	69.8%	198,677	198,025
60%	60.3%	170,294	171,164
50%	50.2%	141,912	142,444
40%	40.1%	113,530	113,933
30%	29.8%	85,147	84,562
20%	19.9%	56,765	56,487
10%	10.1%	28,382	28,541
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			275,455
Calibration 2			277,814
Calibration 3			277,711
ssj_ops@calibrated=277,763
100%	99.7%	277,763	277,023
90%	90.0%	249,986	249,910
80%	79.9%	222,210	221,939
70%	69.6%	194,434	193,358
60%	60.5%	166,658	167,912
50%	49.9%	138,881	138,735
40%	40.2%	111,105	111,767
30%	30.1%	83,329	83,565
20%	19.8%	55,553	55,115
10%	10.0%	27,776	27,662
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			277,104
Calibration 2			279,089
Calibration 3			277,994
ssj_ops@calibrated=278,541
100%	100.1%	278,541	278,888
90%	90.2%	250,687	251,302
80%	80.8%	222,833	225,115
70%	69.9%	194,979	194,665
60%	59.7%	167,125	166,260
50%	49.5%	139,271	137,858
40%	40.3%	111,416	112,166
30%	30.2%	83,562	84,169
20%	19.9%	55,708	55,503
10%	9.7%	27,854	27,058
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			274,360
Calibration 2			277,772
Calibration 3			276,689
ssj_ops@calibrated=277,230
100%	99.5%	277,230	275,927
90%	89.8%	249,507	249,083
80%	80.2%	221,784	222,474
70%	69.5%	194,061	192,633
60%	60.0%	166,338	166,377
50%	50.0%	138,615	138,720
40%	40.2%	110,892	111,527
30%	30.3%	83,169	84,001
20%	19.8%	55,446	54,941
10%	10.0%	27,723	27,679
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			274,108
Calibration 2			277,948
Calibration 3			276,061
ssj_ops@calibrated=277,004
100%	99.8%	277,004	276,548
90%	90.3%	249,304	250,119
80%	79.2%	221,603	219,362
70%	69.8%	193,903	193,369
60%	59.5%	166,203	164,743
50%	49.6%	138,502	137,416
40%	39.9%	110,802	110,483
30%	29.6%	83,101	82,065
20%	19.9%	55,401	54,999
10%	9.9%	27,700	27,487
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			272,397
Calibration 2			272,142
Calibration 3			272,615
ssj_ops@calibrated=272,379
100%	99.9%	272,379	272,186
90%	90.1%	245,141	245,461
80%	80.1%	217,903	218,119
70%	70.1%	190,665	190,913
60%	59.7%	163,427	162,665
50%	50.0%	136,189	136,317
40%	40.1%	108,952	109,260
30%	29.9%	81,714	81,445
20%	20.0%	54,476	54,441
10%	10.0%	27,238	27,208
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			286,875
Calibration 2			288,803
Calibration 3			288,828
ssj_ops@calibrated=288,816
100%	99.7%	288,816	287,822
90%	89.9%	259,934	259,677
80%	80.0%	231,052	231,189
70%	70.3%	202,171	203,008
60%	60.3%	173,289	174,046
50%	50.7%	144,408	146,381
40%	39.7%	115,526	114,566
30%	30.2%	86,645	87,290
20%	20.0%	57,763	57,783
10%	9.8%	28,882	28,366
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

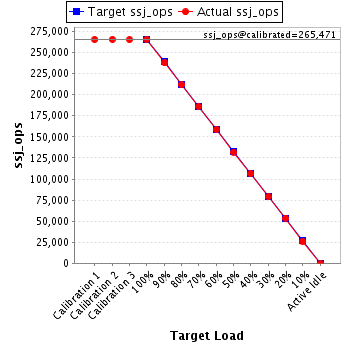

JVM 'WIN-3NGCH3TEJ3Q.009' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			265,553
Calibration 2			265,687
Calibration 3			265,256
ssj_ops@calibrated=265,471
100%	100.2%	265,471	265,951
90%	89.7%	238,924	238,092
80%	79.8%	212,377	211,771
70%	70.1%	185,830	186,011
60%	59.8%	159,283	158,710
50%	49.7%	132,736	132,022
40%	40.1%	106,189	106,395
30%	29.8%	79,641	79,083
20%	20.2%	53,094	53,673
10%	9.8%	26,547	26,133
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.010' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			277,996
Calibration 2			280,208
Calibration 3			281,701
ssj_ops@calibrated=280,954
100%	99.8%	280,954	280,406
90%	90.0%	252,859	252,999
80%	80.0%	224,764	224,891
70%	70.1%	196,668	197,021
60%	60.1%	168,573	168,846
50%	50.0%	140,477	140,413
40%	39.7%	112,382	111,443
30%	30.5%	84,286	85,640
20%	20.2%	56,191	56,883
10%	10.1%	28,095	28,286
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.011' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			271,891
Calibration 2			274,092
Calibration 3			274,416
ssj_ops@calibrated=274,254
100%	99.3%	274,254	272,442
90%	89.8%	246,828	246,386
80%	79.8%	219,403	218,765
70%	69.7%	191,977	191,176
60%	60.1%	164,552	164,779
50%	50.1%	137,127	137,464
40%	39.8%	109,701	109,079
30%	30.1%	82,276	82,565
20%	20.2%	54,851	55,486
10%	9.8%	27,425	26,917
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.012' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			267,334
Calibration 2			266,301
Calibration 3			267,961
ssj_ops@calibrated=267,131
100%	100.3%	267,131	267,846
90%	89.8%	240,418	239,762
80%	80.6%	213,705	215,312
70%	69.8%	186,992	186,562
60%	59.9%	160,279	159,888
50%	49.5%	133,566	132,292
40%	39.9%	106,853	106,532
30%	29.5%	80,139	78,861
20%	20.0%	53,426	53,410
10%	10.1%	26,713	26,966
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.013' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			267,136
Calibration 2			268,656
Calibration 3			269,208
ssj_ops@calibrated=268,932
100%	100.2%	268,932	269,364
90%	89.8%	242,039	241,452
80%	79.6%	215,145	214,178
70%	70.0%	188,252	188,250
60%	60.2%	161,359	161,956
50%	50.0%	134,466	134,395
40%	39.9%	107,573	107,196
30%	30.1%	80,680	81,012
20%	19.9%	53,786	53,603
10%	10.0%	26,893	26,920
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.014' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			274,777
Calibration 2			276,569
Calibration 3			276,537
ssj_ops@calibrated=276,553
100%	99.9%	276,553	276,238
90%	89.8%	248,897	248,238
80%	80.2%	221,242	221,707
70%	69.4%	193,587	191,915
60%	59.9%	165,932	165,614
50%	49.7%	138,276	137,549
40%	40.1%	110,621	110,862
30%	29.9%	82,966	82,646
20%	20.0%	55,311	55,191
10%	9.8%	27,655	27,004
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.015' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			265,469
Calibration 2			264,986
Calibration 3			265,967
ssj_ops@calibrated=265,476
100%	100.4%	265,476	266,494
90%	90.4%	238,929	240,067
80%	80.2%	212,381	212,893
70%	69.9%	185,833	185,620
60%	60.0%	159,286	159,378
50%	49.9%	132,738	132,588
40%	39.9%	106,191	105,919
30%	29.9%	79,643	79,319
20%	19.7%	53,095	52,402
10%	10.2%	26,548	27,004
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-3NGCH3TEJ3Q.016' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			274,541
Calibration 2			278,549
Calibration 3			277,042
ssj_ops@calibrated=277,795
100%	100.2%	277,795	278,322
90%	90.4%	250,016	251,022
80%	80.2%	222,236	222,754
70%	69.7%	194,457	193,536
60%	60.2%	166,677	167,256
50%	49.4%	138,898	137,336
40%	40.3%	111,118	111,956
30%	30.2%	83,339	83,871
20%	20.2%	55,559	56,179
10%	10.0%	27,780	27,728
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
