SPECpower_ssj2008

GIGA-BYTE TECHNOLOGY CO., LTD. R181-Z90			SPECpower_ssj2008 = 11,207 overall ssj_ops/watt
Test Sponsor:	GIGA-BYTE TECHNOLOGY CO., LTD.	SPEC License #:	9082	Test Method:	Single Node
Tested By:	GIGA-BYTE TECHNOLOGY CO., LTD.	Test Location:	XinTien ,Taipei	Test Date:	Sep 18, 2018
Hardware Availability:	May-2018	Software Availability:	Mar-2018	Publication:	Oct 17, 2018
System Source:	Parts Built	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	GIGA-BYTE TECHNOLOGY CO., LTD.
Model:	R181-Z90
Form Factor:	1U
CPU Name:	AMD EPYC 7601
CPU Characteristics:	32-Core, 2.2GHz, 64MB L3 Cache
CPU Frequency (MHz):	2200
CPU(s) Enabled:	64 cores, 2 chips, 32 cores/chip
Hardware Threads:	128 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	64 KB I + 32 KB D on chip per core
Secondary Cache:	512 KB I+D on chip per core
Tertiary Cache:	64 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	128
# and size of DIMM:	16 x 8 GB
Memory Details:	8GB 1Rx8 PC4-2666V-R; Crucial CT8G4RFS8266.9FD1, slots CPU0_DIMM[A-H]0, CPU1_DIMM[I-P]0 populated
Power Supply Quantity and Rating (W):	1 x 850
Power Supply Details:	DELTA DPS-850AB-3 A
Disk Drive:	1 x ADATA ASP610SS-256GM SATA 6Gb/s SSD
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Integrated NIC
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	AMD Naples Balanced V3 (see SUT notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
JVM Command-line Options:	-server -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity:	start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000]
JVM Instances:	64
JVM Initial Heap (MB):	1550
JVM Maximum Heap (MB):	1550
JVM Address Bits:	64
Boot Firmware Version:	F03
Management Firmware Version:	1.61
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4054519

none

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Windows Power Options=Balanced Mode
Processor power management: Minimum Processor State = 0%
Processor power management: Maximum Processor State = 100%
System cooling policy = Active
PCI Express Power Management = Maximum Power Savings
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
Using Windows PowerShell, set the following powercfg properties:

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
No: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
No: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2008 R2 SP1
JVM Vendor:	Oracle Corporation
JVM Version:	Hotspot(TM) Client VM, version 1.8.0_121
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Yokogawa.
Model:	WT210
Serial Number:	91GC17356
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	TAF
Accredited by:	Chroma ATE Inc. Calibration Lab
Calibration Label:	RE1070705596
Date of Calibration:	18-Jul-2018
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connect to SUT PSU directly

Temperature Sensor temp1
Hardware Vendor:	TEMPERATURE@LERT.
Model:	TM-STD30
Driver Version:	3.1.0.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	10mm in front of SUT main airflow intake

None

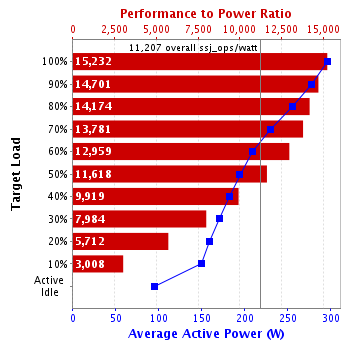

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	296	20.6
90%	277	20.6
80%	256	20.6
70%	230	20.5
60%	209	20.5
50%	195	20.4
40%	182	20.4
30%	171	20.4
20%	159	20.4
10%	150	20.3
Active Idle	95.5	20.3

Line Standard	Minimum Temperature (°C)	Elevation (m)
208V / 60 Hz / 1 phase / 2 wires	20.3	132

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
