Fujitsu FUJITSU Server PRIMERGY RX1330 M4 SPECpower_ssj2008 = 8,924 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Kawasaki, Kanagawa, Japan Test Date: Nov 23, 2018
Hardware Availability: Nov-2018 Software Availability: Sep-2018 Publication: Dec 6, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Performance Power Performance to Power Ratio
Target Load Actual Load ssj_ops Average Active Power (W)
100% 100.3% 651,586 73.9 8,821
90% 89.7% 582,666 62.1 9,390
80% 80.0% 519,605 51.6 10,074
70% 70.0% 455,039 43.3 10,503
60% 60.2% 391,263 36.8 10,643
50% 49.7% 322,940 31.2 10,363
40% 40.0% 259,677 26.9 9,654
30% 30.1% 195,508 23.5 8,334
20% 20.0% 130,148 20.5 6,341
10% 9.9% 64,423 17.9 3,594
Active Idle 0 12.8 0
∑ssj_ops / ∑power = 8,924

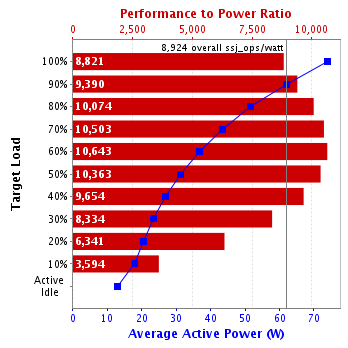

Graph of results
System Under Test
Set: 'RX1330 M4'
Set Identifier: RX1330 M4
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Fujitsu
Model: FUJITSU Server PRIMERGY RX1330 M4
Form Factor: 1U
CPU Name: Intel Xeon E-2176G
CPU Characteristics: 6-Core, 3.7GHz, 12MB L3 Cache
CPU Frequency (MHz): 3700
CPU(s) Enabled: 6 cores, 1 chip, 6 cores/chip
Hardware Threads: 12 (2 / core)
CPU(s) Orderable: 1 chip
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 2 x 8192 MB
Memory Details: 8 GB DDR4, unbuffered, ECC, 2666 MHz, DIMM, 1Rx8; slots 1A, 1B, populated
Power Supply Quantity and Rating (W): 1 x 300
Power Supply Details: Standard power supply part of base unit S26361-K1640-V101
Disk Drive: 1 x M.2 SSD 240GB, S26361-F5706-E240
Disk Controller: Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed: 2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled ("Power saver" power plan in OS)
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
OS Version: Version 6.3.9600 Build 9600
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9(build 11+28, mixed mode), version 11
JVM Command-line Options: -server -Xmn10500m -Xms12000m -Xmx12000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:AllocatePrefetchInstr=0 -XX:MinJumpTableSize=18 -XX:UseAVX=0 -XX:TenuredGenerationSizeSupplement=40 -XX:-UseFastStosb
JVM Affinity: none
JVM Instances: 1
JVM Initial Heap (MB): 12000
JVM Maximum Heap (MB): 12000
JVM Address Bits: 64
Boot Firmware Version: R1.1.0
Management Firmware Version: 1.60c
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4054519
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Controller System
Hardware
Hardware Vendor: Fujitsu
Model: PRIMERGY RX2530 M2
CPU Description: 2x Intel Xeon E5-2643 v4
Memory amount (GB): 64
Software
Operating System (OS): Microsoft Windows Server 2012 R2 Standard
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM 18.9(build 11+28, mixed mode)
CCS Version: 1.2.6
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Hioki
Model: Hioki3336
Serial Number: 170121768
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NICT (National Institute of Information and Communications Technology)
Accredited by: HIOKI E.E. CORPORATION
Calibration Label: H06400086-1801
Date of Calibration: 31-Jan-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
  • None
    • Aggregate Electrical and Environmental Data
    Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
    100% 73.9 23.7
    90% 62.1 23.8
    80% 51.6 23.7
    70% 43.3 23.7
    60% 36.8 23.7
    50% 31.2 23.6
    40% 26.9 23.6
    30% 23.5 23.6
    20% 20.5 23.6
    10% 17.9 23.6
    Active Idle 12.8 23.6
    Line Standard Minimum Temperature (°C) Elevation (m)
    200V / 50 Hz / 1 phase / 2 wires 23.6 11
    See the Power/Temperature Details Report for additional details.
    Aggregate Performance Data
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     649,104
    Calibration 2     650,129
    Calibration 3     649,256
    ssj_ops@calibrated=649,692
    100% 100.3% 649,692 651,586
    90% 89.7% 584,723 582,666
    80% 80.0% 519,754 519,605
    70% 70.0% 454,785 455,039
    60% 60.2% 389,815 391,263
    50% 49.7% 324,846 322,940
    40% 40.0% 259,877 259,677
    30% 30.1% 194,908 195,508
    20% 20.0% 129,938 130,148
    10% 9.9% 64,969 64,423
    Active Idle   0 0

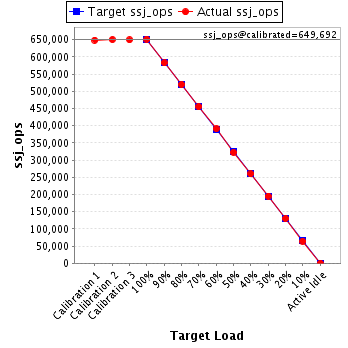

    Graph of results
    See the JVM Instance Performance Report for additional details.
