Fujitsu FUJITSU Server PRIMERGY TX1330 M4 | SPECpower_ssj2008 = 9,031 overall ssj_ops/watt | ||||
Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Nov 22, 2018 |
Hardware Availability: | Nov-2018 | Software Availability: | Sep-2018 | Publication: | Dec 6, 2018 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 100.2% | 652,874 | 72.9 | 8,960 |
90% | 89.9% | 585,813 | 61.4 | 9,544 |
80% | 80.3% | 523,155 | 51.0 | 10,262 |
70% | 69.9% | 455,777 | 42.6 | 10,697 |
60% | 59.7% | 388,815 | 35.8 | 10,853 |
50% | 50.1% | 326,150 | 30.8 | 10,604 |
40% | 39.7% | 258,442 | 26.3 | 9,843 |
30% | 30.2% | 196,481 | 22.8 | 8,616 |
20% | 20.0% | 130,085 | 20.0 | 6,498 |
10% | 9.9% | 64,384 | 18.2 | 3,539 |
Active Idle | 0 | 14.9 | 0 | |
∑ssj_ops / ∑power = | 9,031 |
Set Identifier: | TX1330 M4 |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | Single Node |
Hardware | |
---|---|
Hardware Vendor: | Fujitsu |
Model: | FUJITSU Server PRIMERGY TX1330 M4 |
Form Factor: | Tower |
CPU Name: | Intel Xeon E-2176G |
CPU Characteristics: | 6-Core, 3.7GHz, 12MB L3 Cache |
CPU Frequency (MHz): | 3700 |
CPU(s) Enabled: | 6 cores, 1 chip, 6 cores/chip |
Hardware Threads: | 12 (2 / core) |
CPU(s) Orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 16 |
# and size of DIMM: | 2 x 8192 MB |
Memory Details: | 8 GB DDR4, unbuffered, ECC, 2666 MHz, DIMM, 1Rx8; slots 1A, 1B, populated |
Power Supply Quantity and Rating (W): | 1 x 300 |
Power Supply Details: | Standard power supply part of base unit S26361-K1639-V101 |
Disk Drive: | 1 x M.2 SSD 240GB, S26361-F5706-E240 |
Disk Controller: | Integrated SATA Controller |
# and type of Network Interface Cards (NICs) Installed: | 2 x Intel I210 Gigabit Network Connection (onboard) |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled ("Power saver" power plan in OS) |
Operating System (OS): | Microsoft Windows Server 2012 R2 Standard |
OS Version: | Version 6.3.9600 Build 9600 |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9(build 11+28, mixed mode), version 11 |
JVM Command-line Options: | -server -Xmn10500m -Xms12000m -Xmx12000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:AllocatePrefetchInstr=0 -XX:MinJumpTableSize=18 -XX:UseAVX=0 -XX:TenuredGenerationSizeSupplement=40 -XX:-UseFastStosb |
JVM Affinity: | none |
JVM Instances: | 1 |
JVM Initial Heap (MB): | 12000 |
JVM Maximum Heap (MB): | 12000 |
JVM Address Bits: | 64 |
Boot Firmware Version: | R1.1.0 |
Management Firmware Version: | 1.60h |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB4054519 |
Hardware | |
---|---|
Hardware Vendor: | Fujitsu |
Model: | PRIMERGY RX2530 M2 |
CPU Description: | 2x Intel Xeon E5-2643 v4 |
Memory amount (GB): | 64 |
Software | |
---|---|
Operating System (OS): | Microsoft Windows Server 2012 R2 Standard |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM 18.9(build 11+28, mixed mode) |
CCS Version: | 1.2.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Hioki |
Model: | Hioki3336 |
Serial Number: | 170121768 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
Accredited by: | HIOKI E.E. CORPORATION |
Calibration Label: | H06400086-1801 |
Date of Calibration: | 31-Jan-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | Connected to PSU 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | Watchport Virtual Port 5.10.26.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main air intake |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 72.9 | 25.1 |
90% | 61.4 | 25.0 |
80% | 51.0 | 24.9 |
70% | 42.6 | 24.9 |
60% | 35.8 | 24.9 |
50% | 30.8 | 24.8 |
40% | 26.3 | 24.7 |
30% | 22.8 | 24.8 |
20% | 20.0 | 24.8 |
10% | 18.2 | 24.8 |
Active Idle | 14.9 | 24.8 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
200V / 50 Hz / 1 phase / 2 wires | 24.7 | 11 |

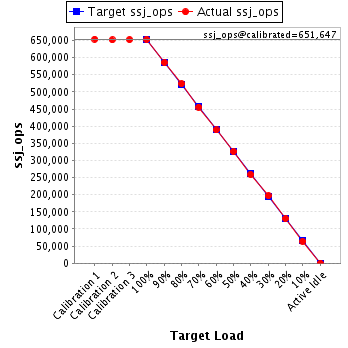

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 653,755 | ||
Calibration 2 | 651,392 | ||
Calibration 3 | 651,901 | ||
ssj_ops@calibrated=651,647 | |||
100% | 100.2% | 651,647 | 652,874 |
90% | 89.9% | 586,482 | 585,813 |
80% | 80.3% | 521,317 | 523,155 |
70% | 69.9% | 456,153 | 455,777 |
60% | 59.7% | 390,988 | 388,815 |
50% | 50.1% | 325,823 | 326,150 |
40% | 39.7% | 260,659 | 258,442 |
30% | 30.2% | 195,494 | 196,481 |
20% | 20.0% | 130,329 | 130,085 |
10% | 9.9% | 65,165 | 64,384 |
Active Idle | 0 | 0 |
