Lenovo Global Technology ThinkSystem SR150 | ssj_ops@100% = 836,281 ssj_ops@100% per JVM = 418,141 |
||||
Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Dec 25, 2018 |
Hardware Availability: | Oct-2018 | Software Availability: | Jan-2018 | Publication: | Jan 17, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 832,824 | ||
Calibration 2 | 839,005 | ||
Calibration 3 | 839,820 | ||
ssj_ops@calibrated=839,412 | |||
100% | 99.6% | 839,412 | 836,281 |
90% | 89.8% | 755,471 | 754,110 |
80% | 79.8% | 671,530 | 669,931 |
70% | 70.1% | 587,589 | 588,192 |
60% | 59.7% | 503,647 | 501,031 |
50% | 50.4% | 419,706 | 422,806 |
40% | 40.0% | 335,765 | 335,688 |
30% | 30.1% | 251,824 | 252,321 |
20% | 20.0% | 167,882 | 167,971 |
10% | 10.1% | 83,941 | 84,612 |
Active Idle | 0 | 0 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 1 |
Comment: | 'SUT' |
Hardware | |
---|---|
Hardware Vendor: | Lenovo Global Technology |
Model: | ThinkSystem SR150 |
Form Factor: | 1U |
CPU Name: | Intel Xeon E-2176G |
CPU Characteristics: | 6 Core, 3.7GHz, 12MB L3 Cache |
CPU Frequency (MHz): | 3700 |
CPU(s) Enabled: | 6 cores, 1 chip, 6 cores/chip |
Hardware Threads: | 12 (2 / core) |
CPU(s) Orderable: | 1 chip |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 256 KB I+D on chip per core |
Tertiary Cache: | 12 MB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 32 |
# and size of DIMM: | 2 x 16 GB |
Memory Details: | 16GB 2Rx8 PC4-2666V-EE1-11; slots 1, 3 populated |
Power Supply Quantity and Rating (W): | 1 x 300 |
Power Supply Details: | DELTA LN SP57A36869 |
Disk Drive: | 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130) |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Broadcom NetXtreme Gigabit Ethernet |
NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2012 R2 DataCenter |
OS Version: | Version 6.3.9600 (Build 9600) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn1600m -Xms1850m -Xmx1850m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=6 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | start /NODE[0] /affinity [3F,FC0] |
JVM Instances: | 2 |
JVM Initial Heap (MB): | 1850 |
JVM Maximum Heap (MB): | 1850 |
JVM Address Bits: | 64 |
Boot Firmware Version: | ISE105G |
Management Firmware Version: | TEI329Q |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB4056898 |

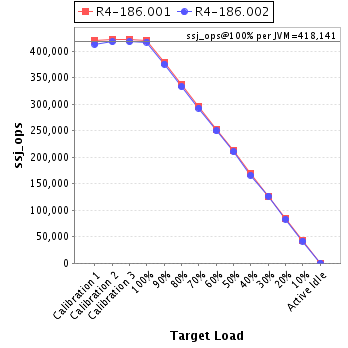

JVM Instance | ssj_ops@100% |
---|---|
R4-186.001 | 419,357 |
R4-186.002 | 416,924 |
ssj_ops@100% | 836,281 |
ssj_ops@100% per JVM | 418,141 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 420,050 | ||
Calibration 2 | 421,487 | ||
Calibration 3 | 422,319 | ||
ssj_ops@calibrated=421,903 | |||
100% | 99.4% | 421,903 | 419,357 |
90% | 89.8% | 379,712 | 378,819 |
80% | 80.0% | 337,522 | 337,379 |
70% | 70.1% | 295,332 | 295,879 |
60% | 59.6% | 253,142 | 251,457 |
50% | 50.4% | 210,951 | 212,733 |
40% | 40.2% | 168,761 | 169,722 |
30% | 29.9% | 126,571 | 126,142 |
20% | 20.1% | 84,381 | 84,903 |
10% | 10.1% | 42,190 | 42,677 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 412,774 | ||
Calibration 2 | 417,518 | ||
Calibration 3 | 417,501 | ||
ssj_ops@calibrated=417,510 | |||
100% | 99.9% | 417,510 | 416,924 |
90% | 89.9% | 375,759 | 375,291 |
80% | 79.7% | 334,008 | 332,551 |
70% | 70.0% | 292,257 | 292,312 |
60% | 59.8% | 250,506 | 249,575 |
50% | 50.3% | 208,755 | 210,073 |
40% | 39.8% | 167,004 | 165,966 |
30% | 30.2% | 125,253 | 126,179 |
20% | 19.9% | 83,502 | 83,067 |
10% | 10.0% | 41,751 | 41,935 |
Active Idle | 0 | 0 |
