Hewlett Packard Enterprise ProLiant DL560 Gen10 SPECpower_ssj2008 = 13,022 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 10, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 845 23.2
Calibration 2 850 23.2
Calibration 3 850 23.2
100% 849 23.4
90% 740 23.2
80% 632 23.2
70% 548 23.5
60% 474 23.8
50% 409 23.8
40% 358 23.9
30% 315 23.9
20% 272 23.7
10% 227 23.6
Active Idle 103 23.6

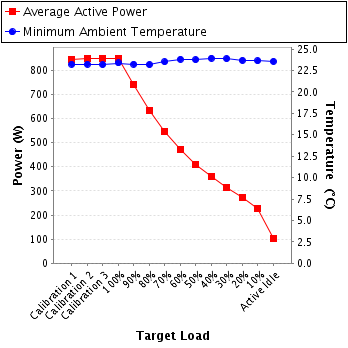

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310E
Serial Number: C2QM2201V
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 1-EM8E7-40-1
Date of Calibration: 16-Jul-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 4.09 5.0 0.960 845 0.3%
Calibration 2 215 300.0 4.11 5.0 0.961 850 0.3%
Calibration 3 215 300.0 4.11 5.0 0.961 850 0.3%
100% 215 300.0 4.10 5.0 0.961 849 0.3%
90% 215 300.0 3.62 5.0 0.949 740 0.4%
80% 215 300.0 3.15 5.0 0.933 632 0.4%
70% 216 300.0 2.76 5.0 0.916 548 0.4%
60% 216 300.0 2.45 5.0 0.894 474 0.5%
50% 216 300.0 2.18 5.0 0.867 409 0.5%
40% 216 300.0 1.98 5.0 0.836 358 0.6%
30% 216 300.0 1.82 5.0 0.803 315 0.6%
20% 216 300.0 1.67 2.0 0.756 272 0.4%
10% 216 300.0 1.52 2.0 0.693 227 0.5%
Active Idle 216 300.0 1.21 2.0 0.394 103 0.8%

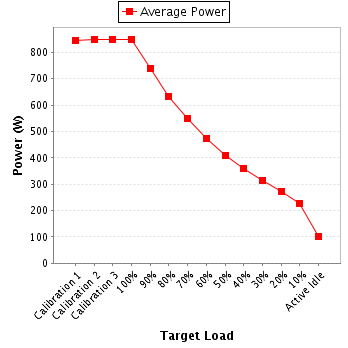

Power details for pwr1
