Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module | SPECpower_ssj2008 = 11,547 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 10, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 2, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

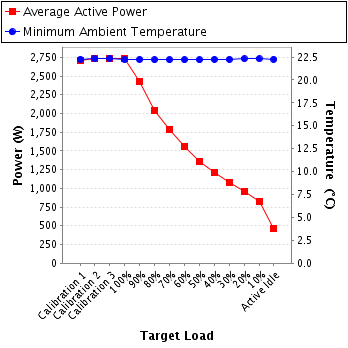

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 2,712 | 22.2 |
Calibration 2 | 2,735 | 22.3 |
Calibration 3 | 2,738 | 22.4 |
100% | 2,731 | 22.2 |
90% | 2,424 | 22.2 |
80% | 2,045 | 22.2 |
70% | 1,782 | 22.2 |
60% | 1,552 | 22.2 |
50% | 1,356 | 22.2 |
40% | 1,207 | 22.2 |
30% | 1,079 | 22.2 |
20% | 957 | 22.3 |
10% | 826 | 22.3 |
Active Idle | 465 | 22.2 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB53024 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-80-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 5 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-60-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 3 |
Power Analyzer pwr3 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GC21887 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-20-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 1 and 2 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |

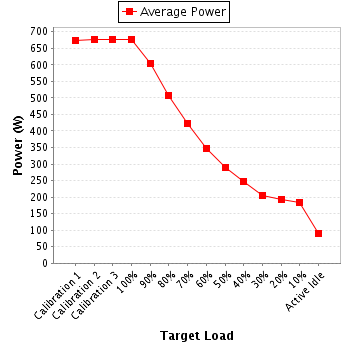

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 215 | 300.0 | 3.16 | 5.0 | 0.988 | 672 | 0.4% |
Calibration 2 | 215 | 300.0 | 3.18 | 5.0 | 0.988 | 677 | 0.4% |
Calibration 3 | 215 | 300.0 | 3.18 | 5.0 | 0.988 | 678 | 0.4% |
100% | 216 | 300.0 | 3.17 | 5.0 | 0.988 | 676 | 0.4% |
90% | 216 | 300.0 | 2.84 | 5.0 | 0.985 | 604 | 0.4% |
80% | 216 | 300.0 | 2.41 | 5.0 | 0.979 | 508 | 0.5% |
70% | 215 | 300.0 | 2.02 | 5.0 | 0.970 | 423 | 0.6% |
60% | 216 | 300.0 | 1.68 | 5.0 | 0.958 | 347 | 0.6% |
50% | 216 | 300.0 | 1.43 | 2.0 | 0.943 | 291 | 0.4% |
40% | 216 | 300.0 | 1.25 | 2.0 | 0.920 | 248 | 0.5% |
30% | 216 | 300.0 | 1.11 | 2.0 | 0.861 | 206 | 0.6% |
20% | 216 | 300.0 | 1.05 | 2.0 | 0.859 | 194 | 0.6% |
10% | 216 | 300.0 | 0.992 | 1.0 | 0.851 | 182 | 0.4% |
Active Idle | 216 | 300.0 | 0.621 | 1.0 | 0.672 | 90.2 | 0.7% |

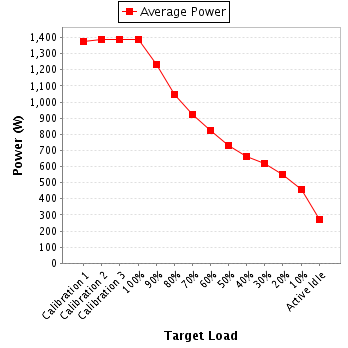

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 215 | 300.0 | 6.47 | 10.0 | 0.991 | 1,376 | 0.4% |
Calibration 2 | 215 | 300.0 | 6.52 | 10.0 | 0.991 | 1,388 | 0.4% |
Calibration 3 | 215 | 300.0 | 6.53 | 10.0 | 0.991 | 1,390 | 0.4% |
100% | 215 | 300.0 | 6.51 | 10.0 | 0.991 | 1,386 | 0.4% |
90% | 215 | 300.0 | 5.81 | 10.0 | 0.989 | 1,235 | 0.4% |
80% | 215 | 300.0 | 4.95 | 10.0 | 0.985 | 1,048 | 0.5% |
70% | 215 | 300.0 | 4.40 | 10.0 | 0.981 | 925 | 0.5% |
60% | 215 | 300.0 | 3.92 | 5.0 | 0.975 | 823 | 0.4% |
50% | 215 | 300.0 | 3.51 | 5.0 | 0.969 | 732 | 0.4% |
40% | 215 | 300.0 | 3.20 | 5.0 | 0.962 | 664 | 0.4% |
30% | 215 | 300.0 | 3.00 | 5.0 | 0.955 | 617 | 0.5% |
20% | 215 | 300.0 | 2.71 | 5.0 | 0.940 | 549 | 0.5% |
10% | 216 | 300.0 | 2.34 | 5.0 | 0.913 | 460 | 0.6% |
Active Idle | 216 | 300.0 | 1.53 | 2.0 | 0.814 | 269 | 0.5% |

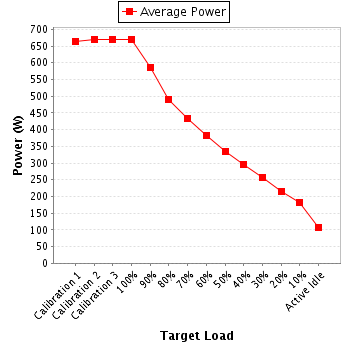

Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 212 | 300.0 | 3.17 | 5.0 | 0.987 | 664 | 0.4% |
Calibration 2 | 213 | 300.0 | 3.19 | 5.0 | 0.987 | 670 | 0.4% |
Calibration 3 | 213 | 300.0 | 3.20 | 5.0 | 0.987 | 671 | 0.4% |
100% | 213 | 300.0 | 3.18 | 5.0 | 0.987 | 668 | 0.4% |
90% | 213 | 300.0 | 2.79 | 5.0 | 0.983 | 585 | 0.4% |
80% | 213 | 300.0 | 2.35 | 5.0 | 0.976 | 489 | 0.5% |
70% | 213 | 300.0 | 2.10 | 5.0 | 0.969 | 434 | 0.5% |
60% | 213 | 300.0 | 1.87 | 5.0 | 0.962 | 383 | 0.6% |
50% | 213 | 300.0 | 1.65 | 2.0 | 0.951 | 333 | 0.4% |
40% | 213 | 300.0 | 1.48 | 2.0 | 0.940 | 295 | 0.4% |
30% | 213 | 300.0 | 1.31 | 2.0 | 0.921 | 257 | 0.5% |
20% | 213 | 300.0 | 1.16 | 2.0 | 0.864 | 213 | 0.5% |
10% | 213 | 300.0 | 1.03 | 2.0 | 0.836 | 183 | 0.6% |
Active Idle | 213 | 300.0 | 0.686 | 1.0 | 0.723 | 106 | 0.6% |
