Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module | ssj_ops@100% = 11,801,079 ssj_ops@100% per JVM = 1,475,135 |
||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 10, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 2, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 11,876,577 | ||
Calibration 2 | 11,829,781 | ||
Calibration 3 | 11,837,536 | ||
ssj_ops@calibrated=11,833,659 | |||
100% | 99.7% | 11,833,659 | 11,801,079 |
90% | 89.9% | 10,650,293 | 10,636,386 |
80% | 79.9% | 9,466,927 | 9,459,711 |
70% | 70.0% | 8,283,561 | 8,280,186 |
60% | 60.0% | 7,100,195 | 7,100,830 |
50% | 50.1% | 5,916,829 | 5,923,017 |
40% | 40.0% | 4,733,463 | 4,734,853 |
30% | 30.0% | 3,550,098 | 3,554,022 |
20% | 20.0% | 2,366,732 | 2,363,796 |
10% | 10.0% | 1,183,366 | 1,186,219 |
Active Idle | 0 | 0 |
Set Identifier: | SUT |
Set Description: | System Under Test |
# of Identical Nodes: | 3 |
Comment: | SUT |
Hardware | |
---|---|
Hardware Vendor: | Hewlett Packard Enterprise |
Model: | Synergy 660 Gen10 Compute Module |
Form Factor: | blade |
CPU Name: | Intel Xeon Platinum 8280 @ 2.70GHz |
CPU Characteristics: | 28-Core, 2.70 GHz, 38.5MB L3 Cache |
CPU Frequency (MHz): | 2700 |
CPU(s) Enabled: | 112 cores, 4 chips, 28 cores/chip |
Hardware Threads: | 224 (2 / core) |
CPU(s) Orderable: | 1,2,3,4 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 384 |
# and size of DIMM: | 24 x 16384 MB |
Memory Details: | 24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | N/A |
Disk Drive: | 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21) |
Disk Controller: | HPE Smart Array S100i SR Gen10 |
# and type of Network Interface Cards (NICs) Installed: | 1 x HPE Synergy 3820C 10/20Gb CNA |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software | |
---|---|
Power Management: | Enabled (see SUT Notes) |
Operating System (OS): | SUSE Linux Enterprise Server 12 SP4 |
OS Version: | 4.12.14-94.41-default |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC |
JVM Affinity: | start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF] |
JVM Instances: | 8 |
JVM Initial Heap (MB): | 21000 |
JVM Maximum Heap (MB): | 21000 |
JVM Address Bits: | 64 |
Boot Firmware Version: | I43 v2.10 (01/18/2019) |
Management Firmware Version: | 1.40 Feb 05 2019 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019) |

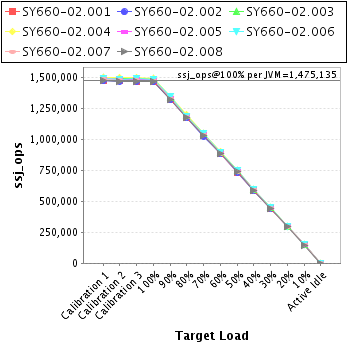

JVM Instance | ssj_ops@100% |
---|---|
SY660-02.001 | 1,463,973 |
SY660-02.002 | 1,464,723 |
SY660-02.003 | 1,486,899 |
SY660-02.004 | 1,489,473 |
SY660-02.005 | 1,479,540 |
SY660-02.006 | 1,479,865 |
SY660-02.007 | 1,472,623 |
SY660-02.008 | 1,463,984 |
ssj_ops@100% | 11,801,079 |
ssj_ops@100% per JVM | 1,475,135 |

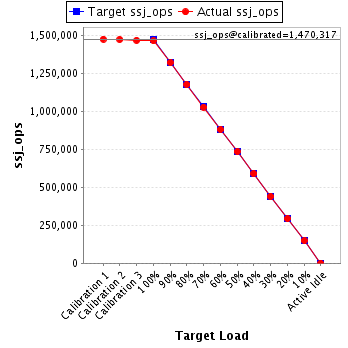

Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,474,910 | ||
Calibration 2 | 1,472,453 | ||
Calibration 3 | 1,468,180 | ||
ssj_ops@calibrated=1,470,317 | |||
100% | 99.6% | 1,470,317 | 1,463,973 |
90% | 89.9% | 1,323,285 | 1,321,474 |
80% | 80.0% | 1,176,253 | 1,176,934 |
70% | 69.9% | 1,029,222 | 1,028,143 |
60% | 59.9% | 882,190 | 880,966 |
50% | 49.9% | 735,158 | 734,413 |
40% | 40.1% | 588,127 | 589,088 |
30% | 30.0% | 441,095 | 440,570 |
20% | 19.9% | 294,063 | 292,563 |
10% | 10.1% | 147,032 | 148,857 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,469,370 | ||
Calibration 2 | 1,467,075 | ||
Calibration 3 | 1,466,731 | ||
ssj_ops@calibrated=1,466,903 | |||
100% | 99.9% | 1,466,903 | 1,464,723 |
90% | 89.7% | 1,320,213 | 1,315,957 |
80% | 79.9% | 1,173,522 | 1,172,597 |
70% | 69.7% | 1,026,832 | 1,022,118 |
60% | 60.1% | 880,142 | 881,677 |
50% | 50.0% | 733,452 | 732,831 |
40% | 39.9% | 586,761 | 585,454 |
30% | 30.1% | 440,071 | 441,829 |
20% | 20.0% | 293,381 | 293,029 |
10% | 10.1% | 146,690 | 147,563 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,497,999 | ||
Calibration 2 | 1,488,448 | ||
Calibration 3 | 1,491,085 | ||
ssj_ops@calibrated=1,489,766 | |||
100% | 99.8% | 1,489,766 | 1,486,899 |
90% | 89.7% | 1,340,790 | 1,336,937 |
80% | 79.9% | 1,191,813 | 1,190,211 |
70% | 70.0% | 1,042,836 | 1,042,380 |
60% | 60.0% | 893,860 | 893,746 |
50% | 50.1% | 744,883 | 746,593 |
40% | 39.9% | 595,907 | 594,117 |
30% | 30.1% | 446,930 | 448,010 |
20% | 19.9% | 297,953 | 297,004 |
10% | 10.0% | 148,977 | 149,431 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,499,383 | ||
Calibration 2 | 1,494,225 | ||
Calibration 3 | 1,495,654 | ||
ssj_ops@calibrated=1,494,939 | |||
100% | 99.6% | 1,494,939 | 1,489,473 |
90% | 90.1% | 1,345,445 | 1,346,254 |
80% | 80.1% | 1,195,951 | 1,196,716 |
70% | 69.9% | 1,046,457 | 1,045,688 |
60% | 60.0% | 896,963 | 897,403 |
50% | 50.0% | 747,470 | 746,755 |
40% | 40.0% | 597,976 | 597,538 |
30% | 30.1% | 448,482 | 450,200 |
20% | 19.9% | 298,988 | 297,261 |
10% | 9.9% | 149,494 | 148,721 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,488,539 | ||
Calibration 2 | 1,482,467 | ||
Calibration 3 | 1,484,341 | ||
ssj_ops@calibrated=1,483,404 | |||
100% | 99.7% | 1,483,404 | 1,479,540 |
90% | 89.7% | 1,335,064 | 1,330,227 |
80% | 79.8% | 1,186,724 | 1,184,460 |
70% | 70.0% | 1,038,383 | 1,038,908 |
60% | 59.9% | 890,043 | 888,348 |
50% | 50.0% | 741,702 | 742,403 |
40% | 40.1% | 593,362 | 594,201 |
30% | 30.0% | 445,021 | 444,375 |
20% | 20.1% | 296,681 | 298,040 |
10% | 9.9% | 148,340 | 147,473 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,491,346 | ||
Calibration 2 | 1,483,831 | ||
Calibration 3 | 1,487,625 | ||
ssj_ops@calibrated=1,485,728 | |||
100% | 99.6% | 1,485,728 | 1,479,865 |
90% | 90.3% | 1,337,155 | 1,341,150 |
80% | 79.9% | 1,188,582 | 1,186,494 |
70% | 70.1% | 1,040,010 | 1,041,827 |
60% | 60.1% | 891,437 | 892,352 |
50% | 50.1% | 742,864 | 745,023 |
40% | 40.0% | 594,291 | 595,015 |
30% | 30.0% | 445,718 | 446,037 |
20% | 20.0% | 297,146 | 296,716 |
10% | 10.0% | 148,573 | 148,434 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,483,481 | ||
Calibration 2 | 1,475,437 | ||
Calibration 3 | 1,476,016 | ||
ssj_ops@calibrated=1,475,726 | |||
100% | 99.8% | 1,475,726 | 1,472,623 |
90% | 89.9% | 1,328,154 | 1,326,664 |
80% | 79.8% | 1,180,581 | 1,177,486 |
70% | 70.0% | 1,033,008 | 1,033,656 |
60% | 59.9% | 885,436 | 884,448 |
50% | 50.1% | 737,863 | 739,044 |
40% | 40.2% | 590,291 | 592,764 |
30% | 30.1% | 442,718 | 443,802 |
20% | 20.0% | 295,145 | 295,061 |
10% | 10.1% | 147,573 | 148,666 |
Active Idle | 0 | 0 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 1,471,549 | ||
Calibration 2 | 1,465,846 | ||
Calibration 3 | 1,467,904 | ||
ssj_ops@calibrated=1,466,875 | |||
100% | 99.8% | 1,466,875 | 1,463,984 |
90% | 89.8% | 1,320,187 | 1,317,722 |
80% | 80.1% | 1,173,500 | 1,174,811 |
70% | 70.0% | 1,026,812 | 1,027,466 |
60% | 60.1% | 880,125 | 881,891 |
50% | 50.2% | 733,437 | 735,954 |
40% | 40.0% | 586,750 | 586,677 |
30% | 29.9% | 440,062 | 439,199 |
20% | 20.1% | 293,375 | 294,122 |
10% | 10.0% | 146,687 | 147,075 |
Active Idle | 0 | 0 |
