SPECpower_ssj2008 Host 'SY660-03' Performance Report

SPECpower_ssj2008

Host 'SY660-03' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,780,422 ssj_ops@100% per JVM = 1,472,553
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,857,242
Calibration 2			11,810,622
Calibration 3			11,813,156
ssj_ops@calibrated=11,811,889
100%	99.7%	11,811,889	11,780,422
90%	90.0%	10,630,700	10,625,898
80%	80.0%	9,449,511	9,447,760
70%	70.0%	8,268,322	8,264,494
60%	60.0%	7,087,133	7,081,263
50%	50.0%	5,905,945	5,901,943
40%	40.0%	4,724,756	4,720,643
30%	30.0%	3,543,567	3,544,271
20%	20.0%	2,362,378	2,365,587
10%	10.0%	1,181,189	1,184,127
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	3
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-03.001	1,474,351
SY660-03.002	1,491,056
SY660-03.003	1,495,545
SY660-03.004	1,462,336
SY660-03.005	1,455,750
SY660-03.006	1,461,494
SY660-03.007	1,471,303
SY660-03.008	1,468,587
ssj_ops@100%	11,780,422
ssj_ops@100% per JVM	1,472,553

JVM 'SY660-03.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,485,301
Calibration 2			1,478,871
Calibration 3			1,481,009
ssj_ops@calibrated=1,479,940
100%	99.6%	1,479,940	1,474,351
90%	89.9%	1,331,946	1,330,037
80%	79.9%	1,183,952	1,182,077
70%	69.9%	1,035,958	1,034,496
60%	60.0%	887,964	888,250
50%	50.1%	739,970	741,007
40%	39.9%	591,976	590,722
30%	30.0%	443,982	444,145
20%	20.0%	295,988	296,338
10%	10.1%	147,994	148,958
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,498,289
Calibration 2			1,493,788
Calibration 3			1,494,490
ssj_ops@calibrated=1,494,139
100%	99.8%	1,494,139	1,491,056
90%	90.0%	1,344,725	1,344,924
80%	79.9%	1,195,311	1,194,528
70%	70.0%	1,045,897	1,046,619
60%	59.8%	896,483	894,192
50%	50.0%	747,070	747,031
40%	40.1%	597,656	598,681
30%	29.9%	448,242	447,336
20%	20.1%	298,828	300,068
10%	9.9%	149,414	148,577
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

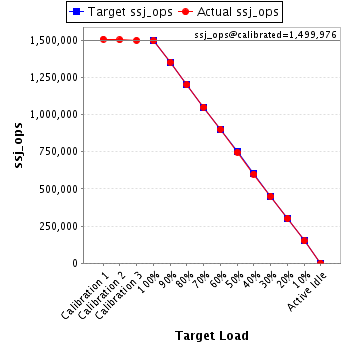

JVM 'SY660-03.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,506,145
Calibration 2			1,501,653
Calibration 3			1,498,298
ssj_ops@calibrated=1,499,976
100%	99.7%	1,499,976	1,495,545
90%	90.1%	1,349,978	1,352,034
80%	80.0%	1,199,980	1,199,771
70%	70.0%	1,049,983	1,049,767
60%	60.0%	899,985	900,667
50%	49.8%	749,988	746,436
40%	40.0%	599,990	599,814
30%	30.0%	449,993	450,219
20%	20.0%	299,995	300,647
10%	10.0%	149,998	150,118
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,468,598
Calibration 2			1,463,972
Calibration 3			1,466,093
ssj_ops@calibrated=1,465,033
100%	99.8%	1,465,033	1,462,336
90%	89.8%	1,318,529	1,315,891
80%	79.9%	1,172,026	1,170,774
70%	70.2%	1,025,523	1,027,823
60%	59.9%	879,020	876,939
50%	50.0%	732,516	732,609
40%	40.1%	586,013	587,893
30%	30.0%	439,510	438,879
20%	19.9%	293,007	291,436
10%	10.0%	146,503	146,107
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,467,718
Calibration 2			1,462,430
Calibration 3			1,459,901
ssj_ops@calibrated=1,461,166
100%	99.6%	1,461,166	1,455,750
90%	90.2%	1,315,049	1,318,089
80%	80.2%	1,168,933	1,171,666
70%	69.9%	1,022,816	1,020,677
60%	60.0%	876,700	877,179
50%	50.0%	730,583	731,177
40%	39.8%	584,466	581,082
30%	29.9%	438,350	437,150
20%	20.0%	292,233	292,227
10%	10.1%	146,117	148,057
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,472,286
Calibration 2			1,467,400
Calibration 3			1,468,137
ssj_ops@calibrated=1,467,768
100%	99.6%	1,467,768	1,461,494
90%	89.6%	1,320,992	1,315,243
80%	80.2%	1,174,215	1,177,484
70%	69.8%	1,027,438	1,024,011
60%	59.8%	880,661	877,773
50%	49.9%	733,884	731,930
40%	39.8%	587,107	584,543
30%	30.0%	440,331	440,217
20%	20.1%	293,554	294,826
10%	10.0%	146,777	146,819
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,479,082
Calibration 2			1,470,167
Calibration 3			1,472,015
ssj_ops@calibrated=1,471,091
100%	100.0%	1,471,091	1,471,303
90%	90.1%	1,323,982	1,325,784
80%	79.8%	1,176,873	1,174,141
70%	70.2%	1,029,764	1,032,484
60%	59.8%	882,655	879,477
50%	50.0%	735,546	735,474
40%	40.1%	588,436	590,143
30%	30.0%	441,327	441,468
20%	20.1%	294,218	295,760
10%	10.1%	147,109	148,384
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-03.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,479,821
Calibration 2			1,472,340
Calibration 3			1,473,213
ssj_ops@calibrated=1,472,776
100%	99.7%	1,472,776	1,468,587
90%	89.9%	1,325,498	1,323,897
80%	79.9%	1,178,221	1,177,319
70%	69.8%	1,030,943	1,028,616
60%	60.2%	883,666	886,785
50%	50.0%	736,388	736,279
40%	39.9%	589,110	587,765
30%	30.2%	441,833	444,856
20%	20.0%	294,555	294,285
10%	10.0%	147,278	147,106
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
