Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module ssj_ops@100% = 23,701,920
ssj_ops@100% per Host = 11,850,960
ssj_ops@100% per JVM = 1,481,370
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 11, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,814,974
Calibration 2     23,755,273
Calibration 3     23,788,195
ssj_ops@calibrated=23,771,734
100% 99.7% 23,771,734 23,701,920
90% 90.0% 21,394,561 21,390,808
80% 80.0% 19,017,387 19,013,293
70% 70.0% 16,640,214 16,644,211
60% 60.0% 14,263,040 14,262,510
50% 50.0% 11,885,867 11,886,005
40% 40.0% 9,508,694 9,513,862
30% 30.0% 7,131,520 7,142,160
20% 20.0% 4,754,347 4,753,075
10% 10.0% 2,377,173 2,378,954
Active Idle   0 0
Graph of results
Aggregate SUT Data
# of Nodes # of Chips # of Cores # of Threads Total RAM (GB) # of OS Images # of JVM Instances
2 8 224 448 768 2 16
System Under Test
Shared Hardware
Shared Hardware
Enclosure: HPE Synergy 12000 Frame
Form Factor: 10U
Power Supply Quantity and Rating (W): 4 x 2650
Power Supply Details: HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch: 1 x HP A5820X Series Switch (JG219A)
Network Switch Details: 10 Gb Fibre 24 ports
KVM Switch: None
KVM Switch Details: N/A
Other Hardware: 1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment: Network switch not measured for power
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 2
Comment: SUT
Hardware per Node
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 660 Gen10 Compute Module
Form Factor: blade
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16384 MB
Memory Details: 24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software per Node
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 8
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I43 v2.10 (01/18/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
Host Instance Summary
Host ssj_ops@100%
SY660-01 11,843,466
SY660-02 11,858,455
ssj_ops@100% 23,701,920
ssj_ops@100% per Host 11,850,960
ssj_ops@100% per JVM 1,481,370

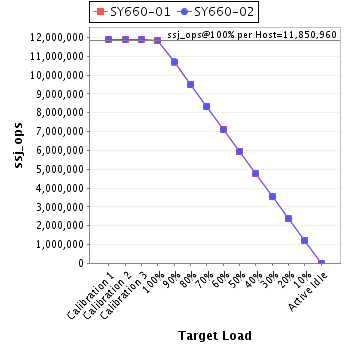

Graph of per-host results

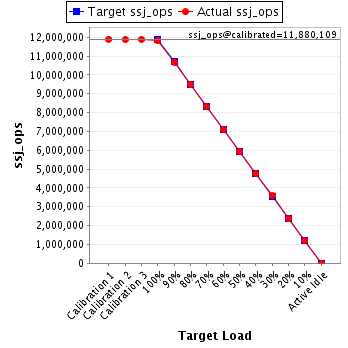

Host 'SY660-01' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,901,297
Calibration 2     11,871,142
Calibration 3     11,889,077
ssj_ops@calibrated=11,880,109
100% 99.7% 11,880,109 11,843,466
90% 89.9% 10,692,098 10,685,535
80% 80.0% 9,504,088 9,506,942
70% 70.0% 8,316,077 8,315,507
60% 60.0% 7,128,066 7,129,598
50% 50.0% 5,940,055 5,940,714
40% 40.0% 4,752,044 4,754,347
30% 30.1% 3,564,033 3,573,217
20% 20.0% 2,376,022 2,374,254
10% 10.0% 1,188,011 1,187,810
Active Idle   0 0
Graph of results
Host 'SY660-02' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,913,677
Calibration 2     11,884,131
Calibration 3     11,899,118
ssj_ops@calibrated=11,891,625
100% 99.7% 11,891,625 11,858,455
90% 90.0% 10,702,462 10,705,273
80% 79.9% 9,513,300 9,506,351
70% 70.0% 8,324,137 8,328,704
60% 60.0% 7,134,975 7,132,912
50% 50.0% 5,945,812 5,945,291
40% 40.0% 4,756,650 4,759,515
30% 30.0% 3,567,487 3,568,943
20% 20.0% 2,378,325 2,378,821
10% 10.0% 1,189,162 1,191,144
Active Idle   0 0
Graph of results
