Hewlett Packard Enterprise ProLiant DL360 Gen10 SPECpower_ssj2008 = 11,637 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Single Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 11, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 233 21.8
Calibration 2 236 21.9
Calibration 3 236 21.7
100% 235 21.7
90% 214 21.7
80% 186 21.6
70% 160 21.6
60% 140 21.6
50% 122 21.5
40% 107 21.5
30% 90.5 21.5
20% 76.9 21.5
10% 64.3 21.5
Active Idle 37.3 21.4

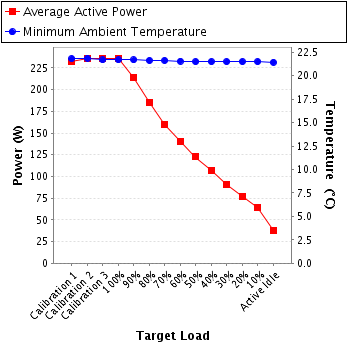

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT310
Serial Number: C2SF14001V
Connectivity: Yokogawa-USB
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EP5YB-20-1
Date of Calibration: 08-Aug-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to SUT Power Supply 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 215 300.0 1.09 2.0 0.991 233 0.3%
Calibration 2 216 300.0 1.11 2.0 0.990 236 0.3%
Calibration 3 216 300.0 1.11 2.0 0.990 236 0.3%
100% 216 300.0 1.10 2.0 0.991 235 0.3%
90% 216 300.0 1.00 2.0 0.990 214 0.3%
80% 216 300.0 0.872 1.0 0.988 186 0.2%
70% 216 300.0 0.751 1.0 0.986 160 0.2%
60% 216 300.0 0.661 1.0 0.983 140 0.2%
50% 216 300.0 0.579 1.0 0.980 122 0.3%
40% 216 300.0 0.507 1.0 0.977 107 0.3%
30% 215 300.0 0.432 1.0 0.972 90.5 0.3%
20% 216 300.0 0.369 0.5 0.967 76.9 0.3%
10% 216 300.0 0.311 0.5 0.959 64.3 0.3%
Active Idle 216 300.0 0.198 0.5 0.873 37.3 0.4%
Power details for pwr1
