Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 11,051 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 5,908 22.8
Calibration 2 5,975 23.1
Calibration 3 5,978 23.1
100% 5,938 23.2
90% 5,352 23.3
80% 4,645 23.3
70% 3,963 23.3
60% 3,460 23.2
50% 3,018 23.2
40% 2,620 23.2
30% 2,241 23.2
20% 1,898 23.2
10% 1,590 23.1
Active Idle 807 23.1

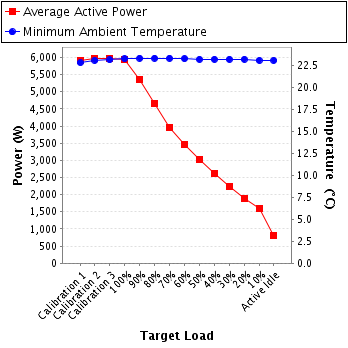

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 6.72 20.0 0.996 1,431 0.6%
Calibration 2 214 300.0 6.77 20.0 0.996 1,440 0.6%
Calibration 3 213 300.0 6.75 20.0 0.996 1,436 0.6%
100% 214 300.0 6.71 20.0 0.996 1,429 0.6%
90% 214 300.0 6.00 20.0 0.995 1,278 0.6%
80% 214 300.0 5.24 10.0 0.996 1,117 0.4%
70% 214 300.0 4.36 10.0 0.993 928 0.5%
60% 214 300.0 3.85 10.0 0.992 818 0.5%
50% 214 300.0 3.45 10.0 0.990 731 0.6%
40% 214 300.0 3.05 10.0 0.988 646 0.6%
30% 215 300.0 2.64 5.0 0.983 557 0.5%
20% 215 300.0 2.23 5.0 0.977 467 0.5%
10% 215 300.0 1.82 2.0 0.965 378 0.4%
Active Idle 215 300.0 0.948 1.0 0.844 172 0.5%

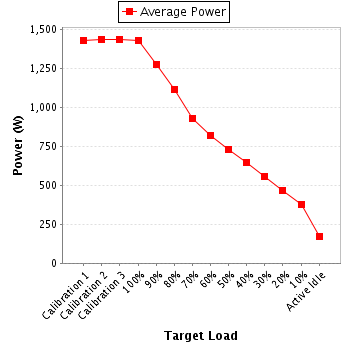

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 212 300.0 14.2 20.0 0.997 3,009 0.4%
Calibration 2 212 300.0 14.3 20.0 0.997 3,029 0.4%
Calibration 3 212 300.0 14.4 20.0 0.997 3,044 0.4%
100% 212 300.0 14.3 20.0 0.997 3,028 0.4%
90% 213 300.0 12.9 20.0 0.997 2,744 0.4%
80% 213 300.0 11.2 10.0 0.996 2,377 0.4%
70% 213 300.0 9.68 10.0 0.996 2,055 0.3%
60% 213 300.0 8.42 10.0 0.995 1,784 0.3%
50% 213 300.0 7.27 10.0 0.993 1,539 0.4%
40% 214 300.0 6.30 10.0 0.991 1,333 0.4%
30% 214 300.0 5.41 5.0 0.987 1,143 0.3%
20% 214 300.0 4.61 5.0 0.983 970 0.3%
10% 214 300.0 3.94 5.0 0.976 822 0.4%
Active Idle 214 300.0 2.31 5.0 0.915 452 0.6%

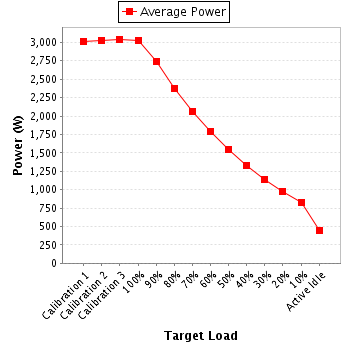

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 6.98 10.0 0.996 1,468 0.4%
Calibration 2 211 300.0 7.17 10.0 0.996 1,506 0.4%
Calibration 3 211 300.0 7.15 10.0 0.996 1,499 0.4%
100% 211 300.0 7.05 10.0 0.996 1,481 0.4%
90% 211 300.0 6.32 10.0 0.995 1,330 0.4%
80% 212 300.0 5.47 10.0 0.995 1,151 0.4%
70% 212 300.0 4.66 10.0 0.993 980 0.5%
60% 212 300.0 4.09 5.0 0.992 858 0.4%
50% 212 300.0 3.57 5.0 0.989 747 0.4%
40% 212 300.0 3.07 5.0 0.986 640 0.4%
30% 212 300.0 2.61 5.0 0.980 541 0.5%
20% 212 300.0 2.24 5.0 0.974 461 0.5%
10% 212 300.0 1.91 5.0 0.964 390 0.6%
Active Idle 212 300.0 1.02 2.0 0.847 184 0.6%

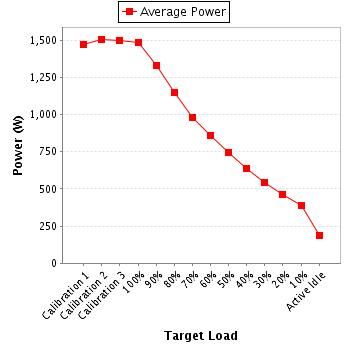

Power details for pwr3
