Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module | SPECpower_ssj2008 = 11,017 overall ssj_ops/watt | ||||
Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Multi Node |
Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 12, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 2, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

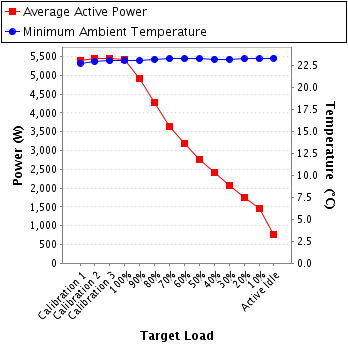

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 5,407 | 22.8 |
Calibration 2 | 5,451 | 22.9 |
Calibration 3 | 5,457 | 23.0 |
100% | 5,431 | 23.1 |
90% | 4,910 | 23.1 |
80% | 4,269 | 23.2 |
70% | 3,638 | 23.2 |
60% | 3,174 | 23.2 |
50% | 2,770 | 23.2 |
40% | 2,404 | 23.2 |
30% | 2,059 | 23.2 |
20% | 1,745 | 23.2 |
10% | 1,464 | 23.2 |
Active Idle | 756 | 23.3 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB53024 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-80-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 5 |
Power Analyzer pwr2 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GB47168 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-60-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supply 3 |
Power Analyzer pwr3 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | WT210 |
Serial Number: | 91GC21887 |
Connectivity: | GPIB vi NI GPIB-USB-HS |
Input Connection: | Default |
Metrology Institute: | NIST |
Accredited by: | TRANSCAT |
Calibration Label: | 5-EM5Y4-20-1 |
Date of Calibration: | 21-Jun-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | SUT Power Supplies 1 and 2 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi International Inc. |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | 5 mm in front of SUT main intake |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||

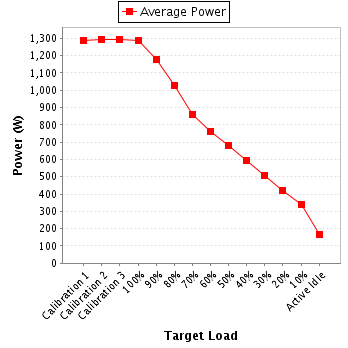

Calibration 1 | 213 | 300.0 | 6.07 | 20.0 | 0.995 | 1,286 | 0.6% |
Calibration 2 | 213 | 300.0 | 6.12 | 20.0 | 0.995 | 1,295 | 0.6% |
Calibration 3 | 214 | 300.0 | 6.08 | 20.0 | 0.995 | 1,292 | 0.6% |
100% | 214 | 300.0 | 6.07 | 20.0 | 0.995 | 1,290 | 0.6% |
90% | 214 | 300.0 | 5.54 | 20.0 | 0.995 | 1,179 | 0.7% |
80% | 214 | 300.0 | 4.83 | 10.0 | 0.994 | 1,028 | 0.5% |
70% | 214 | 300.0 | 4.05 | 10.0 | 0.993 | 860 | 0.5% |
60% | 214 | 300.0 | 3.60 | 10.0 | 0.990 | 763 | 0.6% |
50% | 214 | 300.0 | 3.20 | 10.0 | 0.989 | 678 | 0.6% |
40% | 214 | 300.0 | 2.81 | 10.0 | 0.986 | 594 | 0.7% |
30% | 214 | 300.0 | 2.42 | 5.0 | 0.980 | 509 | 0.5% |
20% | 215 | 300.0 | 2.02 | 5.0 | 0.971 | 421 | 0.6% |
10% | 215 | 300.0 | 1.64 | 2.0 | 0.957 | 337 | 0.4% |
Active Idle | 215 | 300.0 | 0.926 | 1.0 | 0.826 | 164 | 0.5% |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||

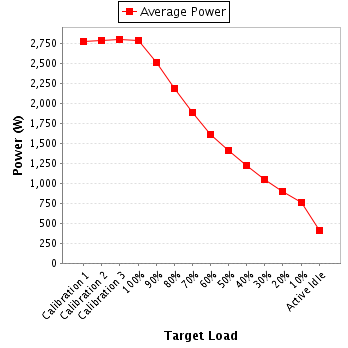

Calibration 1 | 211 | 300.0 | 13.2 | 20.0 | 0.997 | 2,777 | 0.4% |
Calibration 2 | 211 | 300.0 | 13.3 | 20.0 | 0.997 | 2,794 | 0.4% |
Calibration 3 | 212 | 300.0 | 13.3 | 20.0 | 0.997 | 2,805 | 0.4% |
100% | 212 | 300.0 | 13.2 | 20.0 | 0.997 | 2,792 | 0.4% |
90% | 213 | 300.0 | 11.9 | 20.0 | 0.996 | 2,513 | 0.4% |
80% | 213 | 300.0 | 10.3 | 10.0 | 0.996 | 2,187 | 0.3% |
70% | 213 | 300.0 | 8.89 | 10.0 | 0.995 | 1,884 | 0.3% |
60% | 213 | 300.0 | 7.63 | 10.0 | 0.994 | 1,616 | 0.4% |
50% | 213 | 300.0 | 6.66 | 10.0 | 0.992 | 1,410 | 0.4% |
40% | 214 | 300.0 | 5.81 | 10.0 | 0.989 | 1,228 | 0.4% |
30% | 214 | 300.0 | 4.99 | 5.0 | 0.985 | 1,052 | 0.3% |
20% | 214 | 300.0 | 4.28 | 5.0 | 0.980 | 899 | 0.4% |
10% | 214 | 300.0 | 3.67 | 5.0 | 0.972 | 764 | 0.4% |
Active Idle | 215 | 300.0 | 2.15 | 5.0 | 0.901 | 415 | 0.6% |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 210 | 300.0 | 6.42 | 10.0 | 0.995 | 1,344 | 0.4% |
Calibration 2 | 210 | 300.0 | 6.51 | 10.0 | 0.995 | 1,362 | 0.4% |
Calibration 3 | 211 | 300.0 | 6.48 | 10.0 | 0.995 | 1,361 | 0.4% |
100% | 211 | 300.0 | 6.42 | 10.0 | 0.995 | 1,348 | 0.4% |
90% | 211 | 300.0 | 5.80 | 10.0 | 0.995 | 1,217 | 0.4% |
80% | 211 | 300.0 | 5.02 | 10.0 | 0.995 | 1,054 | 0.5% |
70% | 211 | 300.0 | 4.26 | 10.0 | 0.992 | 893 | 0.5% |
60% | 211 | 300.0 | 3.80 | 5.0 | 0.990 | 795 | 0.4% |
50% | 211 | 300.0 | 3.26 | 5.0 | 0.988 | 681 | 0.4% |
40% | 212 | 300.0 | 2.80 | 5.0 | 0.983 | 583 | 0.4% |
30% | 212 | 300.0 | 2.41 | 5.0 | 0.977 | 498 | 0.5% |
20% | 212 | 300.0 | 2.07 | 5.0 | 0.968 | 425 | 0.6% |
10% | 212 | 300.0 | 1.79 | 5.0 | 0.959 | 363 | 0.6% |
Active Idle | 212 | 300.0 | 0.997 | 2.0 | 0.836 | 177 | 0.6% |
