Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 10,825 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,950 23.4
Calibration 2 3,959 23.5
Calibration 3 3,969 23.6
100% 3,958 23.7
90% 3,588 23.8
80% 3,130 23.8
70% 2,664 23.8
60% 2,339 23.7
50% 2,053 23.7
40% 1,789 23.7
30% 1,541 23.7
20% 1,314 23.5
10% 1,110 23.6
Active Idle 598 23.5
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 4.36 20.0 0.993 925 0.8%
Calibration 2 214 300.0 4.37 20.0 0.993 929 0.8%
Calibration 3 214 300.0 4.39 20.0 0.993 932 0.8%
100% 214 300.0 4.38 20.0 0.993 929 0.8%
90% 214 300.0 3.99 20.0 0.993 846 0.9%
80% 214 300.0 3.51 10.0 0.990 743 0.6%
70% 214 300.0 3.08 10.0 0.988 650 0.6%
60% 214 300.0 2.74 10.0 0.985 577 0.7%
50% 214 300.0 2.41 10.0 0.980 506 0.8%
40% 214 300.0 2.08 10.0 0.973 434 0.9%
30% 214 300.0 1.75 5.0 0.961 359 0.6%
20% 214 300.0 1.45 5.0 0.945 293 0.7%
10% 215 300.0 1.17 2.0 0.910 229 0.5%
Active Idle 215 300.0 0.774 1.0 0.778 129 0.5%

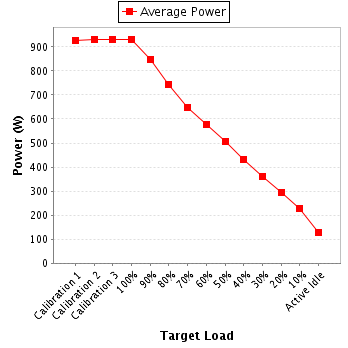

Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 9.70 20.0 0.996 2,056 0.5%
Calibration 2 213 300.0 9.72 20.0 0.996 2,060 0.5%
Calibration 3 213 300.0 9.74 20.0 0.996 2,065 0.5%
100% 213 300.0 9.74 20.0 0.996 2,062 0.5%
90% 213 300.0 8.82 20.0 0.995 1,867 0.5%
80% 213 300.0 7.60 10.0 0.993 1,607 0.4%
70% 213 300.0 6.44 10.0 0.991 1,361 0.4%
60% 213 300.0 5.67 10.0 0.989 1,196 0.4%
50% 214 300.0 5.00 10.0 0.985 1,051 0.5%
40% 214 300.0 4.40 10.0 0.980 922 0.5%
30% 214 300.0 3.86 5.0 0.974 803 0.4%
20% 214 300.0 3.35 5.0 0.966 692 0.4%
10% 214 300.0 2.97 5.0 0.957 608 0.5%
Active Idle 214 300.0 1.77 5.0 0.860 326 0.7%

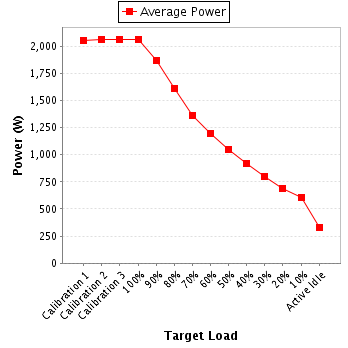

Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 4.62 10.0 0.993 969 0.5%
Calibration 2 211 300.0 4.63 10.0 0.993 971 0.5%
Calibration 3 211 300.0 4.63 10.0 0.993 972 0.5%
100% 211 300.0 4.61 10.0 0.993 967 0.5%
90% 211 300.0 4.18 10.0 0.992 875 0.5%
80% 211 300.0 3.73 10.0 0.990 780 0.6%
70% 211 300.0 3.14 10.0 0.986 654 0.6%
60% 211 300.0 2.73 5.0 0.982 566 0.5%
50% 212 300.0 2.40 5.0 0.977 495 0.5%
40% 212 300.0 2.11 5.0 0.969 433 0.5%
30% 211 300.0 1.86 5.0 0.961 379 0.6%
20% 211 300.0 1.64 5.0 0.951 330 0.7%
10% 212 300.0 1.38 5.0 0.931 273 0.8%
Active Idle 212 300.0 0.842 2.0 0.795 142 0.7%

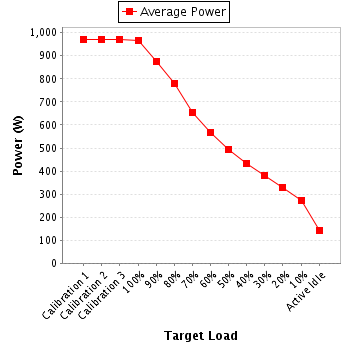

Power details for pwr3
