SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant DL360 Gen10 | SPECpower_ssj2008 = 12,384 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Mar 12, 2019 |
| Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 2, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

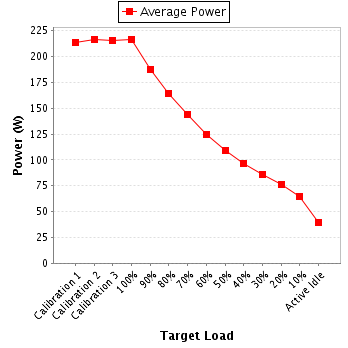

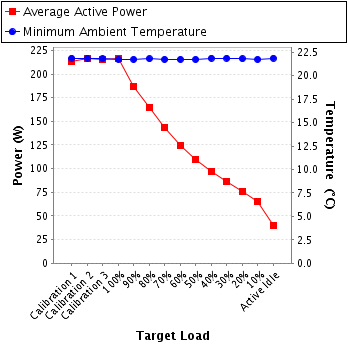

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 214 | 21.9 |
| Calibration 2 | 216 | 21.9 |
| Calibration 3 | 215 | 21.8 |
| 100% | 217 | 21.8 |
| 90% | 187 | 21.8 |
| 80% | 164 | 21.8 |
| 70% | 144 | 21.8 |
| 60% | 125 | 21.8 |
| 50% | 109 | 21.8 |
| 40% | 96.8 | 21.9 |
| 30% | 86.2 | 21.9 |
| 20% | 75.9 | 21.8 |
| 10% | 65.0 | 21.8 |
| Active Idle | 39.4 | 21.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC23225 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-EW8J3-20-1 |
| Date of Calibration: | 13-Dec-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 216 | 300.0 | 0.998 | 2.0 | 0.992 | 214 | 0.5% |
| Calibration 2 | 216 | 300.0 | 1.01 | 2.0 | 0.992 | 216 | 0.5% |
| Calibration 3 | 216 | 300.0 | 1.00 | 2.0 | 0.992 | 215 | 0.5% |
| 100% | 216 | 300.0 | 1.01 | 2.0 | 0.992 | 217 | 0.5% |
| 90% | 216 | 300.0 | 0.875 | 1.0 | 0.990 | 187 | 0.3% |
| 80% | 216 | 300.0 | 0.772 | 1.0 | 0.987 | 164 | 0.4% |
| 70% | 216 | 300.0 | 0.676 | 1.0 | 0.985 | 144 | 0.4% |
| 60% | 216 | 300.0 | 0.588 | 1.0 | 0.983 | 125 | 0.4% |
| 50% | 216 | 300.0 | 0.516 | 1.0 | 0.980 | 109 | 0.5% |
| 40% | 216 | 300.0 | 0.459 | 0.5 | 0.978 | 96.8 | 0.3% |
| 30% | 216 | 300.0 | 0.410 | 0.5 | 0.975 | 86.2 | 0.4% |
| 20% | 216 | 300.0 | 0.362 | 0.5 | 0.972 | 75.9 | 0.4% |
| 10% | 216 | 300.0 | 0.312 | 0.5 | 0.965 | 65.0 | 0.4% |
| Active Idle | 216 | 300.0 | 0.205 | 0.5 | 0.892 | 39.4 | 0.6% |
