Lenovo Global Technology ThinkSystem SR630 ssj_ops@100% = 4,962,317
ssj_ops@100% per JVM = 88,613
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 7, 2019
Hardware Availability: Aug-2017 Software Availability: Jul-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,000,654
Calibration 2     4,976,931
Calibration 3     4,987,327
ssj_ops@calibrated=4,982,129
100% 99.6% 4,982,129 4,962,317
90% 88.9% 4,483,916 4,428,935
80% 79.4% 3,985,703 3,956,515
70% 69.9% 3,487,490 3,483,639
60% 60.0% 2,989,277 2,989,566
50% 50.0% 2,491,064 2,490,552
40% 40.1% 1,992,851 1,995,565
30% 30.0% 1,494,639 1,493,904
20% 20.0% 996,426 996,750
10% 10.0% 498,213 496,445
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR630
Form Factor: 1U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28-Core, 2.10 GHz, 39424 KB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 populated
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Lenovo P/N:7N67A00884
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x ThinkSystem 1Gb 2-Port RJ45 LOM (Lenovo P/N: 7ZT7A00544)
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP3
OS Version: Kernel 4.4.114-94.11-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId,physicalCoreId + 56 }
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: CDI305Q
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
linux-nvvl.001 88,076
linux-nvvl.002 88,640
linux-nvvl.003 89,666
linux-nvvl.004 87,531
linux-nvvl.005 88,224
linux-nvvl.006 90,684
linux-nvvl.007 87,551
linux-nvvl.008 89,556
linux-nvvl.009 90,163
linux-nvvl.010 87,930
linux-nvvl.011 86,998
linux-nvvl.012 88,479
linux-nvvl.013 89,885
linux-nvvl.014 87,912
linux-nvvl.015 88,831
linux-nvvl.016 90,008
linux-nvvl.017 88,827
linux-nvvl.018 87,275
linux-nvvl.019 87,769
linux-nvvl.020 89,063
linux-nvvl.021 88,470
linux-nvvl.022 87,768
linux-nvvl.023 90,055
linux-nvvl.024 88,130
linux-nvvl.025 88,931
linux-nvvl.026 88,165
linux-nvvl.027 88,819
linux-nvvl.028 89,214
linux-nvvl.029 87,427
linux-nvvl.030 88,523
linux-nvvl.031 88,205
linux-nvvl.032 88,635
linux-nvvl.033 89,463
linux-nvvl.034 88,007
linux-nvvl.035 89,217
linux-nvvl.036 88,909
linux-nvvl.037 88,643
linux-nvvl.038 88,322
linux-nvvl.039 88,432
linux-nvvl.040 89,027
linux-nvvl.041 87,662
linux-nvvl.042 88,993
linux-nvvl.043 88,739
linux-nvvl.044 89,234
linux-nvvl.045 88,140
linux-nvvl.046 88,363
linux-nvvl.047 88,970
linux-nvvl.048 88,806
linux-nvvl.049 87,323
linux-nvvl.050 88,317
linux-nvvl.051 89,106
linux-nvvl.052 88,761
linux-nvvl.053 88,544
linux-nvvl.054 89,024
linux-nvvl.055 89,735
linux-nvvl.056 87,169
ssj_ops@100% 4,962,317
ssj_ops@100% per JVM 88,613
Graph of per-instance results
JVM 'linux-nvvl.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,344
Calibration 2     88,949
Calibration 3     88,902
ssj_ops@calibrated=88,926
100% 99.0% 88,926 88,076
90% 88.9% 80,033 79,027
80% 79.4% 71,141 70,621
70% 69.6% 62,248 61,849
60% 60.9% 53,355 54,115
50% 50.2% 44,463 44,603
40% 40.5% 35,570 36,057
30% 30.1% 26,678 26,765
20% 20.1% 17,785 17,902
10% 9.7% 8,893 8,658
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,937
Calibration 2     88,907
Calibration 3     89,064
ssj_ops@calibrated=88,986
100% 99.6% 88,986 88,640
90% 89.1% 80,087 79,300
80% 79.2% 71,189 70,507
70% 69.3% 62,290 61,630
60% 59.5% 53,392 52,953
50% 49.7% 44,493 44,245
40% 40.8% 35,594 36,278
30% 29.7% 26,696 26,428
20% 19.9% 17,797 17,683
10% 9.9% 8,899 8,796
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,699
Calibration 2     90,188
Calibration 3     89,535
ssj_ops@calibrated=89,862
100% 99.8% 89,862 89,666
90% 89.0% 80,875 79,994
80% 79.3% 71,889 71,288
70% 70.1% 62,903 63,029
60% 59.5% 53,917 53,454
50% 50.2% 44,931 45,135
40% 40.1% 35,945 36,050
30% 29.9% 26,958 26,866
20% 20.3% 17,972 18,222
10% 10.1% 8,986 9,112
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,676
Calibration 2     88,676
Calibration 3     87,784
ssj_ops@calibrated=88,230
100% 99.2% 88,230 87,531
90% 89.5% 79,407 78,959
80% 78.7% 70,584 69,470
70% 69.5% 61,761 61,297
60% 59.7% 52,938 52,651
50% 49.5% 44,115 43,672
40% 41.1% 35,292 36,303
30% 30.0% 26,469 26,431
20% 20.1% 17,646 17,715
10% 10.1% 8,823 8,886
Active Idle   0 0

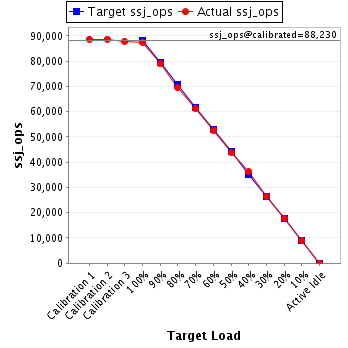

Graph of results
JVM 'linux-nvvl.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,467
Calibration 2     89,030
Calibration 3     88,950
ssj_ops@calibrated=88,990
100% 99.1% 88,990 88,224
90% 88.8% 80,091 79,010
80% 79.4% 71,192 70,646
70% 70.5% 62,293 62,746
60% 59.8% 53,394 53,185
50% 49.7% 44,495 44,249
40% 39.7% 35,596 35,347
30% 30.5% 26,697 27,137
20% 20.0% 17,798 17,764
10% 10.1% 8,899 8,950
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,114
Calibration 2     91,064
Calibration 3     91,097
ssj_ops@calibrated=91,080
100% 99.6% 91,080 90,684
90% 88.6% 81,972 80,697
80% 79.2% 72,864 72,167
70% 69.7% 63,756 63,508
60% 60.1% 54,648 54,698
50% 50.5% 45,540 45,996
40% 39.2% 36,432 35,742
30% 30.1% 27,324 27,450
20% 20.0% 18,216 18,216
10% 9.7% 9,108 8,820
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,139
Calibration 2     87,463
Calibration 3     87,438
ssj_ops@calibrated=87,451
100% 100.1% 87,451 87,551
90% 88.9% 78,706 77,750
80% 79.4% 69,961 69,445
70% 69.5% 61,215 60,810
60% 60.2% 52,470 52,619
50% 50.7% 43,725 44,339
40% 40.3% 34,980 35,252
30% 29.4% 26,235 25,721
20% 20.2% 17,490 17,650
10% 9.9% 8,745 8,643
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,718
Calibration 2     89,985
Calibration 3     89,549
ssj_ops@calibrated=89,767
100% 99.8% 89,767 89,556
90% 88.9% 80,790 79,785
80% 79.5% 71,814 71,350
70% 70.0% 62,837 62,876
60% 60.2% 53,860 54,066
50% 50.4% 44,884 45,231
40% 40.7% 35,907 36,576
30% 30.1% 26,930 26,998
20% 20.1% 17,953 18,006
10% 10.0% 8,977 8,967
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,747
Calibration 2     90,622
Calibration 3     90,795
ssj_ops@calibrated=90,708
100% 99.4% 90,708 90,163
90% 89.0% 81,637 80,707
80% 78.8% 72,567 71,508
70% 69.4% 63,496 62,938
60% 59.5% 54,425 53,981
50% 49.4% 45,354 44,826
40% 40.2% 36,283 36,421
30% 30.6% 27,212 27,733
20% 20.0% 18,142 18,103
10% 10.3% 9,071 9,371
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,088
Calibration 2     88,309
Calibration 3     88,834
ssj_ops@calibrated=88,572
100% 99.3% 88,572 87,930
90% 89.1% 79,714 78,890
80% 79.6% 70,857 70,539
70% 70.3% 62,000 62,296
60% 59.7% 53,143 52,896
50% 50.2% 44,286 44,494
40% 38.8% 35,429 34,369
30% 30.8% 26,571 27,279
20% 20.3% 17,714 17,992
10% 10.3% 8,857 9,102
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,676
Calibration 2     87,537
Calibration 3     88,132
ssj_ops@calibrated=87,835
100% 99.0% 87,835 86,998
90% 89.0% 79,051 78,162
80% 79.1% 70,268 69,519
70% 69.6% 61,484 61,132
60% 60.4% 52,701 53,072
50% 49.2% 43,917 43,240
40% 39.8% 35,134 34,952
30% 29.2% 26,350 25,609
20% 20.2% 17,567 17,762
10% 9.7% 8,783 8,546
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,491
Calibration 2     88,891
Calibration 3     89,254
ssj_ops@calibrated=89,073
100% 99.3% 89,073 88,479
90% 89.0% 80,165 79,243
80% 79.7% 71,258 70,947
70% 70.0% 62,351 62,333
60% 60.0% 53,444 53,440
50% 50.4% 44,536 44,898
40% 40.0% 35,629 35,612
30% 29.6% 26,722 26,351
20% 20.2% 17,815 17,951
10% 10.0% 8,907 8,872
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,269
Calibration 2     90,231
Calibration 3     90,130
ssj_ops@calibrated=90,181
100% 99.7% 90,181 89,885
90% 88.6% 81,163 79,885
80% 79.0% 72,145 71,205
70% 69.7% 63,126 62,867
60% 59.9% 54,108 54,017
50% 49.7% 45,090 44,809
40% 39.9% 36,072 35,966
30% 30.0% 27,054 27,033
20% 20.3% 18,036 18,332
10% 10.0% 9,018 8,983
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,546
Calibration 2     88,225
Calibration 3     87,444
ssj_ops@calibrated=87,835
100% 100.1% 87,835 87,912
90% 88.6% 79,051 77,855
80% 79.1% 70,268 69,450
70% 70.0% 61,484 61,467
60% 60.2% 52,701 52,919
50% 50.7% 43,917 44,512
40% 39.9% 35,134 35,061
30% 30.0% 26,350 26,371
20% 19.6% 17,567 17,197
10% 9.8% 8,783 8,608
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,452
Calibration 2     88,720
Calibration 3     88,678
ssj_ops@calibrated=88,699
100% 100.1% 88,699 88,831
90% 89.1% 79,829 79,000
80% 79.5% 70,959 70,505
70% 70.0% 62,089 62,110
60% 60.8% 53,219 53,951
50% 49.6% 44,349 44,027
40% 40.2% 35,480 35,642
30% 29.8% 26,610 26,463
20% 20.3% 17,740 18,023
10% 9.9% 8,870 8,801
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,278
Calibration 2     89,987
Calibration 3     90,034
ssj_ops@calibrated=90,011
100% 100.0% 90,011 90,008
90% 89.0% 81,010 80,153
80% 79.0% 72,008 71,097
70% 70.7% 63,007 63,614
60% 60.3% 54,006 54,300
50% 50.3% 45,005 45,295
40% 40.7% 36,004 36,655
30% 30.7% 27,003 27,669
20% 19.7% 18,002 17,739
10% 10.3% 9,001 9,262
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,792
Calibration 2     89,007
Calibration 3     89,234
ssj_ops@calibrated=89,121
100% 99.7% 89,121 88,827
90% 89.0% 80,209 79,306
80% 79.8% 71,297 71,092
70% 70.5% 62,385 62,807
60% 60.1% 53,472 53,578
50% 49.8% 44,560 44,392
40% 39.9% 35,648 35,549
30% 29.6% 26,736 26,386
20% 20.2% 17,824 18,000
10% 9.4% 8,912 8,404
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,791
Calibration 2     88,172
Calibration 3     88,701
ssj_ops@calibrated=88,437
100% 98.7% 88,437 87,275
90% 88.4% 79,593 78,181
80% 79.8% 70,749 70,537
70% 69.9% 61,906 61,779
60% 59.2% 53,062 52,371
50% 50.6% 44,218 44,718
40% 39.9% 35,375 35,244
30% 29.8% 26,531 26,330
20% 19.9% 17,687 17,617
10% 10.2% 8,844 9,054
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,746
Calibration 2     87,529
Calibration 3     87,760
ssj_ops@calibrated=87,645
100% 100.1% 87,645 87,769
90% 88.7% 78,880 77,769
80% 79.5% 70,116 69,654
70% 70.1% 61,351 61,406
60% 60.6% 52,587 53,116
50% 50.4% 43,822 44,206
40% 39.9% 35,058 35,012
30% 29.6% 26,293 25,955
20% 20.0% 17,529 17,504
10% 9.7% 8,764 8,541
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,919
Calibration 2     89,243
Calibration 3     89,589
ssj_ops@calibrated=89,416
100% 99.6% 89,416 89,063
90% 88.6% 80,474 79,242
80% 79.4% 71,533 70,963
70% 70.0% 62,591 62,582
60% 60.1% 53,650 53,774
50% 50.1% 44,708 44,792
40% 39.6% 35,766 35,449
30% 29.8% 26,825 26,670
20% 19.7% 17,883 17,641
10% 9.7% 8,942 8,667
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,371
Calibration 2     88,814
Calibration 3     88,925
ssj_ops@calibrated=88,869
100% 99.6% 88,869 88,470
90% 88.8% 79,982 78,900
80% 79.4% 71,095 70,536
70% 70.1% 62,208 62,322
60% 59.8% 53,322 53,178
50% 50.0% 44,435 44,475
40% 39.9% 35,548 35,451
30% 30.0% 26,661 26,646
20% 19.7% 17,774 17,539
10% 9.6% 8,887 8,508
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,179
Calibration 2     88,621
Calibration 3     88,474
ssj_ops@calibrated=88,547
100% 99.1% 88,547 87,768
90% 89.0% 79,693 78,815
80% 79.9% 70,838 70,778
70% 70.0% 61,983 61,961
60% 60.4% 53,128 53,444
50% 50.0% 44,274 44,310
40% 40.5% 35,419 35,868
30% 30.3% 26,564 26,809
20% 20.1% 17,709 17,783
10% 10.0% 8,855 8,829
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,347
Calibration 2     90,147
Calibration 3     90,667
ssj_ops@calibrated=90,407
100% 99.6% 90,407 90,055
90% 88.5% 81,366 80,031
80% 79.7% 72,326 72,063
70% 70.5% 63,285 63,703
60% 60.0% 54,244 54,261
50% 49.9% 45,204 45,114
40% 39.6% 36,163 35,787
30% 29.4% 27,122 26,621
20% 20.1% 18,081 18,129
10% 9.8% 9,041 8,895
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,112
Calibration 2     88,484
Calibration 3     89,061
ssj_ops@calibrated=88,772
100% 99.3% 88,772 88,130
90% 88.7% 79,895 78,700
80% 79.5% 71,018 70,565
70% 70.5% 62,141 62,593
60% 60.7% 53,263 53,857
50% 49.8% 44,386 44,176
40% 39.7% 35,509 35,256
30% 29.7% 26,632 26,380
20% 20.0% 17,754 17,750
10% 9.9% 8,877 8,788
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,337
Calibration 2     88,978
Calibration 3     88,857
ssj_ops@calibrated=88,917
100% 100.0% 88,917 88,931
90% 89.2% 80,026 79,335
80% 79.6% 71,134 70,792
70% 70.4% 62,242 62,580
60% 59.8% 53,350 53,216
50% 49.5% 44,459 43,999
40% 39.8% 35,567 35,394
30% 29.9% 26,675 26,621
20% 20.1% 17,783 17,916
10% 10.3% 8,892 9,133
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,499
Calibration 2     88,617
Calibration 3     88,410
ssj_ops@calibrated=88,514
100% 99.6% 88,514 88,165
90% 89.2% 79,662 78,992
80% 79.7% 70,811 70,560
70% 70.0% 61,959 61,982
60% 61.2% 53,108 54,164
50% 49.8% 44,257 44,092
40% 40.1% 35,405 35,473
30% 29.9% 26,554 26,492
20% 19.8% 17,703 17,484
10% 9.8% 8,851 8,717
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,538
Calibration 2     88,944
Calibration 3     89,059
ssj_ops@calibrated=89,002
100% 99.8% 89,002 88,819
90% 89.1% 80,101 79,344
80% 79.8% 71,201 71,022
70% 70.2% 62,301 62,481
60% 60.3% 53,401 53,630
50% 49.8% 44,501 44,280
40% 40.7% 35,601 36,232
30% 30.2% 26,700 26,902
20% 20.4% 17,800 18,162
10% 10.3% 8,900 9,207
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,600
Calibration 2     88,776
Calibration 3     88,864
ssj_ops@calibrated=88,820
100% 100.4% 88,820 89,214
90% 88.7% 79,938 78,774
80% 79.7% 71,056 70,768
70% 69.7% 62,174 61,951
60% 59.6% 53,292 52,970
50% 49.4% 44,410 43,886
40% 41.1% 35,528 36,478
30% 29.1% 26,646 25,875
20% 19.6% 17,764 17,395
10% 10.0% 8,882 8,892
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,639
Calibration 2     88,216
Calibration 3     88,570
ssj_ops@calibrated=88,393
100% 98.9% 88,393 87,427
90% 89.0% 79,554 78,649
80% 80.0% 70,714 70,747
70% 70.1% 61,875 61,953
60% 59.3% 53,036 52,406
50% 49.5% 44,196 43,753
40% 40.1% 35,357 35,408
30% 30.1% 26,518 26,576
20% 20.1% 17,679 17,762
10% 10.2% 8,839 9,054
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,280
Calibration 2     89,782
Calibration 3     89,502
ssj_ops@calibrated=89,642
100% 98.8% 89,642 88,523
90% 88.9% 80,678 79,729
80% 79.6% 71,714 71,343
70% 69.5% 62,750 62,343
60% 60.1% 53,785 53,874
50% 50.0% 44,821 44,809
40% 40.6% 35,857 36,411
30% 30.8% 26,893 27,651
20% 19.9% 17,928 17,818
10% 9.9% 8,964 8,896
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,781
Calibration 2     87,198
Calibration 3     88,452
ssj_ops@calibrated=87,825
100% 100.4% 87,825 88,205
90% 88.8% 79,043 78,029
80% 79.7% 70,260 70,027
70% 69.6% 61,478 61,135
60% 59.7% 52,695 52,462
50% 50.2% 43,913 44,084
40% 39.8% 35,130 34,932
30% 29.8% 26,348 26,138
20% 19.8% 17,565 17,374
10% 9.9% 8,783 8,667
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,910
Calibration 2     88,146
Calibration 3     88,377
ssj_ops@calibrated=88,262
100% 100.4% 88,262 88,635
90% 89.0% 79,435 78,565
80% 79.9% 70,609 70,481
70% 70.0% 61,783 61,813
60% 59.8% 52,957 52,824
50% 49.2% 44,131 43,421
40% 40.6% 35,305 35,791
30% 30.2% 26,478 26,693
20% 20.5% 17,652 18,077
10% 10.2% 8,826 9,017
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,531
Calibration 2     89,177
Calibration 3     89,249
ssj_ops@calibrated=89,213
100% 100.3% 89,213 89,463
90% 89.1% 80,292 79,475
80% 79.5% 71,370 70,966
70% 70.9% 62,449 63,268
60% 60.8% 53,528 54,233
50% 50.6% 44,607 45,165
40% 40.0% 35,685 35,665
30% 30.4% 26,764 27,083
20% 19.7% 17,843 17,554
10% 9.7% 8,921 8,687
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,545
Calibration 2     88,040
Calibration 3     89,095
ssj_ops@calibrated=88,567
100% 99.4% 88,567 88,007
90% 88.4% 79,711 78,302
80% 79.5% 70,854 70,452
70% 71.0% 61,997 62,871
60% 59.2% 53,140 52,438
50% 50.6% 44,284 44,781
40% 40.2% 35,427 35,574
30% 30.0% 26,570 26,529
20% 19.6% 17,713 17,371
10% 9.7% 8,857 8,596
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,803
Calibration 2     89,573
Calibration 3     90,405
ssj_ops@calibrated=89,989
100% 99.1% 89,989 89,217
90% 89.0% 80,990 80,116
80% 79.9% 71,991 71,897
70% 70.3% 62,992 63,283
60% 60.0% 53,993 53,986
50% 51.4% 44,994 46,215
40% 40.4% 35,996 36,363
30% 30.7% 26,997 27,588
20% 19.8% 17,998 17,812
10% 10.1% 8,999 9,075
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,384
Calibration 2     89,533
Calibration 3     89,910
ssj_ops@calibrated=89,721
100% 99.1% 89,721 88,909
90% 88.3% 80,749 79,254
80% 79.4% 71,777 71,212
70% 69.3% 62,805 62,189
60% 60.6% 53,833 54,359
50% 50.0% 44,861 44,901
40% 40.1% 35,889 35,995
30% 30.7% 26,916 27,549
20% 20.3% 17,944 18,175
10% 10.0% 8,972 8,996
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,972
Calibration 2     90,128
Calibration 3     89,868
ssj_ops@calibrated=89,998
100% 98.5% 89,998 88,643
90% 88.7% 80,998 79,843
80% 79.4% 71,998 71,440
70% 70.0% 62,998 62,984
60% 60.0% 53,999 54,038
50% 50.1% 44,999 45,075
40% 39.6% 35,999 35,681
30% 30.2% 26,999 27,177
20% 19.7% 18,000 17,746
10% 9.9% 9,000 8,937
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,457
Calibration 2     88,063
Calibration 3     88,256
ssj_ops@calibrated=88,159
100% 100.2% 88,159 88,322
90% 89.1% 79,343 78,573
80% 79.6% 70,527 70,173
70% 69.2% 61,711 61,015
60% 60.2% 52,895 53,084
50% 50.3% 44,080 44,329
40% 40.0% 35,264 35,271
30% 30.3% 26,448 26,719
20% 20.4% 17,632 17,959
10% 10.0% 8,816 8,833
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,024
Calibration 2     88,203
Calibration 3     89,277
ssj_ops@calibrated=88,740
100% 99.7% 88,740 88,432
90% 88.6% 79,866 78,604
80% 79.5% 70,992 70,580
70% 70.6% 62,118 62,645
60% 60.2% 53,244 53,385
50% 49.7% 44,370 44,088
40% 40.2% 35,496 35,662
30% 29.9% 26,622 26,497
20% 19.9% 17,748 17,685
10% 10.0% 8,874 8,867
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,902
Calibration 2     88,322
Calibration 3     88,741
ssj_ops@calibrated=88,531
100% 100.6% 88,531 89,027
90% 89.0% 79,678 78,816
80% 78.5% 70,825 69,498
70% 70.6% 61,972 62,504
60% 59.6% 53,119 52,806
50% 49.5% 44,266 43,788
40% 39.7% 35,413 35,174
30% 30.6% 26,559 27,052
20% 19.9% 17,706 17,583
10% 10.0% 8,853 8,883
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,323
Calibration 2     88,713
Calibration 3     89,363
ssj_ops@calibrated=89,038
100% 98.5% 89,038 87,662
90% 88.7% 80,134 78,981
80% 79.4% 71,230 70,718
70% 69.8% 62,327 62,173
60% 60.1% 53,423 53,508
50% 50.5% 44,519 44,975
40% 39.7% 35,615 35,375
30% 29.5% 26,711 26,287
20% 21.0% 17,808 18,664
10% 10.1% 8,904 8,967
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,824
Calibration 2     88,995
Calibration 3     89,017
ssj_ops@calibrated=89,006
100% 100.0% 89,006 88,993
90% 88.8% 80,105 79,070
80% 79.3% 71,205 70,616
70% 69.7% 62,304 62,068
60% 59.3% 53,404 52,758
50% 49.8% 44,503 44,339
40% 39.9% 35,602 35,531
30% 30.0% 26,702 26,744
20% 20.2% 17,801 18,010
10% 9.8% 8,901 8,746
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,055
Calibration 2     88,789
Calibration 3     89,492
ssj_ops@calibrated=89,140
100% 99.5% 89,140 88,739
90% 89.1% 80,226 79,423
80% 79.4% 71,312 70,754
70% 69.5% 62,398 61,968
60% 59.4% 53,484 52,937
50% 49.5% 44,570 44,145
40% 40.4% 35,656 36,016
30% 29.5% 26,742 26,319
20% 19.1% 17,828 17,012
10% 9.8% 8,914 8,715
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,668
Calibration 2     88,992
Calibration 3     89,512
ssj_ops@calibrated=89,252
100% 100.0% 89,252 89,234
90% 89.2% 80,327 79,649
80% 79.2% 71,402 70,683
70% 68.8% 62,476 61,431
60% 60.1% 53,551 53,672
50% 50.4% 44,626 44,960
40% 39.8% 35,701 35,539
30% 29.8% 26,776 26,568
20% 20.1% 17,850 17,935
10% 10.1% 8,925 9,037
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,031
Calibration 2     88,270
Calibration 3     88,672
ssj_ops@calibrated=88,471
100% 99.6% 88,471 88,140
90% 89.1% 79,624 78,854
80% 79.9% 70,777 70,688
70% 69.7% 61,930 61,679
60% 60.7% 53,083 53,665
50% 49.6% 44,236 43,886
40% 39.6% 35,388 35,078
30% 29.5% 26,541 26,128
20% 19.9% 17,694 17,609
10% 10.4% 8,847 9,221
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,677
Calibration 2     88,643
Calibration 3     88,735
ssj_ops@calibrated=88,689
100% 99.6% 88,689 88,363
90% 89.1% 79,820 78,992
80% 79.3% 70,951 70,365
70% 70.4% 62,082 62,470
60% 59.8% 53,214 53,038
50% 49.6% 44,345 44,014
40% 38.9% 35,476 34,540
30% 30.2% 26,607 26,759
20% 20.2% 17,738 17,876
10% 10.1% 8,869 8,942
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,535
Calibration 2     88,453
Calibration 3     88,780
ssj_ops@calibrated=88,617
100% 100.4% 88,617 88,970
90% 89.1% 79,755 78,945
80% 79.2% 70,893 70,212
70% 70.0% 62,032 62,055
60% 59.3% 53,170 52,584
50% 49.6% 44,308 43,928
40% 40.2% 35,447 35,640
30% 30.0% 26,585 26,617
20% 20.4% 17,723 18,059
10% 9.9% 8,862 8,767
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,049
Calibration 2     88,882
Calibration 3     88,770
ssj_ops@calibrated=88,826
100% 100.0% 88,826 88,806
90% 88.6% 79,943 78,667
80% 79.4% 71,061 70,539
70% 70.2% 62,178 62,371
60% 59.9% 53,296 53,232
50% 50.5% 44,413 44,853
40% 40.1% 35,530 35,626
30% 30.2% 26,648 26,808
20% 19.7% 17,765 17,505
10% 9.8% 8,883 8,717
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,470
Calibration 2     88,955
Calibration 3     88,689
ssj_ops@calibrated=88,822
100% 98.3% 88,822 87,323
90% 89.0% 79,939 79,044
80% 79.4% 71,057 70,497
70% 69.8% 62,175 62,019
60% 59.8% 53,293 53,091
50% 50.6% 44,411 44,905
40% 39.8% 35,529 35,341
30% 29.8% 26,646 26,447
20% 20.3% 17,764 17,996
10% 9.7% 8,882 8,637
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,065
Calibration 2     89,084
Calibration 3     89,712
ssj_ops@calibrated=89,398
100% 98.8% 89,398 88,317
90% 89.0% 80,458 79,598
80% 79.2% 71,518 70,778
70% 69.0% 62,578 61,661
60% 60.2% 53,639 53,817
50% 49.8% 44,699 44,522
40% 40.6% 35,759 36,291
30% 30.1% 26,819 26,939
20% 19.7% 17,880 17,618
10% 10.0% 8,940 8,967
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,889
Calibration 2     89,840
Calibration 3     90,187
ssj_ops@calibrated=90,013
100% 99.0% 90,013 89,106
90% 88.6% 81,012 79,770
80% 79.6% 72,011 71,611
70% 69.2% 63,009 62,270
60% 59.7% 54,008 53,722
50% 49.9% 45,007 44,906
40% 39.5% 36,005 35,533
30% 30.1% 27,004 27,116
20% 20.4% 18,003 18,375
10% 9.9% 9,001 8,912
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,620
Calibration 2     88,539
Calibration 3     88,778
ssj_ops@calibrated=88,658
100% 100.1% 88,658 88,761
90% 88.8% 79,792 78,702
80% 79.3% 70,927 70,326
70% 69.8% 62,061 61,890
60% 60.2% 53,195 53,336
50% 49.8% 44,329 44,178
40% 40.4% 35,463 35,819
30% 29.5% 26,597 26,173
20% 19.4% 17,732 17,237
10% 10.0% 8,866 8,896
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,519
Calibration 2     88,927
Calibration 3     88,844
ssj_ops@calibrated=88,885
100% 99.6% 88,885 88,544
90% 88.8% 79,997 78,897
80% 78.1% 71,108 69,453
70% 68.9% 62,220 61,210
60% 59.6% 53,331 53,013
50% 50.1% 44,443 44,524
40% 39.9% 35,554 35,431
30% 30.2% 26,666 26,871
20% 19.9% 17,777 17,687
10% 10.1% 8,889 8,971
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,175
Calibration 2     89,206
Calibration 3     89,140
ssj_ops@calibrated=89,173
100% 99.8% 89,173 89,024
90% 89.0% 80,255 79,378
80% 79.8% 71,338 71,181
70% 69.6% 62,421 62,107
60% 60.1% 53,504 53,559
50% 49.6% 44,586 44,192
40% 39.7% 35,669 35,442
30% 29.6% 26,752 26,415
20% 19.5% 17,835 17,346
10% 10.0% 8,917 8,912
Active Idle   0 0

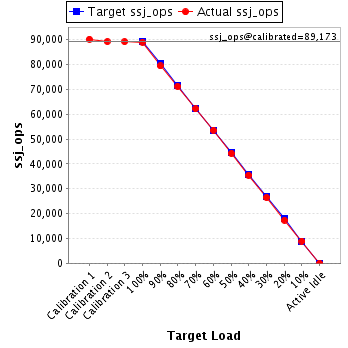

Graph of results
JVM 'linux-nvvl.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,815
Calibration 2     89,512
Calibration 3     89,649
ssj_ops@calibrated=89,580
100% 100.2% 89,580 89,735
90% 89.2% 80,622 79,942
80% 78.9% 71,664 70,682
70% 69.9% 62,706 62,628
60% 60.1% 53,748 53,879
50% 49.9% 44,790 44,739
40% 40.1% 35,832 35,885
30% 29.9% 26,874 26,772
20% 20.1% 17,916 18,021
10% 10.0% 8,958 8,942
Active Idle   0 0
Graph of results
JVM 'linux-nvvl.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,839
Calibration 2     86,636
Calibration 3     87,063
ssj_ops@calibrated=86,849
100% 100.4% 86,849 87,169
90% 89.0% 78,164 77,265
80% 79.4% 69,480 69,001
70% 70.2% 60,795 60,987
60% 59.9% 52,110 51,985
50% 49.6% 43,425 43,066
40% 40.4% 34,740 35,077
30% 29.6% 26,055 25,701
20% 20.4% 17,370 17,704
10% 9.9% 8,685 8,574
Active Idle   0 0
Graph of results
