Lenovo Global Technology ThinkSystem SR950 ssj_ops@100% = 89,887
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Single Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Mar 9, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,966
Calibration 2     89,705
Calibration 3     90,193
ssj_ops@calibrated=89,949
100% 99.9% 89,949 89,887
90% 89.9% 80,954 80,873
80% 79.6% 71,959 71,637
70% 69.8% 62,964 62,767
60% 59.3% 53,969 53,335
50% 48.8% 44,975 43,936
40% 40.5% 35,980 36,409
30% 30.0% 26,985 26,945
20% 19.8% 17,990 17,767
10% 9.7% 8,995 8,767
Active Idle   0 0

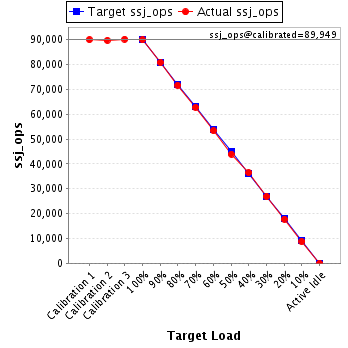

Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SR950
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.2GHz, 39424KB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 224 cores, 8 chips, 28 cores/chip
Hardware Threads: 448 (2 / core)
CPU(s) Orderable: 2,4,6,8 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 768
# and size of DIMM: 48 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2933Y-RE2-12-DC1; slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, 48, 49, 51, 53, 56, 58, 60, 61, 63, 65, 68, 70, 72, 73, 75, 77, 80, 82, 84, 85, 87, 89, 92, 94, 96 populated
Power Supply Quantity and Rating (W): 2 x 1100
Power Supply Details: Lenovo P/N:7N67A00885
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Kernel 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId,physicalCoreId + 224 }
JVM Instances: 224
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: PSE121I
Management Firmware Version: PSI321C
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 448 due to a known inconsistency in processor reporting with this Java version.
Performance Details
Target Load Actual Load Transaction Type Count Total Heap (MB)
Calibration 1 New Order 6,543,068 1,545
Payment 6,543,060
Order Status 654,306
Delivery 654,305
Stock Level 654,306
Customer Report 6,543,062
Calibration 2 New Order 6,523,985 1,545
Payment 6,523,985
Order Status 652,400
Delivery 652,398
Stock Level 652,398
Customer Report 6,523,987
Calibration 3 New Order 6,559,517 1,545
Payment 6,559,519
Order Status 655,953
Delivery 655,953
Stock Level 655,954
Customer Report 6,559,526
100% 99.9% New Order 6,537,216 1,545
Payment 6,537,216
Order Status 653,720
Delivery 653,722
Stock Level 653,723
Customer Report 6,537,210
90% 89.9% New Order 5,881,713 1,545
Payment 5,881,712
Order Status 588,171
Delivery 588,170
Stock Level 588,172
Customer Report 5,881,714
80% 79.6% New Order 5,209,994 1,545
Payment 5,209,996
Order Status 521,000
Delivery 521,000
Stock Level 520,999
Customer Report 5,209,989
70% 69.8% New Order 4,564,898 1,545
Payment 4,564,897
Order Status 456,489
Delivery 456,491
Stock Level 456,491
Customer Report 4,564,904
60% 59.3% New Order 3,878,908 1,545
Payment 3,878,911
Order Status 387,891
Delivery 387,891
Stock Level 387,890
Customer Report 3,878,912
50% 48.8% New Order 3,195,375 1,545
Payment 3,195,368
Order Status 319,537
Delivery 319,537
Stock Level 319,536
Customer Report 3,195,379
40% 40.5% New Order 2,647,937 1,545
Payment 2,647,941
Order Status 264,794
Delivery 264,793
Stock Level 264,794
Customer Report 2,647,940
30% 30.0% New Order 1,959,652 1,545
Payment 1,959,652
Order Status 195,965
Delivery 195,965
Stock Level 195,966
Customer Report 1,959,651
20% 19.8% New Order 1,292,119 1,545
Payment 1,292,122
Order Status 129,212
Delivery 129,212
Stock Level 129,210
Customer Report 1,292,125
10% 9.7% New Order 637,573 1,545
Payment 637,565
Order Status 63,756
Delivery 63,758
Stock Level 63,756
Customer Report 637,569
Active Idle New Order 0 1,545
Payment 0
Order Status 0
Delivery 0
Stock Level 0
Customer Report 0
