Huawei Technologies Co., Ltd Fusion Server 2288H V5 | SPECpower_ssj2008 = 13,490 overall ssj_ops/watt | ||||
Test Sponsor: | Huawei Technologies Co., Ltd | SPEC License #: | 3175 | Test Method: | Single Node |
Tested By: | Huawei Technologies Co., Ltd | Test Location: | Shenzhen, Guangdong, China | Test Date: | Mar 11, 2019 |
Hardware Availability: | Apr-2019 | Software Availability: | Jul-2018 | Publication: | Apr 2, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

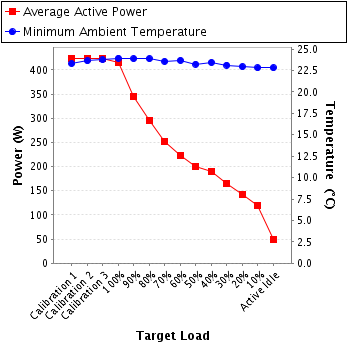

Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
Calibration 1 | 423 | 23.3 |
Calibration 2 | 424 | 23.6 |
Calibration 3 | 424 | 23.8 |
100% | 415 | 23.9 |
90% | 346 | 23.9 |
80% | 295 | 23.9 |
70% | 252 | 23.6 |
60% | 223 | 23.7 |
50% | 200 | 23.2 |
40% | 189 | 23.4 |
30% | 165 | 23.1 |
20% | 142 | 22.9 |
10% | 119 | 22.8 |
Active Idle | 49.9 | 22.8 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
Model: | WT210 |
Serial Number: | 91M412342 |
Connectivity: | RS-232 |
Input Connection: | Default |
Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
Accredited by: | Calibration and Testing Center of CEPREI |
Calibration Label: | B18008105-0029 |
Date of Calibration: | 4-Aug-2018 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.8.1-260d064e-20161220 |
Setup Description: | Connected to PSU 1 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | Digi |
Model: | Watchport/H |
Driver Version: | 5.70.105.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | placed in front the main airflow inlet of the SUT less than 50mm. |
Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
---|---|---|---|---|---|---|---|
Avg | Range | Avg | Range | ||||
Calibration 1 | 225 | 300.0 | 1.97 | 5.0 | 0.956 | 423 | 0.6% |
Calibration 2 | 225 | 300.0 | 1.97 | 5.0 | 0.957 | 424 | 0.6% |
Calibration 3 | 225 | 300.0 | 1.97 | 5.0 | 0.957 | 424 | 0.6% |
100% | 225 | 300.0 | 1.93 | 5.0 | 0.955 | 415 | 0.6% |
90% | 225 | 300.0 | 1.64 | 2.0 | 0.940 | 346 | 0.4% |
80% | 225 | 300.0 | 1.42 | 2.0 | 0.922 | 295 | 0.4% |
70% | 225 | 300.0 | 1.25 | 2.0 | 0.898 | 252 | 0.5% |
60% | 225 | 300.0 | 1.13 | 2.0 | 0.875 | 223 | 0.5% |
50% | 225 | 300.0 | 1.04 | 2.0 | 0.853 | 200 | 0.6% |
40% | 225 | 300.0 | 1.00 | 2.0 | 0.841 | 189 | 0.6% |
30% | 225 | 300.0 | 0.908 | 1.0 | 0.809 | 165 | 0.5% |
20% | 225 | 300.0 | 0.820 | 1.0 | 0.771 | 142 | 0.5% |
10% | 225 | 300.0 | 0.731 | 1.0 | 0.722 | 119 | 0.6% |
Active Idle | 225 | 300.0 | 0.473 | 0.5 | 0.469 | 49.9 | 0.8% |
