Huawei Technologies Co., Ltd Fusion Server 2288H V5 SPECpower_ssj2008 = 14,224 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 12, 2019
Hardware Availability: Apr-2019 Software Availability: Jul-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 426 20.1
Calibration 2 426 20.8
Calibration 3 426 21.1
100% 419 21.1
90% 329 21.3
80% 279 21.2
70% 248 21.0
60% 226 20.9
50% 194 21.0
40% 190 21.9
30% 165 22.1
20% 142 20.4
10% 119 20.9
Active Idle 52.2 23.1

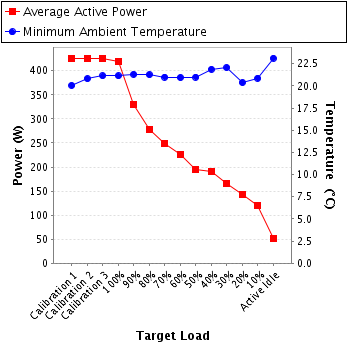

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91M412342
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: B18008105-0029
Date of Calibration: 4-Aug-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 1.92 5.0 0.986 426 0.5%
Calibration 2 225 300.0 1.92 5.0 0.986 426 0.5%
Calibration 3 225 300.0 1.92 5.0 0.986 426 0.5%
100% 225 300.0 1.89 5.0 0.986 419 0.5%
90% 225 300.0 1.49 2.0 0.981 329 0.4%
80% 225 300.0 1.27 2.0 0.974 279 0.4%
70% 225 300.0 1.14 2.0 0.972 248 0.4%
60% 225 300.0 1.04 2.0 0.967 226 0.5%
50% 225 300.0 0.904 2.0 0.956 194 0.5%
40% 225 300.0 0.888 2.0 0.949 190 0.5%
30% 225 300.0 0.782 1.0 0.939 165 0.4%
20% 225 300.0 0.680 1.0 0.927 142 0.4%
10% 225 300.0 0.578 1.0 0.915 119 0.5%
Active Idle 225 300.0 0.316 0.5 0.734 52.2 0.6%

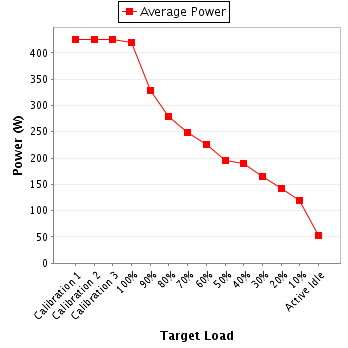

Power details for pwr1
