Huawei Technologies Co., Ltd Fusion Server 5288 V5 ssj_ops@100% = 6,112,700
ssj_ops@100% per JVM = 109,155
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 13, 2019
Hardware Availability: Apr-2019 Software Availability: Jul-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     6,144,417
Calibration 2     6,117,947
Calibration 3     6,102,970
ssj_ops@calibrated=6,110,459
100% 100.0% 6,110,459 6,112,700
90% 90.8% 5,499,413 5,550,849
80% 80.0% 4,888,367 4,890,378
70% 70.0% 4,277,321 4,278,966
60% 60.0% 3,666,275 3,665,224
50% 50.0% 3,055,229 3,055,322
40% 40.1% 2,444,183 2,449,062
30% 29.9% 1,833,138 1,829,820
20% 20.0% 1,222,092 1,222,150
10% 10.0% 611,046 613,020
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Single Node
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: Fusion Server 5288 V5
Form Factor: 4U
CPU Name: Intel Xeon Platinum 8280
CPU Characteristics: 28-Core, 2.7GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y ECC RDIMM;slots DIMM000, DIMM010, DIMM020, DIMM030,DIMM040, DIMM050, DIMM100, DIMM110, DIMM120, DIMM130, DIMM140, and DIMM150 populated
Power Supply Quantity and Rating (W): 1 x 900
Power Supply Details: Huawei P/N 02311TLF
Disk Drive: 1 x 480GB SSD 2.5" SATA Huawei P/N 02312DXS
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: LOM with 2 x 10GbE + 2 x GbE Intel X722 Ethernet controller
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced (recommended) Mode enabled in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.18969
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,2,] /AFFINITY [3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE [1,3,] /AFFINITY [3,C,30,3000,C000,30000,C0000,30000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000];
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 3.63
Management Firmware Version: 3.29
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB4056898,KB4338824
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-A4QMRIMUI80.001 109,249
WIN-A4QMRIMUI80.002 108,669
WIN-A4QMRIMUI80.003 110,037
WIN-A4QMRIMUI80.004 107,912
WIN-A4QMRIMUI80.005 110,027
WIN-A4QMRIMUI80.006 111,393
WIN-A4QMRIMUI80.007 107,252
WIN-A4QMRIMUI80.008 109,034
WIN-A4QMRIMUI80.009 111,124
WIN-A4QMRIMUI80.010 107,182
WIN-A4QMRIMUI80.011 108,959
WIN-A4QMRIMUI80.012 109,225
WIN-A4QMRIMUI80.013 108,587
WIN-A4QMRIMUI80.014 109,413
WIN-A4QMRIMUI80.015 110,510
WIN-A4QMRIMUI80.016 110,812
WIN-A4QMRIMUI80.017 108,531
WIN-A4QMRIMUI80.018 105,982
WIN-A4QMRIMUI80.019 107,730
WIN-A4QMRIMUI80.020 111,561
WIN-A4QMRIMUI80.021 109,878
WIN-A4QMRIMUI80.022 108,596
WIN-A4QMRIMUI80.023 110,728
WIN-A4QMRIMUI80.024 110,922
WIN-A4QMRIMUI80.025 108,885
WIN-A4QMRIMUI80.026 109,404
WIN-A4QMRIMUI80.027 109,567
WIN-A4QMRIMUI80.028 110,212
WIN-A4QMRIMUI80.029 109,591
WIN-A4QMRIMUI80.030 106,996
WIN-A4QMRIMUI80.031 109,098
WIN-A4QMRIMUI80.032 108,764
WIN-A4QMRIMUI80.033 110,548
WIN-A4QMRIMUI80.034 111,034
WIN-A4QMRIMUI80.035 108,942
WIN-A4QMRIMUI80.036 107,614
WIN-A4QMRIMUI80.037 111,499
WIN-A4QMRIMUI80.038 108,673
WIN-A4QMRIMUI80.039 107,560
WIN-A4QMRIMUI80.040 106,234
WIN-A4QMRIMUI80.041 107,994
WIN-A4QMRIMUI80.042 110,658
WIN-A4QMRIMUI80.043 111,010
WIN-A4QMRIMUI80.044 110,815
WIN-A4QMRIMUI80.045 108,594
WIN-A4QMRIMUI80.046 109,503
WIN-A4QMRIMUI80.047 108,803
WIN-A4QMRIMUI80.048 107,413
WIN-A4QMRIMUI80.049 108,767
WIN-A4QMRIMUI80.050 108,422
WIN-A4QMRIMUI80.051 109,833
WIN-A4QMRIMUI80.052 108,637
WIN-A4QMRIMUI80.053 107,768
WIN-A4QMRIMUI80.054 109,930
WIN-A4QMRIMUI80.055 109,254
WIN-A4QMRIMUI80.056 107,366
ssj_ops@100% 6,112,700
ssj_ops@100% per JVM 109,155

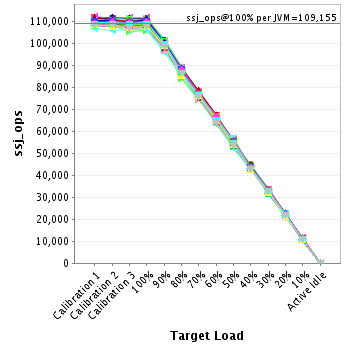

Graph of per-instance results
JVM 'WIN-A4QMRIMUI80.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,633
Calibration 2     109,559
Calibration 3     109,202
ssj_ops@calibrated=109,381
100% 99.9% 109,381 109,249
90% 91.2% 98,443 99,720
80% 80.4% 87,504 87,990
70% 70.3% 76,566 76,927
60% 59.5% 65,628 65,094
50% 50.1% 54,690 54,798
40% 39.4% 43,752 43,150
30% 29.6% 32,814 32,410
20% 20.0% 21,876 21,874
10% 10.2% 10,938 11,204
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,522
Calibration 2     109,413
Calibration 3     108,660
ssj_ops@calibrated=109,036
100% 99.7% 109,036 108,669
90% 90.9% 98,133 99,154
80% 79.9% 87,229 87,139
70% 69.4% 76,325 75,718
60% 59.3% 65,422 64,636
50% 49.7% 54,518 54,151
40% 40.1% 43,615 43,712
30% 29.9% 32,711 32,637
20% 20.4% 21,807 22,273
10% 9.9% 10,904 10,779
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,558
Calibration 2     109,341
Calibration 3     109,988
ssj_ops@calibrated=109,664
100% 100.3% 109,664 110,037
90% 90.6% 98,698 99,312
80% 80.5% 87,731 88,268
70% 69.9% 76,765 76,700
60% 59.8% 65,799 65,605
50% 50.4% 54,832 55,220
40% 39.8% 43,866 43,685
30% 30.0% 32,899 32,947
20% 20.0% 21,933 21,976
10% 9.7% 10,966 10,658
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,273
Calibration 2     107,926
Calibration 3     107,419
ssj_ops@calibrated=107,672
100% 100.2% 107,672 107,912
90% 90.1% 96,905 97,017
80% 79.9% 86,138 86,063
70% 69.8% 75,371 75,184
60% 59.6% 64,603 64,175
50% 50.1% 53,836 53,894
40% 40.0% 43,069 43,091
30% 29.9% 32,302 32,189
20% 19.5% 21,534 20,985
10% 10.3% 10,767 11,087
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,836
Calibration 2     110,953
Calibration 3     110,883
ssj_ops@calibrated=110,918
100% 99.2% 110,918 110,027
90% 91.4% 99,826 101,379
80% 79.8% 88,734 88,511
70% 70.4% 77,642 78,078
60% 59.8% 66,551 66,337
50% 50.2% 55,459 55,641
40% 40.2% 44,367 44,567
30% 30.5% 33,275 33,868
20% 20.0% 22,184 22,238
10% 9.8% 11,092 10,904
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,025
Calibration 2     111,235
Calibration 3     111,176
ssj_ops@calibrated=111,206
100% 100.2% 111,206 111,393
90% 91.1% 100,085 101,318
80% 79.2% 88,965 88,104
70% 69.6% 77,844 77,348
60% 59.7% 66,723 66,364
50% 50.9% 55,603 56,566
40% 39.1% 44,482 43,534
30% 29.9% 33,362 33,226
20% 19.7% 22,241 21,887
10% 9.9% 11,121 10,991
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,013
Calibration 2     109,181
Calibration 3     107,046
ssj_ops@calibrated=108,114
100% 99.2% 108,114 107,252
90% 91.2% 97,302 98,576
80% 80.8% 86,491 87,315
70% 69.9% 75,680 75,527
60% 59.9% 64,868 64,707
50% 49.5% 54,057 53,514
40% 40.0% 43,245 43,250
30% 30.1% 32,434 32,570
20% 19.6% 21,623 21,236
10% 9.9% 10,811 10,691
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,697
Calibration 2     109,035
Calibration 3     109,072
ssj_ops@calibrated=109,053
100% 100.0% 109,053 109,034
90% 92.6% 98,148 101,003
80% 80.2% 87,243 87,436
70% 69.7% 76,337 75,961
60% 60.7% 65,432 66,157
50% 49.0% 54,527 53,470
40% 39.9% 43,621 43,495
30% 30.4% 32,716 33,181
20% 20.2% 21,811 22,045
10% 9.8% 10,905 10,692
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,555
Calibration 2     111,246
Calibration 3     110,840
ssj_ops@calibrated=111,043
100% 100.1% 111,043 111,124
90% 91.1% 99,939 101,160
80% 79.8% 88,834 88,570
70% 69.3% 77,730 76,977
60% 60.4% 66,626 67,035
50% 50.0% 55,521 55,532
40% 40.1% 44,417 44,520
30% 30.1% 33,313 33,372
20% 19.6% 22,209 21,798
10% 10.0% 11,104 11,129
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,303
Calibration 2     107,582
Calibration 3     107,331
ssj_ops@calibrated=107,457
100% 99.7% 107,457 107,182
90% 90.9% 96,711 97,662
80% 80.1% 85,965 86,123
70% 69.8% 75,220 75,009
60% 59.3% 64,474 63,731
50% 49.9% 53,728 53,593
40% 40.0% 42,983 43,005
30% 29.7% 32,237 31,937
20% 20.3% 21,491 21,864
10% 9.9% 10,746 10,615
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,651
Calibration 2     109,075
Calibration 3     108,847
ssj_ops@calibrated=108,961
100% 100.0% 108,961 108,959
90% 90.8% 98,065 98,936
80% 79.8% 87,169 86,992
70% 69.7% 76,273 75,917
60% 60.2% 65,377 65,547
50% 49.6% 54,481 54,059
40% 40.9% 43,584 44,554
30% 29.6% 32,688 32,235
20% 20.1% 21,792 21,920
10% 9.9% 10,896 10,754
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,929
Calibration 2     109,960
Calibration 3     108,884
ssj_ops@calibrated=109,422
100% 99.8% 109,422 109,225
90% 90.5% 98,480 98,982
80% 80.3% 87,538 87,830
70% 70.2% 76,595 76,841
60% 60.7% 65,653 66,404
50% 50.1% 54,711 54,867
40% 40.1% 43,769 43,878
30% 30.4% 32,827 33,271
20% 20.5% 21,884 22,410
10% 10.0% 10,942 10,979
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,801
Calibration 2     108,647
Calibration 3     108,361
ssj_ops@calibrated=108,504
100% 100.1% 108,504 108,587
90% 89.7% 97,653 97,320
80% 79.8% 86,803 86,600
70% 70.9% 75,953 76,978
60% 59.2% 65,102 64,189
50% 50.3% 54,252 54,580
40% 39.6% 43,402 42,994
30% 30.2% 32,551 32,714
20% 19.5% 21,701 21,149
10% 10.2% 10,850 11,120
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,702
Calibration 2     109,606
Calibration 3     109,551
ssj_ops@calibrated=109,578
100% 99.8% 109,578 109,413
90% 91.2% 98,621 99,989
80% 80.4% 87,663 88,052
70% 70.4% 76,705 77,150
60% 60.1% 65,747 65,860
50% 50.1% 54,789 54,943
40% 39.9% 43,831 43,729
30% 30.6% 32,874 33,537
20% 20.1% 21,916 22,056
10% 10.1% 10,958 11,041
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,843
Calibration 2     110,450
Calibration 3     110,298
ssj_ops@calibrated=110,374
100% 100.1% 110,374 110,510
90% 91.7% 99,337 101,207
80% 80.5% 88,299 88,845
70% 69.5% 77,262 76,745
60% 59.7% 66,224 65,885
50% 50.1% 55,187 55,335
40% 40.3% 44,150 44,435
30% 29.8% 33,112 32,838
20% 20.0% 22,075 22,031
10% 9.7% 11,037 10,691
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,669
Calibration 2     110,456
Calibration 3     110,152
ssj_ops@calibrated=110,304
100% 100.5% 110,304 110,812
90% 90.0% 99,274 99,285
80% 79.3% 88,243 87,475
70% 69.9% 77,213 77,090
60% 60.8% 66,182 67,013
50% 49.3% 55,152 54,333
40% 40.5% 44,122 44,627
30% 29.6% 33,091 32,644
20% 19.9% 22,061 22,000
10% 10.0% 11,030 11,075
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,192
Calibration 2     108,923
Calibration 3     108,988
ssj_ops@calibrated=108,955
100% 99.6% 108,955 108,531
90% 89.0% 98,060 96,980
80% 81.1% 87,164 88,343
70% 70.1% 76,269 76,344
60% 59.2% 65,373 64,550
50% 50.3% 54,478 54,841
40% 40.3% 43,582 43,864
30% 28.8% 32,687 31,342
20% 19.9% 21,791 21,721
10% 9.9% 10,896 10,792
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,175
Calibration 2     107,917
Calibration 3     105,545
ssj_ops@calibrated=106,731
100% 99.3% 106,731 105,982
90% 91.5% 96,058 97,648
80% 78.9% 85,385 84,206
70% 69.9% 74,712 74,565
60% 60.5% 64,039 64,588
50% 49.7% 53,366 53,075
40% 39.8% 42,692 42,441
30% 30.0% 32,019 32,052
20% 20.2% 21,346 21,540
10% 9.9% 10,673 10,598
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,207
Calibration 2     107,779
Calibration 3     107,774
ssj_ops@calibrated=107,776
100% 100.0% 107,776 107,730
90% 91.1% 96,999 98,223
80% 80.2% 86,221 86,400
70% 70.6% 75,444 76,117
60% 60.1% 64,666 64,821
50% 50.0% 53,888 53,862
40% 39.9% 43,111 42,969
30% 29.7% 32,333 31,959
20% 19.8% 21,555 21,286
10% 10.2% 10,778 10,991
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     112,249
Calibration 2     111,203
Calibration 3     111,522
ssj_ops@calibrated=111,362
100% 100.2% 111,362 111,561
90% 90.6% 100,226 100,891
80% 79.9% 89,090 88,967
70% 70.3% 77,954 78,266
60% 60.1% 66,817 66,907
50% 50.4% 55,681 56,137
40% 39.9% 44,545 44,453
30% 30.1% 33,409 33,477
20% 19.4% 22,272 21,608
10% 10.3% 11,136 11,522
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,514
Calibration 2     109,645
Calibration 3     110,134
ssj_ops@calibrated=109,889
100% 100.0% 109,889 109,878
90% 90.2% 98,900 99,095
80% 79.3% 87,911 87,130
70% 70.7% 76,922 77,667
60% 60.8% 65,934 66,779
50% 50.5% 54,945 55,473
40% 40.1% 43,956 44,037
30% 30.1% 32,967 33,043
20% 20.5% 21,978 22,578
10% 10.2% 10,989 11,170
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,626
Calibration 2     109,079
Calibration 3     108,399
ssj_ops@calibrated=108,739
100% 99.9% 108,739 108,596
90% 90.7% 97,865 98,605
80% 80.1% 86,991 87,137
70% 69.7% 76,117 75,826
60% 59.8% 65,244 64,977
50% 50.2% 54,370 54,569
40% 39.7% 43,496 43,140
30% 29.9% 32,622 32,491
20% 20.1% 21,748 21,891
10% 9.9% 10,874 10,737
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,857
Calibration 2     110,610
Calibration 3     110,758
ssj_ops@calibrated=110,684
100% 100.0% 110,684 110,728
90% 90.9% 99,616 100,630
80% 80.0% 88,547 88,577
70% 69.6% 77,479 77,020
60% 60.0% 66,410 66,445
50% 50.6% 55,342 56,021
40% 39.3% 44,274 43,530
30% 30.0% 33,205 33,236
20% 20.0% 22,137 22,096
10% 9.9% 11,068 10,920
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,756
Calibration 2     111,550
Calibration 3     111,452
ssj_ops@calibrated=111,501
100% 99.5% 111,501 110,922
90% 90.8% 100,351 101,204
80% 79.9% 89,201 89,058
70% 70.0% 78,051 78,069
60% 60.2% 66,900 67,142
50% 49.2% 55,750 54,804
40% 39.9% 44,600 44,451
30% 30.2% 33,450 33,681
20% 20.2% 22,300 22,521
10% 9.9% 11,150 10,999
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,261
Calibration 2     109,737
Calibration 3     109,158
ssj_ops@calibrated=109,448
100% 99.5% 109,448 108,885
90% 91.1% 98,503 99,674
80% 80.2% 87,558 87,769
70% 69.5% 76,613 76,082
60% 60.6% 65,669 66,379
50% 49.7% 54,724 54,433
40% 39.8% 43,779 43,513
30% 30.5% 32,834 33,396
20% 19.9% 21,890 21,732
10% 10.1% 10,945 11,017
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,676
Calibration 2     108,535
Calibration 3     109,054
ssj_ops@calibrated=108,795
100% 100.6% 108,795 109,404
90% 91.3% 97,915 99,357
80% 80.4% 87,036 87,486
70% 69.9% 76,156 76,001
60% 60.0% 65,277 65,261
50% 51.0% 54,397 55,520
40% 40.6% 43,518 44,203
30% 30.0% 32,638 32,601
20% 19.6% 21,759 21,325
10% 10.0% 10,879 10,833
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,295
Calibration 2     109,074
Calibration 3     109,414
ssj_ops@calibrated=109,244
100% 100.3% 109,244 109,567
90% 90.1% 98,320 98,412
80% 79.9% 87,395 87,273
70% 70.6% 76,471 77,089
60% 59.9% 65,546 65,412
50% 50.0% 54,622 54,649
40% 40.4% 43,698 44,160
30% 30.2% 32,773 32,982
20% 20.3% 21,849 22,183
10% 10.3% 10,924 11,198
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,992
Calibration 2     109,152
Calibration 3     109,598
ssj_ops@calibrated=109,375
100% 100.8% 109,375 110,212
90% 91.0% 98,437 99,525
80% 80.4% 87,500 87,952
70% 69.6% 76,562 76,158
60% 60.3% 65,625 65,981
50% 50.4% 54,687 55,098
40% 40.8% 43,750 44,651
30% 29.6% 32,812 32,351
20% 19.8% 21,875 21,703
10% 9.9% 10,937 10,829
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,362
Calibration 2     108,877
Calibration 3     109,197
ssj_ops@calibrated=109,037
100% 100.5% 109,037 109,591
90% 89.8% 98,134 97,928
80% 79.7% 87,230 86,940
70% 69.6% 76,326 75,902
60% 59.9% 65,422 65,359
50% 50.0% 54,519 54,520
40% 39.5% 43,615 43,075
30% 29.3% 32,711 31,983
20% 19.7% 21,807 21,507
10% 10.3% 10,904 11,269
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,483
Calibration 2     108,376
Calibration 3     106,637
ssj_ops@calibrated=107,507
100% 99.5% 107,507 106,996
90% 91.9% 96,756 98,758
80% 79.8% 86,005 85,811
70% 70.2% 75,255 75,437
60% 59.8% 64,504 64,239
50% 50.6% 53,753 54,368
40% 40.2% 43,003 43,242
30% 30.1% 32,252 32,411
20% 20.2% 21,501 21,696
10% 10.2% 10,751 11,008
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,015
Calibration 2     108,858
Calibration 3     109,135
ssj_ops@calibrated=108,997
100% 100.1% 108,997 109,098
90% 91.6% 98,097 99,857
80% 79.9% 87,197 87,131
70% 70.3% 76,298 76,605
60% 58.6% 65,398 63,885
50% 50.3% 54,498 54,859
40% 40.8% 43,599 44,484
30% 30.5% 32,699 33,246
20% 20.5% 21,799 22,366
10% 9.7% 10,900 10,587
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,309
Calibration 2     108,956
Calibration 3     108,734
ssj_ops@calibrated=108,845
100% 99.9% 108,845 108,764
90% 90.4% 97,960 98,377
80% 79.8% 87,076 86,827
70% 69.2% 76,191 75,343
60% 59.6% 65,307 64,900
50% 50.5% 54,422 54,985
40% 40.0% 43,538 43,499
30% 30.1% 32,653 32,731
20% 20.2% 21,769 22,018
10% 10.1% 10,884 10,954
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,686
Calibration 2     110,081
Calibration 3     110,316
ssj_ops@calibrated=110,198
100% 100.3% 110,198 110,548
90% 91.3% 99,178 100,619
80% 79.1% 88,158 87,133
70% 70.1% 77,139 77,216
60% 59.6% 66,119 65,676
50% 50.6% 55,099 55,768
40% 39.5% 44,079 43,547
30% 30.2% 33,059 33,288
20% 19.6% 22,040 21,622
10% 10.0% 11,020 11,008
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,771
Calibration 2     110,879
Calibration 3     110,949
ssj_ops@calibrated=110,914
100% 100.1% 110,914 111,034
90% 90.7% 99,823 100,619
80% 80.3% 88,731 89,114
70% 68.5% 77,640 75,962
60% 60.0% 66,548 66,570
50% 48.9% 55,457 54,257
40% 40.6% 44,366 45,079
30% 30.1% 33,274 33,410
20% 19.5% 22,183 21,652
10% 10.1% 11,091 11,162
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,713
Calibration 2     108,567
Calibration 3     108,663
ssj_ops@calibrated=108,615
100% 100.3% 108,615 108,942
90% 90.9% 97,753 98,782
80% 80.5% 86,892 87,439
70% 70.6% 76,030 76,639
60% 59.3% 65,169 64,395
50% 50.2% 54,307 54,559
40% 40.6% 43,446 44,126
30% 29.9% 32,584 32,442
20% 19.9% 21,723 21,600
10% 9.9% 10,861 10,712
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,868
Calibration 2     108,290
Calibration 3     107,332
ssj_ops@calibrated=107,811
100% 99.8% 107,811 107,614
90% 91.5% 97,030 98,670
80% 79.0% 86,249 85,161
70% 70.4% 75,468 75,876
60% 59.2% 64,687 63,807
50% 50.3% 53,905 54,237
40% 39.9% 43,124 43,011
30% 29.7% 32,343 32,050
20% 20.1% 21,562 21,622
10% 10.5% 10,781 11,317
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,023
Calibration 2     111,105
Calibration 3     111,623
ssj_ops@calibrated=111,364
100% 100.1% 111,364 111,499
90% 91.2% 100,227 101,546
80% 80.2% 89,091 89,293
70% 68.8% 77,955 76,605
60% 60.2% 66,818 67,044
50% 49.5% 55,682 55,109
40% 40.4% 44,546 44,957
30% 29.8% 33,409 33,208
20% 20.2% 22,273 22,487
10% 10.3% 11,136 11,451
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,326
Calibration 2     108,680
Calibration 3     108,440
ssj_ops@calibrated=108,560
100% 100.1% 108,560 108,673
90% 92.2% 97,704 100,058
80% 79.4% 86,848 86,188
70% 69.4% 75,992 75,293
60% 59.6% 65,136 64,704
50% 49.8% 54,280 54,061
40% 39.9% 43,424 43,323
30% 30.4% 32,568 32,951
20% 20.2% 21,712 21,934
10% 10.0% 10,856 10,805
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,386
Calibration 2     107,466
Calibration 3     107,346
ssj_ops@calibrated=107,406
100% 100.1% 107,406 107,560
90% 92.7% 96,666 99,552
80% 80.3% 85,925 86,297
70% 70.1% 75,184 75,249
60% 60.5% 64,444 64,958
50% 50.2% 53,703 53,963
40% 39.9% 42,962 42,835
30% 29.8% 32,222 31,973
20% 20.2% 21,481 21,683
10% 10.2% 10,741 10,973
Active Idle   0 0

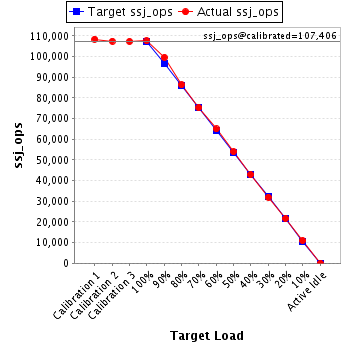

Graph of results
JVM 'WIN-A4QMRIMUI80.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,879
Calibration 2     105,848
Calibration 3     106,294
ssj_ops@calibrated=106,071
100% 100.2% 106,071 106,234
90% 90.2% 95,464 95,721
80% 80.5% 84,857 85,351
70% 70.8% 74,250 75,077
60% 59.6% 63,643 63,263
50% 49.3% 53,036 52,253
40% 40.4% 42,428 42,851
30% 30.1% 31,821 31,922
20% 19.7% 21,214 20,862
10% 10.0% 10,607 10,572
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,571
Calibration 2     108,420
Calibration 3     108,221
ssj_ops@calibrated=108,320
100% 99.7% 108,320 107,994
90% 89.3% 97,488 96,749
80% 81.1% 86,656 87,827
70% 69.3% 75,824 75,069
60% 60.3% 64,992 65,270
50% 50.3% 54,160 54,455
40% 40.3% 43,328 43,684
30% 29.5% 32,496 31,993
20% 19.7% 21,664 21,332
10% 9.8% 10,832 10,582
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,735
Calibration 2     110,098
Calibration 3     110,149
ssj_ops@calibrated=110,123
100% 100.5% 110,123 110,658
90% 90.4% 99,111 99,518
80% 79.4% 88,099 87,404
70% 70.9% 77,086 78,106
60% 60.2% 66,074 66,329
50% 49.1% 55,062 54,118
40% 40.8% 44,049 44,928
30% 30.5% 33,037 33,603
20% 20.0% 22,025 22,033
10% 10.0% 11,012 10,989
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     111,193
Calibration 2     110,702
Calibration 3     110,036
ssj_ops@calibrated=110,369
100% 100.6% 110,369 111,010
90% 90.0% 99,332 99,318
80% 80.2% 88,295 88,559
70% 71.0% 77,258 78,365
60% 60.8% 66,221 67,090
50% 49.9% 55,184 55,060
40% 39.8% 44,148 43,910
30% 29.8% 33,111 32,885
20% 20.4% 22,074 22,552
10% 10.3% 11,037 11,421
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     110,563
Calibration 2     110,162
Calibration 3     109,536
ssj_ops@calibrated=109,849
100% 100.9% 109,849 110,815
90% 91.3% 98,864 100,287
80% 80.6% 87,879 88,553
70% 69.7% 76,894 76,557
60% 59.4% 65,909 65,273
50% 50.3% 54,925 55,284
40% 40.2% 43,940 44,179
30% 29.8% 32,955 32,737
20% 20.4% 21,970 22,437
10% 10.2% 10,985 11,216
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,041
Calibration 2     108,489
Calibration 3     108,472
ssj_ops@calibrated=108,481
100% 100.1% 108,481 108,594
90% 90.4% 97,633 98,044
80% 79.9% 86,785 86,690
70% 71.0% 75,937 76,984
60% 60.4% 65,088 65,480
50% 48.7% 54,240 52,878
40% 39.5% 43,392 42,903
30% 29.8% 32,544 32,322
20% 20.1% 21,696 21,850
10% 9.5% 10,848 10,344
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,666
Calibration 2     109,246
Calibration 3     109,139
ssj_ops@calibrated=109,193
100% 100.3% 109,193 109,503
90% 89.8% 98,273 98,082
80% 80.7% 87,354 88,172
70% 70.3% 76,435 76,795
60% 60.9% 65,516 66,464
50% 50.1% 54,596 54,684
40% 40.6% 43,677 44,309
30% 29.9% 32,758 32,648
20% 19.4% 21,839 21,149
10% 10.1% 10,919 11,025
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,750
Calibration 2     108,876
Calibration 3     108,736
ssj_ops@calibrated=108,806
100% 100.0% 108,806 108,803
90% 89.9% 97,925 97,820
80% 80.0% 87,045 87,092
70% 69.9% 76,164 76,066
60% 60.9% 65,284 66,225
50% 49.8% 54,403 54,161
40% 40.7% 43,522 44,269
30% 29.9% 32,642 32,572
20% 20.4% 21,761 22,162
10% 10.0% 10,881 10,862
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,347
Calibration 2     108,933
Calibration 3     108,503
ssj_ops@calibrated=108,718
100% 98.8% 108,718 107,413
90% 89.7% 97,846 97,476
80% 80.5% 86,974 87,496
70% 70.4% 76,103 76,513
60% 60.6% 65,231 65,912
50% 49.7% 54,359 54,021
40% 40.6% 43,487 44,108
30% 30.3% 32,615 32,931
20% 19.6% 21,744 21,351
10% 10.2% 10,872 11,075
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,779
Calibration 2     108,629
Calibration 3     108,407
ssj_ops@calibrated=108,518
100% 100.2% 108,518 108,767
90% 90.2% 97,666 97,906
80% 79.7% 86,814 86,489
70% 69.5% 75,962 75,414
60% 59.6% 65,111 64,638
50% 49.7% 54,259 53,920
40% 40.8% 43,407 44,322
30% 29.2% 32,555 31,736
20% 20.1% 21,704 21,772
10% 10.3% 10,852 11,137
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,923
Calibration 2     108,370
Calibration 3     107,428
ssj_ops@calibrated=107,899
100% 100.5% 107,899 108,422
90% 90.7% 97,109 97,915
80% 80.4% 86,319 86,780
70% 70.6% 75,529 76,197
60% 59.4% 64,739 64,082
50% 50.1% 53,949 54,048
40% 39.8% 43,160 42,969
30% 29.6% 32,370 31,948
20% 20.0% 21,580 21,558
10% 9.8% 10,790 10,521
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,760
Calibration 2     109,684
Calibration 3     109,548
ssj_ops@calibrated=109,616
100% 100.2% 109,616 109,833
90% 90.9% 98,654 99,648
80% 80.5% 87,693 88,189
70% 69.6% 76,731 76,343
60% 59.6% 65,770 65,374
50% 50.2% 54,808 55,034
40% 39.9% 43,846 43,733
30% 29.8% 32,885 32,662
20% 19.8% 21,923 21,684
10% 9.9% 10,962 10,836
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,151
Calibration 2     108,255
Calibration 3     108,396
ssj_ops@calibrated=108,325
100% 100.3% 108,325 108,637
90% 91.2% 97,493 98,795
80% 80.1% 86,660 86,754
70% 70.3% 75,828 76,189
60% 60.3% 64,995 65,352
50% 50.1% 54,163 54,275
40% 40.3% 43,330 43,671
30% 29.4% 32,498 31,863
20% 19.9% 21,665 21,515
10% 10.3% 10,833 11,112
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,496
Calibration 2     107,846
Calibration 3     107,167
ssj_ops@calibrated=107,506
100% 100.2% 107,506 107,768
90% 92.1% 96,756 99,065
80% 79.2% 86,005 85,150
70% 70.9% 75,255 76,203
60% 60.3% 64,504 64,825
50% 50.0% 53,753 53,781
40% 39.7% 43,003 42,661
30% 29.9% 32,252 32,158
20% 19.9% 21,501 21,418
10% 10.1% 10,751 10,889
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,159
Calibration 2     109,713
Calibration 3     109,293
ssj_ops@calibrated=109,503
100% 100.4% 109,503 109,930
90% 90.6% 98,553 99,236
80% 80.4% 87,602 88,020
70% 70.6% 76,652 77,312
60% 60.9% 65,702 66,691
50% 50.3% 54,751 55,079
40% 39.8% 43,801 43,532
30% 30.1% 32,851 32,945
20% 20.6% 21,901 22,553
10% 10.4% 10,950 11,437
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     109,366
Calibration 2     109,353
Calibration 3     109,048
ssj_ops@calibrated=109,201
100% 100.0% 109,201 109,254
90% 91.6% 98,281 100,000
80% 79.5% 87,360 86,821
70% 70.4% 76,440 76,874
60% 60.2% 65,520 65,732
50% 50.6% 54,600 55,245
40% 39.8% 43,680 43,510
30% 29.8% 32,760 32,498
20% 20.3% 21,840 22,150
10% 9.9% 10,920 10,803
Active Idle   0 0
Graph of results
JVM 'WIN-A4QMRIMUI80.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     108,283
Calibration 2     108,321
Calibration 3     106,720
ssj_ops@calibrated=107,520
100% 99.9% 107,520 107,366
90% 91.4% 96,768 98,238
80% 80.1% 86,016 86,087
70% 70.1% 75,264 75,423
60% 59.2% 64,512 63,702
50% 49.6% 53,760 53,363
40% 39.7% 43,008 42,706
30% 30.2% 32,256 32,520
20% 20.1% 21,504 21,660
10% 10.2% 10,752 10,937
Active Idle   0 0
Graph of results
