SPECpower_ssj2008

Fujitsu FUJITSU Server PRIMERGY RX2540 M5			SPECpower_ssj2008 = 11,991 overall ssj_ops/watt
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Mar 13, 2019
Hardware Availability:	Jun-2019	Software Availability:	Oct-2018	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY RX2540 M5
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8276L
CPU Characteristics:	28-Core, 2.30GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	56 cores, 2 chips, 28 cores/chip
Hardware Threads:	112 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	192
# and size of DIMM:	12 x 16384 MB
Memory Details:	12 x 16 GB 2Rx8 PC4-2933Y-R; slots 1A, 1B, 1C, 1D, 1E, 1F, 1G, 1H, 1J, 1K, 1L, 1M populated
Power Supply Quantity and Rating (W):	1 x 800
Power Supply Details:	Fujitsu Technology Solutions S26113-F615-E10
Disk Drive:	1 x SSD M. 240GB, S26361-F5706-E240
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel(R) I350 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled ("Power saver" power plan)
Operating System (OS):	Microsoft Windows Server 2016 Standard
OS Version:	Version 10.0.14393 Build 14393
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9(build 11+28, mixed mode), version 11
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:AllocatePrefetchInstr=0 -XX:MinJumpTableSize=18 -XX:UseAVX=0
JVM Affinity:	start /NODE [0,2] /AFFINTY 0x3, 0xC, 0x30, 0xC0, 0xC000, 0x30000, 0xC0000, 0x30000000, 0xC0000000, 0x300000000, 0xC00000000, 0xC0000000000, 0x300000000000, 0xC00000000000 /NODE [1,3] /AFFINTY 0x3, 0xC, 0x30, 0x3000, 0xC000, 0x30000, 0xC0000, 0x30000000, 0xC0000000, 0x300000000, 0xC00000000, 0xC0000000000, 0x300000000000, 0xC00000000000
JVM Instances:	56
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	R1.8.0
Management Firmware Version:	2.00c
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows KB4462928 KB4132216

Set "SATA Controller = Disabled" in BIOS.
Set "Serial Port = Disabled" in BIOS.
Set "Hardware Prefetcher = Disabled" in BIOS.
Set "Adjacent Cache Line Prefetch = Disabled" in BIOS.
Set "DCU Streamer Prefetcher = Disabled" in BIOS.
Set "Intel Virtualization Technology = Disabled" in BIOS.
Set "Turbo Mode = Disabled" in BIOS.
Set "Override OS Energy Performance = Enabled" in BIOS.
Set "Energy Performance = Energy Efficient" in BIOS.
Set "DDR Performance = Power balanced" in BIOS.(effective memory frequency = 2400 MHz)
Set "Autonomous C-state Support = Enabled" in BIOS.
Set "ASPM Support = Auto" in BIOS.
Set "UPI Link Frequency Select = 9.6GT/s" in BIOS.
Set "Uncore Frequency Override = Power balanced" in BIOS.
Set "IMC Interleaving = 1-way" in BIOS.
Set "Package C State limit = C6(Retention)" in BIOS.
Set "HWPM = Disabled" in BIOS.
Set "USB Port Control = Enable internal ports only" in BIOS.
Set "Network Stack = Disabled" in BIOS.
Set "LAN Controller = LAN1" in BIOS.

None

Set "Turn off hard disk after = 1 Minute" in OS.
Set "Turn off display after = 1 Minute" in OS.
Set "Minimum processor state = 0%" in OS.
Set "Maximum processor state = 100%" in OS.
Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Benchmark was started via Windows Remote Desktop Connection.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9(build 11+28, mixed mode)
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Hioki
Model:	Hioki3336
Serial Number:	170121768
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NICT (National Institute of Information and Communications Technology)
Accredited by:	HIOKI E.E. CORPORATION
Calibration Label:	H06400087-1901
Date of Calibration:	30-Jan-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	Watchport Virtual Port 5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main air intake

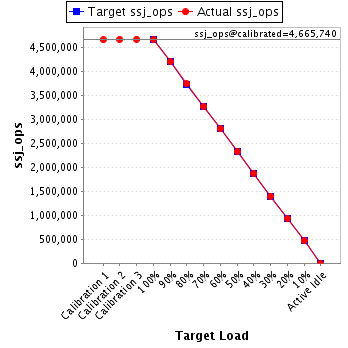

SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.

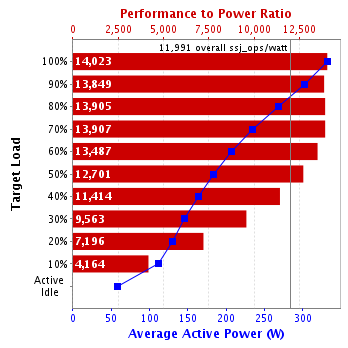

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	332	21.2
90%	303	21.2
80%	269	21.2
70%	235	21.2
60%	208	21.1
50%	183	20.8
40%	163	20.7
30%	146	20.8
20%	129	21.0
10%	112	21.1
Active Idle	58.2	21.2

Line Standard	Minimum Temperature (°C)	Elevation (m)
200V / 50 Hz / 1 phase / 2 wires	20.7	11

See the Power/Temperature Details Report for additional details.

See the Host Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
