Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,772,441
ssj_ops@100% per JVM = 1,443,110
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 28, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,797,121
Calibration 2     5,783,919
Calibration 3     5,784,234
ssj_ops@calibrated=5,784,077
100% 99.8% 5,784,077 5,772,441
90% 89.9% 5,205,669 5,202,130
80% 80.0% 4,627,261 4,624,920
70% 70.0% 4,048,854 4,050,548
60% 60.1% 3,470,446 3,473,953
50% 49.9% 2,892,038 2,888,674
40% 40.0% 2,313,631 2,315,091
30% 30.0% 1,735,223 1,737,910
20% 20.0% 1,156,815 1,157,985
10% 10.1% 578,408 582,879
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 3
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 24000
JVM Maximum Heap (MB): 24000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE03.001 1,448,969
NODE03.002 1,441,505
NODE03.003 1,444,736
NODE03.004 1,437,231
ssj_ops@100% 5,772,441
ssj_ops@100% per JVM 1,443,110

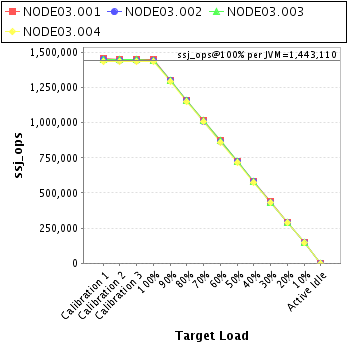

Graph of per-instance results

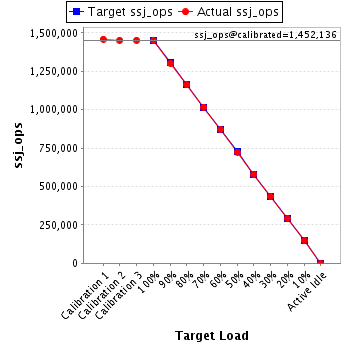

JVM 'NODE03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,458,980
Calibration 2     1,451,612
Calibration 3     1,452,660
ssj_ops@calibrated=1,452,136
100% 99.8% 1,452,136 1,448,969
90% 89.7% 1,306,922 1,301,913
80% 80.0% 1,161,709 1,161,109
70% 70.0% 1,016,495 1,017,210
60% 60.0% 871,282 871,500
50% 49.9% 726,068 724,294
40% 40.0% 580,854 580,393
30% 30.0% 435,641 436,030
20% 20.1% 290,427 291,384
10% 10.1% 145,214 146,674
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,451,857
Calibration 2     1,445,718
Calibration 3     1,444,984
ssj_ops@calibrated=1,445,351
100% 99.7% 1,445,351 1,441,505
90% 90.0% 1,300,816 1,301,185
80% 79.9% 1,156,281 1,154,766
70% 69.9% 1,011,746 1,010,548
60% 59.9% 867,211 865,560
50% 49.9% 722,675 721,238
40% 40.0% 578,140 578,257
30% 29.9% 433,605 432,813
20% 20.0% 289,070 288,792
10% 10.1% 144,535 146,240
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,448,778
Calibration 2     1,448,169
Calibration 3     1,449,339
ssj_ops@calibrated=1,448,754
100% 99.7% 1,448,754 1,444,736
90% 90.0% 1,303,879 1,303,562
80% 80.1% 1,159,003 1,161,128
70% 70.0% 1,014,128 1,014,515
60% 60.4% 869,252 874,603
50% 50.0% 724,377 724,307
40% 40.0% 579,502 579,977
30% 30.1% 434,626 435,821
20% 20.1% 289,751 290,874
10% 10.0% 144,875 145,565
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,437,506
Calibration 2     1,438,420
Calibration 3     1,437,252
ssj_ops@calibrated=1,437,836
100% 100.0% 1,437,836 1,437,231
90% 90.1% 1,294,052 1,295,470
80% 79.8% 1,150,269 1,147,916
70% 70.1% 1,006,485 1,008,276
60% 60.0% 862,702 862,290
50% 50.0% 718,918 718,835
40% 40.1% 575,134 576,465
30% 30.1% 431,351 433,246
20% 20.0% 287,567 286,935
10% 10.0% 143,784 144,401
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
