Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 9,936 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 28, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 983 22.3
Calibration 2 983 22.0
Calibration 3 984 21.8
100% 982 21.8
90% 876 21.7
80% 760 21.8
70% 679 21.7
60% 603 21.7
50% 540 21.7
40% 491 21.7
30% 450 21.7
20% 409 21.6
10% 365 21.6
Active Idle 257 21.6

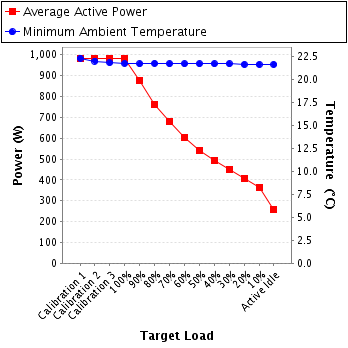

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 1
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 213 300.0 2.28 5.0 0.966 470 0.5%
Calibration 2 213 300.0 2.28 5.0 0.966 470 0.5%
Calibration 3 213 300.0 2.28 5.0 0.966 470 0.5%
100% 213 300.0 2.28 5.0 0.966 469 0.5%
90% 213 300.0 2.03 5.0 0.957 415 0.6%
80% 213 300.0 1.71 5.0 0.939 342 0.7%
70% 213 300.0 1.51 2.0 0.923 298 0.4%
60% 212 300.0 1.35 2.0 0.904 259 0.5%
50% 213 300.0 1.21 2.0 0.852 220 0.5%
40% 212 300.0 1.12 2.0 0.816 193 0.6%
30% 212 300.0 1.01 2.0 0.765 163 0.7%
20% 212 300.0 0.987 2.0 0.805 168 0.7%
10% 212 300.0 0.887 2.0 0.778 147 0.7%
Active Idle 212 300.0 0.708 1.0 0.652 98.0 0.7%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 216 300.0 2.41 5.0 0.986 513 0.5%
Calibration 2 216 300.0 2.41 5.0 0.986 513 0.5%
Calibration 3 216 300.0 2.41 5.0 0.986 514 0.5%
100% 216 300.0 2.41 5.0 0.986 513 0.5%
90% 216 300.0 2.17 5.0 0.983 460 0.5%
80% 216 300.0 1.98 5.0 0.979 418 0.6%
70% 215 300.0 1.81 2.0 0.976 381 0.4%
60% 215 300.0 1.65 2.0 0.972 344 0.4%
50% 215 300.0 1.56 2.0 0.955 320 0.4%
40% 215 300.0 1.47 2.0 0.943 298 0.4%
30% 215 300.0 1.43 2.0 0.936 286 0.4%
20% 215 300.0 1.19 2.0 0.939 240 0.5%
10% 215 300.0 1.08 2.0 0.938 218 0.5%
Active Idle 215 300.0 0.822 2.0 0.899 159 0.6%

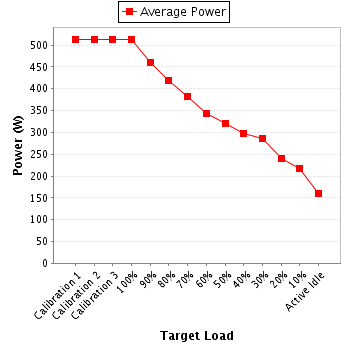

Power details for pwr2
