Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module SPECpower_ssj2008 = 11,603 overall ssj_ops/watt
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 26, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 3,633 22.0
Calibration 2 3,627 22.1
Calibration 3 3,636 22.1
100% 3,627 22.1
90% 3,194 22.2
80% 2,711 22.2
70% 2,366 22.2
60% 2,063 22.2
50% 1,806 22.1
40% 1,611 22.1
30% 1,443 22.1
20% 1,279 22.1
10% 1,104 22.0
Active Idle 658 22.0

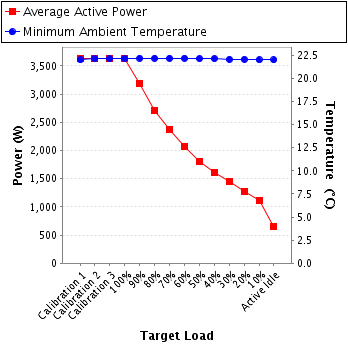

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB53024
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-80-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 5
Power Analyzer pwr2
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GB47168
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-60-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply 3
Power Analyzer pwr3
Hardware Vendor: Yokogawa
Model: WT210
Serial Number: 91GC21887
Connectivity: GPIB vi NI GPIB-USB-HS
Input Connection: Default
Metrology Institute: NIST
Accredited by: TRANSCAT
Calibration Label: 5-EM5Y4-20-1
Date of Calibration: 21-Jun-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supplies 1 and 2
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 211 300.0 4.37 10.0 0.991 912 0.5%
Calibration 2 211 300.0 4.36 10.0 0.991 910 0.5%
Calibration 3 211 300.0 4.37 10.0 0.991 912 0.5%
100% 211 300.0 4.36 10.0 0.991 910 0.5%
90% 211 300.0 3.82 10.0 0.989 796 0.6%
80% 211 300.0 3.23 5.0 0.984 670 0.4%
70% 211 300.0 2.83 5.0 0.980 584 0.4%
60% 211 300.0 2.47 5.0 0.973 506 0.5%
50% 211 300.0 2.19 5.0 0.966 446 0.5%
40% 212 300.0 1.97 5.0 0.958 400 0.6%
30% 213 300.0 1.78 5.0 0.948 360 0.6%
20% 212 300.0 1.61 2.0 0.937 321 0.4%
10% 212 300.0 1.44 2.0 0.922 282 0.4%
Active Idle 212 300.0 0.925 2.0 0.791 155 0.7%
Power details for pwr1
Power Details for Device pwr2
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 214 300.0 4.03 10.0 0.994 855 0.5%
Calibration 2 214 300.0 4.03 10.0 0.994 856 0.5%
Calibration 3 214 300.0 4.03 10.0 0.994 856 0.5%
100% 214 300.0 4.01 10.0 0.994 852 0.5%
90% 214 300.0 3.59 10.0 0.992 760 0.6%
80% 214 300.0 3.09 5.0 0.990 654 0.4%
70% 214 300.0 2.71 5.0 0.987 573 0.4%
60% 214 300.0 2.37 5.0 0.983 499 0.5%
50% 214 300.0 2.04 5.0 0.976 426 0.5%
40% 215 300.0 1.79 5.0 0.970 372 0.6%
30% 215 300.0 1.57 5.0 0.961 325 0.7%
20% 215 300.0 1.37 2.0 0.948 279 0.4%
10% 215 300.0 1.13 2.0 0.909 222 0.5%
Active Idle 215 300.0 0.761 2.0 0.804 132 0.8%
Power details for pwr2
Power Details for Device pwr3
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 210 300.0 8.95 10.0 0.995 1,866 0.3%
Calibration 2 210 300.0 8.92 10.0 0.995 1,862 0.3%
Calibration 3 210 300.0 8.95 10.0 0.995 1,868 0.3%
100% 210 300.0 8.94 10.0 0.995 1,864 0.3%
90% 210 300.0 7.86 10.0 0.994 1,638 0.4%
80% 210 300.0 6.66 10.0 0.991 1,387 0.4%
70% 210 300.0 5.81 10.0 0.989 1,209 0.4%
60% 210 300.0 5.10 10.0 0.986 1,058 0.5%
50% 211 300.0 4.52 10.0 0.982 935 0.5%
40% 211 300.0 4.06 10.0 0.977 839 0.6%
30% 212 300.0 3.68 10.0 0.972 758 0.6%
20% 212 300.0 3.31 5.0 0.965 679 0.4%
10% 212 300.0 2.96 5.0 0.956 600 0.5%
Active Idle 212 300.0 1.96 5.0 0.891 370 0.7%
Power details for pwr3
