SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R740 (Intel Xeon Platinum 8280, 2.70 GHz) | SPECpower_ssj2008 = 12,831 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Apr 3, 2019 |
| Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 25, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

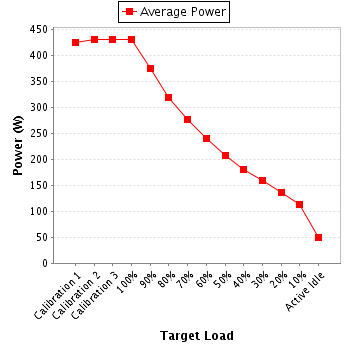

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 426 | 22.1 |
| Calibration 2 | 432 | 22.1 |
| Calibration 3 | 432 | 22.1 |
| 100% | 432 | 22.2 |
| 90% | 376 | 22.2 |
| 80% | 319 | 22.2 |
| 70% | 277 | 22.3 |
| 60% | 240 | 22.4 |
| 50% | 208 | 22.4 |
| 40% | 182 | 22.4 |
| 30% | 159 | 22.4 |
| 20% | 137 | 22.4 |
| 10% | 114 | 22.4 |
| Active Idle | 49.8 | 22.4 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91N819622 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TesCom |
| Calibration Label: | 98378 |
| Date of Calibration: | 21-Mar-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 2.05 | 2.0 | 0.997 | 426 | 0.3% |
| Calibration 2 | 208 | 300.0 | 2.08 | 2.0 | 0.997 | 432 | 0.3% |
| Calibration 3 | 208 | 300.0 | 2.08 | 2.0 | 0.997 | 432 | 0.3% |
| 100% | 208 | 300.0 | 2.08 | 2.0 | 0.997 | 432 | 0.3% |
| 90% | 208 | 300.0 | 1.81 | 2.0 | 0.996 | 376 | 0.3% |
| 80% | 208 | 300.0 | 1.54 | 2.0 | 0.994 | 319 | 0.4% |
| 70% | 208 | 300.0 | 1.34 | 2.0 | 0.993 | 277 | 0.4% |
| 60% | 208 | 300.0 | 1.16 | 2.0 | 0.991 | 240 | 0.4% |
| 50% | 208 | 300.0 | 1.01 | 2.0 | 0.989 | 208 | 0.5% |
| 40% | 208 | 300.0 | 0.886 | 2.0 | 0.984 | 182 | 0.5% |
| 30% | 208 | 300.0 | 0.778 | 1.0 | 0.980 | 159 | 0.4% |
| 20% | 208 | 300.0 | 0.675 | 1.0 | 0.973 | 137 | 0.4% |
| 10% | 208 | 300.0 | 0.568 | 1.0 | 0.961 | 114 | 0.5% |
| Active Idle | 208 | 300.0 | 0.280 | 0.5 | 0.855 | 49.8 | 0.6% |
