Dell Inc. PowerEdge R740 (Intel Xeon Platinum 8280, 2.70 GHz) ssj_ops@100% = 5,811,114
ssj_ops@100% per JVM = 1,452,778
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Apr 3, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 25, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,815,229
Calibration 2     5,815,214
Calibration 3     5,815,350
ssj_ops@calibrated=5,815,282
100% 99.9% 5,815,282 5,811,114
90% 89.7% 5,233,754 5,217,814
80% 79.9% 4,652,226 4,648,443
70% 70.1% 4,070,698 4,077,942
60% 60.0% 3,489,169 3,491,467
50% 50.0% 2,907,641 2,909,373
40% 40.0% 2,326,113 2,325,614
30% 30.0% 1,744,585 1,745,535
20% 20.0% 1,163,056 1,165,221
10% 10.0% 581,528 580,574
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R740
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R740 (Intel Xeon Platinum 8280, 2.70 GHz)
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8280, 2.70 GHz
CPU Characteristics: 28 core, 2.70 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2933Y-R running at 2400. Slots A1-6,B1-6 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: 750W Titanium, Dell SKU [450-ADWU]
Disk Drive: 1 x 240 GB SATA SSD, Dell SKU [400-BDTE]
Disk Controller: Native Chipset SATA
# and type of Network Interface Cards (NICs) Installed: 1 x quad-port Broadcom 5720, Dell SKU [540-BBBW]
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power saver power plan in OS
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3.9600.18969
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15
JVM Command-line Options: -server -Xmx21000m -Xms21000m -Xmn19000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.1.6
Management Firmware Version: 3.34.34.34 A00
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows Server 2012 R2 monthly security rollups KB4489881, KB4489883
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-F92TRC6C5VT.001 1,457,142
WIN-F92TRC6C5VT.002 1,446,717
WIN-F92TRC6C5VT.003 1,455,306
WIN-F92TRC6C5VT.004 1,451,948
ssj_ops@100% 5,811,114
ssj_ops@100% per JVM 1,452,778

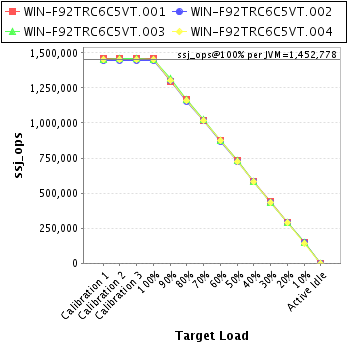

Graph of per-instance results
JVM 'WIN-F92TRC6C5VT.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,461,966
Calibration 2     1,459,266
Calibration 3     1,458,116
ssj_ops@calibrated=1,458,691
100% 99.9% 1,458,691 1,457,142
90% 89.0% 1,312,822 1,298,497
80% 80.0% 1,166,953 1,167,523
70% 70.0% 1,021,084 1,020,913
60% 60.0% 875,215 875,435
50% 50.0% 729,346 729,831
40% 39.9% 583,476 582,307
30% 30.0% 437,607 437,869
20% 20.0% 291,738 291,230
10% 10.1% 145,869 146,680
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-F92TRC6C5VT.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,445,778
Calibration 2     1,448,128
Calibration 3     1,447,194
ssj_ops@calibrated=1,447,661
100% 99.9% 1,447,661 1,446,717
90% 89.9% 1,302,895 1,301,487
80% 79.8% 1,158,129 1,154,642
70% 70.2% 1,013,363 1,016,398
60% 60.0% 868,597 868,664
50% 50.0% 723,830 723,711
40% 40.1% 579,064 579,863
30% 30.1% 434,298 435,836
20% 20.1% 289,532 291,167
10% 10.1% 144,766 145,492
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-F92TRC6C5VT.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,454,548
Calibration 2     1,456,780
Calibration 3     1,458,061
ssj_ops@calibrated=1,457,420
100% 99.9% 1,457,420 1,455,306
90% 90.1% 1,311,678 1,313,825
80% 80.1% 1,165,936 1,166,705
70% 70.1% 1,020,194 1,021,381
60% 60.0% 874,452 874,226
50% 50.1% 728,710 730,816
40% 40.0% 582,968 583,354
30% 29.9% 437,226 436,350
20% 20.1% 291,484 292,525
10% 10.0% 145,742 145,288
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-F92TRC6C5VT.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,452,938
Calibration 2     1,451,041
Calibration 3     1,451,979
ssj_ops@calibrated=1,451,510
100% 100.0% 1,451,510 1,451,948
90% 89.8% 1,306,359 1,304,006
80% 79.9% 1,161,208 1,159,572
70% 70.2% 1,016,057 1,019,250
60% 60.2% 870,906 873,142
50% 49.9% 725,755 725,015
40% 40.0% 580,604 580,090
30% 30.0% 435,453 435,480
20% 20.0% 290,302 290,299
10% 9.9% 145,151 143,113
Active Idle   0 0

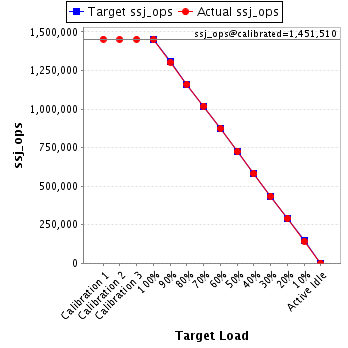

Graph of results
See the JVM Instance Performance Report for additional details.
