Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,734,191
ssj_ops@100% per JVM = 1,433,548
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 8, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,761,339
Calibration 2     5,761,265
Calibration 3     5,759,027
ssj_ops@calibrated=5,760,146
100% 99.5% 5,760,146 5,734,191
90% 90.1% 5,184,131 5,189,375
80% 80.0% 4,608,117 4,605,522
70% 70.1% 4,032,102 4,035,822
60% 60.0% 3,456,087 3,454,174
50% 50.0% 2,880,073 2,881,528
40% 40.0% 2,304,058 2,304,289
30% 30.0% 1,728,044 1,727,102
20% 20.0% 1,152,029 1,151,627
10% 10.0% 576,015 578,791
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 12
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE02.001 1,425,922
NODE02.002 1,437,281
NODE02.003 1,427,154
NODE02.004 1,443,836
ssj_ops@100% 5,734,191
ssj_ops@100% per JVM 1,433,548

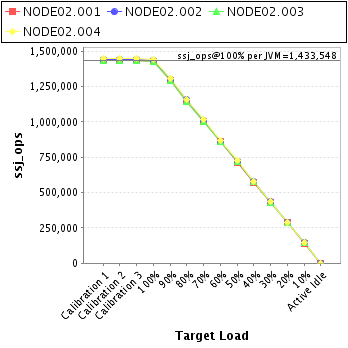

Graph of per-instance results
JVM 'NODE02.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,435,159
Calibration 2     1,432,677
Calibration 3     1,432,623
ssj_ops@calibrated=1,432,650
100% 99.5% 1,432,650 1,425,922
90% 90.1% 1,289,385 1,291,304
80% 80.0% 1,146,120 1,146,708
70% 70.1% 1,002,855 1,003,917
60% 60.1% 859,590 860,767
50% 49.9% 716,325 714,934
40% 40.0% 573,060 573,543
30% 29.9% 429,795 428,991
20% 20.0% 286,530 286,394
10% 10.0% 143,265 143,338
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,441,615
Calibration 2     1,443,421
Calibration 3     1,442,933
ssj_ops@calibrated=1,443,177
100% 99.6% 1,443,177 1,437,281
90% 90.0% 1,298,859 1,299,076
80% 80.1% 1,154,541 1,156,564
70% 70.0% 1,010,224 1,009,512
60% 59.9% 865,906 864,258
50% 49.9% 721,588 719,439
40% 39.9% 577,271 575,994
30% 30.1% 432,953 433,713
20% 19.9% 288,635 287,679
10% 10.1% 144,318 145,705
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,566
Calibration 2     1,434,773
Calibration 3     1,432,379
ssj_ops@calibrated=1,433,576
100% 99.6% 1,433,576 1,427,154
90% 90.2% 1,290,218 1,292,982
80% 80.0% 1,146,861 1,146,751
70% 70.0% 1,003,503 1,004,218
60% 60.0% 860,146 860,664
50% 50.2% 716,788 720,231
40% 40.2% 573,430 576,344
30% 29.9% 430,073 428,582
20% 20.0% 286,715 286,654
10% 10.1% 143,358 144,845
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE02.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,450,999
Calibration 2     1,450,394
Calibration 3     1,451,092
ssj_ops@calibrated=1,450,743
100% 99.5% 1,450,743 1,443,836
90% 90.0% 1,305,669 1,306,014
80% 79.6% 1,160,594 1,155,499
70% 70.2% 1,015,520 1,018,173
60% 59.9% 870,446 868,484
50% 50.1% 725,372 726,924
40% 39.9% 580,297 578,408
30% 30.0% 435,223 435,816
20% 20.1% 290,149 290,900
10% 10.0% 145,074 144,903
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
