New H3C Technologies Co., Ltd. H3C UniServer R6700 G3 ssj_ops@100% = 11,462,353
ssj_ops@100% per JVM = 1,432,794
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: Apr 18, 2019
Hardware Availability: Dec-2018 Software Availability: Dec-2018 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     11,469,178
Calibration 2     11,473,630
Calibration 3     11,479,923
ssj_ops@calibrated=11,476,777
100% 99.9% 11,476,777 11,462,353
90% 90.0% 10,329,099 10,327,316
80% 79.9% 9,181,421 9,170,987
70% 70.0% 8,033,744 8,037,797
60% 60.0% 6,886,066 6,887,498
50% 50.0% 5,738,388 5,736,478
40% 40.1% 4,590,711 4,598,985
30% 30.0% 3,443,033 3,444,667
20% 20.0% 2,295,355 2,292,111
10% 10.0% 1,147,678 1,148,634
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: Here is a comment for this set.
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer R6700 G3
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 112 cores, 4 chips, 28 cores/chip
Hardware Threads: 224 (2 / core)
CPU(s) Orderable: 1,2,3,4 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 384
# and size of DIMM: 24 x 16 GB
Memory Details: 16 GB 2Rx8 Hynix registered ECC 2666Mhz: slots 1, 3, 5, 8, 10, 12 populated in each socket
Power Supply Quantity and Rating (W): 2 x 850
Power Supply Details: DELTA PSR850-12A
Disk Drive: SAMSUNG SSD PM863 240GB SATA 6Gb/s
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Embedded Ethernet Adapter 8086
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn22g -Xms25g -Xmx25g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [0XFFFFFFF]
JVM Instances: 8
JVM Initial Heap (MB): 25000
JVM Maximum Heap (MB): 25000
JVM Address Bits: 64
Boot Firmware Version: 2.00.14P02
Management Firmware Version: 1.11.21P01
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-93TNL4BCPT3.001 1,424,665
WIN-93TNL4BCPT3.002 1,430,728
WIN-93TNL4BCPT3.003 1,425,296
WIN-93TNL4BCPT3.004 1,424,365
WIN-93TNL4BCPT3.005 1,449,116
WIN-93TNL4BCPT3.006 1,429,522
WIN-93TNL4BCPT3.007 1,436,875
WIN-93TNL4BCPT3.008 1,441,787
ssj_ops@100% 11,462,353
ssj_ops@100% per JVM 1,432,794

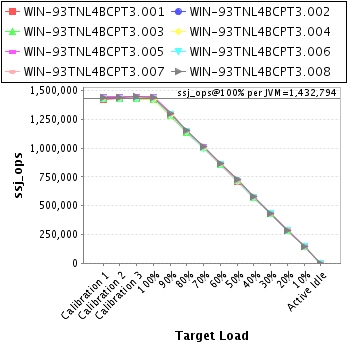

Graph of per-instance results
JVM 'WIN-93TNL4BCPT3.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,425,273
Calibration 2     1,426,536
Calibration 3     1,427,591
ssj_ops@calibrated=1,427,063
100% 99.8% 1,427,063 1,424,665
90% 89.8% 1,284,357 1,281,963
80% 79.8% 1,141,651 1,139,314
70% 70.2% 998,944 1,001,930
60% 60.1% 856,238 857,083
50% 49.8% 713,532 710,552
40% 40.2% 570,825 573,584
30% 30.0% 428,119 427,809
20% 19.9% 285,413 284,511
10% 10.0% 142,706 143,196
Active Idle   0 0
Graph of results
JVM 'WIN-93TNL4BCPT3.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,432,617
Calibration 2     1,432,742
Calibration 3     1,430,658
ssj_ops@calibrated=1,431,700
100% 99.9% 1,431,700 1,430,728
90% 89.8% 1,288,530 1,286,200
80% 80.0% 1,145,360 1,145,194
70% 70.1% 1,002,190 1,003,786
60% 60.1% 859,020 860,463
50% 50.2% 715,850 719,422
40% 40.0% 572,680 572,603
30% 30.0% 429,510 429,612
20% 20.0% 286,340 286,844
10% 10.0% 143,170 143,108
Active Idle   0 0
Graph of results
JVM 'WIN-93TNL4BCPT3.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,426,492
Calibration 2     1,427,203
Calibration 3     1,427,404
ssj_ops@calibrated=1,427,303
100% 99.9% 1,427,303 1,425,296
90% 90.1% 1,284,573 1,285,521
80% 79.8% 1,141,843 1,138,585
70% 70.3% 999,112 1,003,919
60% 60.0% 856,382 856,595
50% 50.1% 713,652 714,870
40% 40.1% 570,921 572,405
30% 30.1% 428,191 429,897
20% 20.0% 285,461 285,512
10% 10.0% 142,730 143,431
Active Idle   0 0
Graph of results
JVM 'WIN-93TNL4BCPT3.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,318
Calibration 2     1,427,686
Calibration 3     1,428,407
ssj_ops@calibrated=1,428,047
100% 99.7% 1,428,047 1,424,365
90% 90.1% 1,285,242 1,286,007
80% 80.1% 1,142,437 1,143,288
70% 69.7% 999,633 995,918
60% 60.0% 856,828 857,343
50% 49.9% 714,023 712,757
40% 39.9% 571,219 570,474
30% 30.1% 428,414 429,237
20% 20.0% 285,609 285,147
10% 10.0% 142,805 142,506
Active Idle   0 0
Graph of results
JVM 'WIN-93TNL4BCPT3.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,449,850
Calibration 2     1,447,727
Calibration 3     1,450,156
ssj_ops@calibrated=1,448,941
100% 100.0% 1,448,941 1,449,116
90% 90.1% 1,304,047 1,305,254
80% 79.8% 1,159,153 1,155,853
70% 70.1% 1,014,259 1,015,488
60% 60.0% 869,365 869,835
50% 49.9% 724,471 723,703
40% 39.9% 579,577 577,951
30% 30.0% 434,682 434,357
20% 20.0% 289,788 289,081
10% 10.0% 144,894 145,312
Active Idle   0 0
Graph of results
JVM 'WIN-93TNL4BCPT3.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,429,206
Calibration 2     1,432,056
Calibration 3     1,430,711
ssj_ops@calibrated=1,431,384
100% 99.9% 1,431,384 1,429,522
90% 90.0% 1,288,245 1,288,904
80% 79.9% 1,145,107 1,143,494
70% 69.8% 1,001,969 999,486
60% 59.9% 858,830 857,825
50% 49.9% 715,692 713,701
40% 40.2% 572,554 575,177
30% 30.1% 429,415 430,529
20% 20.0% 286,277 286,362
10% 10.0% 143,138 143,024
Active Idle   0 0
Graph of results
JVM 'WIN-93TNL4BCPT3.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,436,446
Calibration 2     1,438,486
Calibration 3     1,440,803
ssj_ops@calibrated=1,439,644
100% 99.8% 1,439,644 1,436,875
90% 90.1% 1,295,680 1,297,564
80% 79.8% 1,151,715 1,149,351
70% 69.9% 1,007,751 1,006,696
60% 59.8% 863,787 861,007
50% 49.8% 719,822 716,640
40% 40.2% 575,858 578,982
30% 30.0% 431,893 431,484
20% 19.9% 287,929 286,754
10% 10.0% 143,964 143,940
Active Idle   0 0
Graph of results

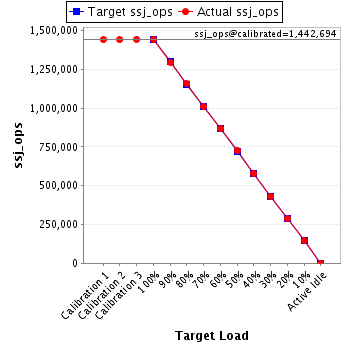

JVM 'WIN-93TNL4BCPT3.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,440,975
Calibration 2     1,441,195
Calibration 3     1,444,193
ssj_ops@calibrated=1,442,694
100% 99.9% 1,442,694 1,441,787
90% 89.8% 1,298,424 1,295,903
80% 80.1% 1,154,155 1,155,910
70% 70.0% 1,009,886 1,010,574
60% 60.1% 865,616 867,347
50% 50.2% 721,347 724,832
40% 40.1% 577,077 577,809
30% 29.9% 432,808 431,741
20% 20.0% 288,539 287,901
10% 10.0% 144,269 144,117
Active Idle   0 0
Graph of results
