SPECpower_ssj2008

Fujitsu FUJITSU Server PRIMERGY TX1320 M4			SPECpower_ssj2008 = 11,089 overall ssj_ops/watt
Test Sponsor:	Fujitsu	SPEC License #:	19	Test Method:	Single Node
Tested By:	Fujitsu	Test Location:	Kawasaki, Kanagawa, Japan	Test Date:	Apr 26, 2019
Hardware Availability:	Mar-2019	Software Availability:	Dec-2018	Publication:	Jun 5, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Hardware
Hardware Vendor:	Fujitsu
Model:	FUJITSU Server PRIMERGY TX1320 M4
Form Factor:	Tower
CPU Name:	Intel Xeon E-2176G
CPU Characteristics:	6-Core, 3.7GHz, 12MB L3 Cache
CPU Frequency (MHz):	3700
CPU(s) Enabled:	6 cores, 1 chip, 6 cores/chip
Hardware Threads:	12 (2 / core)
CPU(s) Orderable:	1 chip
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	256 KB I+D on chip per core
Tertiary Cache:	12 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	16
# and size of DIMM:	2 x 8192 MB
Memory Details:	2 x 8 GB 1Rx8 PC4-2666V-E; slots 1A, 1B, populated
Power Supply Quantity and Rating (W):	1 x 250
Power Supply Details:	Standard power supply part of base unit S26361-K1638-V201
Disk Drive:	1 x M.2 SSD 240GB, S26361-F5706-E240
Disk Controller:	Integrated SATA Controller
# and type of Network Interface Cards (NICs) Installed:	2 x Intel I210 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected:	1/1/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn10500m -Xms12000m -Xmx12000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=8 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages -XX:UseAVX=0
JVM Affinity:	chrt -r 1 numactl --localalloc
JVM Instances:	1
JVM Initial Heap (MB):	12000
JVM Maximum Heap (MB):	12000
JVM Address Bits:	64
Boot Firmware Version:	R1.7.0
Management Firmware Version:	1.60h
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

None

kernal parameter:pcie_aspm=force pcie_aspm.policy=powersave intel_pstate=disable
Benchmark started via ssh
modprobe cpufreq_conservative
cpupower frequency-set --governor conservative
echo -n 94 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo -n 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo -n 1000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo -n 0 > /sys/devices/system/cpu/cpufreq/conservative/ignore_nice_load
sysctl -w kernel.sched_migration_cost_ns=6000
echo -n 93 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo -n 1 > /sys/devices/system/cpu/cpufreq/conservative/sampling_down_factor
sysctl -w kernel.sched_min_granularity_ns=10000000
echo always > /sys/kernel/mm/transparent_hugepage/enabled
powertop --auto-tune
echo 0 > /proc/sys/kernel/nmi_watchdog
cpupower frequency-set -u 2500MHz
sysctl -w vm.swappiness=50
sysctl -w vm.laptop_mode=5
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
<Yes>: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Software
Operating System (OS):	Microsoft Windows Server 2012 R2 Standard
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
CCS Version:	1.2.6

Power Analyzer pwr1
Hardware Vendor:	Hioki
Model:	Hioki3336
Serial Number:	170130930
Connectivity:	RS-232
Input Connection:	Default
Metrology Institute:	NICT (National Institute of Information and Communications Technology)
Accredited by:	HIOKI E.E. CORPORATION
Calibration Label:	H06400086-1901
Date of Calibration:	30-Jan-2019
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
PTDaemon Version:	1.8.1-260d064e-20161220
Setup Description:	Connected to PSU 1

Temperature Sensor temp1
Hardware Vendor:	Digi International Inc.
Model:	Watchport/H
Driver Version:	Watchport Virtual Port 5.70.105.0
Connectivity:	USB
PTDaemon Host System:	same as CCS
PTDaemon Host OS:	same as CCS
Setup Description:	5 mm in front of SUT main air intake

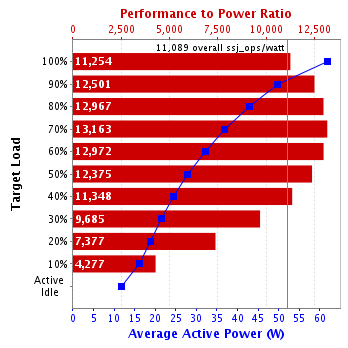

Target Load	Average Active Power (W)	Minimum Ambient Temperature (°C)
100%	61.8	21.9
90%	49.8	21.9
80%	42.8	21.8
70%	36.8	21.8
60%	32.3	21.9
50%	27.9	21.9
40%	24.4	21.9
30%	21.4	21.8
20%	18.9	21.8
10%	16.2	21.8
Active Idle	11.7	21.9

Line Standard	Minimum Temperature (°C)	Elevation (m)
200V / 50 Hz / 1 phase / 2 wires	21.8	11

See the Power/Temperature Details Report for additional details.

See the JVM Instance Performance Report for additional details.

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
