New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,704,210
ssj_ops@100% per JVM = 1,426,053
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 15, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,705,594
Calibration 2     5,704,616
Calibration 3     5,717,977
ssj_ops@calibrated=5,711,296
100% 99.9% 5,711,296 5,704,210
90% 90.0% 5,140,166 5,139,019
80% 80.0% 4,569,037 4,570,281
70% 70.1% 3,997,907 4,000,789
60% 60.0% 3,426,778 3,429,270
50% 50.0% 2,855,648 2,856,625
40% 40.0% 2,284,518 2,285,040
30% 30.0% 1,713,389 1,714,396
20% 20.0% 1,142,259 1,142,588
10% 10.0% 571,130 570,738
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 6, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT105.001 1,417,814
WIN-SUT105.002 1,418,457
WIN-SUT105.003 1,435,853
WIN-SUT105.004 1,432,087
ssj_ops@100% 5,704,210
ssj_ops@100% per JVM 1,426,053

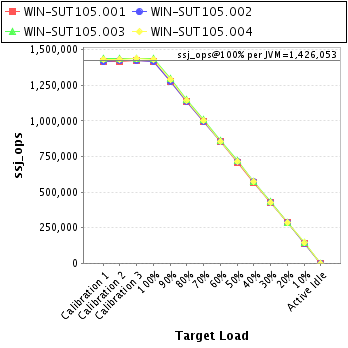

Graph of per-instance results
JVM 'WIN-SUT105.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,417,400
Calibration 2     1,415,291
Calibration 3     1,421,232
ssj_ops@calibrated=1,418,262
100% 100.0% 1,418,262 1,417,814
90% 89.8% 1,276,435 1,273,809
80% 80.1% 1,134,609 1,136,539
70% 70.0% 992,783 992,396
60% 60.2% 850,957 853,233
50% 50.0% 709,131 708,439
40% 40.0% 567,305 567,192
30% 29.9% 425,478 424,475
20% 20.0% 283,652 283,747
10% 10.0% 141,826 141,868
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT105.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,414,923
Calibration 2     1,420,451
Calibration 3     1,423,182
ssj_ops@calibrated=1,421,816
100% 99.8% 1,421,816 1,418,457
90% 89.9% 1,279,635 1,277,882
80% 80.0% 1,137,453 1,138,040
70% 70.0% 995,271 995,349
60% 60.3% 853,090 856,670
50% 50.1% 710,908 712,649
40% 40.2% 568,727 571,143
30% 30.2% 426,545 429,193
20% 20.1% 284,363 285,443
10% 10.0% 142,182 141,942
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT105.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,439,751
Calibration 2     1,436,639
Calibration 3     1,437,917
ssj_ops@calibrated=1,437,278
100% 99.9% 1,437,278 1,435,853
90% 90.1% 1,293,550 1,295,345
80% 80.0% 1,149,822 1,149,594
70% 70.3% 1,006,094 1,009,695
60% 59.9% 862,367 861,256
50% 50.1% 718,639 719,556
40% 39.9% 574,911 573,882
30% 30.1% 431,183 432,470
20% 20.0% 287,456 287,319
10% 10.0% 143,728 143,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT105.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,520
Calibration 2     1,432,235
Calibration 3     1,435,646
ssj_ops@calibrated=1,433,941
100% 99.9% 1,433,941 1,432,087
90% 90.1% 1,290,547 1,291,982
80% 79.9% 1,147,152 1,146,108
70% 70.0% 1,003,758 1,003,349
60% 59.8% 860,364 858,110
50% 49.9% 716,970 715,981
40% 39.9% 573,576 572,823
30% 29.9% 430,182 428,258
20% 20.0% 286,788 286,080
10% 10.0% 143,394 143,232
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
