SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 | SPECpower_ssj2008 = 11,000 overall ssj_ops/watt | ||||
| Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Multi Node |
| Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | May 14, 2019 |
| Hardware Availability: | Jan-2019 | Software Availability: | Jan-2019 | Publication: | Jun 12, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

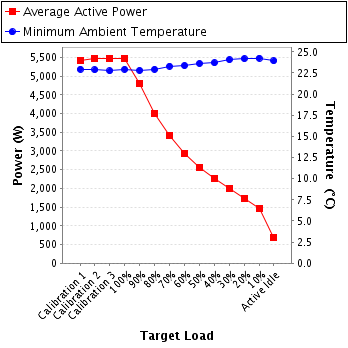

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 5,414 | 22.9 |
| Calibration 2 | 5,479 | 22.9 |
| Calibration 3 | 5,477 | 22.8 |
| 100% | 5,479 | 22.9 |
| 90% | 4,812 | 22.8 |
| 80% | 4,005 | 22.9 |
| 70% | 3,410 | 23.3 |
| 60% | 2,932 | 23.4 |
| 50% | 2,552 | 23.6 |
| 40% | 2,265 | 23.7 |
| 30% | 2,005 | 24.1 |
| 20% | 1,739 | 24.2 |
| 10% | 1,455 | 24.2 |
| Active Idle | 681 | 23.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | Yokogawa WT1800E |
| Serial Number: | C3VA04022E |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment ) |
| Accredited by: | Calibration and Testing Center of CEPEI |
| Calibration Label: | 1GA19J01715-0012 |
| Date of Calibration: | 4-Apr-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.0-ee285d08-20190201 |
| Setup Description: | SUT Power Supply 1, 2, and 3 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButtonLink |
| Model: | LinkUSBi + T-Probe |
| Driver Version: | 2.12.28.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | placed in front the main airflow inlet of the SUT less than 50mm. |

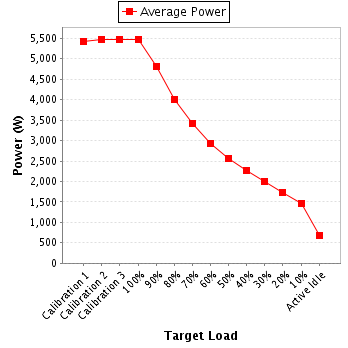

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 230 | 300.0 | 23.6 | 50.0 | 0.999 | 5,414 | 0.3% |
| Calibration 2 | 230 | 300.0 | 23.9 | 50.0 | 0.999 | 5,479 | 0.3% |
| Calibration 3 | 230 | 300.0 | 23.9 | 50.0 | 0.999 | 5,477 | 0.3% |
| 100% | 230 | 300.0 | 23.9 | 50.0 | 0.999 | 5,479 | 0.3% |
| 90% | 230 | 300.0 | 20.9 | 50.0 | 0.999 | 4,812 | 0.3% |
| 80% | 231 | 300.0 | 17.4 | 20.0 | 0.999 | 4,005 | 0.2% |
| 70% | 232 | 300.0 | 14.7 | 20.0 | 0.998 | 3,410 | 0.2% |
| 60% | 232 | 300.0 | 12.7 | 20.0 | 0.997 | 2,932 | 0.2% |
| 50% | 232 | 300.0 | 11.0 | 20.0 | 0.997 | 2,552 | 0.2% |
| 40% | 233 | 300.0 | 9.78 | 10.0 | 0.995 | 2,265 | 0.2% |
| 30% | 233 | 300.0 | 8.65 | 10.0 | 0.994 | 2,005 | 0.2% |
| 20% | 233 | 300.0 | 7.51 | 10.0 | 0.992 | 1,739 | 0.2% |
| 10% | 234 | 300.0 | 6.29 | 10.0 | 0.990 | 1,455 | 0.2% |
| Active Idle | 235 | 300.0 | 3.00 | 5.0 | 0.966 | 681 | 0.2% |
