New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 | SPECpower_ssj2008 = 11,001 overall ssj_ops/watt | ||||
Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Multi Node |
Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | May 13, 2019 |
Hardware Availability: | Jan-2019 | Software Availability: | Jan-2019 | Publication: | Jun 12, 2019 |
System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

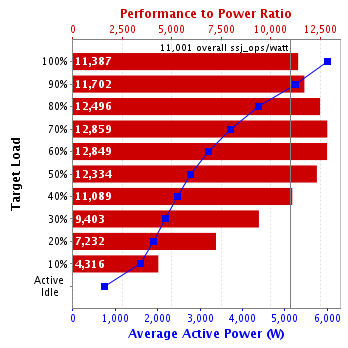

Performance | Power | Performance to Power Ratio | ||
---|---|---|---|---|
Target Load | Actual Load | ssj_ops | Average Active Power (W) | |
100% | 99.9% | 68,308,487 | 5,999 | 11,387 |
90% | 90.0% | 61,566,755 | 5,261 | 11,702 |
80% | 80.0% | 54,734,928 | 4,380 | 12,496 |
70% | 70.0% | 47,903,747 | 3,725 | 12,859 |
60% | 60.0% | 41,049,791 | 3,195 | 12,849 |
50% | 50.0% | 34,221,053 | 2,775 | 12,334 |
40% | 40.0% | 27,383,511 | 2,470 | 11,089 |
30% | 30.0% | 20,523,892 | 2,183 | 9,403 |
20% | 20.0% | 13,685,399 | 1,892 | 7,232 |
10% | 10.0% | 6,836,282 | 1,584 | 4,316 |
Active Idle | 0 | 735 | 0 | |
∑ssj_ops / ∑power = | 11,001 |
# of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
---|---|---|---|---|---|---|
12 | 24 | 672 | 1,344 | 2,304 | 12 | 48 |
Set Identifier: | sut |
Set Description: | System Under Test |
# of Identical Nodes: | 12 |
Comment: | SUT |
Hardware per Node | |
---|---|
Hardware Vendor: | New H3C Technologies Co., Ltd. |
Model: | H3C UniServer B5700 G3 |
Form Factor: | Other |
CPU Name: | Intel Xeon Platinum 8180 2.50GHz |
CPU Characteristics: | 28-Core, 2.50 GHz, 38.5 MB L3 Cache |
CPU Frequency (MHz): | 2500 |
CPU(s) Enabled: | 56 cores, 2 chips, 28 cores/chip |
Hardware Threads: | 112 (2 / core) |
CPU(s) Orderable: | 1,2 chips |
Primary Cache: | 32 KB I + 32 KB D on chip per core |
Secondary Cache: | 1 MB I+D on chip per core |
Tertiary Cache: | 39424 KB I+D on chip per chip |
Other Cache: | None |
Memory Amount (GB): | 192.0 |
# and size of DIMM: | 12 x 16384 MB |
Memory Details: | 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated |
Power Supply Quantity and Rating (W): | None |
Power Supply Details: | Shared |
Disk Drive: | SATA DOM 128GB P/N DESSH-A28D09BCADCA |
Disk Controller: | Integrated SATA controller |
# and type of Network Interface Cards (NICs) Installed: | 1 x Intel I350 Gigabit Ethernet Controller |
NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
Network Speed (Mbit): | 1000 |
Keyboard: | None |
Mouse: | None |
Monitor: | None |
Optical Drives: | No |
Other Hardware: | None |
Software per Node | |
---|---|
Power Management: | Balanced Mode enabled in OS (see SUT Notes) |
Operating System (OS): | Microsoft Windows Server 2012 R2 Datacenter |
OS Version: | Version 6.3 (Build 9600) |
Filesystem: | NTFS |
JVM Vendor: | Oracle Corporation |
JVM Version: | Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80 |
JVM Command-line Options: | -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts |
JVM Affinity: | start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F] |
JVM Instances: | 4 |
JVM Initial Heap (MB): | 21000 |
JVM Maximum Heap (MB): | 21000 |
JVM Address Bits: | 64 |
Boot Firmware Version: | 2.00.25 |
Management Firmware Version: | UIS-OM 1.00.10 |
Workload Version: | SSJ 1.2.10 |
Director Location: | Controller |
Other Software: | Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 8, 2019 |
Hardware | |
---|---|
Hardware Vendor: | Hangzhou H3C Technologies Co., Ltd. |
Model: | UIS R390X G2 |
CPU Description: | Intel Xeon CPU E5-2620 V4 @2.10GHz |
Memory amount (GB): | 208.0 |
Software | |
---|---|
Operating System (OS): | Microsoft Windows Server 2012 R2 Standard |
JVM Vendor: | Oracle Corporation |
JVM Version: | Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80-b15 |
CCS Version: | 1.2.6 |
Power Analyzer pwr1 | |
---|---|
Hardware Vendor: | Yokogawa |
Model: | Yokogawa WT1800E |
Serial Number: | C3VA04022E |
Connectivity: | GPIB |
Input Connection: | Default |
Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment ) |
Accredited by: | Calibration and Testing Center of CEPEI |
Calibration Label: | 1GA19J01715-0012 |
Date of Calibration: | 4-Apr-2019 |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
PTDaemon Version: | 1.9.0-ee285d08-20190201 |
Setup Description: | SUT Power Supply 1, 2, and 3 |
Temperature Sensor temp1 | |
---|---|
Hardware Vendor: | iButtonLink |
Model: | LinkUSBi + T-Probe |
Driver Version: | 2.12.28.0 |
Connectivity: | USB |
PTDaemon Host System: | same as CCS |
PTDaemon Host OS: | same as CCS |
Setup Description: | placed in front the main airflow inlet of the SUT less than 50mm. |
Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
---|---|---|
100% | 5,999 | 23.4 |
90% | 5,261 | 23.4 |
80% | 4,380 | 23.5 |
70% | 3,725 | 24.1 |
60% | 3,195 | 24.6 |
50% | 2,775 | 24.7 |
40% | 2,470 | 24.9 |
30% | 2,183 | 24.9 |
20% | 1,892 | 25.0 |
10% | 1,584 | 25.3 |
Active Idle | 735 | 25.0 |
Line Standard | Minimum Temperature (°C) | Elevation (m) |
---|---|---|
230V / 50 Hz / 1 phase / 2 wires | 23.4 | 132 |
Target Load | Actual Load | ssj_ops | |
---|---|---|---|
Target | Actual | ||
Calibration 1 | 68,428,050 | ||
Calibration 2 | 68,336,054 | ||
Calibration 3 | 68,485,117 | ||
ssj_ops@calibrated=68,410,586 | |||
100% | 99.9% | 68,410,586 | 68,308,487 |
90% | 90.0% | 61,569,527 | 61,566,755 |
80% | 80.0% | 54,728,469 | 54,734,928 |
70% | 70.0% | 47,887,410 | 47,903,747 |
60% | 60.0% | 41,046,352 | 41,049,791 |
50% | 50.0% | 34,205,293 | 34,221,053 |
40% | 40.0% | 27,364,234 | 27,383,511 |
30% | 30.0% | 20,523,176 | 20,523,892 |
20% | 20.0% | 13,682,117 | 13,685,399 |
10% | 10.0% | 6,841,059 | 6,836,282 |
Active Idle | 0 | 0 |
