New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 SPECpower_ssj2008 = 10,996 overall ssj_ops/watt
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 17, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 6,448 23.5
Calibration 2 6,527 23.6
Calibration 3 6,537 23.7
100% 6,532 23.8
90% 5,721 23.8
80% 4,743 23.8
70% 4,032 23.8
60% 3,461 24.3
50% 3,007 24.5
40% 2,674 24.4
30% 2,363 24.4
20% 2,045 24.3
10% 1,710 24.3
Active Idle 787 24.2

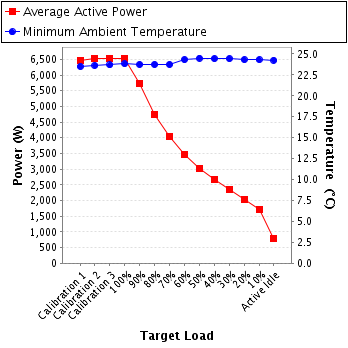

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa
Model: Yokogawa WT1800E
Serial Number: C3VA04022E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment )
Accredited by: Calibration and Testing Center of CEPEI
Calibration Label: 1GA19J01715-0012
Date of Calibration: 4-Apr-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: SUT Power Supply 1, 2, and 3
Temperature Sensor temp1
Hardware Vendor: iButtonLink
Model: LinkUSBi + T-Probe
Driver Version: 2.12.28.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 233 300.0 27.7 50.0 0.999 6,448 0.2%
Calibration 2 233 300.0 28.0 50.0 0.999 6,527 0.2%
Calibration 3 232 300.0 28.2 50.0 0.999 6,537 0.2%
100% 233 300.0 28.1 50.0 0.999 6,532 0.2%
90% 233 300.0 24.5 50.0 0.999 5,721 0.3%
80% 234 300.0 20.3 50.0 0.999 4,743 0.3%
70% 235 300.0 17.2 20.0 0.999 4,032 0.2%
60% 235 300.0 14.8 20.0 0.998 3,461 0.2%
50% 236 300.0 12.8 20.0 0.997 3,007 0.2%
40% 236 300.0 11.4 20.0 0.997 2,674 0.2%
30% 236 300.0 10.1 20.0 0.995 2,363 0.2%
20% 236 300.0 8.71 10.0 0.994 2,045 0.2%
10% 236 300.0 7.30 10.0 0.991 1,710 0.2%
Active Idle 237 300.0 3.41 5.0 0.974 787 0.2%

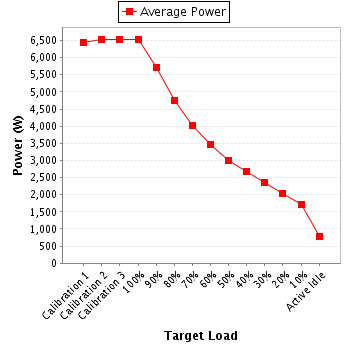

Power details for pwr1
