New H3C Technologies Co., Ltd. H3C UniServer R6700 G3 SPECpower_ssj2008 = 13,107 overall ssj_ops/watt
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Single Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 21, 2019
Hardware Availability: Dec-2018 Software Availability: Dec-2018 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 900 23.9
Calibration 2 915 24.0
Calibration 3 916 24.0
100% 915 24.1
90% 735 24.2
80% 624 24.1
70% 546 24.1
60% 475 24.4
50% 410 24.3
40% 364 24.2
30% 324 24.2
20% 282 24.4
10% 238 24.7
Active Idle 94.2 24.7
Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: CHROMA
Model: 66202
Serial Number: 662025003313
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: GUANG ZHOU GRG METROLOGY & TEST CO.,LTD
Calibration Label: J201903263852A-0051
Date of Calibration: 1-Apr-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: Connected to PSU 1 and 2
Temperature Sensor temp1
Hardware Vendor: DIGI.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 235 300.0 3.85 20.0 0.995 900 0.8%
Calibration 2 235 300.0 3.92 20.0 0.995 915 0.8%
Calibration 3 234 300.0 3.93 20.0 0.995 916 0.8%
100% 234 300.0 3.93 20.0 0.995 915 0.8%
90% 234 300.0 3.16 20.0 0.993 735 0.9%
80% 235 300.0 2.68 2.0 0.990 624 0.2%
70% 235 300.0 2.35 2.0 0.989 546 0.2%
60% 235 300.0 2.05 2.0 0.985 475 0.2%
50% 235 300.0 1.78 2.0 0.983 410 0.2%
40% 236 300.0 1.58 2.0 0.980 364 0.3%
30% 236 300.0 1.41 2.0 0.974 324 0.3%
20% 236 300.0 1.24 2.0 0.968 282 0.3%
10% 236 300.0 1.05 2.0 0.957 238 0.4%
Active Idle 236 300.0 0.480 2.0 0.830 94.2 0.7%

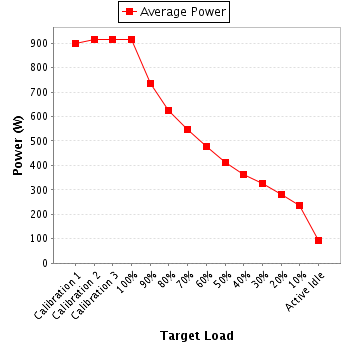

Power details for pwr1
