SPECpower_ssj2008 Host 'WIN-LCFMCT5LP3F' Performance Report

SPECpower_ssj2008

Host 'WIN-LCFMCT5LP3F' Performance Report

New H3C Technologies Co., Ltd. H3C UniServer R6700 G3			ssj_ops@100% = 11,927,524 ssj_ops@100% per JVM = 1,490,941
Test Sponsor:	New H3C Technologies Co., Ltd.	SPEC License #:	9066	Test Method:	Single Node
Tested By:	New H3C Technologies Co., Ltd.	Test Location:	Hangzhou, Zhejiang, China	Test Date:	May 21, 2019
Hardware Availability:	Dec-2018	Software Availability:	Dec-2018	Publication:	Jun 12, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,918,772
Calibration 2			11,944,193
Calibration 3			11,940,898
ssj_ops@calibrated=11,942,545
100%	99.9%	11,942,545	11,927,524
90%	89.8%	10,748,291	10,724,147
80%	79.8%	9,554,036	9,534,301
70%	70.0%	8,359,782	8,356,446
60%	60.1%	7,165,527	7,173,210
50%	49.9%	5,971,273	5,962,354
40%	40.0%	4,777,018	4,778,514
30%	30.2%	3,582,764	3,611,801
20%	20.1%	2,388,509	2,394,521
10%	10.0%	1,194,255	1,193,814
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	Here is a comment for this set.

Hardware
Hardware Vendor:	New H3C Technologies Co., Ltd.
Model:	H3C UniServer R6700 G3
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8280L 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16 GB
Memory Details:	16 GB 2Rx8 Hynix registered ECC 2933Mhz: slots 1, 3, 5, 8, 10, 12 populated in each socket
Power Supply Quantity and Rating (W):	2 x 850
Power Supply Details:	DELTA PSR850-12A
Disk Drive:	SAMSUNG SSD PM863 240GB SATA 6Gb/s
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Intel Embedded Ethernet Adapter 8086
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS):	Microsoft Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn23g -Xms25g -Xmx25g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3,4,5,6,7] /AFFINITY [0XFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	25000
JVM Maximum Heap (MB):	25000
JVM Address Bits:	64
Boot Firmware Version:	2.00.14P02
Management Firmware Version:	1.11.25P01
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	Microsoft Windows clearcompressionflag.exe,KB3021910,KB2919355,KB2932046,KB2959977,KB2937592,KB2938439,KB2934018,KB4056898,patched to this test system in April 28,2019

Boot Firmware Settings

Hardware Prefetcher: disabled
Adjacent Cache Prefetch: disabled
DCU Streamer Prefetcher: disabled
LLC Prefetch: enabled
Turbo Mode: disabled
SNC: enabled
IMC Interleaving: 1-way Interleave
Page Policy: Adaptive
Local/Remote Threshold: Medium
CPU C6 Report: enabled
HT Technology: enabled
Hardware P-States: disabled
Power Performance Tunning: BIOS Controls EPB
Isoc Mode: enabled
Package C State: No Limit
ENERGY_PERF_BIAS_CFG MODE: Balanced Performance
PCHPcieAspmGlobal: L1 Only
UPI Link Frequency: 9.6GT/S
Memory Frequency: 2666MHz
Intel VT for Directed I/O(VT-D): disabled
Patrol Scrub: disabled
SR-IOV Support: disabled
EIST PSD Function: SW_ANY
Legacy USB Support: disabled
xHCI Hand-off: disabled
USB Mass Storage Driver Support: disabled
Serial Redirection: disabled
SSATA controller: disabled
PCIE DMI Link Frequency: Gen 1 Speed
PCIe Device State: D3HOT
PCH DMI ASPM: ASPM L1
Software Controlled T-State: enable

Management Firmware Settings

none

System Under Test Notes

Each JVM instance was bound to 28 logical processors
Using the local security settings console, "lock pages in memory " was enabled for the user running the benchmark
Run initiated via Windows Remote Desktop Connection
Hard Disk set to turn off after 1 minute
Display set to turn off after 1 minute
Balanced Plan Minimum processor state set to 0%
Maximum processor state set to 100%
SPECpower_ssj.props input.load_level.number_warehouses set to 224
Set Processor P-State value:1

Enable protection against speculative execution side-channel vulnerabilities according to Microsoft guidance: https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Nov 15, 2018)
YES: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
YES: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

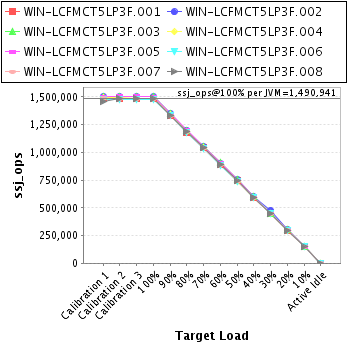

JVM Instance Summary

JVM Instance	ssj_ops@100%
WIN-LCFMCT5LP3F.001	1,485,488
WIN-LCFMCT5LP3F.002	1,500,008
WIN-LCFMCT5LP3F.003	1,503,957
WIN-LCFMCT5LP3F.004	1,489,420
WIN-LCFMCT5LP3F.005	1,503,912
WIN-LCFMCT5LP3F.006	1,476,472
WIN-LCFMCT5LP3F.007	1,484,427
WIN-LCFMCT5LP3F.008	1,483,839
ssj_ops@100%	11,927,524
ssj_ops@100% per JVM	1,490,941

JVM 'WIN-LCFMCT5LP3F.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,489,583
Calibration 2			1,488,665
Calibration 3			1,486,354
ssj_ops@calibrated=1,487,509
100%	99.9%	1,487,509	1,485,488
90%	89.8%	1,338,758	1,335,521
80%	79.2%	1,190,007	1,178,014
70%	70.1%	1,041,257	1,042,268
60%	60.1%	892,506	893,743
50%	50.2%	743,755	746,462
40%	39.8%	595,004	592,653
30%	30.0%	446,253	445,861
20%	20.1%	297,502	298,736
10%	10.0%	148,751	148,816
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-LCFMCT5LP3F.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,504,984
Calibration 2			1,501,980
Calibration 3			1,502,046
ssj_ops@calibrated=1,502,013
100%	99.9%	1,502,013	1,500,008
90%	89.9%	1,351,812	1,350,257
80%	80.0%	1,201,610	1,201,561
70%	70.1%	1,051,409	1,052,932
60%	60.2%	901,208	904,191
50%	50.0%	751,006	751,490
40%	40.0%	600,805	601,538
30%	31.7%	450,604	476,710
20%	20.1%	300,403	301,366
10%	10.0%	150,201	150,524
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-LCFMCT5LP3F.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,505,455
Calibration 2			1,507,153
Calibration 3			1,506,885
ssj_ops@calibrated=1,507,019
100%	99.8%	1,507,019	1,503,957
90%	89.7%	1,356,317	1,351,262
80%	79.8%	1,205,615	1,202,192
70%	69.9%	1,054,914	1,052,813
60%	60.1%	904,212	905,046
50%	50.0%	753,510	753,916
40%	40.0%	602,808	602,271
30%	30.0%	452,106	452,140
20%	20.1%	301,404	303,094
10%	10.0%	150,702	150,613
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-LCFMCT5LP3F.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,491,369
Calibration 2			1,491,321
Calibration 3			1,490,546
ssj_ops@calibrated=1,490,933
100%	99.9%	1,490,933	1,489,420
90%	90.0%	1,341,840	1,341,720
80%	79.9%	1,192,747	1,191,101
70%	69.9%	1,043,653	1,042,280
60%	59.9%	894,560	893,583
50%	49.6%	745,467	739,798
40%	40.0%	596,373	595,872
30%	30.1%	447,280	448,131
20%	20.0%	298,187	298,355
10%	10.0%	149,093	149,299
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-LCFMCT5LP3F.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,502,919
Calibration 2			1,506,517
Calibration 3			1,504,507
ssj_ops@calibrated=1,505,512
100%	99.9%	1,505,512	1,503,912
90%	89.5%	1,354,961	1,348,007
80%	80.1%	1,204,410	1,205,941
70%	70.0%	1,053,859	1,053,295
60%	60.2%	903,307	905,948
50%	50.0%	752,756	752,181
40%	40.3%	602,205	606,648
30%	30.0%	451,654	451,376
20%	20.1%	301,102	302,583
10%	10.0%	150,551	150,544
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-LCFMCT5LP3F.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,478,404
Calibration 2			1,479,584
Calibration 3			1,480,068
ssj_ops@calibrated=1,479,826
100%	99.8%	1,479,826	1,476,472
90%	89.9%	1,331,843	1,330,655
80%	80.0%	1,183,861	1,183,535
70%	69.9%	1,035,878	1,034,919
60%	59.9%	887,896	886,405
50%	49.6%	739,913	733,716
40%	40.1%	591,930	593,124
30%	30.0%	443,948	444,471
20%	20.0%	295,965	295,633
10%	9.9%	147,983	147,057
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-LCFMCT5LP3F.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,486,523
Calibration 2			1,484,341
Calibration 3			1,484,131
ssj_ops@calibrated=1,484,236
100%	100.0%	1,484,236	1,484,427
90%	89.7%	1,335,813	1,330,668
80%	79.8%	1,187,389	1,184,421
70%	69.9%	1,038,965	1,037,518
60%	60.0%	890,542	890,902
50%	50.0%	742,118	741,485
40%	40.0%	593,694	593,082
30%	30.0%	445,271	444,651
20%	20.1%	296,847	298,701
10%	10.0%	148,424	149,079
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'WIN-LCFMCT5LP3F.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,459,535
Calibration 2			1,484,631
Calibration 3			1,486,361
ssj_ops@calibrated=1,485,496
100%	99.9%	1,485,496	1,483,839
90%	89.9%	1,336,946	1,336,056
80%	79.9%	1,188,397	1,187,536
70%	70.0%	1,039,847	1,040,421
60%	60.1%	891,298	893,392
50%	50.0%	742,748	743,307
40%	39.9%	594,198	593,326
30%	30.2%	445,649	448,460
20%	19.9%	297,099	296,053
10%	10.0%	148,550	147,882
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
