ASUSTeK Computer Inc. RS720-E9-RS8 SPECpower_ssj2008 = 14,274 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: May 9, 2019
Hardware Availability: Apr-2019 Software Availability: Aug-2018 Publication: Jul 17, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 402 21.9
Calibration 2 405 21.9
Calibration 3 405 21.8
100% 405 21.8
90% 328 21.7
80% 283 21.6
70% 248 21.6
60% 213 21.5
50% 187 21.5
40% 165 21.5
30% 147 21.5
20% 127 21.5
10% 107 21.5
Active Idle 47.4 21.5

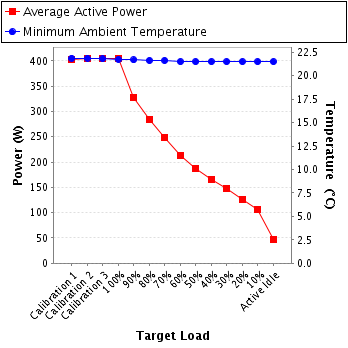

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Good Will Instrument Co., Ltd.
Model: GPM-8212
Serial Number: GCR150073
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: GCR150073
Date of Calibration: 24-Apr-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: RS-232
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm.
Notes
.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 228 320.0 1.78 2.56 0.993 402 0.6%
Calibration 2 228 320.0 1.79 2.56 0.993 405 0.6%
Calibration 3 227 320.0 1.80 2.56 0.993 405 0.6%
100% 227 320.0 1.79 2.56 0.993 405 0.6%
90% 228 320.0 1.45 2.56 0.990 328 0.7%
80% 227 320.0 1.26 2.56 0.987 283 0.8%
70% 227 320.0 1.11 1.28 0.986 248 0.5%
60% 227 320.0 0.958 1.28 0.980 213 0.6%
50% 227 320.0 0.838 1.28 0.980 187 0.6%
40% 227 320.0 0.744 1.28 0.974 165 0.7%
30% 228 320.0 0.666 1.28 0.969 147 0.8%
20% 228 320.0 0.578 1.28 0.962 127 0.8%
10% 228 320.0 0.494 0.64 0.953 107 0.6%
Active Idle 228 320.0 0.253 0.32 0.824 47.4 0.6%
Power details for pwr1
