ASUSTeK Computer Inc. RS720-E9-RS8 ssj_ops@100% = 5,845,032
ssj_ops@100% per JVM = 104,376
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: May 9, 2019
Hardware Availability: Apr-2019 Software Availability: Aug-2018 Publication: Jul 17, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,859,990
Calibration 2     5,866,808
Calibration 3     5,858,127
ssj_ops@calibrated=5,862,467
100% 99.7% 5,862,467 5,845,032
90% 90.0% 5,276,221 5,276,475
80% 80.0% 4,689,974 4,690,493
70% 70.1% 4,103,727 4,106,727
60% 60.0% 3,517,480 3,515,732
50% 50.1% 2,931,234 2,935,583
40% 40.0% 2,344,987 2,346,300
30% 30.0% 1,758,740 1,760,240
20% 20.0% 1,172,493 1,170,536
10% 10.0% 586,247 587,425
Active Idle   0 0
Graph of results
System Under Test
Set: 'RS720-E9-RS8'
Set Identifier: RS720-E9-RS8
Set Description: System Under Test
# of Identical Nodes: 1
Comment: 'SUT'
Hardware
Hardware Vendor: ASUSTeK Computer Inc.
Model: RS720-E9-RS8
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8280L
CPU Characteristics: 28-Core, 2.7GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y ECC RDIMM; slots DIMM_A1, DIMMM_B1, DIMMM_C1, DIMMM_D1, DIMMM_E1, DIMMM_F1, DIMMM_G1, DIMMM_H1, DIMMM_J1, DIMMM_K1, DIMMM_L1, DIMMM_M1
Power Supply Quantity and Rating (W): 1 x 850
Power Supply Details: Delta DPS-850AB-3 Rev.C
Disk Drive: 1 x 960GB Intel DC S3520 SATA 2.5 SSD P/N: 03B01-00160400
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel I350 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmx1550m -Xms1550m -Xmn1300m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParalleOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [3, C, 30, C0, C000, 30000, C0000, 30000000, C0000000, 300000000, C00000000, C0000000000, 300000000000, C00000000000]; start /NODE [1,3] /AFFINITY [3, C, 30, 3000, C000, 30000, C0000, 30000000, C0000000, 300000000, 30000000000, C0000000000, 300000000000, C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: 5102
Management Firmware Version: 1.13.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: MS-KB4343891
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-A.001 104,543
WIN-A.002 106,115
WIN-A.003 104,308
WIN-A.004 103,644
WIN-A.005 105,124
WIN-A.006 105,281
WIN-A.007 106,389
WIN-A.008 105,075
WIN-A.009 105,100
WIN-A.010 103,061
WIN-A.011 104,460
WIN-A.012 104,239
WIN-A.013 106,782
WIN-A.014 104,911
WIN-A.015 103,573
WIN-A.016 105,560
WIN-A.017 105,355
WIN-A.018 103,367
WIN-A.019 103,628
WIN-A.020 105,412
WIN-A.021 104,958
WIN-A.022 104,722
WIN-A.023 105,232
WIN-A.024 106,230
WIN-A.025 104,193
WIN-A.026 105,253
WIN-A.027 103,752
WIN-A.028 104,895
WIN-A.029 104,218
WIN-A.030 103,362
WIN-A.031 104,250
WIN-A.032 104,204
WIN-A.033 105,703
WIN-A.034 106,560
WIN-A.035 104,489
WIN-A.036 105,280
WIN-A.037 103,811
WIN-A.038 101,225
WIN-A.039 102,558
WIN-A.040 103,330
WIN-A.041 104,322
WIN-A.042 103,956
WIN-A.043 104,445
WIN-A.044 104,193
WIN-A.045 103,126
WIN-A.046 103,161
WIN-A.047 102,308
WIN-A.048 103,450
WIN-A.049 103,516
WIN-A.050 102,935
WIN-A.051 103,897
WIN-A.052 105,783
WIN-A.053 103,489
WIN-A.054 104,730
WIN-A.055 104,124
WIN-A.056 103,442
ssj_ops@100% 5,845,032
ssj_ops@100% per JVM 104,376

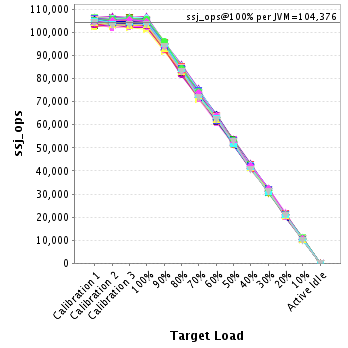

Graph of per-instance results
JVM 'WIN-A.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,703
Calibration 2     104,252
Calibration 3     104,701
ssj_ops@calibrated=104,476
100% 100.1% 104,476 104,543
90% 90.4% 94,029 94,417
80% 80.2% 83,581 83,750
70% 69.9% 73,133 73,031
60% 59.0% 62,686 61,642
50% 50.2% 52,238 52,447
40% 39.6% 41,791 41,362
30% 30.1% 31,343 31,420
20% 20.0% 20,895 20,886
10% 9.8% 10,448 10,285
Active Idle   0 0
Graph of results
JVM 'WIN-A.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,827
Calibration 2     105,385
Calibration 3     105,650
ssj_ops@calibrated=105,517
100% 100.6% 105,517 106,115
90% 89.4% 94,965 94,362
80% 79.6% 84,414 83,964
70% 69.9% 73,862 73,754
60% 60.4% 63,310 63,696
50% 49.8% 52,759 52,577
40% 40.4% 42,207 42,635
30% 29.8% 31,655 31,395
20% 20.6% 21,103 21,688
10% 9.8% 10,552 10,376
Active Idle   0 0
Graph of results
JVM 'WIN-A.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,812
Calibration 2     104,475
Calibration 3     104,198
ssj_ops@calibrated=104,337
100% 100.0% 104,337 104,308
90% 89.7% 93,903 93,609
80% 80.0% 83,469 83,487
70% 70.8% 73,036 73,870
60% 59.8% 62,602 62,345
50% 50.3% 52,168 52,509
40% 39.6% 41,735 41,310
30% 29.3% 31,301 30,607
20% 20.3% 20,867 21,182
10% 10.3% 10,434 10,793
Active Idle   0 0
Graph of results
JVM 'WIN-A.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,678
Calibration 2     103,799
Calibration 3     103,858
ssj_ops@calibrated=103,829
100% 99.8% 103,829 103,644
90% 90.6% 93,446 94,038
80% 80.1% 83,063 83,116
70% 69.4% 72,680 72,034
60% 59.6% 62,297 61,913
50% 50.5% 51,914 52,396
40% 39.4% 41,532 40,960
30% 29.9% 31,149 31,031
20% 20.2% 20,766 20,971
10% 10.0% 10,383 10,362
Active Idle   0 0
Graph of results
JVM 'WIN-A.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,513
Calibration 2     105,352
Calibration 3     104,869
ssj_ops@calibrated=105,111
100% 100.0% 105,111 105,124
90% 89.3% 94,600 93,858
80% 79.3% 84,088 83,363
70% 69.9% 73,577 73,438
60% 60.2% 63,066 63,320
50% 50.5% 52,555 53,047
40% 40.0% 42,044 42,014
30% 29.9% 31,533 31,380
20% 20.1% 21,022 21,099
10% 10.1% 10,511 10,583
Active Idle   0 0
Graph of results

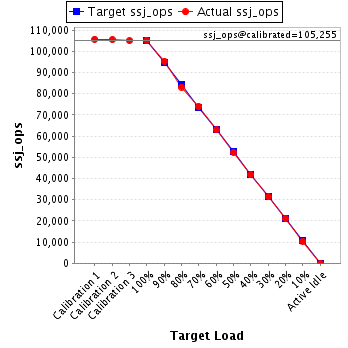

JVM 'WIN-A.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,726
Calibration 2     105,513
Calibration 3     104,996
ssj_ops@calibrated=105,255
100% 100.0% 105,255 105,281
90% 90.5% 94,729 95,249
80% 79.0% 84,204 83,133
70% 70.3% 73,678 74,044
60% 59.7% 63,153 62,872
50% 49.8% 52,627 52,399
40% 39.6% 42,102 41,695
30% 29.8% 31,576 31,415
20% 19.9% 21,051 20,981
10% 9.9% 10,525 10,466
Active Idle   0 0
Graph of results
JVM 'WIN-A.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,802
Calibration 2     106,664
Calibration 3     106,561
ssj_ops@calibrated=106,612
100% 99.8% 106,612 106,389
90% 90.0% 95,951 95,967
80% 79.6% 85,290 84,847
70% 70.0% 74,629 74,656
60% 59.9% 63,967 63,861
50% 49.8% 53,306 53,102
40% 40.5% 42,645 43,143
30% 29.4% 31,984 31,311
20% 20.4% 21,322 21,705
10% 10.0% 10,661 10,639
Active Idle   0 0
Graph of results
JVM 'WIN-A.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,396
Calibration 2     106,421
Calibration 3     105,393
ssj_ops@calibrated=105,907
100% 99.2% 105,907 105,075
90% 90.1% 95,316 95,375
80% 80.3% 84,726 85,025
70% 69.7% 74,135 73,812
60% 59.4% 63,544 62,863
50% 49.4% 52,954 52,351
40% 40.2% 42,363 42,619
30% 29.6% 31,772 31,343
20% 19.9% 21,181 21,115
10% 10.0% 10,591 10,550
Active Idle   0 0
Graph of results
JVM 'WIN-A.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,512
Calibration 2     104,743
Calibration 3     105,462
ssj_ops@calibrated=105,103
100% 100.0% 105,103 105,100
90% 90.5% 94,592 95,156
80% 79.9% 84,082 83,977
70% 69.5% 73,572 73,057
60% 60.1% 63,062 63,155
50% 51.0% 52,551 53,605
40% 40.2% 42,041 42,207
30% 29.6% 31,531 31,088
20% 19.9% 21,021 20,959
10% 10.1% 10,510 10,665
Active Idle   0 0
Graph of results
JVM 'WIN-A.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,667
Calibration 2     103,670
Calibration 3     103,251
ssj_ops@calibrated=103,461
100% 99.6% 103,461 103,061
90% 89.6% 93,114 92,714
80% 80.7% 82,768 83,538
70% 69.6% 72,422 71,958
60% 60.1% 62,076 62,129
50% 49.5% 51,730 51,199
40% 39.7% 41,384 41,057
30% 30.1% 31,038 31,159
20% 19.3% 20,692 19,989
10% 10.1% 10,346 10,441
Active Idle   0 0
Graph of results

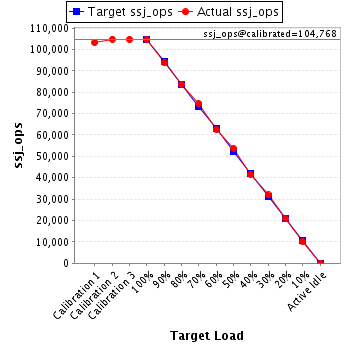

JVM 'WIN-A.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,217
Calibration 2     104,805
Calibration 3     104,730
ssj_ops@calibrated=104,768
100% 99.7% 104,768 104,460
90% 89.5% 94,291 93,734
80% 79.8% 83,814 83,655
70% 71.1% 73,337 74,532
60% 59.7% 62,861 62,557
50% 51.2% 52,384 53,647
40% 39.8% 41,907 41,646
30% 30.5% 31,430 31,927
20% 19.8% 20,954 20,773
10% 9.8% 10,477 10,262
Active Idle   0 0
Graph of results
JVM 'WIN-A.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,843
Calibration 2     104,622
Calibration 3     104,294
ssj_ops@calibrated=104,458
100% 99.8% 104,458 104,239
90% 90.9% 94,012 94,951
80% 80.6% 83,566 84,157
70% 69.7% 73,121 72,780
60% 60.0% 62,675 62,716
50% 50.2% 52,229 52,400
40% 40.4% 41,783 42,185
30% 29.7% 31,337 30,989
20% 20.0% 20,892 20,873
10% 10.5% 10,446 10,999
Active Idle   0 0
Graph of results
JVM 'WIN-A.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,631
Calibration 2     107,003
Calibration 3     106,512
ssj_ops@calibrated=106,758
100% 100.0% 106,758 106,782
90% 89.6% 96,082 95,697
80% 80.5% 85,406 85,949
70% 71.0% 74,730 75,817
60% 59.0% 64,055 63,032
50% 50.4% 53,379 53,813
40% 40.4% 42,703 43,152
30% 30.0% 32,027 32,023
20% 19.9% 21,352 21,232
10% 10.2% 10,676 10,904
Active Idle   0 0
Graph of results

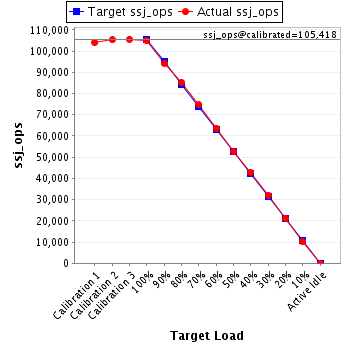

JVM 'WIN-A.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,936
Calibration 2     105,241
Calibration 3     105,594
ssj_ops@calibrated=105,418
100% 99.5% 105,418 104,911
90% 89.4% 94,876 94,254
80% 80.9% 84,334 85,231
70% 70.8% 73,792 74,681
60% 60.3% 63,251 63,600
50% 49.8% 52,709 52,549
40% 40.7% 42,167 42,862
30% 30.5% 31,625 32,117
20% 20.0% 21,084 21,136
10% 9.8% 10,542 10,320
Active Idle   0 0
Graph of results
JVM 'WIN-A.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,291
Calibration 2     104,489
Calibration 3     104,132
ssj_ops@calibrated=104,310
100% 99.3% 104,310 103,573
90% 89.6% 93,879 93,418
80% 79.7% 83,448 83,167
70% 69.2% 73,017 72,148
60% 59.2% 62,586 61,785
50% 49.3% 52,155 51,477
40% 39.6% 41,724 41,322
30% 30.1% 31,293 31,372
20% 20.1% 20,862 20,991
10% 10.0% 10,431 10,420
Active Idle   0 0
Graph of results
JVM 'WIN-A.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,570
Calibration 2     106,150
Calibration 3     105,539
ssj_ops@calibrated=105,844
100% 99.7% 105,844 105,560
90% 90.4% 95,260 95,647
80% 79.6% 84,675 84,210
70% 70.1% 74,091 74,160
60% 60.6% 63,507 64,108
50% 50.0% 52,922 52,962
40% 40.5% 42,338 42,891
30% 29.8% 31,753 31,558
20% 20.5% 21,169 21,750
10% 10.0% 10,584 10,623
Active Idle   0 0
Graph of results
JVM 'WIN-A.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,802
Calibration 2     105,976
Calibration 3     106,017
ssj_ops@calibrated=105,997
100% 99.4% 105,997 105,355
90% 90.0% 95,397 95,395
80% 80.3% 84,797 85,099
70% 69.6% 74,198 73,767
60% 60.1% 63,598 63,741
50% 49.9% 52,998 52,877
40% 40.5% 42,399 42,979
30% 29.7% 31,799 31,529
20% 19.8% 21,199 20,986
10% 9.8% 10,600 10,414
Active Idle   0 0
Graph of results
JVM 'WIN-A.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,207
Calibration 2     105,349
Calibration 3     104,145
ssj_ops@calibrated=104,747
100% 98.7% 104,747 103,367
90% 90.6% 94,273 94,852
80% 80.7% 83,798 84,527
70% 69.6% 73,323 72,926
60% 60.4% 62,848 63,314
50% 49.8% 52,374 52,186
40% 40.8% 41,899 42,758
30% 30.1% 31,424 31,523
20% 19.9% 20,949 20,888
10% 9.8% 10,475 10,264
Active Idle   0 0
Graph of results
JVM 'WIN-A.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,749
Calibration 2     103,990
Calibration 3     104,343
ssj_ops@calibrated=104,166
100% 99.5% 104,166 103,628
90% 90.7% 93,750 94,439
80% 79.6% 83,333 82,943
70% 71.5% 72,916 74,487
60% 59.7% 62,500 62,225
50% 50.4% 52,083 52,486
40% 40.3% 41,667 42,031
30% 30.4% 31,250 31,702
20% 19.9% 20,833 20,719
10% 10.2% 10,417 10,660
Active Idle   0 0
Graph of results
JVM 'WIN-A.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,295
Calibration 2     106,201
Calibration 3     105,580
ssj_ops@calibrated=105,891
100% 99.5% 105,891 105,412
90% 89.2% 95,301 94,469
80% 79.3% 84,712 84,017
70% 69.1% 74,123 73,220
60% 60.3% 63,534 63,835
50% 50.7% 52,945 53,730
40% 40.0% 42,356 42,380
30% 30.0% 31,767 31,725
20% 20.0% 21,178 21,172
10% 10.0% 10,589 10,579
Active Idle   0 0
Graph of results
JVM 'WIN-A.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,722
Calibration 2     105,027
Calibration 3     105,141
ssj_ops@calibrated=105,084
100% 99.9% 105,084 104,958
90% 90.6% 94,576 95,208
80% 78.9% 84,067 82,956
70% 70.0% 73,559 73,580
60% 60.3% 63,050 63,319
50% 49.6% 52,542 52,128
40% 40.5% 42,034 42,541
30% 30.4% 31,525 31,909
20% 19.8% 21,017 20,803
10% 9.7% 10,508 10,206
Active Idle   0 0
Graph of results
JVM 'WIN-A.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,858
Calibration 2     105,425
Calibration 3     104,245
ssj_ops@calibrated=104,835
100% 99.9% 104,835 104,722
90% 89.3% 94,352 93,657
80% 78.9% 83,868 82,752
70% 70.3% 73,385 73,659
60% 59.6% 62,901 62,441
50% 50.4% 52,418 52,805
40% 40.4% 41,934 42,404
30% 30.0% 31,451 31,488
20% 20.5% 20,967 21,440
10% 10.0% 10,484 10,491
Active Idle   0 0
Graph of results
JVM 'WIN-A.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,169
Calibration 2     105,469
Calibration 3     104,956
ssj_ops@calibrated=105,212
100% 100.0% 105,212 105,232
90% 89.5% 94,691 94,130
80% 80.0% 84,170 84,176
70% 69.4% 73,649 73,032
60% 60.4% 63,127 63,586
50% 50.4% 52,606 52,988
40% 40.5% 42,085 42,605
30% 30.1% 31,564 31,645
20% 19.7% 21,042 20,746
10% 10.1% 10,521 10,679
Active Idle   0 0
Graph of results
JVM 'WIN-A.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,488
Calibration 2     106,038
Calibration 3     106,489
ssj_ops@calibrated=106,263
100% 100.0% 106,263 106,230
90% 89.5% 95,637 95,073
80% 80.1% 85,011 85,168
70% 70.5% 74,384 74,867
60% 60.8% 63,758 64,577
50% 50.2% 53,132 53,327
40% 40.4% 42,505 42,888
30% 30.4% 31,879 32,338
20% 19.8% 21,253 21,092
10% 10.4% 10,626 11,043
Active Idle   0 0
Graph of results
JVM 'WIN-A.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,479
Calibration 2     104,717
Calibration 3     104,356
ssj_ops@calibrated=104,537
100% 99.7% 104,537 104,193
90% 89.3% 94,083 93,393
80% 79.1% 83,629 82,672
70% 70.6% 73,176 73,854
60% 59.3% 62,722 62,001
50% 49.9% 52,268 52,162
40% 40.2% 41,815 42,001
30% 30.3% 31,361 31,633
20% 19.2% 20,907 20,116
10% 9.8% 10,454 10,283
Active Idle   0 0
Graph of results
JVM 'WIN-A.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,270
Calibration 2     105,499
Calibration 3     106,354
ssj_ops@calibrated=105,926
100% 99.4% 105,926 105,253
90% 90.0% 95,334 95,349
80% 79.2% 84,741 83,865
70% 69.8% 74,148 73,934
60% 60.0% 63,556 63,608
50% 50.0% 52,963 52,986
40% 39.7% 42,370 42,101
30% 30.3% 31,778 32,108
20% 20.0% 21,185 21,135
10% 10.0% 10,593 10,637
Active Idle   0 0
Graph of results
JVM 'WIN-A.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,438
Calibration 2     104,356
Calibration 3     103,008
ssj_ops@calibrated=103,682
100% 100.1% 103,682 103,752
90% 89.5% 93,314 92,762
80% 79.9% 82,946 82,843
70% 70.0% 72,577 72,599
60% 59.6% 62,209 61,756
50% 49.7% 51,841 51,540
40% 39.4% 41,473 40,847
30% 30.4% 31,105 31,480
20% 19.4% 20,736 20,122
10% 10.0% 10,368 10,328
Active Idle   0 0
Graph of results
JVM 'WIN-A.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,383
Calibration 2     105,778
Calibration 3     104,518
ssj_ops@calibrated=105,148
100% 99.8% 105,148 104,895
90% 90.6% 94,633 95,251
80% 80.9% 84,119 85,057
70% 69.6% 73,604 73,163
60% 60.2% 63,089 63,349
50% 50.2% 52,574 52,772
40% 40.2% 42,059 42,322
30% 30.7% 31,544 32,327
20% 20.0% 21,030 21,051
10% 10.3% 10,515 10,788
Active Idle   0 0

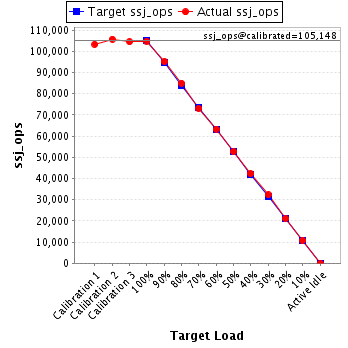

Graph of results
JVM 'WIN-A.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,614
Calibration 2     105,122
Calibration 3     104,950
ssj_ops@calibrated=105,036
100% 99.2% 105,036 104,218
90% 90.9% 94,532 95,518
80% 80.2% 84,029 84,209
70% 69.5% 73,525 72,992
60% 60.1% 63,021 63,091
50% 50.2% 52,518 52,691
40% 39.8% 42,014 41,787
30% 29.7% 31,511 31,188
20% 19.7% 21,007 20,736
10% 9.9% 10,504 10,412
Active Idle   0 0
Graph of results
JVM 'WIN-A.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,144
Calibration 2     103,373
Calibration 3     103,805
ssj_ops@calibrated=103,589
100% 99.8% 103,589 103,362
90% 90.1% 93,230 93,298
80% 81.0% 82,871 83,904
70% 70.4% 72,512 72,945
60% 60.0% 62,153 62,107
50% 49.6% 51,795 51,398
40% 40.5% 41,436 41,904
30% 30.3% 31,077 31,383
20% 20.1% 20,718 20,798
10% 9.9% 10,359 10,254
Active Idle   0 0
Graph of results
JVM 'WIN-A.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,341
Calibration 2     106,004
Calibration 3     105,607
ssj_ops@calibrated=105,806
100% 98.5% 105,806 104,250
90% 90.1% 95,225 95,343
80% 80.5% 84,644 85,135
70% 70.4% 74,064 74,438
60% 59.8% 63,483 63,307
50% 49.5% 52,903 52,416
40% 39.1% 42,322 41,346
30% 30.0% 31,742 31,733
20% 19.4% 21,161 20,532
10% 10.4% 10,581 10,979
Active Idle   0 0
Graph of results
JVM 'WIN-A.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,217
Calibration 2     105,137
Calibration 3     104,353
ssj_ops@calibrated=104,745
100% 99.5% 104,745 104,204
90% 90.2% 94,271 94,460
80% 80.9% 83,796 84,723
70% 70.7% 73,322 74,003
60% 60.0% 62,847 62,875
50% 50.2% 52,373 52,552
40% 39.7% 41,898 41,599
30% 30.0% 31,424 31,381
20% 20.1% 20,949 21,053
10% 10.2% 10,475 10,641
Active Idle   0 0
Graph of results
JVM 'WIN-A.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,522
Calibration 2     106,268
Calibration 3     106,041
ssj_ops@calibrated=106,154
100% 99.6% 106,154 105,703
90% 89.9% 95,539 95,465
80% 79.3% 84,923 84,178
70% 70.2% 74,308 74,506
60% 59.4% 63,693 63,083
50% 49.3% 53,077 52,318
40% 40.2% 42,462 42,719
30% 30.7% 31,846 32,569
20% 20.8% 21,231 22,069
10% 9.6% 10,615 10,222
Active Idle   0 0
Graph of results
JVM 'WIN-A.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,587
Calibration 2     106,206
Calibration 3     106,339
ssj_ops@calibrated=106,272
100% 100.3% 106,272 106,560
90% 90.2% 95,645 95,835
80% 80.5% 85,018 85,505
70% 70.7% 74,391 75,097
60% 60.1% 63,763 63,915
50% 49.9% 53,136 53,045
40% 40.1% 42,509 42,605
30% 30.0% 31,882 31,866
20% 19.7% 21,254 20,968
10% 10.2% 10,627 10,803
Active Idle   0 0
Graph of results
JVM 'WIN-A.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,241
Calibration 2     105,581
Calibration 3     105,245
ssj_ops@calibrated=105,413
100% 99.1% 105,413 104,489
90% 89.0% 94,872 93,832
80% 81.3% 84,331 85,726
70% 69.3% 73,789 73,026
60% 60.2% 63,248 63,469
50% 50.5% 52,707 53,222
40% 39.6% 42,165 41,792
30% 29.8% 31,624 31,409
20% 20.2% 21,083 21,257
10% 10.2% 10,541 10,759
Active Idle   0 0

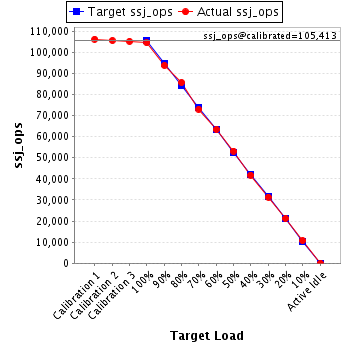

Graph of results
JVM 'WIN-A.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     106,274
Calibration 2     105,516
Calibration 3     105,427
ssj_ops@calibrated=105,471
100% 99.8% 105,471 105,280
90% 90.1% 94,924 95,020
80% 79.6% 84,377 83,985
70% 71.2% 73,830 75,047
60% 59.1% 63,283 62,306
50% 50.6% 52,736 53,348
40% 39.5% 42,189 41,642
30% 30.2% 31,641 31,835
20% 20.1% 21,094 21,176
10% 10.1% 10,547 10,645
Active Idle   0 0
Graph of results
JVM 'WIN-A.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,516
Calibration 2     103,560
Calibration 3     103,966
ssj_ops@calibrated=103,763
100% 100.0% 103,763 103,811
90% 89.8% 93,387 93,169
80% 80.8% 83,010 83,875
70% 69.6% 72,634 72,268
60% 59.6% 62,258 61,793
50% 50.8% 51,881 52,705
40% 39.6% 41,505 41,090
30% 29.8% 31,129 30,893
20% 19.8% 20,753 20,590
10% 10.0% 10,376 10,374
Active Idle   0 0
Graph of results
JVM 'WIN-A.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,501
Calibration 2     102,416
Calibration 3     102,010
ssj_ops@calibrated=102,213
100% 99.0% 102,213 101,225
90% 89.8% 91,992 91,786
80% 80.6% 81,770 82,433
70% 69.5% 71,549 71,009
60% 60.9% 61,328 62,197
50% 50.4% 51,106 51,521
40% 40.5% 40,885 41,417
30% 29.9% 30,664 30,593
20% 19.6% 20,443 20,078
10% 10.1% 10,221 10,285
Active Idle   0 0
Graph of results
JVM 'WIN-A.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,314
Calibration 2     102,371
Calibration 3     102,684
ssj_ops@calibrated=102,528
100% 100.0% 102,528 102,558
90% 90.1% 92,275 92,424
80% 81.0% 82,022 83,043
70% 69.8% 71,769 71,583
60% 59.3% 61,517 60,801
50% 50.1% 51,264 51,318
40% 40.2% 41,011 41,189
30% 30.3% 30,758 31,082
20% 19.7% 20,506 20,218
10% 10.0% 10,253 10,285
Active Idle   0 0
Graph of results
JVM 'WIN-A.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,676
Calibration 2     103,490
Calibration 3     103,478
ssj_ops@calibrated=103,484
100% 99.9% 103,484 103,330
90% 89.5% 93,136 92,589
80% 79.8% 82,787 82,529
70% 70.0% 72,439 72,422
60% 59.7% 62,091 61,745
50% 49.7% 51,742 51,399
40% 40.3% 41,394 41,659
30% 30.2% 31,045 31,210
20% 19.9% 20,697 20,561
10% 9.4% 10,348 9,749
Active Idle   0 0
Graph of results
JVM 'WIN-A.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,839
Calibration 2     104,953
Calibration 3     104,847
ssj_ops@calibrated=104,900
100% 99.4% 104,900 104,322
90% 90.1% 94,410 94,550
80% 81.0% 83,920 84,952
70% 69.8% 73,430 73,255
60% 60.6% 62,940 63,605
50% 49.3% 52,450 51,684
40% 40.0% 41,960 41,933
30% 29.7% 31,470 31,111
20% 19.8% 20,980 20,818
10% 10.1% 10,490 10,591
Active Idle   0 0
Graph of results
JVM 'WIN-A.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,655
Calibration 2     104,195
Calibration 3     103,891
ssj_ops@calibrated=104,043
100% 99.9% 104,043 103,956
90% 89.4% 93,639 92,985
80% 79.9% 83,235 83,152
70% 70.1% 72,830 72,973
60% 60.4% 62,426 62,844
50% 49.6% 52,022 51,611
40% 40.1% 41,617 41,753
30% 29.9% 31,213 31,101
20% 19.7% 20,809 20,505
10% 10.2% 10,404 10,654
Active Idle   0 0
Graph of results
JVM 'WIN-A.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,700
Calibration 2     104,183
Calibration 3     104,550
ssj_ops@calibrated=104,367
100% 100.1% 104,367 104,445
90% 89.4% 93,930 93,354
80% 79.2% 83,493 82,682
70% 70.5% 73,057 73,550
60% 60.0% 62,620 62,578
50% 49.7% 52,183 51,878
40% 40.0% 41,747 41,757
30% 30.2% 31,310 31,486
20% 20.1% 20,873 20,987
10% 10.0% 10,437 10,385
Active Idle   0 0
Graph of results
JVM 'WIN-A.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,455
Calibration 2     104,796
Calibration 3     104,651
ssj_ops@calibrated=104,723
100% 99.5% 104,723 104,193
90% 90.4% 94,251 94,666
80% 80.0% 83,779 83,757
70% 69.9% 73,306 73,238
60% 60.5% 62,834 63,365
50% 50.6% 52,362 52,967
40% 40.0% 41,889 41,893
30% 30.5% 31,417 31,898
20% 20.1% 20,945 21,026
10% 9.9% 10,472 10,370
Active Idle   0 0
Graph of results
JVM 'WIN-A.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,894
Calibration 2     103,138
Calibration 3     103,715
ssj_ops@calibrated=103,426
100% 99.7% 103,426 103,126
90% 90.0% 93,084 93,088
80% 79.5% 82,741 82,258
70% 69.9% 72,398 72,280
60% 59.9% 62,056 61,908
50% 50.1% 51,713 51,827
40% 39.8% 41,371 41,156
30% 30.3% 31,028 31,328
20% 20.4% 20,685 21,057
10% 10.4% 10,343 10,724
Active Idle   0 0
Graph of results
JVM 'WIN-A.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,699
Calibration 2     103,443
Calibration 3     103,040
ssj_ops@calibrated=103,242
100% 99.9% 103,242 103,161
90% 90.7% 92,917 93,616
80% 79.5% 82,593 82,119
70% 69.8% 72,269 72,035
60% 59.9% 61,945 61,871
50% 49.8% 51,621 51,436
40% 40.4% 41,297 41,749
30% 29.4% 30,972 30,394
20% 19.9% 20,648 20,531
10% 9.9% 10,324 10,254
Active Idle   0 0
Graph of results
JVM 'WIN-A.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     102,733
Calibration 2     103,338
Calibration 3     102,269
ssj_ops@calibrated=102,803
100% 99.5% 102,803 102,308
90% 90.1% 92,523 92,654
80% 79.0% 82,243 81,244
70% 69.9% 71,962 71,885
60% 60.9% 61,682 62,563
50% 50.0% 51,402 51,363
40% 40.2% 41,121 41,284
30% 29.9% 30,841 30,763
20% 20.1% 20,561 20,676
10% 10.1% 10,280 10,407
Active Idle   0 0
Graph of results
JVM 'WIN-A.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,041
Calibration 2     103,648
Calibration 3     104,177
ssj_ops@calibrated=103,912
100% 99.6% 103,912 103,450
90% 91.3% 93,521 94,827
80% 80.2% 83,130 83,370
70% 70.6% 72,739 73,385
60% 59.3% 62,347 61,666
50% 50.0% 51,956 51,938
40% 39.9% 41,565 41,452
30% 29.3% 31,174 30,498
20% 20.1% 20,782 20,892
10% 10.0% 10,391 10,341
Active Idle   0 0
Graph of results
JVM 'WIN-A.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,951
Calibration 2     103,970
Calibration 3     103,901
ssj_ops@calibrated=103,935
100% 99.6% 103,935 103,516
90% 90.6% 93,542 94,215
80% 79.6% 83,148 82,748
70% 69.9% 72,755 72,650
60% 59.0% 62,361 61,305
50% 50.4% 51,968 52,334
40% 40.2% 41,574 41,753
30% 29.9% 31,181 31,093
20% 20.1% 20,787 20,878
10% 9.9% 10,394 10,299
Active Idle   0 0
Graph of results
JVM 'WIN-A.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     103,650
Calibration 2     103,663
Calibration 3     103,551
ssj_ops@calibrated=103,607
100% 99.4% 103,607 102,935
90% 89.1% 93,246 92,283
80% 79.7% 82,886 82,567
70% 70.2% 72,525 72,714
60% 60.4% 62,164 62,567
50% 50.7% 51,804 52,572
40% 39.5% 41,443 40,929
30% 30.1% 31,082 31,202
20% 19.7% 20,721 20,378
10% 10.1% 10,361 10,479
Active Idle   0 0
Graph of results
JVM 'WIN-A.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,847
Calibration 2     104,119
Calibration 3     104,278
ssj_ops@calibrated=104,198
100% 99.7% 104,198 103,897
90% 89.2% 93,778 92,939
80% 80.9% 83,358 84,275
70% 69.9% 72,939 72,877
60% 59.3% 62,519 61,806
50% 49.7% 52,099 51,768
40% 40.0% 41,679 41,723
30% 30.3% 31,259 31,562
20% 19.9% 20,840 20,703
10% 10.0% 10,420 10,399
Active Idle   0 0
Graph of results
JVM 'WIN-A.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,006
Calibration 2     105,819
Calibration 3     106,233
ssj_ops@calibrated=106,026
100% 99.8% 106,026 105,783
90% 90.6% 95,423 96,095
80% 79.5% 84,821 84,317
70% 70.3% 74,218 74,518
60% 59.8% 63,616 63,356
50% 50.1% 53,013 53,136
40% 39.1% 42,410 41,435
30% 30.0% 31,808 31,769
20% 20.1% 21,205 21,274
10% 10.2% 10,603 10,778
Active Idle   0 0
Graph of results
JVM 'WIN-A.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,196
Calibration 2     103,512
Calibration 3     103,218
ssj_ops@calibrated=103,365
100% 100.1% 103,365 103,489
90% 90.2% 93,029 93,247
80% 80.3% 82,692 82,989
70% 70.4% 72,356 72,785
60% 60.3% 62,019 62,321
50% 50.7% 51,683 52,408
40% 40.2% 41,346 41,538
30% 30.3% 31,010 31,363
20% 20.0% 20,673 20,670
10% 9.8% 10,337 10,158
Active Idle   0 0
Graph of results
JVM 'WIN-A.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,478
Calibration 2     105,316
Calibration 3     105,561
ssj_ops@calibrated=105,439
100% 99.3% 105,439 104,730
90% 89.2% 94,895 94,071
80% 78.8% 84,351 83,039
70% 70.4% 73,807 74,193
60% 60.7% 63,263 63,998
50% 49.6% 52,719 52,261
40% 40.1% 42,175 42,265
30% 30.7% 31,632 32,402
20% 20.2% 21,088 21,257
10% 10.1% 10,544 10,635
Active Idle   0 0
Graph of results
JVM 'WIN-A.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     105,482
Calibration 2     104,256
Calibration 3     104,171
ssj_ops@calibrated=104,213
100% 99.9% 104,213 104,124
90% 90.9% 93,792 94,682
80% 80.4% 83,371 83,821
70% 69.5% 72,949 72,380
60% 60.9% 62,528 63,456
50% 49.2% 52,107 51,318
40% 39.6% 41,685 41,310
30% 29.3% 31,264 30,516
20% 19.8% 20,843 20,622
10% 10.2% 10,421 10,653
Active Idle   0 0
Graph of results
JVM 'WIN-A.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     104,434
Calibration 2     103,006
Calibration 3     103,277
ssj_ops@calibrated=103,141
100% 100.3% 103,141 103,442
90% 91.2% 92,827 94,040
80% 80.8% 82,513 83,314
70% 69.6% 72,199 71,807
60% 60.6% 61,885 62,488
50% 51.1% 51,571 52,679
40% 39.5% 41,256 40,704
30% 30.1% 30,942 31,071
20% 20.0% 20,628 20,626
10% 9.5% 10,314 9,833
Active Idle   0 0
Graph of results
