ASUSTeK Computer Inc. RS720-E9-RS8 SPECpower_ssj2008 = 14,066 overall ssj_ops/watt
Test Sponsor: ASUSTeK Computer Inc. SPEC License #: 9016 Test Method: Single Node
Tested By: ASUSTeK Computer Inc. Test Location: Taipei, Taiwan. Test Date: Jun 11, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Jul 3, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 408 21.2
Calibration 2 413 21.3
Calibration 3 413 21.4
100% 412 21.4
90% 330 21.3
80% 285 21.2
70% 249 21.2
60% 214 21.2
50% 188 21.2
40% 165 21.1
30% 149 21.1
20% 129 21.1
10% 109 21.1
Active Idle 62.4 21.2

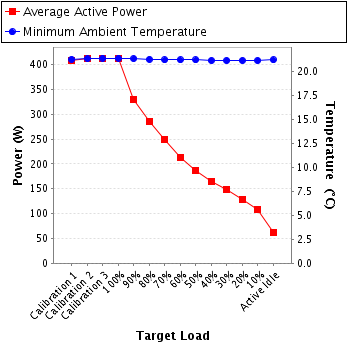

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Good Will Instrument Co., Ltd.
Model: GPM-8212
Serial Number: GCR150073
Connectivity: RS-232
Input Connection: Default
Metrology Institute: NML
Accredited by: Tai Yi Electronics & Surveillance Co., Ltd.
Calibration Label: GCR150073
Date of Calibration: 24-Apr-2019
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.9.0-ee285d08-20190201
Setup Description: Connected to PSU1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: RS-232
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50 mm.
Notes
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 223 320.0 1.84 2.56 0.995 408 0.6%
Calibration 2 223 320.0 1.86 2.56 0.995 413 0.6%
Calibration 3 223 320.0 1.86 2.56 0.995 413 0.6%
100% 223 320.0 1.85 2.56 0.995 412 0.6%
90% 224 320.0 1.49 2.56 0.993 330 0.7%
80% 223 320.0 1.29 2.56 0.990 285 0.8%
70% 225 320.0 1.12 1.28 0.989 249 0.5%
60% 224 320.0 0.966 1.28 0.986 214 0.6%
50% 224 320.0 0.848 1.28 0.986 188 0.6%
40% 226 320.0 0.747 1.28 0.981 165 0.7%
30% 225 320.0 0.675 1.28 0.978 149 0.8%
20% 224 320.0 0.588 1.28 0.973 129 0.8%
10% 225 320.0 0.499 0.64 0.966 109 0.6%
Active Idle 226 320.0 0.302 0.32 0.914 62.4 0.5%
Power details for pwr1
