Lenovo Global Technology ThinkSystem SD530 ssj_ops@100% = 4,927,373
ssj_ops@100% per JVM = 87,989
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, China Test Date: Jun 11, 2019
Hardware Availability: Apr-2019 Software Availability: Dec-2018 Publication: Jul 17, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     4,966,456
Calibration 2     4,933,771
Calibration 3     4,952,157
ssj_ops@calibrated=4,942,964
100% 99.7% 4,942,964 4,927,373
90% 90.0% 4,448,667 4,446,353
80% 79.9% 3,954,371 3,950,668
70% 70.0% 3,460,075 3,458,521
60% 58.8% 2,965,778 2,907,480
50% 50.0% 2,471,482 2,473,387
40% 40.0% 1,977,186 1,976,019
30% 29.9% 1,482,889 1,478,901
20% 20.0% 988,593 990,168
10% 10.1% 494,296 497,043
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 4
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SD530
Form Factor: 2U
CPU Name: Intel Xeon Platinum 8276L
CPU Characteristics: 28-Core, 2.20 GHz, 39424 KB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2933V-RE1-12-MA0; slots 1,2,3,6,7,8,9,10,11,14,15 and 16 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): SUSE Linux Enterprise Server 12 SP4
OS Version: Kernel 4.12.14-94.41-default
Filesystem: btrfs
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 56 }
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: TEE135K
Management Firmware Version: TEI341K
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
)
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
stark4.001 72,696
stark4.002 75,912
stark4.003 91,778
stark4.004 91,550
stark4.005 91,597
stark4.006 93,057
stark4.007 91,756
stark4.008 92,195
stark4.009 92,783
stark4.010 90,816
stark4.011 90,415
stark4.012 91,058
stark4.013 90,034
stark4.014 90,583
stark4.015 86,093
stark4.016 85,272
stark4.017 85,540
stark4.018 85,669
stark4.019 84,892
stark4.020 86,097
stark4.021 86,290
stark4.022 85,443
stark4.023 86,324
stark4.024 85,368
stark4.025 85,243
stark4.026 85,483
stark4.027 85,761
stark4.028 85,147
stark4.029 89,660
stark4.030 88,464
stark4.031 87,305
stark4.032 87,009
stark4.033 88,450
stark4.034 89,135
stark4.035 88,382
stark4.036 89,917
stark4.037 89,179
stark4.038 87,087
stark4.039 88,137
stark4.040 87,684
stark4.041 89,621
stark4.042 89,091
stark4.043 88,313
stark4.044 88,738
stark4.045 87,826
stark4.046 88,280
stark4.047 87,248
stark4.048 88,530
stark4.049 89,368
stark4.050 87,653
stark4.051 90,800
stark4.052 89,848
stark4.053 88,895
stark4.054 89,881
stark4.055 89,480
stark4.056 88,539
ssj_ops@100% 4,927,373
ssj_ops@100% per JVM 87,989
Graph of per-instance results

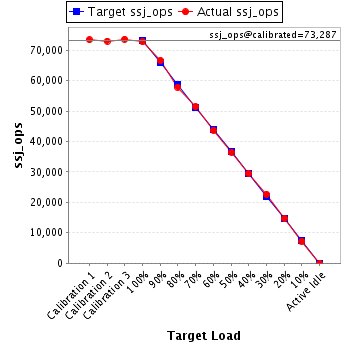

JVM 'stark4.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     73,384
Calibration 2     72,983
Calibration 3     73,591
ssj_ops@calibrated=73,287
100% 99.2% 73,287 72,696
90% 90.9% 65,959 66,616
80% 78.9% 58,630 57,828
70% 70.2% 51,301 51,451
60% 59.6% 43,972 43,670
50% 49.8% 36,644 36,500
40% 40.3% 29,315 29,540
30% 31.0% 21,986 22,702
20% 20.0% 14,657 14,679
10% 9.9% 7,329 7,283
Active Idle   0 0
Graph of results

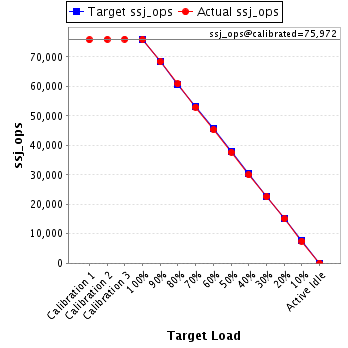

JVM 'stark4.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     75,777
Calibration 2     75,928
Calibration 3     76,015
ssj_ops@calibrated=75,972
100% 99.9% 75,972 75,912
90% 90.0% 68,374 68,367
80% 80.1% 60,777 60,835
70% 69.8% 53,180 52,994
60% 59.6% 45,583 45,302
50% 49.6% 37,986 37,659
40% 39.5% 30,389 29,992
30% 29.6% 22,791 22,508
20% 19.8% 15,194 15,054
10% 9.9% 7,597 7,521
Active Idle   0 0
Graph of results

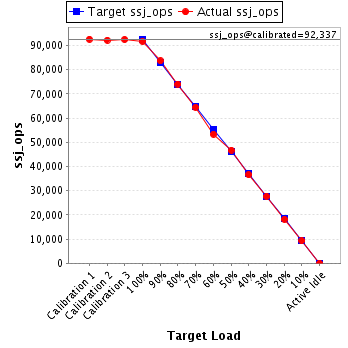

JVM 'stark4.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,627
Calibration 2     92,207
Calibration 3     92,467
ssj_ops@calibrated=92,337
100% 99.4% 92,337 91,778
90% 90.7% 83,103 83,714
80% 80.2% 73,870 74,073
70% 69.9% 64,636 64,517
60% 57.8% 55,402 53,381
50% 50.6% 46,169 46,753
40% 39.6% 36,935 36,576
30% 30.0% 27,701 27,745
20% 19.7% 18,467 18,192
10% 10.1% 9,234 9,321
Active Idle   0 0
Graph of results
JVM 'stark4.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,551
Calibration 2     92,290
Calibration 3     91,985
ssj_ops@calibrated=92,137
100% 99.4% 92,137 91,550
90% 90.0% 82,924 82,889
80% 80.4% 73,710 74,081
70% 69.7% 64,496 64,252
60% 58.0% 55,282 53,454
50% 49.9% 46,069 45,958
40% 40.6% 36,855 37,414
30% 30.2% 27,641 27,855
20% 19.8% 18,427 18,279
10% 10.0% 9,214 9,187
Active Idle   0 0
Graph of results

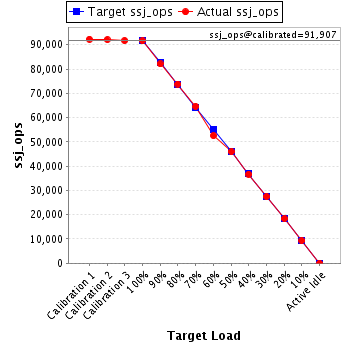

JVM 'stark4.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,293
Calibration 2     92,109
Calibration 3     91,705
ssj_ops@calibrated=91,907
100% 99.7% 91,907 91,597
90% 89.3% 82,716 82,087
80% 80.3% 73,526 73,822
70% 70.3% 64,335 64,641
60% 57.1% 55,144 52,518
50% 50.0% 45,954 45,953
40% 40.0% 36,763 36,726
30% 29.9% 27,572 27,510
20% 20.0% 18,381 18,372
10% 10.1% 9,191 9,312
Active Idle   0 0
Graph of results

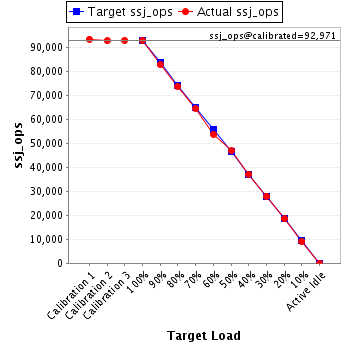

JVM 'stark4.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,502
Calibration 2     92,867
Calibration 3     93,075
ssj_ops@calibrated=92,971
100% 100.1% 92,971 93,057
90% 89.1% 83,674 82,806
80% 79.4% 74,376 73,827
70% 69.4% 65,079 64,539
60% 58.0% 55,782 53,907
50% 50.4% 46,485 46,901
40% 40.0% 37,188 37,231
30% 30.2% 27,891 28,047
20% 19.9% 18,594 18,525
10% 9.9% 9,297 9,187
Active Idle   0 0
Graph of results
JVM 'stark4.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,341
Calibration 2     90,772
Calibration 3     92,534
ssj_ops@calibrated=91,653
100% 100.1% 91,653 91,756
90% 88.7% 82,488 81,293
80% 79.7% 73,322 73,036
70% 70.2% 64,157 64,378
60% 58.3% 54,992 53,460
50% 49.7% 45,827 45,587
40% 39.9% 36,661 36,542
30% 29.4% 27,496 26,959
20% 20.5% 18,331 18,805
10% 10.3% 9,165 9,421
Active Idle   0 0
Graph of results
JVM 'stark4.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,098
Calibration 2     91,791
Calibration 3     92,390
ssj_ops@calibrated=92,091
100% 100.1% 92,091 92,195
90% 89.6% 82,882 82,533
80% 78.8% 73,672 72,571
70% 70.1% 64,463 64,589
60% 57.9% 55,254 53,351
50% 49.3% 46,045 45,427
40% 40.0% 36,836 36,873
30% 30.1% 27,627 27,700
20% 20.3% 18,418 18,717
10% 10.3% 9,209 9,454
Active Idle   0 0
Graph of results
JVM 'stark4.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,981
Calibration 2     93,075
Calibration 3     92,627
ssj_ops@calibrated=92,851
100% 99.9% 92,851 92,783
90% 90.3% 83,566 83,828
80% 80.1% 74,281 74,389
70% 69.6% 64,996 64,620
60% 58.2% 55,710 54,057
50% 49.8% 46,425 46,200
40% 40.9% 37,140 37,941
30% 29.4% 27,855 27,308
20% 20.0% 18,570 18,553
10% 10.5% 9,285 9,708
Active Idle   0 0
Graph of results
JVM 'stark4.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,862
Calibration 2     92,094
Calibration 3     92,060
ssj_ops@calibrated=92,077
100% 98.6% 92,077 90,816
90% 90.6% 82,869 83,451
80% 79.3% 73,662 73,046
70% 69.6% 64,454 64,115
60% 57.8% 55,246 53,254
50% 49.8% 46,038 45,838
40% 39.6% 36,831 36,425
30% 29.3% 27,623 27,001
20% 20.3% 18,415 18,692
10% 10.2% 9,208 9,433
Active Idle   0 0
Graph of results
JVM 'stark4.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,088
Calibration 2     90,822
Calibration 3     91,319
ssj_ops@calibrated=91,071
100% 99.3% 91,071 90,415
90% 90.3% 81,963 82,270
80% 80.5% 72,856 73,313
70% 70.2% 63,749 63,897
60% 58.2% 54,642 52,974
50% 49.7% 45,535 45,288
40% 40.6% 36,428 36,935
30% 29.7% 27,321 27,015
20% 19.6% 18,214 17,866
10% 10.0% 9,107 9,142
Active Idle   0 0
Graph of results

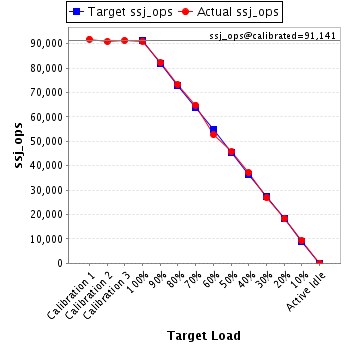

JVM 'stark4.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,868
Calibration 2     90,891
Calibration 3     91,390
ssj_ops@calibrated=91,141
100% 99.9% 91,141 91,058
90% 90.3% 82,027 82,261
80% 80.4% 72,913 73,257
70% 71.2% 63,799 64,871
60% 57.8% 54,684 52,665
50% 50.1% 45,570 45,619
40% 40.8% 36,456 37,146
30% 29.6% 27,342 26,952
20% 20.1% 18,228 18,294
10% 10.2% 9,114 9,325
Active Idle   0 0
Graph of results
JVM 'stark4.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,490
Calibration 2     90,699
Calibration 3     90,954
ssj_ops@calibrated=90,826
100% 99.1% 90,826 90,034
90% 90.0% 81,744 81,770
80% 81.2% 72,661 73,737
70% 69.6% 63,578 63,201
60% 57.8% 54,496 52,468
50% 48.7% 45,413 44,193
40% 39.8% 36,331 36,176
30% 30.7% 27,248 27,881
20% 19.8% 18,165 18,019
10% 10.6% 9,083 9,629
Active Idle   0 0
Graph of results
JVM 'stark4.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,105
Calibration 2     90,841
Calibration 3     90,857
ssj_ops@calibrated=90,849
100% 99.7% 90,849 90,583
90% 91.0% 81,764 82,640
80% 79.2% 72,679 71,942
70% 70.1% 63,594 63,725
60% 57.3% 54,509 52,054
50% 50.4% 45,424 45,823
40% 39.8% 36,340 36,171
30% 29.6% 27,255 26,851
20% 20.5% 18,170 18,610
10% 10.0% 9,085 9,048
Active Idle   0 0
Graph of results
JVM 'stark4.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,845
Calibration 2     85,769
Calibration 3     86,011
ssj_ops@calibrated=85,890
100% 100.2% 85,890 86,093
90% 90.7% 77,301 77,874
80% 79.8% 68,712 68,531
70% 69.4% 60,123 59,571
60% 58.5% 51,534 50,240
50% 50.1% 42,945 42,992
40% 39.9% 34,356 34,268
30% 29.8% 25,767 25,632
20% 19.5% 17,178 16,738
10% 10.5% 8,589 9,022
Active Idle   0 0
Graph of results
JVM 'stark4.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,389
Calibration 2     86,295
Calibration 3     86,649
ssj_ops@calibrated=86,472
100% 98.6% 86,472 85,272
90% 88.6% 77,825 76,656
80% 79.5% 69,178 68,751
70% 70.7% 60,530 61,137
60% 58.6% 51,883 50,663
50% 50.1% 43,236 43,365
40% 40.1% 34,589 34,652
30% 30.3% 25,942 26,180
20% 19.5% 17,294 16,900
10% 9.8% 8,647 8,446
Active Idle   0 0
Graph of results
JVM 'stark4.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,034
Calibration 2     85,548
Calibration 3     85,416
ssj_ops@calibrated=85,482
100% 100.1% 85,482 85,540
90% 89.3% 76,934 76,331
80% 79.0% 68,386 67,573
70% 69.7% 59,837 59,575
60% 58.9% 51,289 50,353
50% 50.7% 42,741 43,378
40% 41.2% 34,193 35,215
30% 29.9% 25,645 25,523
20% 19.3% 17,096 16,508
10% 10.1% 8,548 8,650
Active Idle   0 0
Graph of results
JVM 'stark4.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,481
Calibration 2     85,468
Calibration 3     85,924
ssj_ops@calibrated=85,696
100% 100.0% 85,696 85,669
90% 89.1% 77,126 76,372
80% 78.4% 68,557 67,190
70% 69.5% 59,987 59,563
60% 58.8% 51,418 50,360
50% 50.9% 42,848 43,655
40% 39.9% 34,278 34,152
30% 30.0% 25,709 25,729
20% 19.5% 17,139 16,746
10% 10.1% 8,570 8,645
Active Idle   0 0
Graph of results
JVM 'stark4.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,992
Calibration 2     85,826
Calibration 3     85,751
ssj_ops@calibrated=85,788
100% 99.0% 85,788 84,892
90% 90.7% 77,209 77,768
80% 81.2% 68,631 69,641
70% 69.0% 60,052 59,167
60% 58.8% 51,473 50,430
50% 49.4% 42,894 42,406
40% 40.0% 34,315 34,320
30% 30.3% 25,736 26,026
20% 20.1% 17,158 17,225
10% 9.8% 8,579 8,424
Active Idle   0 0
Graph of results
JVM 'stark4.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,649
Calibration 2     86,029
Calibration 3     86,862
ssj_ops@calibrated=86,446
100% 99.6% 86,446 86,097
90% 89.5% 77,801 77,364
80% 80.1% 69,157 69,212
70% 70.4% 60,512 60,840
60% 58.5% 51,868 50,582
50% 49.6% 43,223 42,905
40% 40.2% 34,578 34,742
30% 28.7% 25,934 24,823
20% 20.4% 17,289 17,633
10% 9.9% 8,645 8,579
Active Idle   0 0

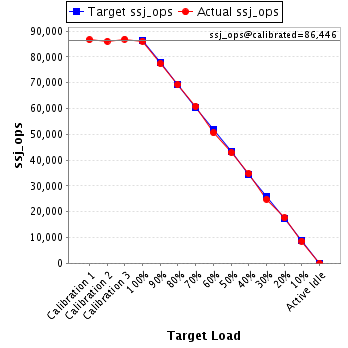

Graph of results
JVM 'stark4.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,579
Calibration 2     86,109
Calibration 3     86,278
ssj_ops@calibrated=86,194
100% 100.1% 86,194 86,290
90% 89.4% 77,574 77,019
80% 80.6% 68,955 69,498
70% 70.4% 60,335 60,679
60% 59.4% 51,716 51,180
50% 50.0% 43,097 43,110
40% 40.5% 34,477 34,920
30% 30.1% 25,858 25,972
20% 20.0% 17,239 17,273
10% 9.9% 8,619 8,537
Active Idle   0 0
Graph of results
JVM 'stark4.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,031
Calibration 2     85,399
Calibration 3     86,021
ssj_ops@calibrated=85,710
100% 99.7% 85,710 85,443
90% 90.6% 77,139 77,657
80% 80.6% 68,568 69,083
70% 68.8% 59,997 58,994
60% 58.5% 51,426 50,101
50% 50.3% 42,855 43,147
40% 40.1% 34,284 34,392
30% 29.6% 25,713 25,365
20% 20.0% 17,142 17,179
10% 10.4% 8,571 8,896
Active Idle   0 0

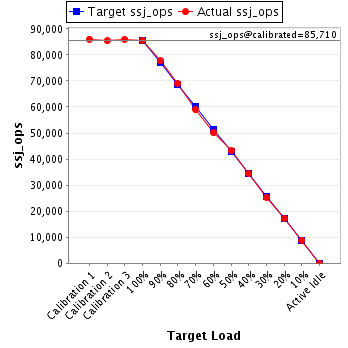

Graph of results
JVM 'stark4.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,505
Calibration 2     86,473
Calibration 3     86,722
ssj_ops@calibrated=86,597
100% 99.7% 86,597 86,324
90% 90.1% 77,938 78,041
80% 80.6% 69,278 69,821
70% 70.7% 60,618 61,255
60% 58.8% 51,958 50,897
50% 49.9% 43,299 43,235
40% 39.9% 34,639 34,576
30% 30.3% 25,979 26,229
20% 19.9% 17,319 17,217
10% 9.9% 8,660 8,560
Active Idle   0 0
Graph of results
JVM 'stark4.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,047
Calibration 2     85,910
Calibration 3     86,332
ssj_ops@calibrated=86,121
100% 99.1% 86,121 85,368
90% 90.3% 77,509 77,741
80% 79.2% 68,897 68,243
70% 70.4% 60,285 60,669
60% 58.8% 51,673 50,651
50% 50.4% 43,061 43,441
40% 40.0% 34,449 34,454
30% 29.9% 25,836 25,733
20% 20.4% 17,224 17,532
10% 10.2% 8,612 8,779
Active Idle   0 0
Graph of results
JVM 'stark4.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     86,084
Calibration 2     85,286
Calibration 3     85,780
ssj_ops@calibrated=85,533
100% 99.7% 85,533 85,243
90% 89.3% 76,980 76,351
80% 79.7% 68,426 68,151
70% 70.1% 59,873 59,948
60% 58.5% 51,320 50,079
50% 49.9% 42,766 42,653
40% 40.0% 34,213 34,232
30% 29.9% 25,660 25,538
20% 20.3% 17,107 17,325
10% 9.8% 8,553 8,354
Active Idle   0 0
Graph of results
JVM 'stark4.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,872
Calibration 2     85,386
Calibration 3     85,550
ssj_ops@calibrated=85,468
100% 100.0% 85,468 85,483
90% 90.1% 76,921 76,992
80% 79.5% 68,374 67,927
70% 69.1% 59,828 59,027
60% 59.6% 51,281 50,912
50% 50.7% 42,734 43,322
40% 40.4% 34,187 34,521
30% 30.3% 25,640 25,855
20% 20.2% 17,094 17,250
10% 10.2% 8,547 8,692
Active Idle   0 0
Graph of results
JVM 'stark4.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,713
Calibration 2     85,652
Calibration 3     86,041
ssj_ops@calibrated=85,846
100% 99.9% 85,846 85,761
90% 89.5% 77,262 76,863
80% 80.8% 68,677 69,360
70% 70.0% 60,092 60,122
60% 58.9% 51,508 50,569
50% 49.7% 42,923 42,662
40% 40.2% 34,339 34,483
30% 29.7% 25,754 25,525
20% 19.8% 17,169 16,984
10% 9.9% 8,585 8,517
Active Idle   0 0
Graph of results
JVM 'stark4.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     85,876
Calibration 2     84,998
Calibration 3     86,001
ssj_ops@calibrated=85,500
100% 99.6% 85,500 85,147
90% 91.3% 76,950 78,067
80% 80.6% 68,400 68,887
70% 70.5% 59,850 60,313
60% 59.7% 51,300 51,055
50% 50.2% 42,750 42,929
40% 39.2% 34,200 33,543
30% 30.0% 25,650 25,647
20% 20.0% 17,100 17,070
10% 9.9% 8,550 8,429
Active Idle   0 0
Graph of results
JVM 'stark4.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,601
Calibration 2     89,378
Calibration 3     89,857
ssj_ops@calibrated=89,617
100% 100.0% 89,617 89,660
90% 89.3% 80,656 80,054
80% 80.3% 71,694 71,921
70% 70.5% 62,732 63,172
60% 59.4% 53,770 53,231
50% 49.6% 44,809 44,440
40% 39.1% 35,847 35,043
30% 29.5% 26,885 26,477
20% 20.1% 17,923 17,975
10% 9.9% 8,962 8,862
Active Idle   0 0
Graph of results
JVM 'stark4.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,428
Calibration 2     88,391
Calibration 3     88,280
ssj_ops@calibrated=88,335
100% 100.1% 88,335 88,464
90% 89.3% 79,502 78,842
80% 79.9% 70,668 70,599
70% 70.8% 61,835 62,545
60% 58.9% 53,001 52,007
50% 50.1% 44,168 44,245
40% 40.3% 35,334 35,565
30% 29.9% 26,501 26,424
20% 20.0% 17,667 17,635
10% 9.8% 8,834 8,642
Active Idle   0 0
Graph of results
JVM 'stark4.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,058
Calibration 2     87,484
Calibration 3     88,072
ssj_ops@calibrated=87,778
100% 99.5% 87,778 87,305
90% 88.5% 79,000 77,714
80% 80.6% 70,223 70,782
70% 70.6% 61,445 61,942
60% 59.0% 52,667 51,775
50% 49.9% 43,889 43,785
40% 40.3% 35,111 35,412
30% 30.3% 26,333 26,638
20% 20.1% 17,556 17,625
10% 10.1% 8,778 8,832
Active Idle   0 0
Graph of results
JVM 'stark4.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,759
Calibration 2     86,989
Calibration 3     86,985
ssj_ops@calibrated=86,987
100% 100.0% 86,987 87,009
90% 91.3% 78,288 79,404
80% 79.7% 69,589 69,311
70% 68.7% 60,891 59,745
60% 59.2% 52,192 51,523
50% 50.1% 43,493 43,579
40% 40.6% 34,795 35,315
30% 30.2% 26,096 26,240
20% 20.1% 17,397 17,458
10% 10.0% 8,699 8,720
Active Idle   0 0
Graph of results
JVM 'stark4.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,032
Calibration 2     88,227
Calibration 3     88,974
ssj_ops@calibrated=88,601
100% 99.8% 88,601 88,450
90% 90.8% 79,741 80,409
80% 80.3% 70,880 71,141
70% 69.7% 62,020 61,721
60% 59.3% 53,160 52,531
50% 49.9% 44,300 44,210
40% 39.5% 35,440 34,975
30% 30.0% 26,580 26,568
20% 20.0% 17,720 17,756
10% 10.0% 8,860 8,871
Active Idle   0 0
Graph of results
JVM 'stark4.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,961
Calibration 2     88,759
Calibration 3     89,290
ssj_ops@calibrated=89,024
100% 100.1% 89,024 89,135
90% 90.4% 80,122 80,474
80% 80.3% 71,219 71,449
70% 71.0% 62,317 63,220
60% 59.0% 53,415 52,488
50% 49.7% 44,512 44,229
40% 40.1% 35,610 35,680
30% 29.3% 26,707 26,091
20% 19.8% 17,805 17,670
10% 9.9% 8,902 8,775
Active Idle   0 0
Graph of results
JVM 'stark4.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,556
Calibration 2     88,042
Calibration 3     88,335
ssj_ops@calibrated=88,189
100% 100.2% 88,189 88,382
90% 90.7% 79,370 79,963
80% 80.3% 70,551 70,781
70% 69.7% 61,732 61,470
60% 59.4% 52,913 52,405
50% 50.2% 44,094 44,290
40% 40.1% 35,275 35,358
30% 29.9% 26,457 26,329
20% 19.7% 17,638 17,409
10% 10.5% 8,819 9,284
Active Idle   0 0
Graph of results
JVM 'stark4.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,336
Calibration 2     89,549
Calibration 3     89,655
ssj_ops@calibrated=89,602
100% 100.4% 89,602 89,917
90% 89.9% 80,642 80,540
80% 80.4% 71,682 72,036
70% 70.3% 62,721 62,963
60% 59.0% 53,761 52,903
50% 50.4% 44,801 45,156
40% 40.5% 35,841 36,301
30% 30.0% 26,881 26,887
20% 20.0% 17,920 17,934
10% 9.8% 8,960 8,758
Active Idle   0 0
Graph of results
JVM 'stark4.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,636
Calibration 2     89,007
Calibration 3     89,322
ssj_ops@calibrated=89,165
100% 100.0% 89,165 89,179
90% 90.7% 80,248 80,841
80% 79.9% 71,332 71,224
70% 70.1% 62,415 62,473
60% 58.9% 53,499 52,541
50% 50.9% 44,582 45,391
40% 39.8% 35,666 35,516
30% 30.1% 26,749 26,807
20% 20.5% 17,833 18,254
10% 10.3% 8,916 9,197
Active Idle   0 0

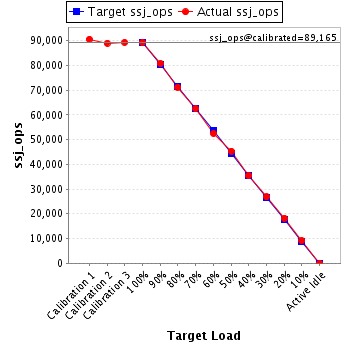

Graph of results
JVM 'stark4.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,696
Calibration 2     87,053
Calibration 3     88,085
ssj_ops@calibrated=87,569
100% 99.5% 87,569 87,087
90% 88.7% 78,812 77,693
80% 79.2% 70,055 69,350
70% 69.0% 61,298 60,451
60% 59.3% 52,541 51,957
50% 50.2% 43,784 43,951
40% 39.7% 35,028 34,783
30% 30.1% 26,271 26,377
20% 20.6% 17,514 17,996
10% 10.3% 8,757 9,012
Active Idle   0 0
Graph of results
JVM 'stark4.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,443
Calibration 2     87,908
Calibration 3     88,184
ssj_ops@calibrated=88,046
100% 100.1% 88,046 88,137
90% 91.2% 79,241 80,339
80% 79.9% 70,437 70,357
70% 69.6% 61,632 61,263
60% 59.3% 52,828 52,237
50% 50.6% 44,023 44,527
40% 40.2% 35,218 35,375
30% 28.8% 26,414 25,363
20% 19.7% 17,609 17,371
10% 10.1% 8,805 8,890
Active Idle   0 0
Graph of results
JVM 'stark4.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     87,829
Calibration 2     87,619
Calibration 3     88,164
ssj_ops@calibrated=87,891
100% 99.8% 87,891 87,684
90% 89.3% 79,102 78,478
80% 80.5% 70,313 70,755
70% 69.5% 61,524 61,099
60% 59.2% 52,735 52,034
50% 50.3% 43,946 44,216
40% 39.3% 35,156 34,499
30% 30.3% 26,367 26,608
20% 20.3% 17,578 17,817
10% 10.1% 8,789 8,917
Active Idle   0 0
Graph of results
JVM 'stark4.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,820
Calibration 2     88,468
Calibration 3     90,710
ssj_ops@calibrated=89,589
100% 100.0% 89,589 89,621
90% 90.1% 80,630 80,749
80% 80.5% 71,671 72,088
70% 70.8% 62,712 63,395
60% 59.7% 53,753 53,479
50% 49.5% 44,795 44,319
40% 39.7% 35,836 35,607
30% 30.5% 26,877 27,292
20% 20.2% 17,918 18,071
10% 10.0% 8,959 8,962
Active Idle   0 0

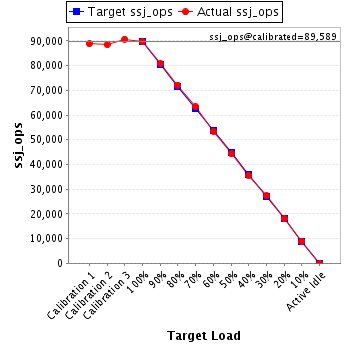

Graph of results
JVM 'stark4.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,606
Calibration 2     88,743
Calibration 3     89,090
ssj_ops@calibrated=88,916
100% 100.2% 88,916 89,091
90% 89.2% 80,025 79,329
80% 80.2% 71,133 71,291
70% 68.4% 62,241 60,849
60% 59.4% 53,350 52,818
50% 50.3% 44,458 44,684
40% 40.1% 35,566 35,680
30% 29.3% 26,675 26,079
20% 20.1% 17,783 17,887
10% 10.0% 8,892 8,900
Active Idle   0 0
Graph of results
JVM 'stark4.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,457
Calibration 2     88,998
Calibration 3     89,361
ssj_ops@calibrated=89,179
100% 99.0% 89,179 88,313
90% 89.2% 80,261 79,590
80% 79.2% 71,343 70,633
70% 69.0% 62,425 61,501
60% 59.0% 53,508 52,592
50% 49.5% 44,590 44,176
40% 39.9% 35,672 35,582
30% 29.1% 26,754 25,935
20% 20.2% 17,836 18,051
10% 10.1% 8,918 9,046
Active Idle   0 0
Graph of results
JVM 'stark4.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,722
Calibration 2     89,331
Calibration 3     90,102
ssj_ops@calibrated=89,717
100% 98.9% 89,717 88,738
90% 89.4% 80,745 80,193
80% 80.0% 71,774 71,804
70% 69.6% 62,802 62,476
60% 59.2% 53,830 53,098
50% 49.5% 44,858 44,410
40% 39.5% 35,887 35,454
30% 30.5% 26,915 27,379
20% 19.7% 17,943 17,701
10% 9.8% 8,972 8,771
Active Idle   0 0
Graph of results
JVM 'stark4.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,760
Calibration 2     87,966
Calibration 3     88,189
ssj_ops@calibrated=88,077
100% 99.7% 88,077 87,826
90% 89.8% 79,270 79,061
80% 79.0% 70,462 69,587
70% 70.1% 61,654 61,751
60% 59.3% 52,846 52,187
50% 50.4% 44,039 44,429
40% 40.2% 35,231 35,434
30% 30.4% 26,423 26,736
20% 20.1% 17,615 17,746
10% 10.0% 8,808 8,792
Active Idle   0 0
Graph of results
JVM 'stark4.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,867
Calibration 2     88,305
Calibration 3     88,196
ssj_ops@calibrated=88,251
100% 100.0% 88,251 88,280
90% 89.3% 79,426 78,780
80% 79.4% 70,601 70,074
70% 69.3% 61,776 61,146
60% 59.3% 52,950 52,350
50% 50.1% 44,125 44,178
40% 39.2% 35,300 34,629
30% 29.9% 26,475 26,415
20% 20.0% 17,650 17,646
10% 9.7% 8,825 8,517
Active Idle   0 0
Graph of results
JVM 'stark4.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,785
Calibration 2     87,344
Calibration 3     87,736
ssj_ops@calibrated=87,540
100% 99.7% 87,540 87,248
90% 89.3% 78,786 78,215
80% 78.4% 70,032 68,649
70% 69.3% 61,278 60,642
60% 59.2% 52,524 51,858
50% 51.3% 43,770 44,885
40% 39.7% 35,016 34,718
30% 29.7% 26,262 26,042
20% 20.2% 17,508 17,726
10% 9.9% 8,754 8,671
Active Idle   0 0
Graph of results
JVM 'stark4.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,971
Calibration 2     89,432
Calibration 3     89,261
ssj_ops@calibrated=89,346
100% 99.1% 89,346 88,530
90% 90.7% 80,412 80,995
80% 80.1% 71,477 71,583
70% 70.8% 62,542 63,232
60% 58.8% 53,608 52,521
50% 49.7% 44,673 44,393
40% 39.4% 35,738 35,212
30% 29.8% 26,804 26,582
20% 20.2% 17,869 18,004
10% 10.2% 8,935 9,121
Active Idle   0 0
Graph of results
JVM 'stark4.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,865
Calibration 2     89,788
Calibration 3     89,607
ssj_ops@calibrated=89,697
100% 99.6% 89,697 89,368
90% 89.8% 80,727 80,535
80% 80.8% 71,758 72,470
70% 70.2% 62,788 62,959
60% 59.1% 53,818 52,999
50% 50.4% 44,849 45,166
40% 39.6% 35,879 35,549
30% 29.9% 26,909 26,812
20% 20.2% 17,939 18,090
10% 9.9% 8,970 8,887
Active Idle   0 0
Graph of results
JVM 'stark4.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,010
Calibration 2     88,818
Calibration 3     89,016
ssj_ops@calibrated=88,917
100% 98.6% 88,917 87,653
90% 89.7% 80,025 79,784
80% 80.2% 71,133 71,296
70% 70.6% 62,242 62,802
60% 59.4% 53,350 52,838
50% 50.2% 44,458 44,659
40% 39.3% 35,567 34,975
30% 29.9% 26,675 26,629
20% 20.6% 17,783 18,340
10% 10.1% 8,892 8,937
Active Idle   0 0

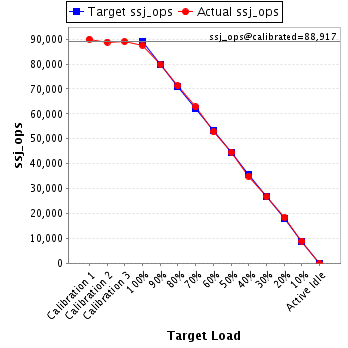

Graph of results
JVM 'stark4.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,930
Calibration 2     90,473
Calibration 3     90,173
ssj_ops@calibrated=90,323
100% 100.5% 90,323 90,800
90% 90.2% 81,291 81,446
80% 79.3% 72,259 71,639
70% 70.3% 63,226 63,533
60% 58.8% 54,194 53,107
50% 49.5% 45,162 44,702
40% 39.1% 36,129 35,284
30% 30.2% 27,097 27,246
20% 19.7% 18,065 17,771
10% 9.8% 9,032 8,860
Active Idle   0 0
Graph of results
JVM 'stark4.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,084
Calibration 2     89,663
Calibration 3     89,742
ssj_ops@calibrated=89,702
100% 100.2% 89,702 89,848
90% 89.8% 80,732 80,572
80% 79.7% 71,762 71,509
70% 71.1% 62,792 63,765
60% 59.0% 53,821 52,907
50% 50.9% 44,851 45,653
40% 40.5% 35,881 36,368
30% 30.0% 26,911 26,867
20% 19.9% 17,940 17,860
10% 10.0% 8,970 9,008
Active Idle   0 0
Graph of results
JVM 'stark4.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,698
Calibration 2     89,285
Calibration 3     89,769
ssj_ops@calibrated=89,527
100% 99.3% 89,527 88,895
90% 89.9% 80,574 80,501
80% 78.8% 71,622 70,506
70% 70.7% 62,669 63,339
60% 59.0% 53,716 52,831
50% 49.5% 44,764 44,301
40% 39.7% 35,811 35,561
30% 29.5% 26,858 26,396
20% 20.2% 17,905 18,071
10% 10.4% 8,953 9,312
Active Idle   0 0
Graph of results
JVM 'stark4.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,186
Calibration 2     90,689
Calibration 3     90,434
ssj_ops@calibrated=90,562
100% 99.2% 90,562 89,881
90% 90.6% 81,506 82,085
80% 79.9% 72,449 72,399
70% 70.4% 63,393 63,721
60% 59.1% 54,337 53,478
50% 49.5% 45,281 44,843
40% 40.4% 36,225 36,572
30% 30.5% 27,169 27,654
20% 20.4% 18,112 18,462
10% 10.1% 9,056 9,146
Active Idle   0 0
Graph of results
JVM 'stark4.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,592
Calibration 2     90,119
Calibration 3     89,943
ssj_ops@calibrated=90,031
100% 99.4% 90,031 89,480
90% 91.4% 81,028 82,285
80% 80.1% 72,025 72,153
70% 69.6% 63,022 62,687
60% 59.2% 54,019 53,290
50% 50.2% 45,016 45,161
40% 39.6% 36,012 35,654
30% 30.2% 27,009 27,225
20% 19.6% 18,006 17,679
10% 10.0% 9,003 8,958
Active Idle   0 0
Graph of results
JVM 'stark4.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,702
Calibration 2     88,426
Calibration 3     89,318
ssj_ops@calibrated=88,872
100% 99.6% 88,872 88,539
90% 89.9% 79,985 79,859
80% 80.6% 71,098 71,657
70% 69.8% 62,211 62,007
60% 59.5% 53,323 52,908
50% 50.1% 44,436 44,508
40% 40.2% 35,549 35,757
30% 30.4% 26,662 26,987
20% 20.2% 17,774 17,926
10% 10.0% 8,887 8,892
Active Idle   0 0
Graph of results
