SPECpower_ssj2008 JVM Instance 'linux-qsr3.054' Performance Report

SPECpower_ssj2008

JVM Instance 'linux-qsr3.054' Performance Report

Lenovo Global Technology ThinkSystem SR850			ssj_ops@100% = 90,975
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 29, 2019
Hardware Availability:	Apr-2019	Software Availability:	Dec-2018	Publication:	Jul 17, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

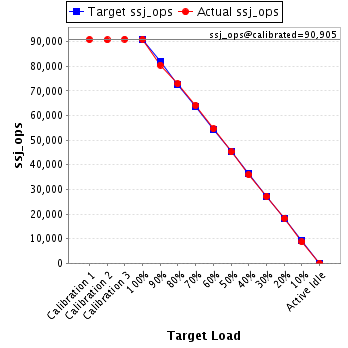

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,849
Calibration 2			90,758
Calibration 3			91,053
ssj_ops@calibrated=90,905
100%	100.1%	90,905	90,975
90%	88.6%	81,815	80,533
80%	80.2%	72,724	72,944
70%	70.6%	63,634	64,202
60%	60.0%	54,543	54,584
50%	49.8%	45,453	45,245
40%	39.6%	36,362	35,955
30%	29.9%	27,272	27,168
20%	20.1%	18,181	18,267
10%	9.6%	9,091	8,687
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	ThinkSystem SR850
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8276L
CPU Characteristics:	28-Core, 2.2GHz, 39424KB L3 Cache
CPU Frequency (MHz):	2200
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-RE2-12-MH1; Slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, and 48 populated.
Power Supply Quantity and Rating (W):	1 x 750
Power Supply Details:	Lenovo P/N:7N67A00883
Disk Drive:	1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	Kernel 4.12.14-94.41-default
Filesystem:	btrfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xss256k -Xmn1700m -Xms1950m -Xms1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 112 }
JVM Instances:	112
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	TEE136S
Management Firmware Version:	TEI342S
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Operating Mode: Custom Mode
Memory Power Management: Automatic
Page Policy: Adaptive
Intel VT for Directed I/O(VT-d): Disable
Memory Data Scrambling: Disable
Turbo Mode: Disable
Intel Virtualization Technology: Disable
Hardware Prefetcher: Disable
Adjacent Cache Prefetch: Disable
DCU Streamer Prefetcher: Disable
Patrol Scrub: Disable
Ethernet over USB interface: Disable

Management Firmware Settings

none

System Under Test Notes

Benchmark started via ssh
Each JVM instance was affinitized to two threads on a single socket
echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
echo 16000000 > /proc/sys/kernel/sched_latency_ns
echo 9000000 > /proc/sys/kernel/sched_min_granularity_ns
N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	6,607,237	1,945
		Payment	6,607,233
		Order Status	660,722
		Delivery	660,723
		Stock Level	660,725
		Customer Report	6,607,236
Calibration 2		New Order	6,600,583	1,945
		Payment	6,600,586
		Order Status	660,059
		Delivery	660,060
		Stock Level	660,059
		Customer Report	6,600,583
Calibration 3		New Order	6,622,018	1,945
		Payment	6,622,021
		Order Status	662,203
		Delivery	662,201
		Stock Level	662,203
		Customer Report	6,622,017
100%	100.1%	New Order	6,616,374	1,945
		Payment	6,616,374
		Order Status	661,638
		Delivery	661,637
		Stock Level	661,637
		Customer Report	6,616,377
90%	88.6%	New Order	5,856,976	1,945
		Payment	5,856,977
		Order Status	585,696
		Delivery	585,698
		Stock Level	585,697
		Customer Report	5,856,975
80%	80.2%	New Order	5,305,060	1,945
		Payment	5,305,058
		Order Status	530,506
		Delivery	530,505
		Stock Level	530,504
		Customer Report	5,305,057
70%	70.6%	New Order	4,669,217	1,945
		Payment	4,669,214
		Order Status	466,921
		Delivery	466,922
		Stock Level	466,920
		Customer Report	4,669,215
60%	60.0%	New Order	3,969,788	1,945
		Payment	3,969,784
		Order Status	396,980
		Delivery	396,978
		Stock Level	396,979
		Customer Report	3,969,787
50%	49.8%	New Order	3,290,575	1,945
		Payment	3,290,574
		Order Status	329,057
		Delivery	329,058
		Stock Level	329,057
		Customer Report	3,290,576
40%	39.6%	New Order	2,614,956	1,945
		Payment	2,614,952
		Order Status	261,495
		Delivery	261,495
		Stock Level	261,495
		Customer Report	2,614,949
30%	29.9%	New Order	1,975,830	1,945
		Payment	1,975,833
		Order Status	197,584
		Delivery	197,583
		Stock Level	197,583
		Customer Report	1,975,834
20%	20.1%	New Order	1,328,485	1,945
		Payment	1,328,487
		Order Status	132,848
		Delivery	132,847
		Stock Level	132,849
		Customer Report	1,328,484
10%	9.6%	New Order	631,818	1,945
		Payment	631,815
		Order Status	63,183
		Delivery	63,183
		Stock Level	63,182
		Customer Report	631,819
Active Idle		New Order	0	1,945
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
