SPECpower_ssj2008 JVM Instance 'linux-qsr3.068' Performance Report

SPECpower_ssj2008

JVM Instance 'linux-qsr3.068' Performance Report

Lenovo Global Technology ThinkSystem SR850			ssj_ops@100% = 90,462
Test Sponsor:	Lenovo Global Technology	SPEC License #:	9017	Test Method:	Single Node
Tested By:	Lenovo Global Technology	Test Location:	Beijing, China	Test Date:	May 29, 2019
Hardware Availability:	Apr-2019	Software Availability:	Dec-2018	Publication:	Jul 17, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

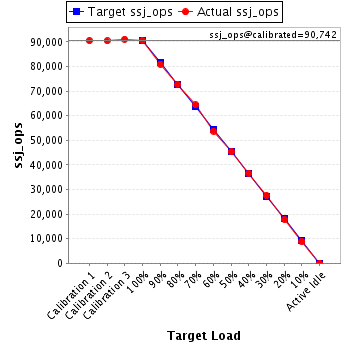

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			90,414
Calibration 2			90,404
Calibration 3			91,081
ssj_ops@calibrated=90,742
100%	99.7%	90,742	90,462
90%	89.2%	81,668	80,935
80%	80.1%	72,594	72,683
70%	70.9%	63,520	64,354
60%	59.2%	54,445	53,738
50%	49.9%	45,371	45,248
40%	40.3%	36,297	36,612
30%	30.4%	27,223	27,549
20%	19.7%	18,148	17,887
10%	9.7%	9,074	8,837
Active Idle		0	0

System Under Test

Set: 'sut'

Set Identifier:	sut
Set Description:	System Under Test
# of Identical Nodes:	1
Comment:	'SUT'

Hardware
Hardware Vendor:	Lenovo Global Technology
Model:	ThinkSystem SR850
Form Factor:	2U
CPU Name:	Intel Xeon Platinum 8276L
CPU Characteristics:	28-Core, 2.2GHz, 39424KB L3 Cache
CPU Frequency (MHz):	2200
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-RE2-12-MH1; Slots 1, 3, 5, 8, 10, 12, 13, 15, 17, 20, 22, 24, 25, 27, 29, 32, 34, 36, 37, 39, 41, 44, 46, and 48 populated.
Power Supply Quantity and Rating (W):	1 x 750
Power Supply Details:	Lenovo P/N:7N67A00883
Disk Drive:	1 x 128GB M.2 SSD (Lenovo P/N 7N47A00130)
Disk Controller:	Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed:	1 x Broadcom NetXtreme Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	Kernel 4.12.14-94.41-default
Filesystem:	btrfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xss256k -Xmn1700m -Xms1950m -Xms1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC -XX:LargePageSizeInBytes=2m -XX:+UseHugeTLBFS -XX:+UseTransparentHugePages
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 112 }
JVM Instances:	112
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	TEE136S
Management Firmware Version:	TEI342S
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

Operating Mode: Custom Mode
Memory Power Management: Automatic
Page Policy: Adaptive
Intel VT for Directed I/O(VT-d): Disable
Memory Data Scrambling: Disable
Turbo Mode: Disable
Intel Virtualization Technology: Disable
Hardware Prefetcher: Disable
Adjacent Cache Prefetch: Disable
DCU Streamer Prefetcher: Disable
Patrol Scrub: Disable
Ethernet over USB interface: Disable

Management Firmware Settings

none

System Under Test Notes

Benchmark started via ssh
Each JVM instance was affinitized to two threads on a single socket
echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
echo 16000000 > /proc/sys/kernel/sched_latency_ns
echo 9000000 > /proc/sys/kernel/sched_min_granularity_ns
N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented

Notes

SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.

Performance Details

Target Load	Actual Load	Transaction Type	Count	Total Heap (MB)
Calibration 1		New Order	6,575,594	1,945
		Payment	6,575,597
		Order Status	657,560
		Delivery	657,558
		Stock Level	657,558
		Customer Report	6,575,590
Calibration 2		New Order	6,574,832	1,945
		Payment	6,574,834
		Order Status	657,484
		Delivery	657,484
		Stock Level	657,483
		Customer Report	6,574,829
Calibration 3		New Order	6,624,054	1,945
		Payment	6,624,056
		Order Status	662,406
		Delivery	662,406
		Stock Level	662,405
		Customer Report	6,624,054
100%	99.7%	New Order	6,579,073	1,945
		Payment	6,579,070
		Order Status	657,908
		Delivery	657,906
		Stock Level	657,907
		Customer Report	6,579,072
90%	89.2%	New Order	5,886,167	1,945
		Payment	5,886,173
		Order Status	588,616
		Delivery	588,618
		Stock Level	588,618
		Customer Report	5,886,168
80%	80.1%	New Order	5,286,074	1,945
		Payment	5,286,079
		Order Status	528,607
		Delivery	528,608
		Stock Level	528,609
		Customer Report	5,286,070
70%	70.9%	New Order	4,680,332	1,945
		Payment	4,680,333
		Order Status	468,033
		Delivery	468,033
		Stock Level	468,032
		Customer Report	4,680,332
60%	59.2%	New Order	3,908,242	1,945
		Payment	3,908,241
		Order Status	390,824
		Delivery	390,825
		Stock Level	390,825
		Customer Report	3,908,244
50%	49.9%	New Order	3,290,749	1,945
		Payment	3,290,751
		Order Status	329,074
		Delivery	329,075
		Stock Level	329,074
		Customer Report	3,290,749
40%	40.3%	New Order	2,662,675	1,945
		Payment	2,662,673
		Order Status	266,268
		Delivery	266,267
		Stock Level	266,267
		Customer Report	2,662,673
30%	30.4%	New Order	2,003,559	1,945
		Payment	2,003,564
		Order Status	200,356
		Delivery	200,356
		Stock Level	200,357
		Customer Report	2,003,563
20%	19.7%	New Order	1,300,910	1,945
		Payment	1,300,910
		Order Status	130,090
		Delivery	130,090
		Stock Level	130,090
		Customer Report	1,300,910
10%	9.7%	New Order	642,729	1,945
		Payment	642,726
		Order Status	64,273
		Delivery	64,273
		Stock Level	64,271
		Customer Report	642,728
Active Idle		New Order	0	1,945
		Payment	0
		Order Status	0
		Delivery	0
		Stock Level	0
		Customer Report	0

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
